| Color 1 |
Metallic green |
| Color 2 |
- |

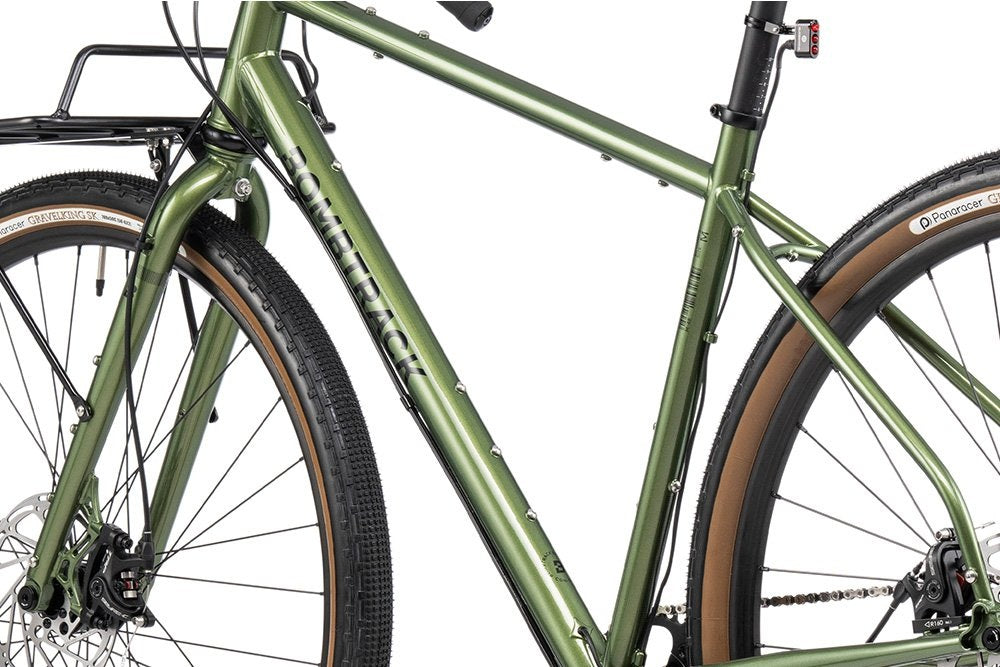

| Frame |
4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
| Fork |
4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Handlebar |
Bombtrack Beyond travel bar, 31.8 mm, 30° flare |
| Grips |
Bombtrack Command bar tape |
| Stem |
Bombtrack Wander forged aluminium stem, +17° |
| Headset |
Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Levers |
Sram Apex double tap mechanic |
| Shifter |
Sram Apex double tap 1 x 11 |
| Brakes |
TRP Spyre C mechanic disc brakes |
| Rotor |
TRP 180 mm front and 160 mm rear rotor |

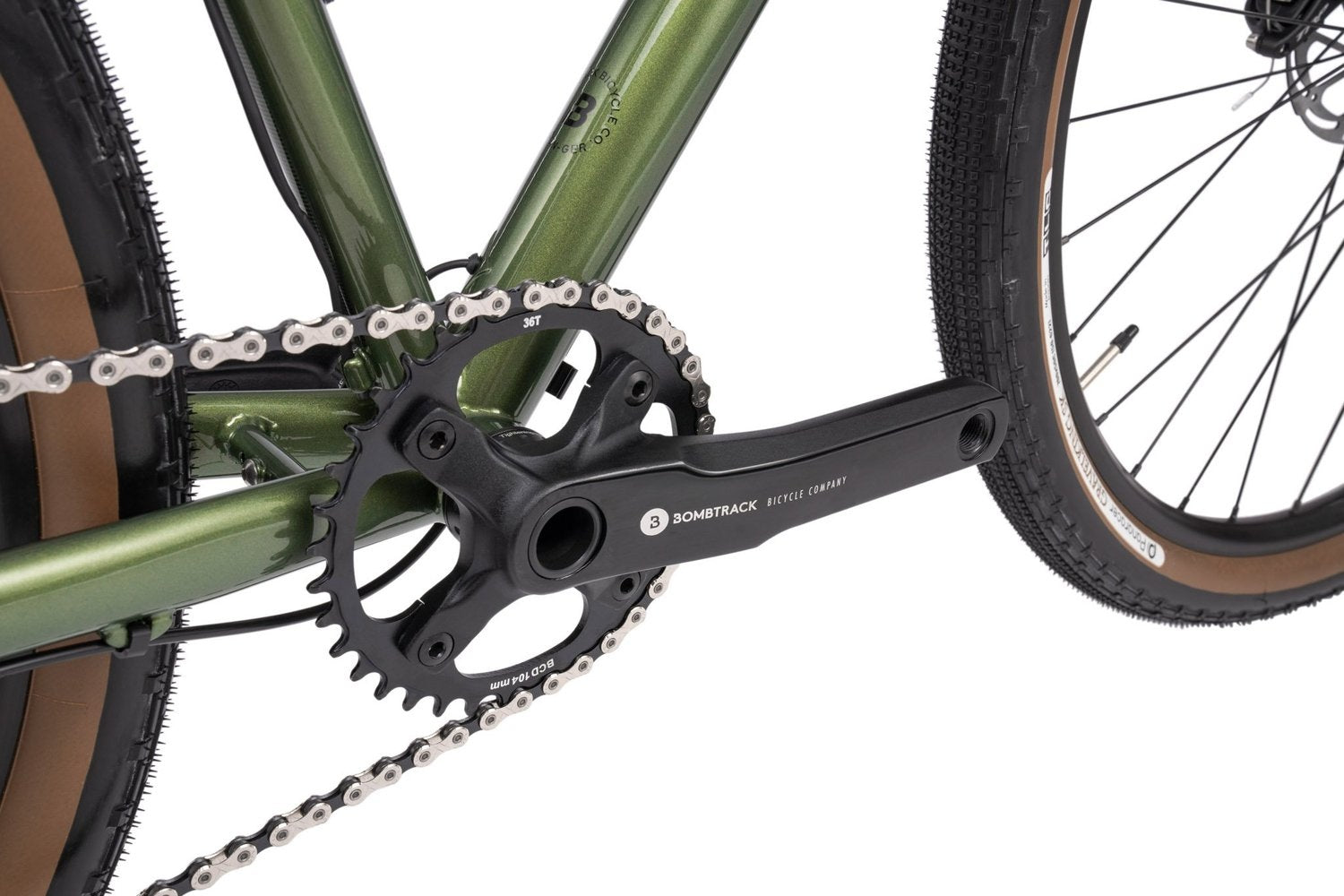

| Crankset |
Bombtrack Ames forged aluminium crank, 24 mm spindle |
| BB |
BSA sealed BB, external cups |
| Pedals |
- |
| Chain |
KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring |
Aluminium, narrow-wide, 36 T |

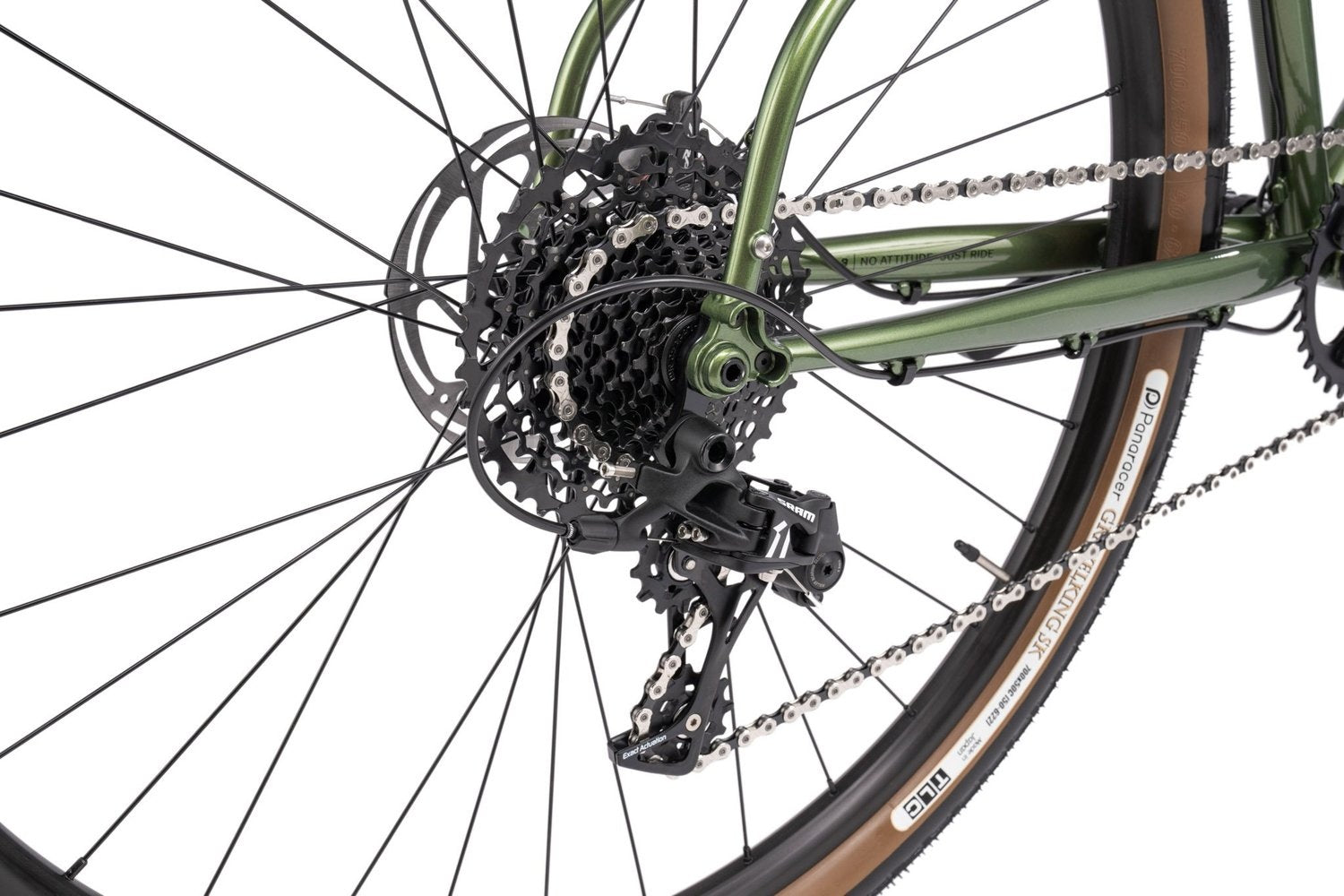

| Cassette |
Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur |
- |

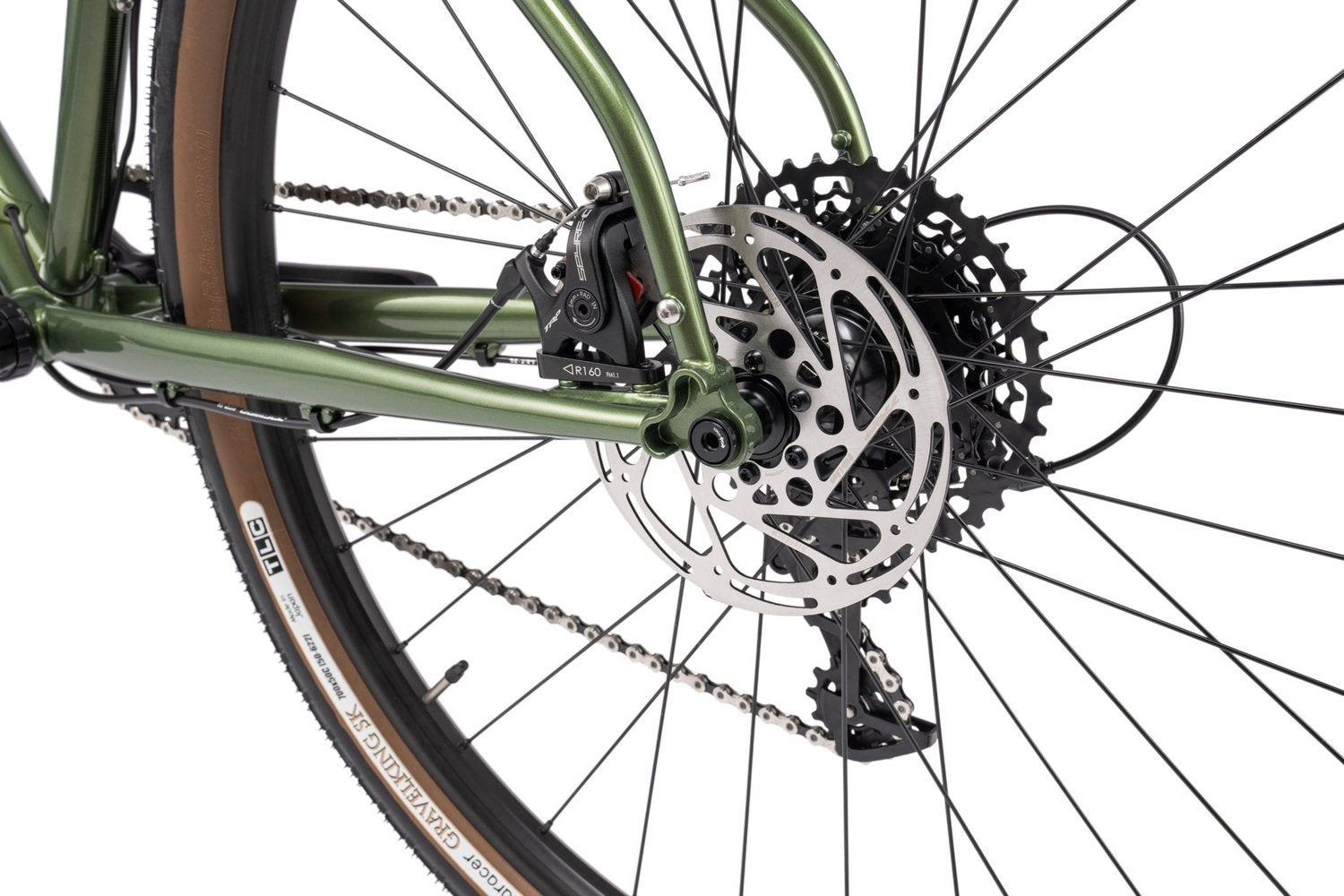

| Rear derailleur |
Sram Apex 1, clutch, long cage |

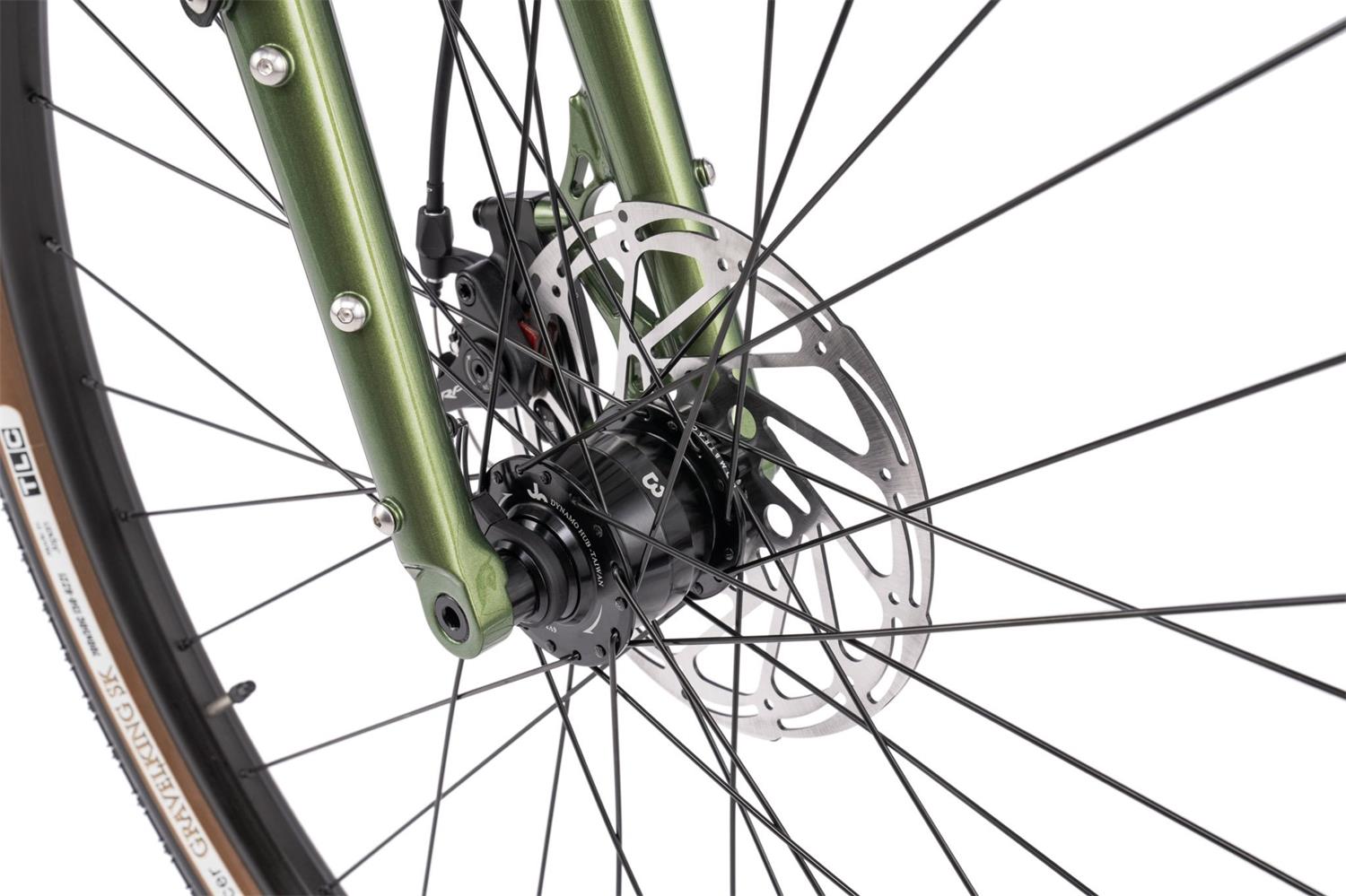

| Front hub |
KT dynamo hub, 6-bolt disc |
| Rear hub |
Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle |
15 x 100 mm / 12 x 142 mm |
| Front rim |
WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim |
WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle |
Bombtrack Fuzz saddle |
| Seat post |
Seido Beech 27.2 mm x 400 mm |
| Seat clamp |
Bombtrack Origin 29.8 mm |
| Front tire |
Panaracer Gravelking SK XS - S 27.5'' x 1.9'' /
M - XL 29'' x 2.0'', tubeless ready |
| Rear tire |
Panaracer Gravelking SK XS - S 27.5'' x 1.9'' /
M - XL 29'' x 2.0'', tubeless ready |

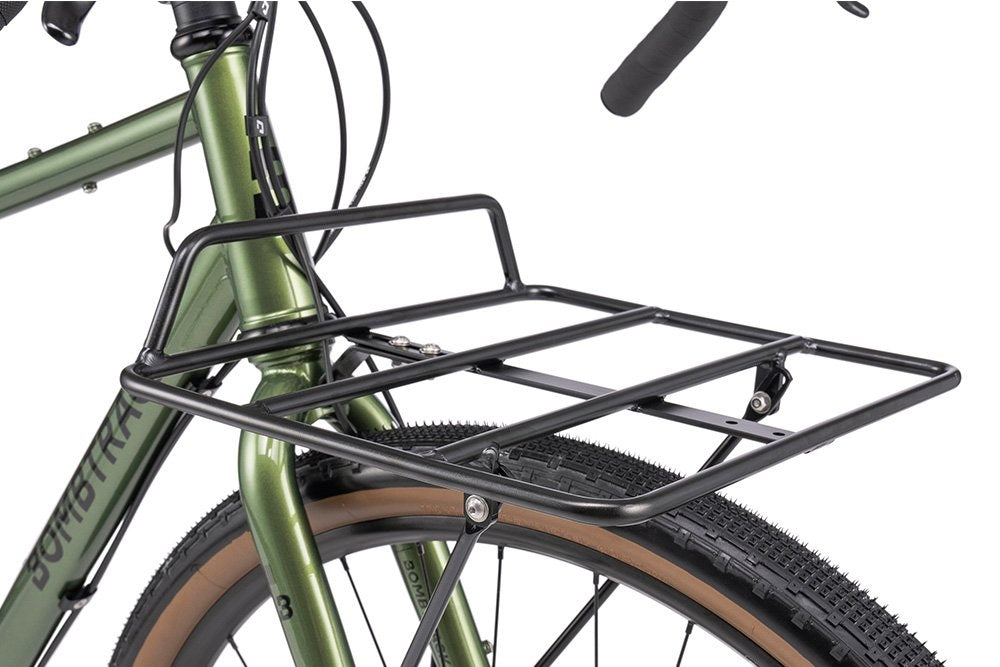

| Rack |
Bombtrack Deck frontrack, aluminium |

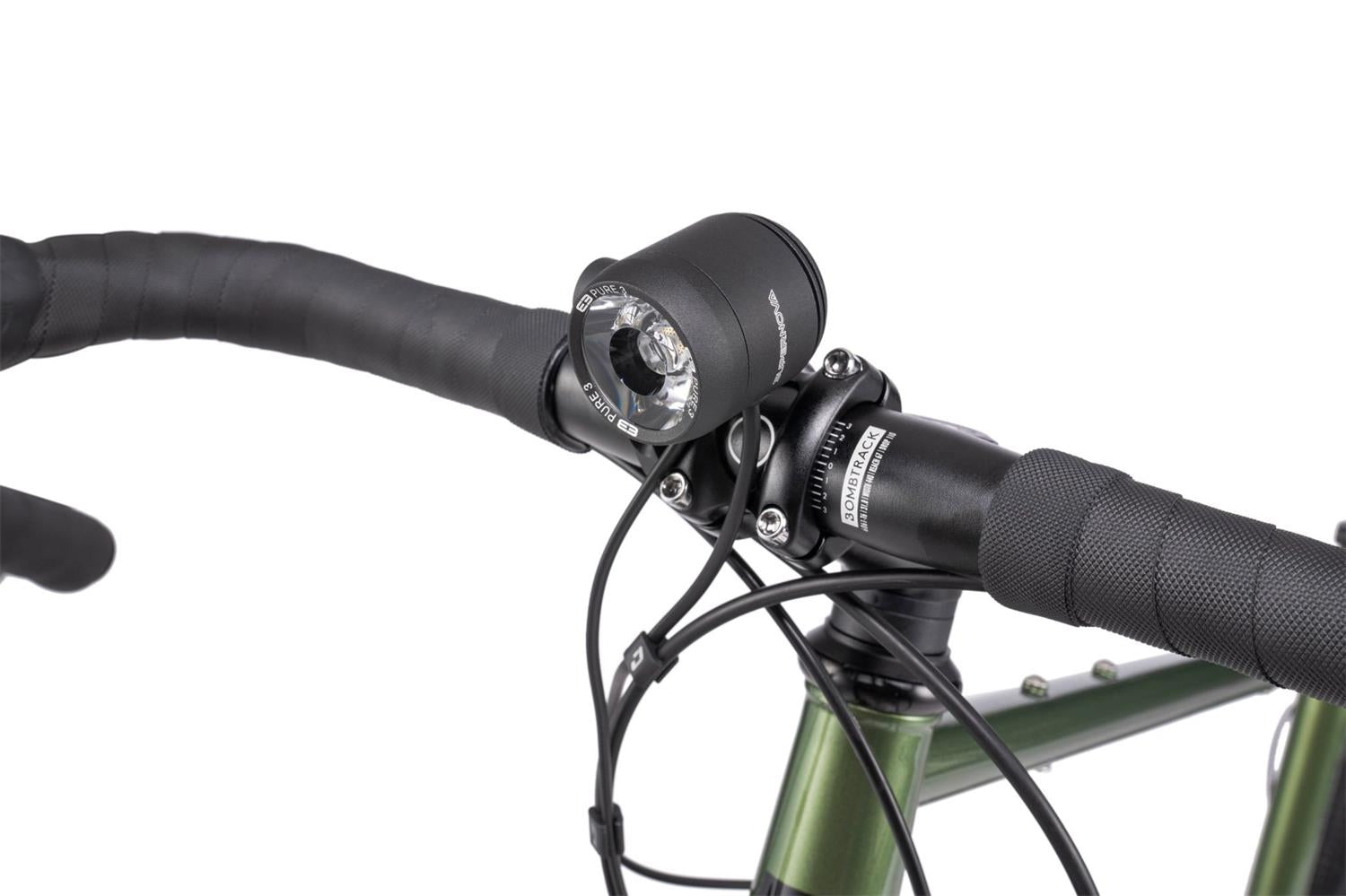

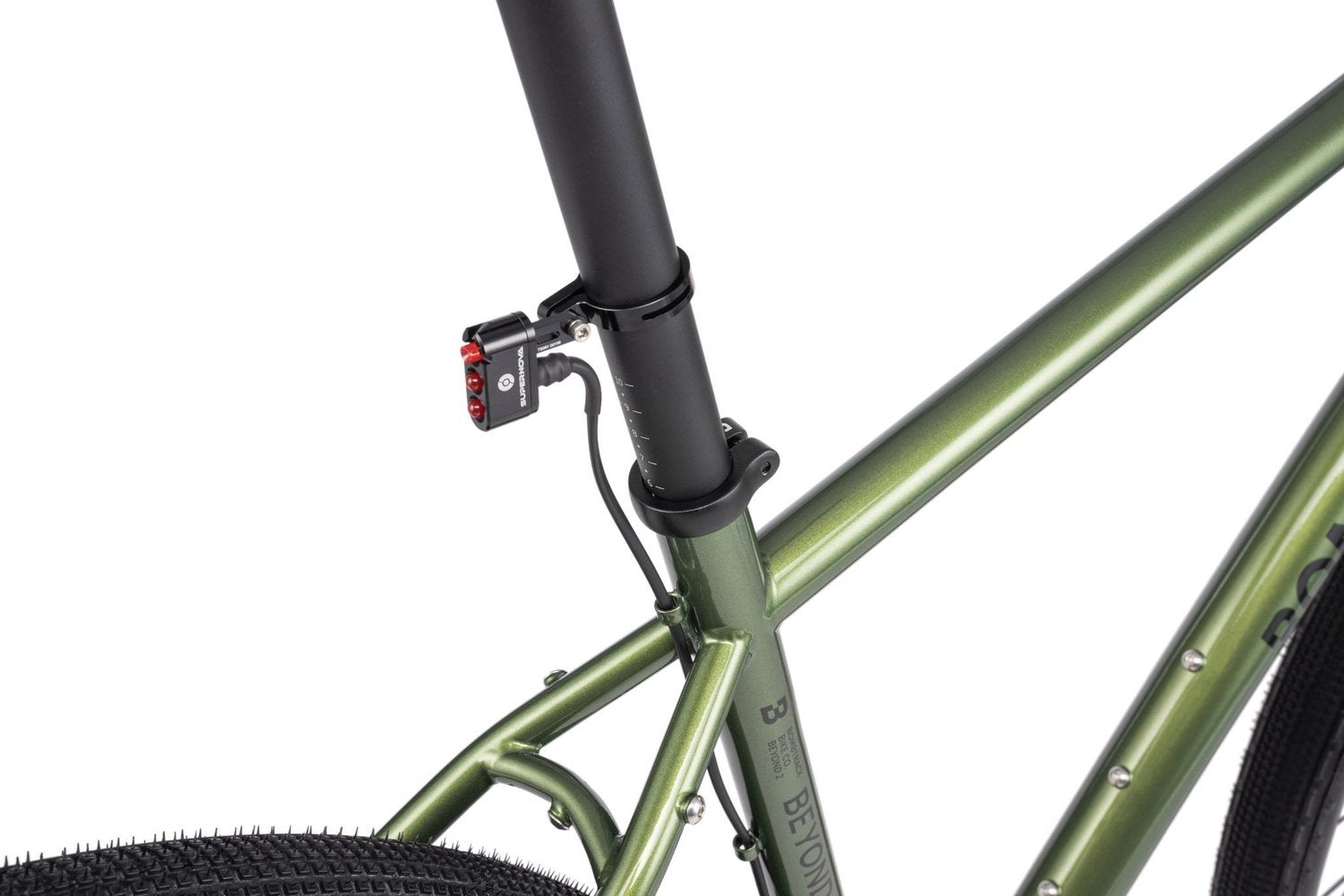

| Light |
Supernova E3 Pure 3 front, E3 Tail Light 2 rear |
| Weight |
13.2 kg (size M) |
| Weight frameset |
2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight |
140 kg incl. luggage |
| ASTM riding condition |
2 |
