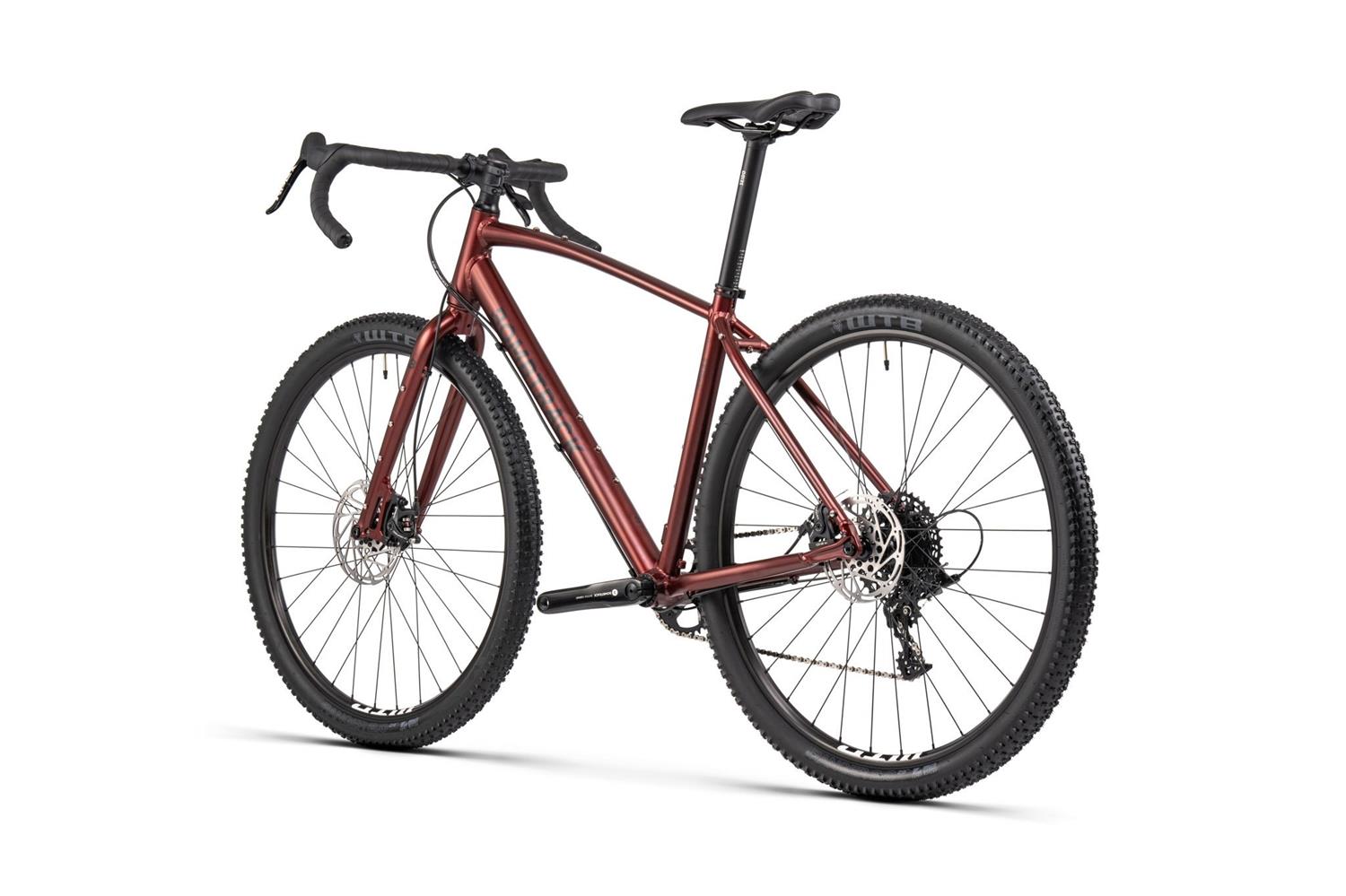

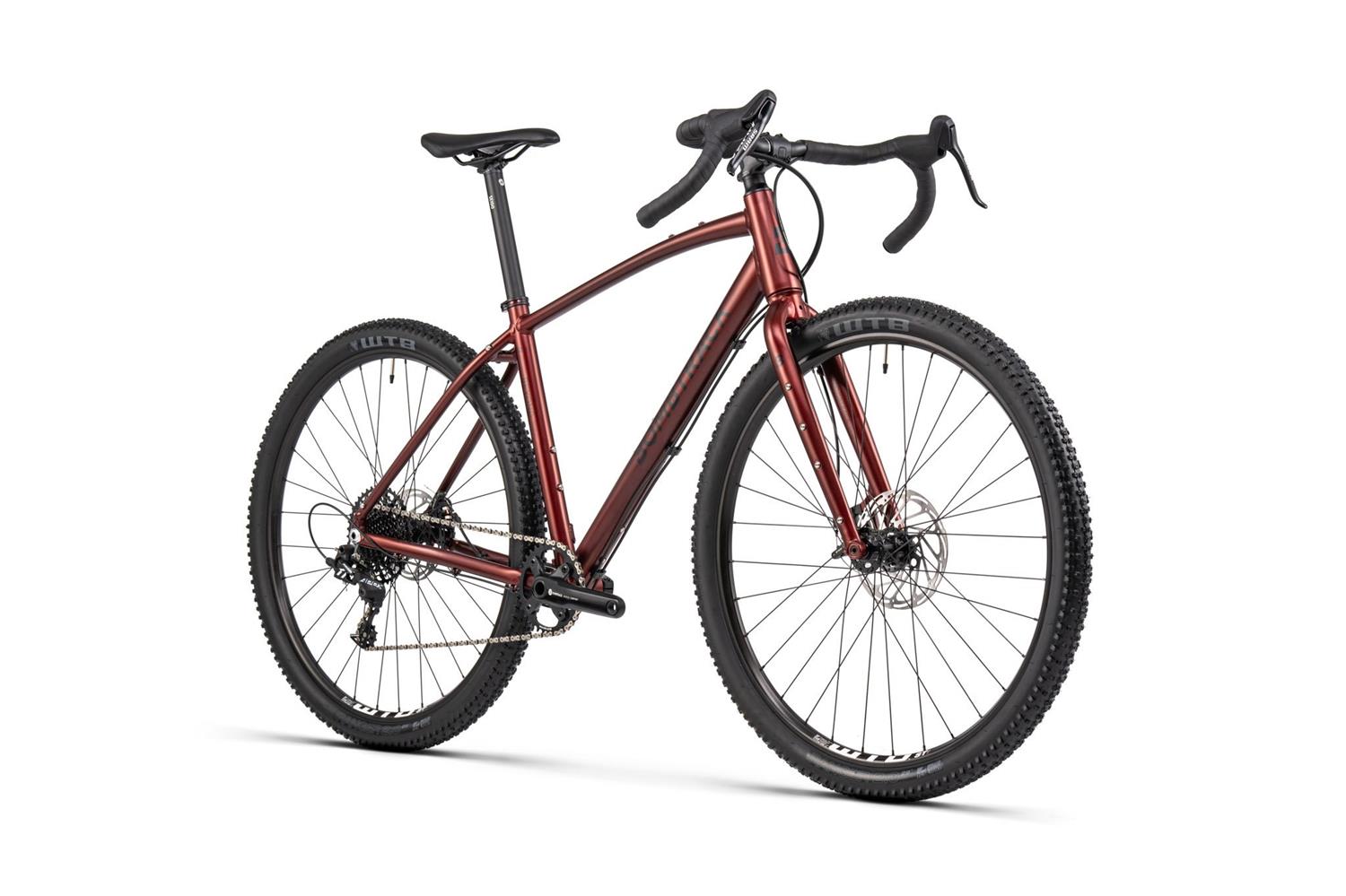

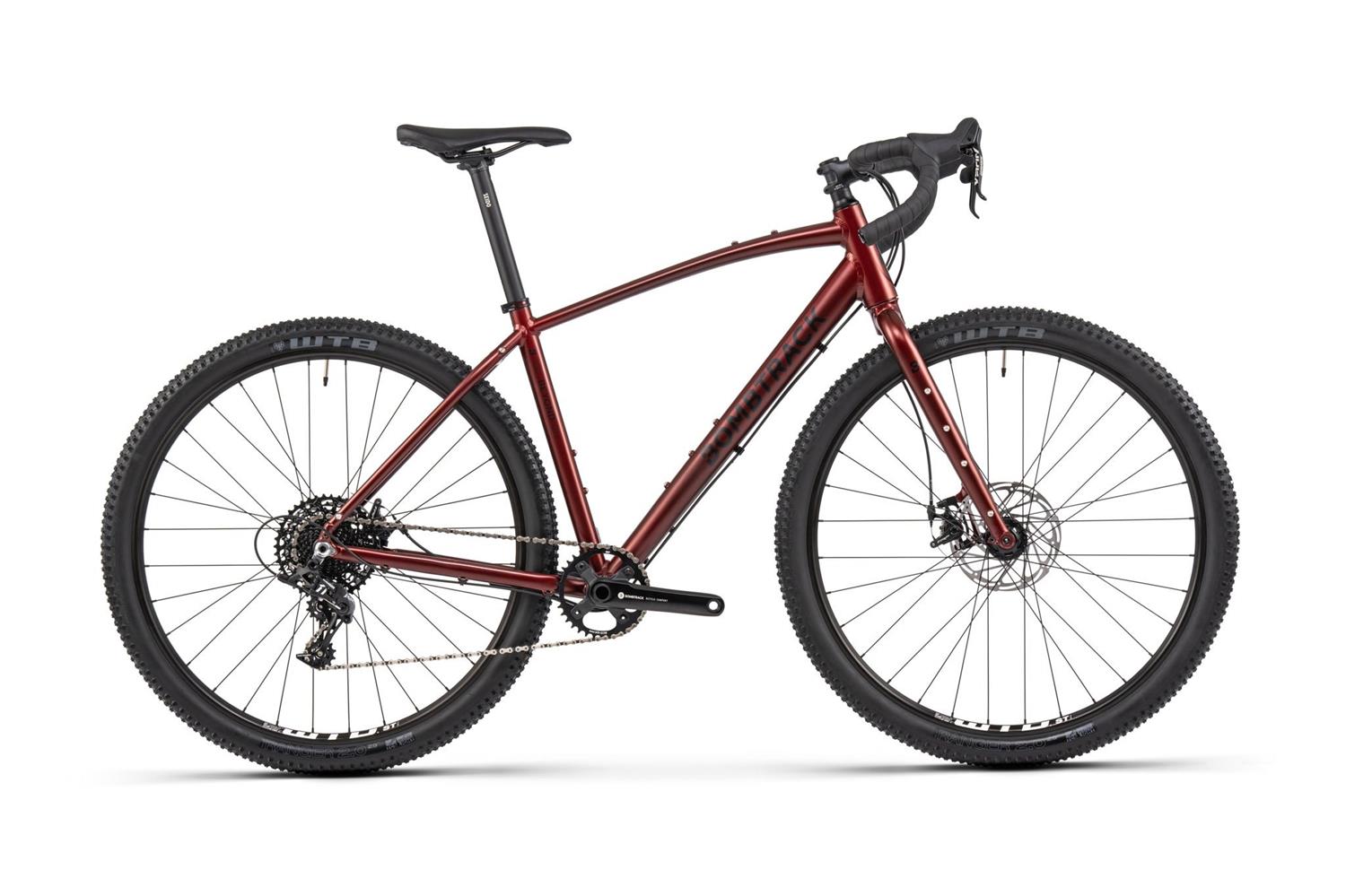

The Beyond AL is our lightweight hydro-formed aluminium Beyond. It features all our trademark Bombtrack ingredients, such as internal dynamo cable routing, a multitude of mounts on both the frame and on the aluminium fork, plus dropper post compatibility.
Sram’s Apex 1 x 11 mechanical setup provides the shifting duties, while TRP callipers with 180 / 160 mm rotors control your momentum.
Small bikes come with 27.5’’ wheels, M - XL bikes are fitted with 29’’ wheels and both wheelsets have tubeless-ready WTB i23 rims wrapped in all-condition Ranger 2.0’’ tyres allowing you to just get on with riding whatever the surface.
"With a full range of mounts and braze-ons across its fork and frame, it's happy to accept either panniers or bikepacking bags."
Color 1

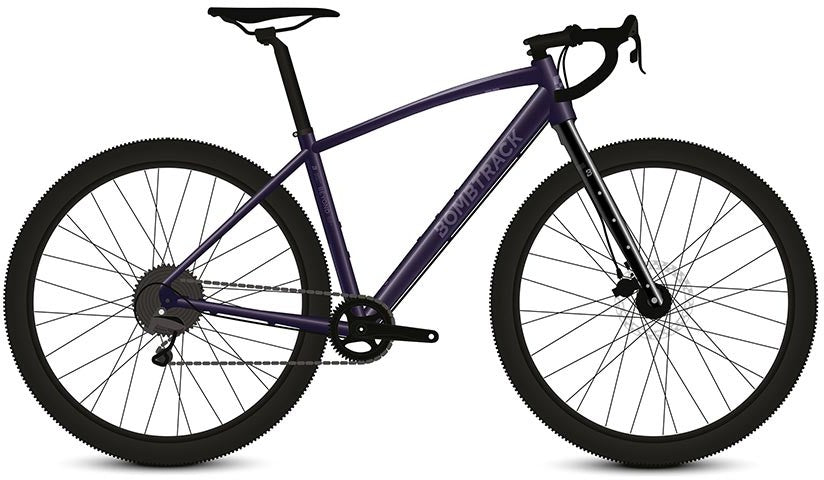

Matt Metallic purple
Color 2
Matt Metallic Red
Frame
6061-T6 hydro-formed aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell
Fork
6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing

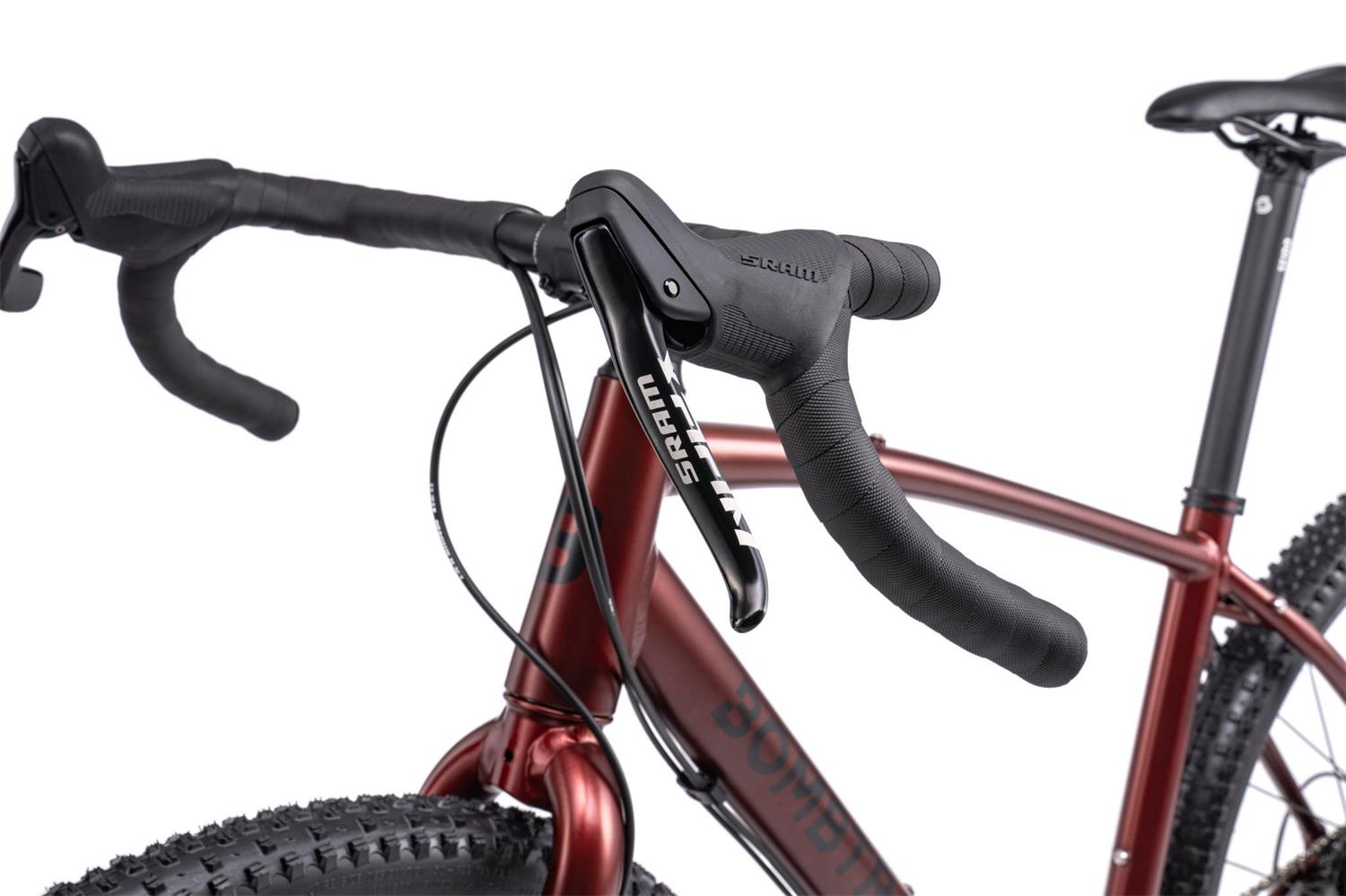

Handlebar
Bombtrack Tackle gravel bar, 31.8 mm, 25° flare
Grips
Bombtrack Command bar tape
Stem
Bombtrack Tramp forged aluminium stem, 3°
Headset
Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Levers
Sram Apex double tap mechanic
Shifter
Sram Apex double tap 1 x 11

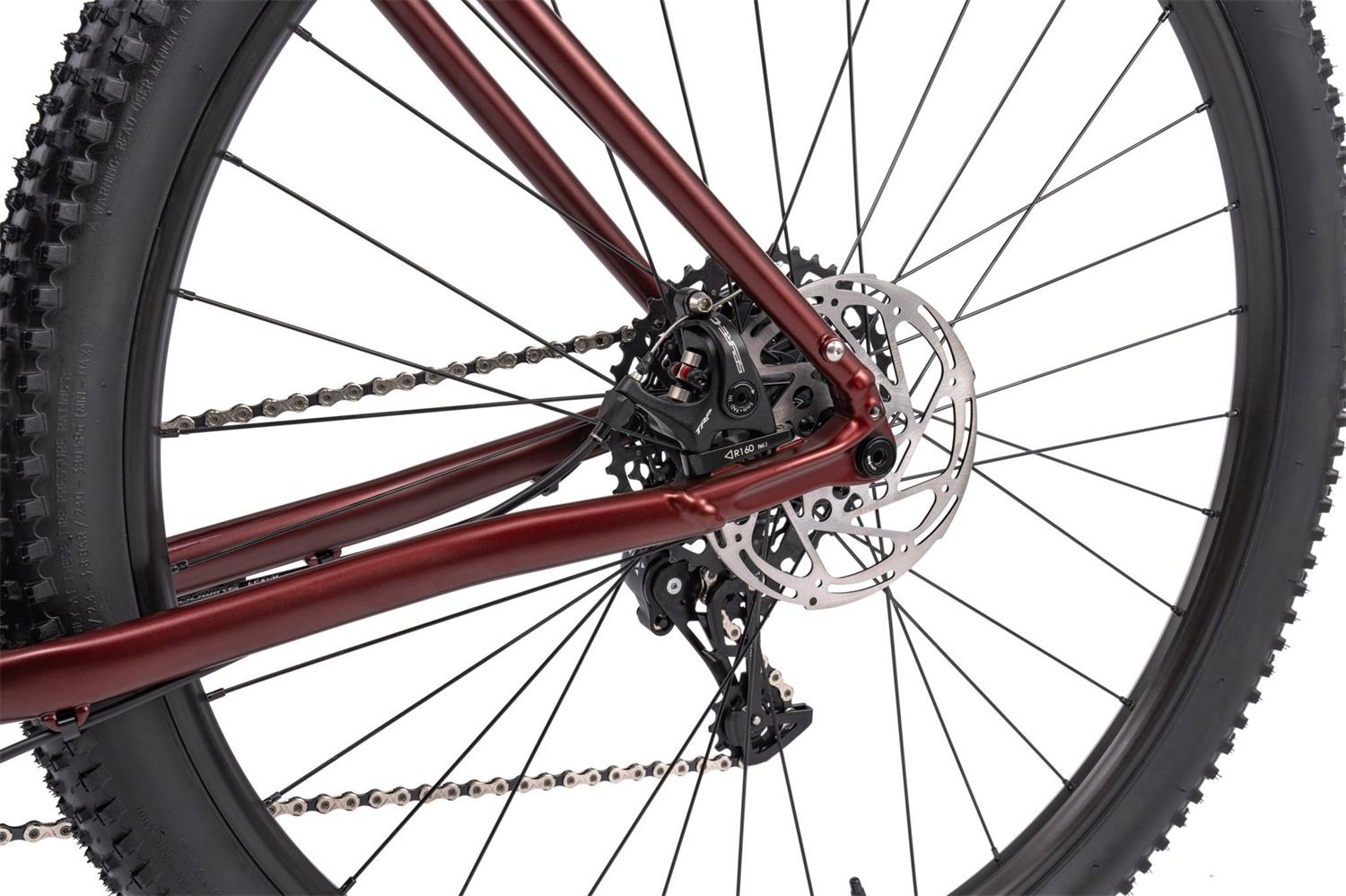

Brakes

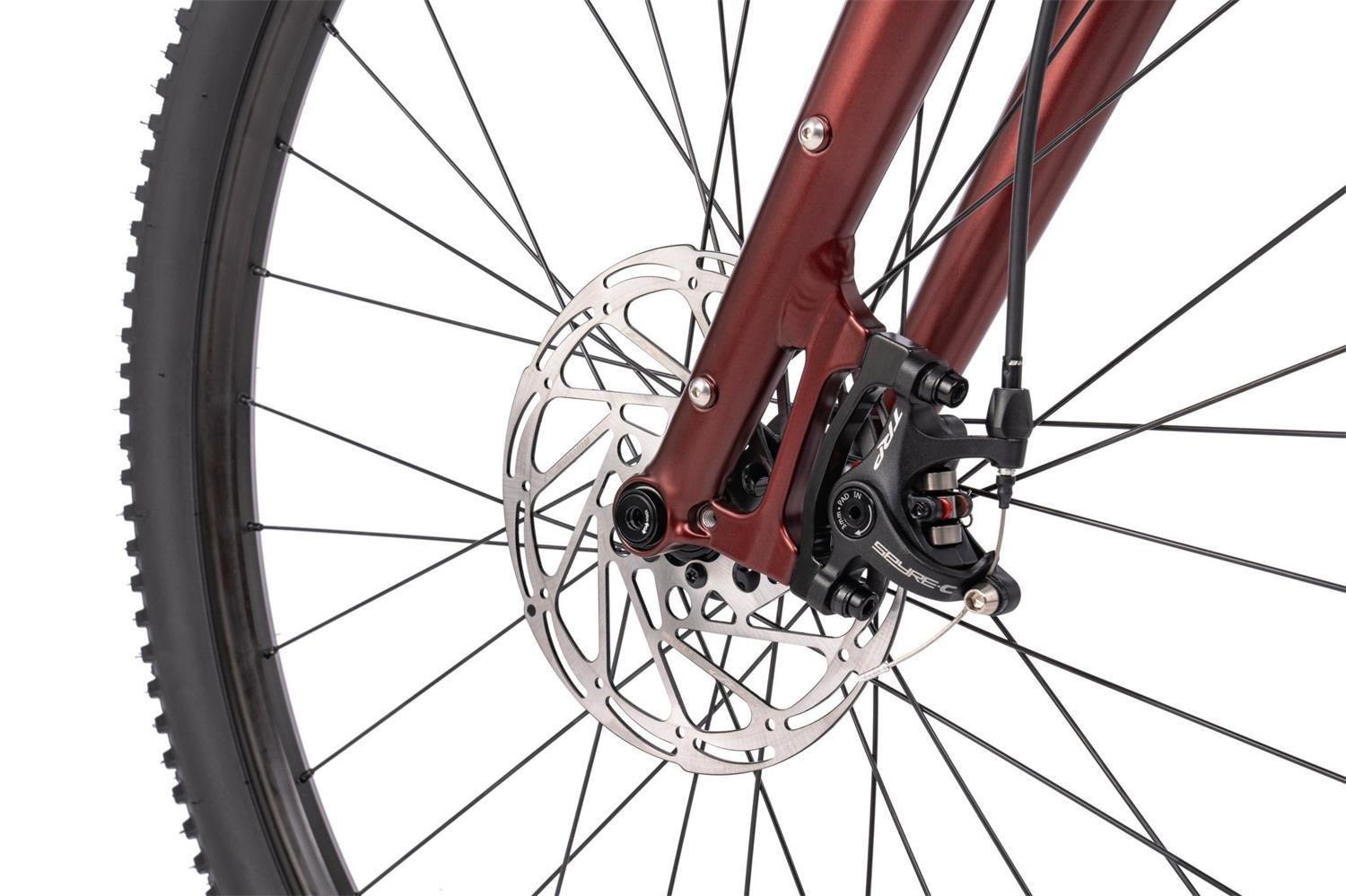

TRP Spyre C mechanic disc brakes
Rotor
TRP 180 mm front and 160 mm rear rotor
Crankset

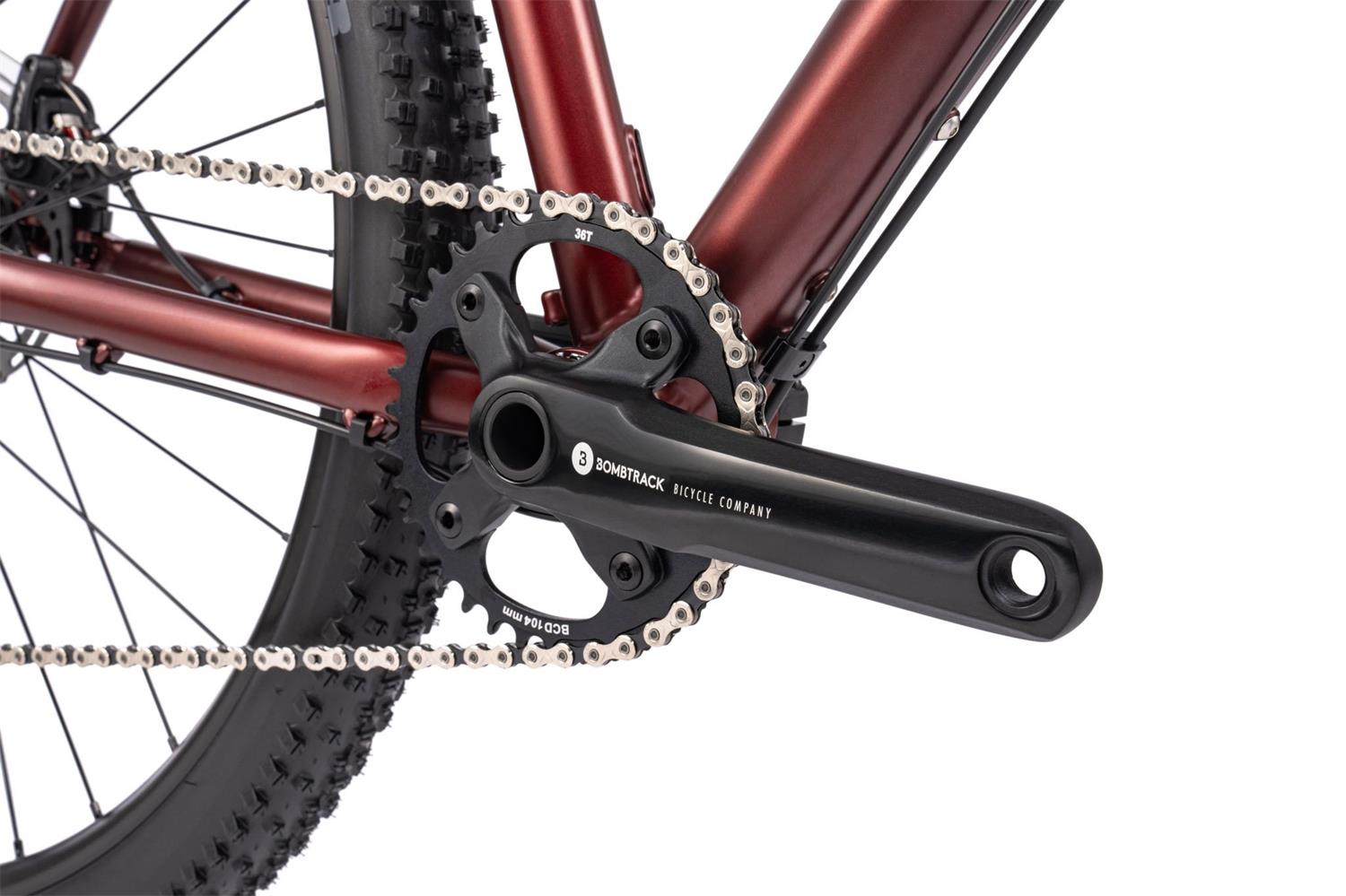

Bombtrack Ames forged aluminium crank, 24 mm spindle
BB
Bombtrack T47 internal sealed BB for 24 mm spindle
Pedals
-
Chain
KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring
Steel, narrow-wide, 36 T
Cassette
Sram PG-1130 11-speed, 11 - 42 T
Front derailleur
-
Rear derailleur

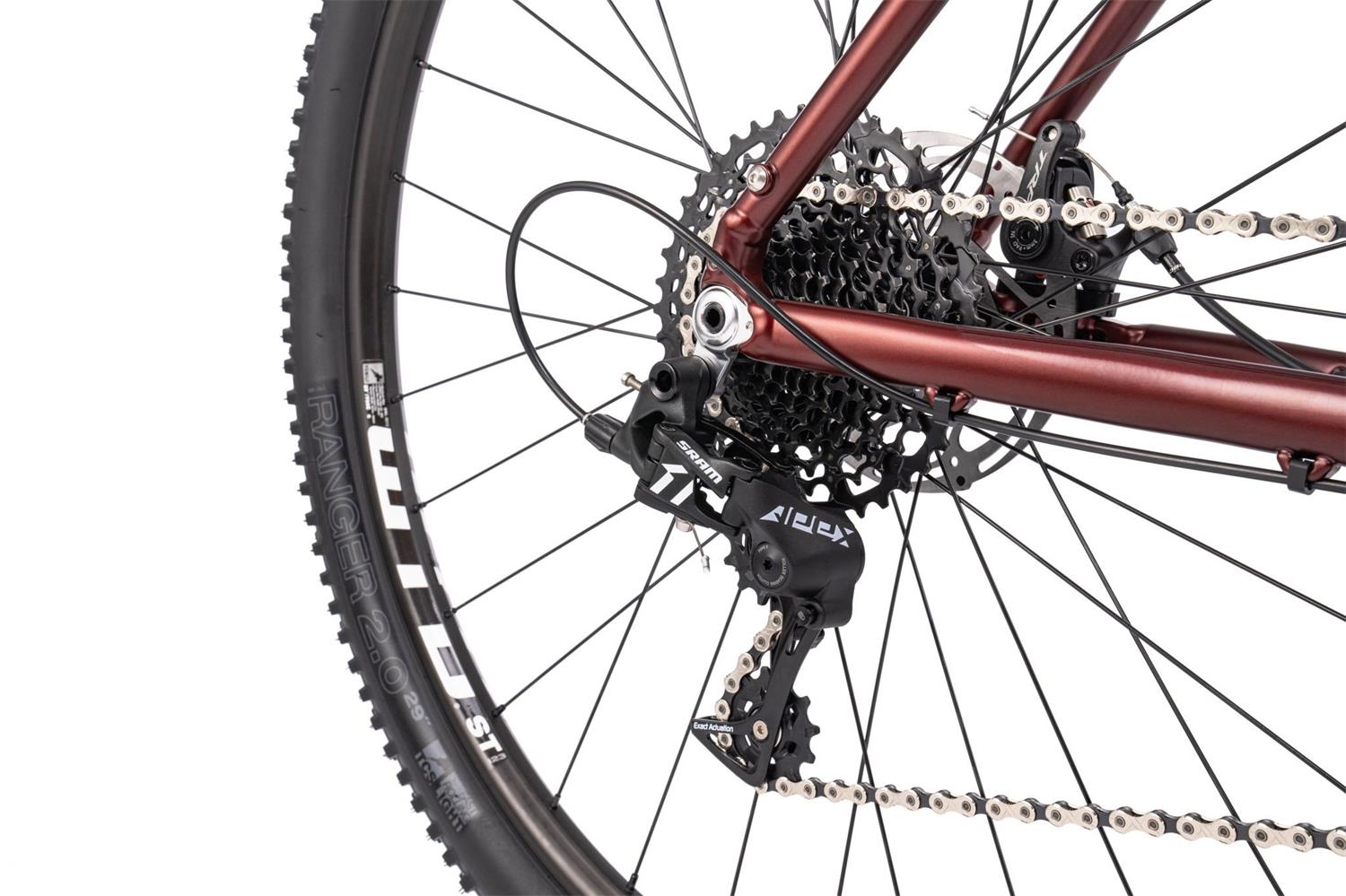

Sram Apex 1, clutch, long cage
Front hub

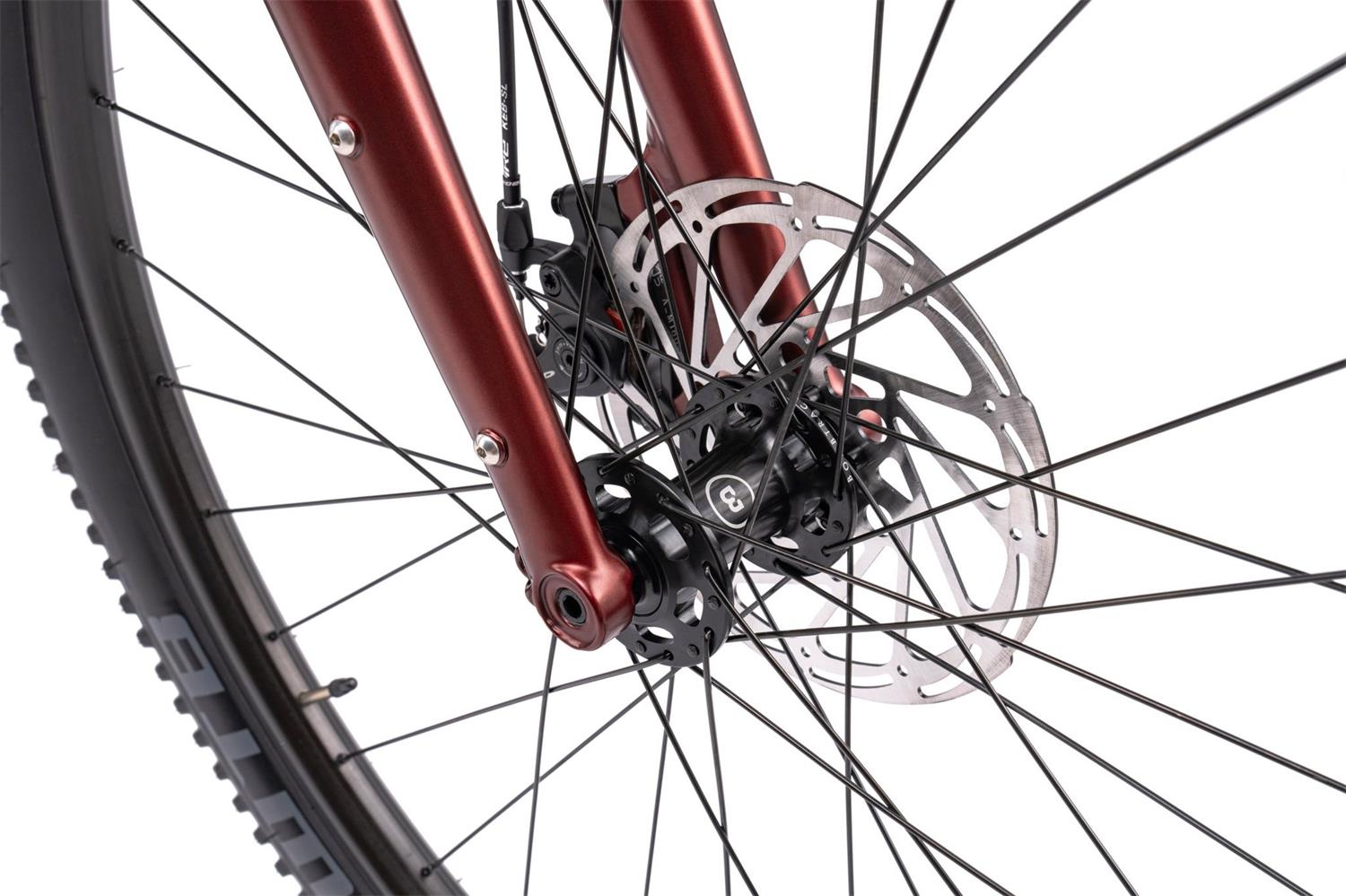

Bombtrack Arc sealed hub, 6-bolt disc
Rear hub
Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle
12 x 100 mm / 12 x 142 mm
Front rim
WTB ST i23 double wall, TCS 2.0, 32h
Rear rim
WTB ST i23 double wall, TCS 2.0, 32h
Saddle
Bombtrack Fuzz saddle
Seat post
Seido Yew aluminium seatpost, 31.6 mm x 400 mm
Seat clamp
Bombtrack Prime 34.9 mm
Front tire

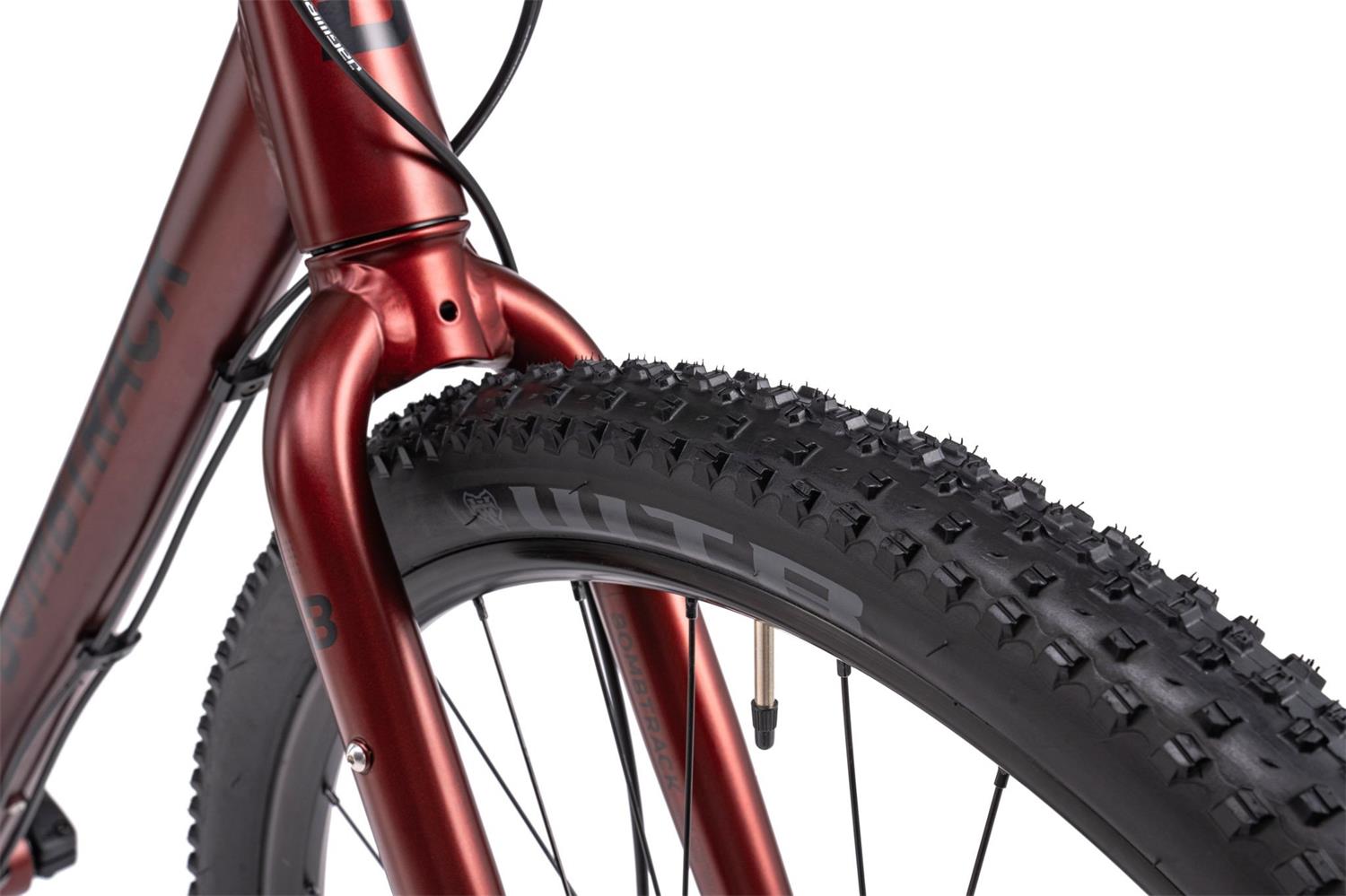

WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' /
M - XL 29'' x 2.0'', tubeless ready
Rear tire
WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' /
M - XL 29'' x 2.0'', tubeless ready
Weight
11.7 kg (size M)
Weight frameset
2145 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1000 g fork (300 mm steerer, incl. TA)
Maximum rider weight
140 kg incl. luggage
ASTM riding condition
2
Final product may vary in appearance, finish and minor details.
