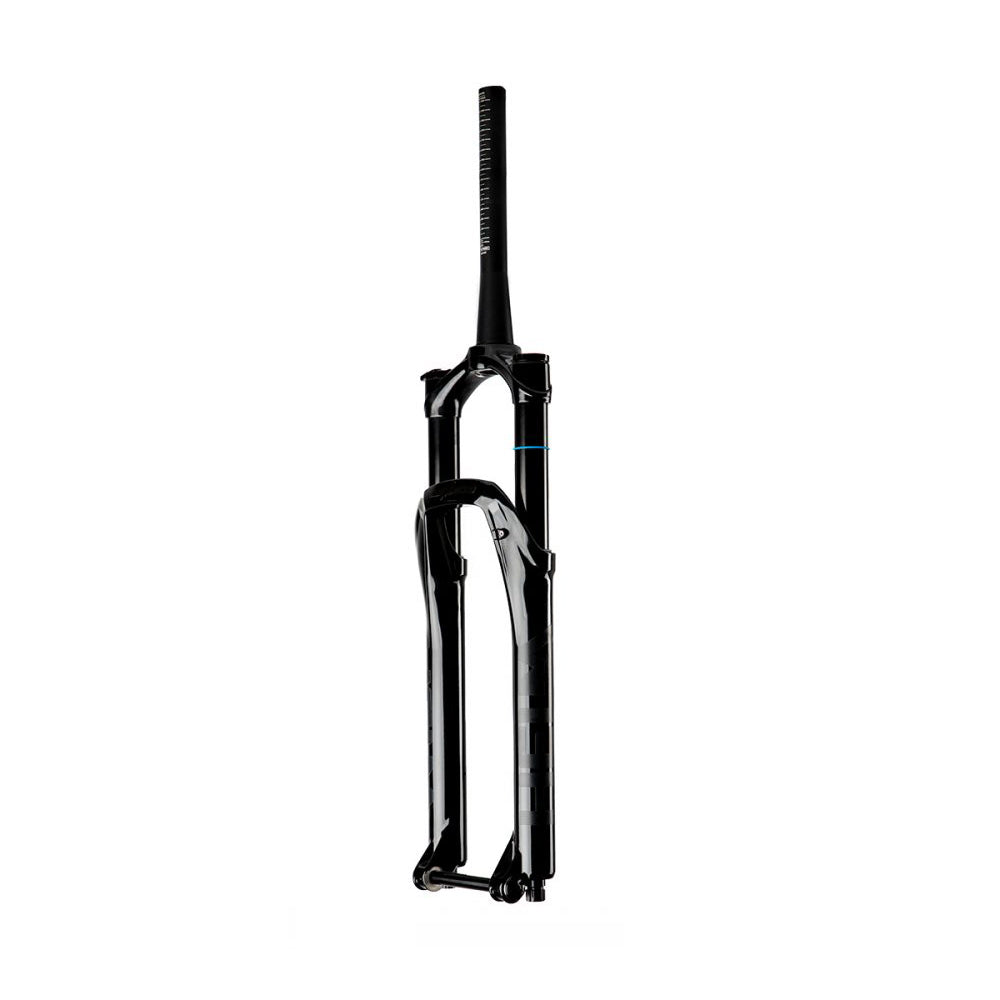

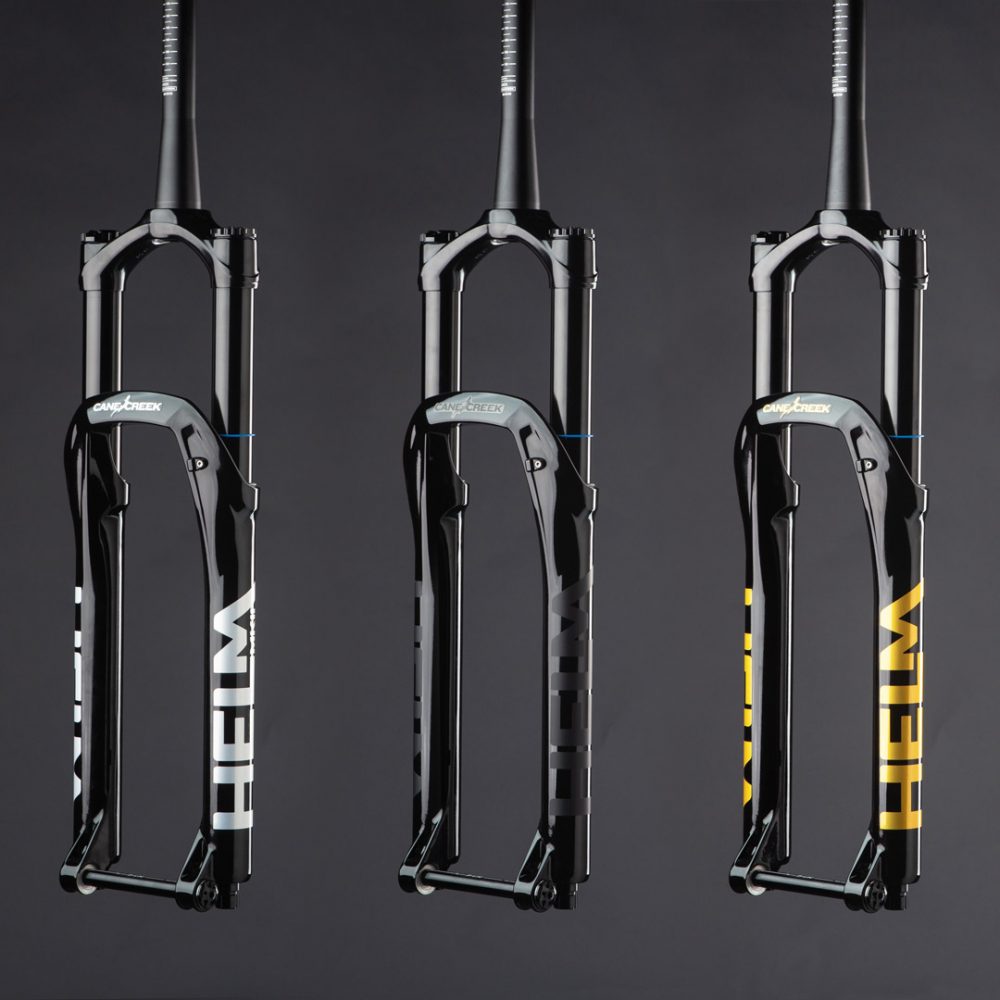

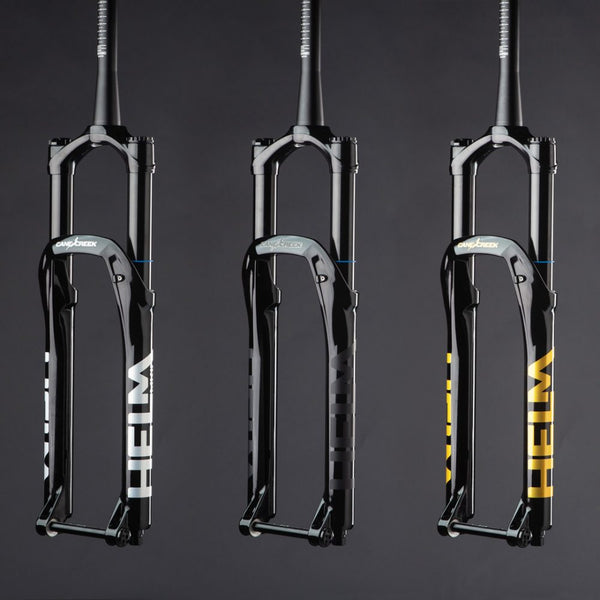

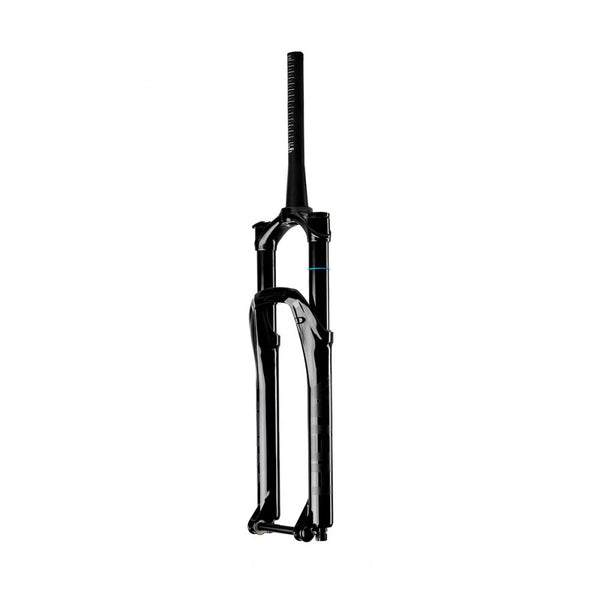

Cane Creek Helm MKII

CANE CREEK HELM MK II FORK

We are proud to announce the release of the new Helm MKII suspension fork.  The Helm MKII will be our first major revision of the Helm fork lineup and improves on its predecessor in nearly every way.

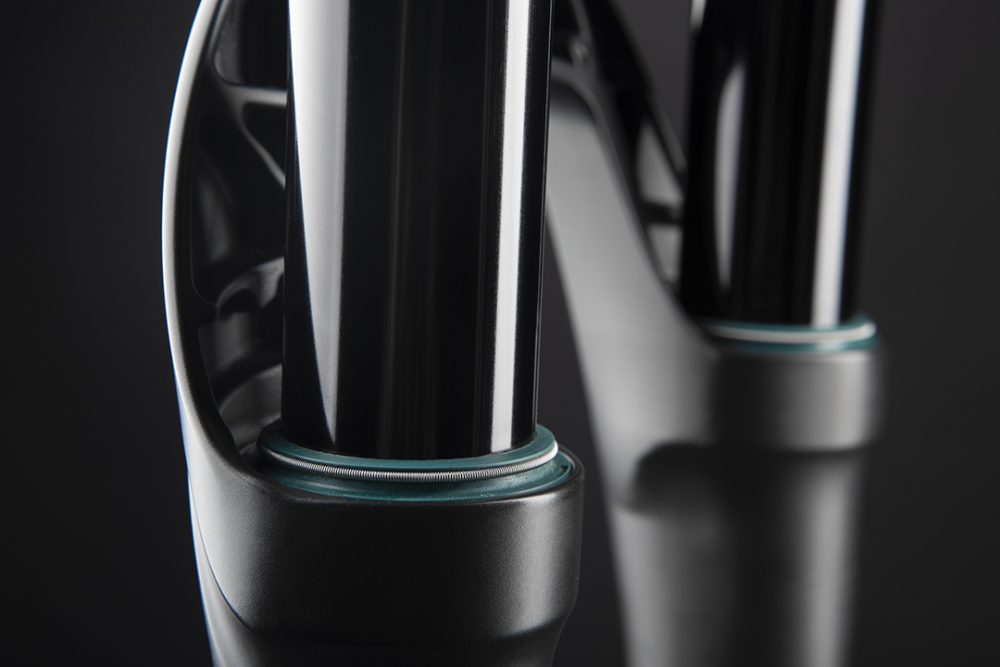

The HELM MKII newly designed damper features a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight damper oil reduce friction and provide a more supple ride-feel.

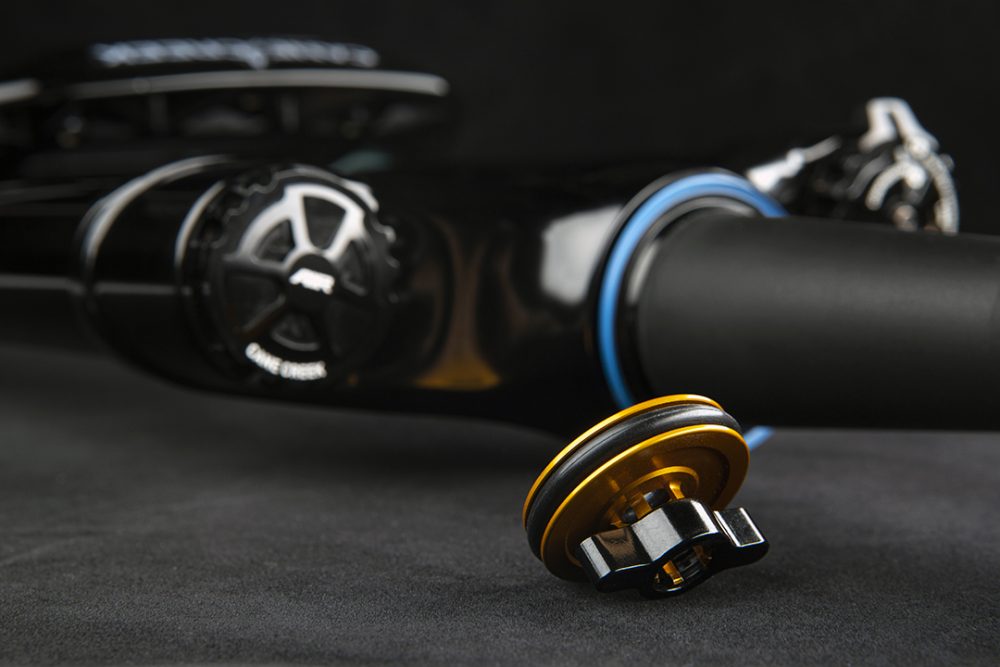

The Helm MKII redesigned air spring has a new air piston designed to reduce friction, an increased air volume for better traction and suppleness, and a threadless seal head for easier travel change. In addition to the updated damper and air spring, the HELM MKII features a variety of external usability improvements including easier to turn knobs and a D-LOC bolt-on axle.

SPECIFICATIONS

ADJUSTMENTS

• High speed compression (10 positions)
• Low speed compression (17 positions)
• Low speed rebound (10 positions)
• Independent positive air spring
• Independent negative air spring
• Indexed travel adjust system (8 positions

DAMPING

• High Speed Compression, Low Speed Compression, Low Speed Rebound
