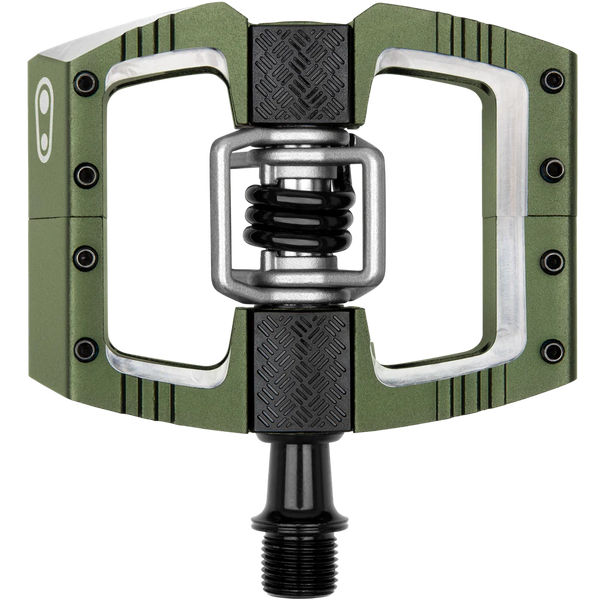

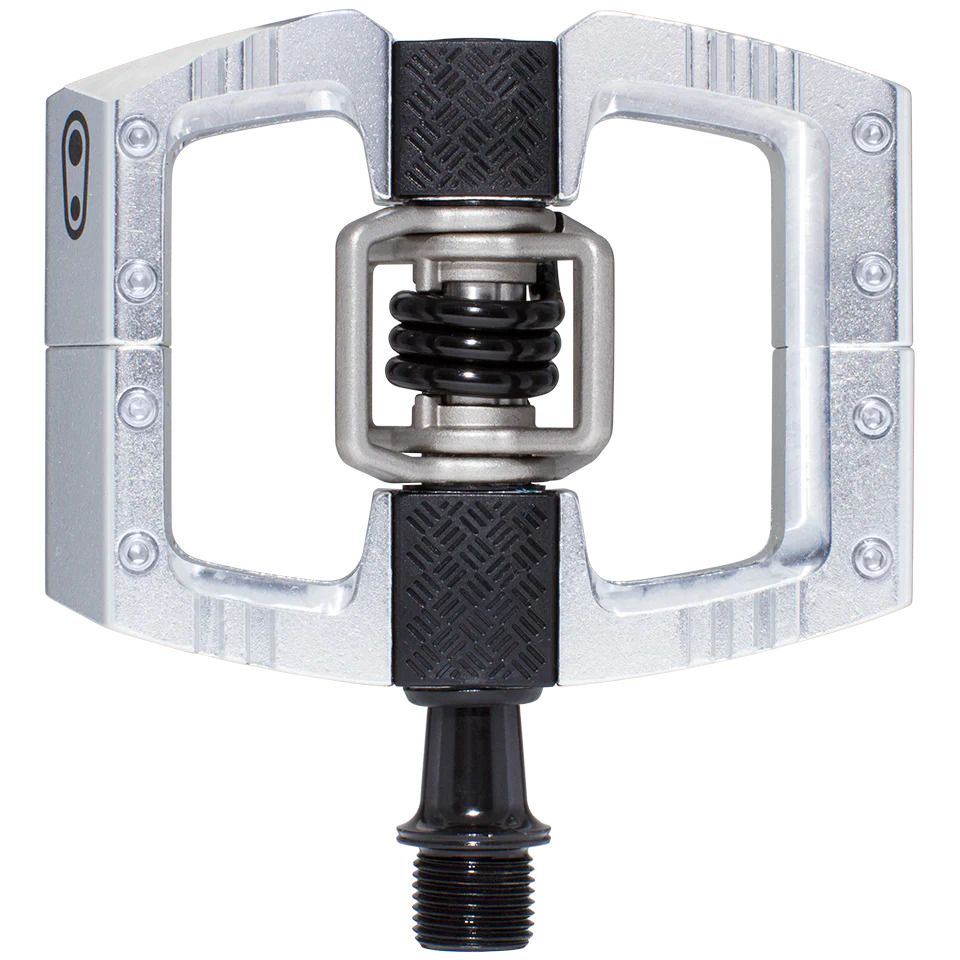

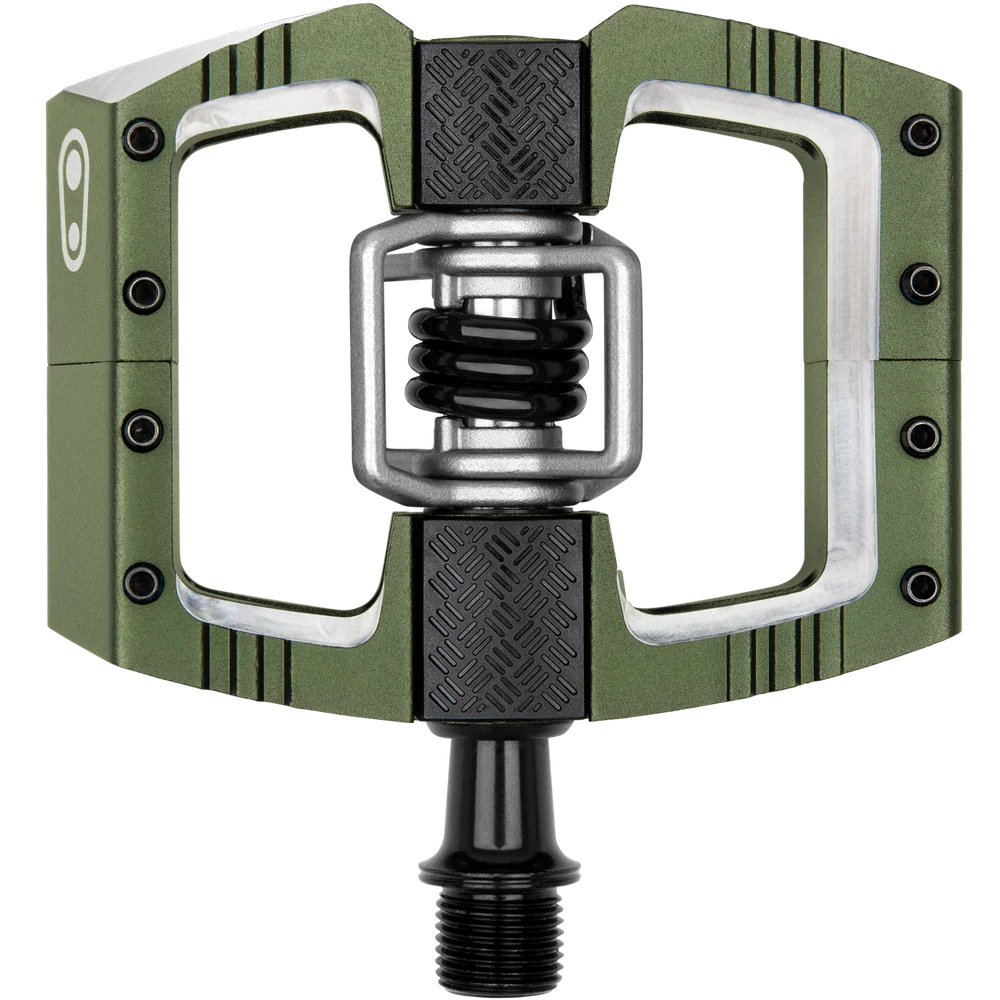

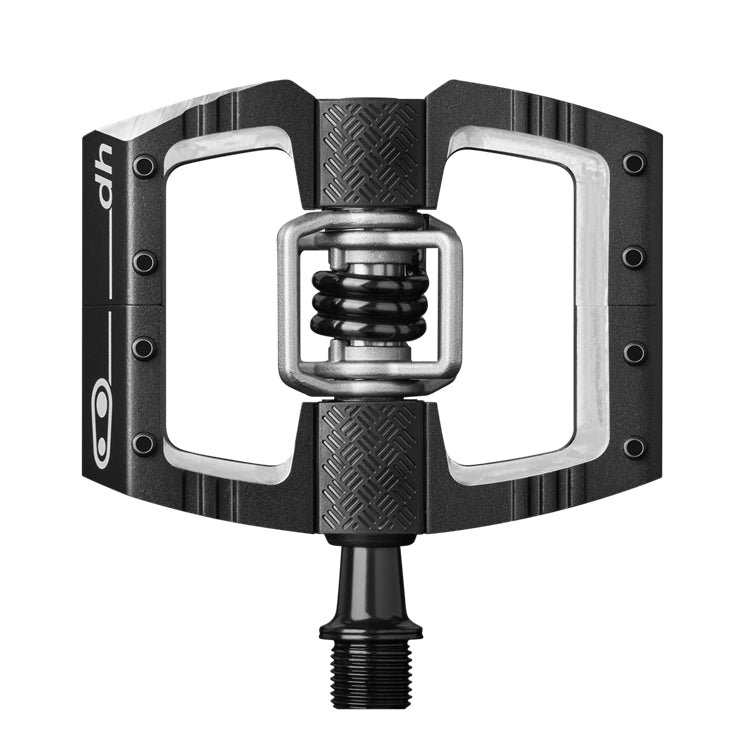

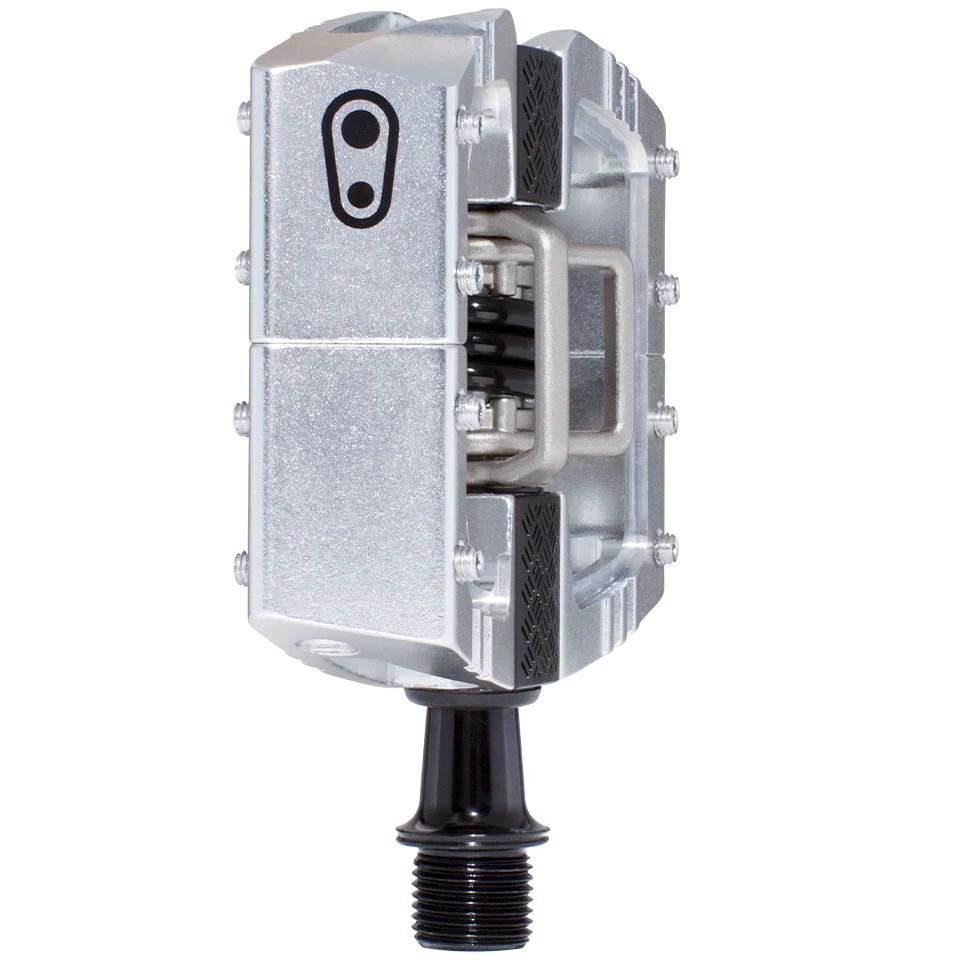

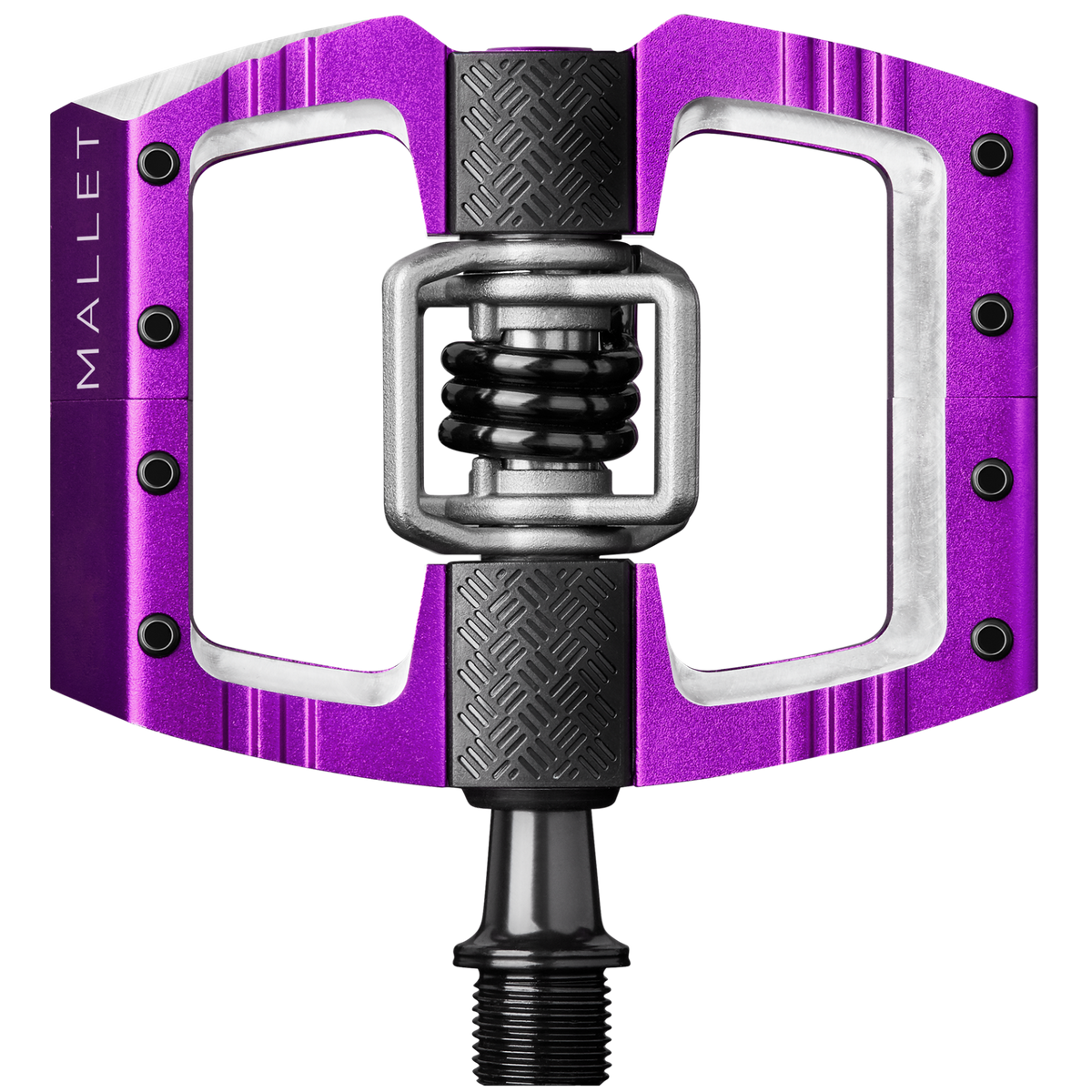

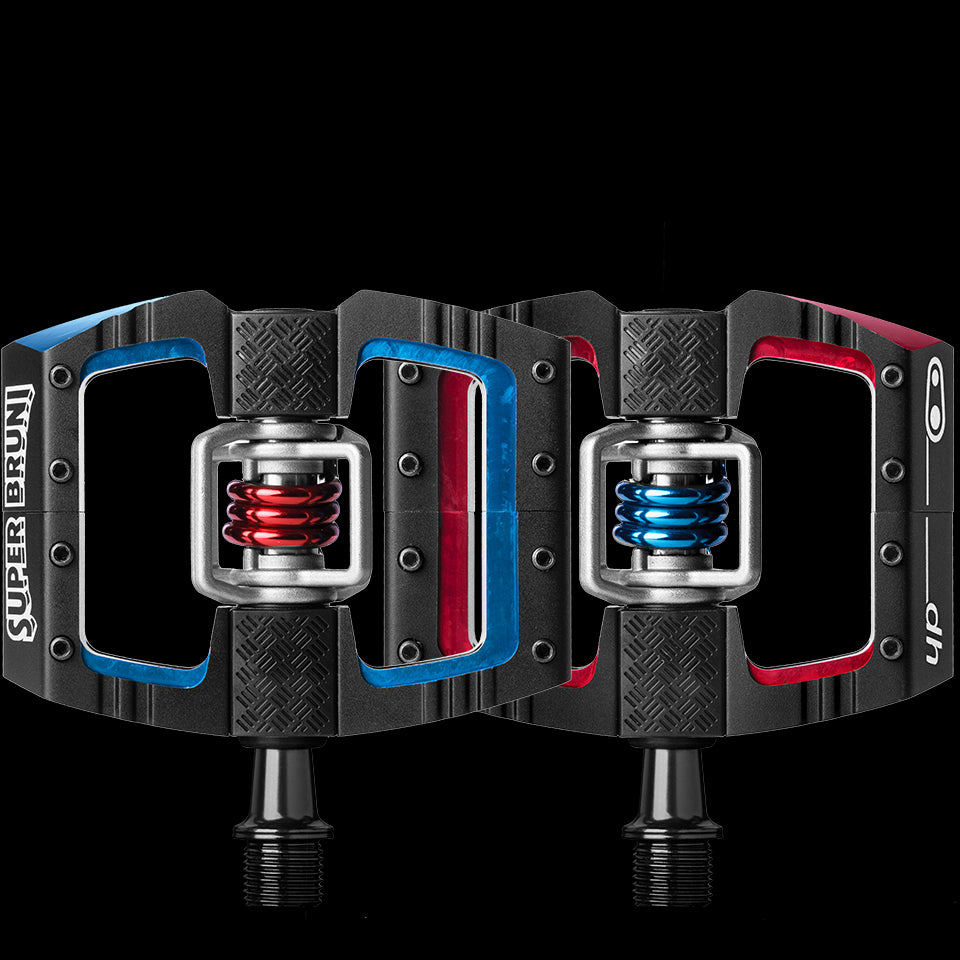

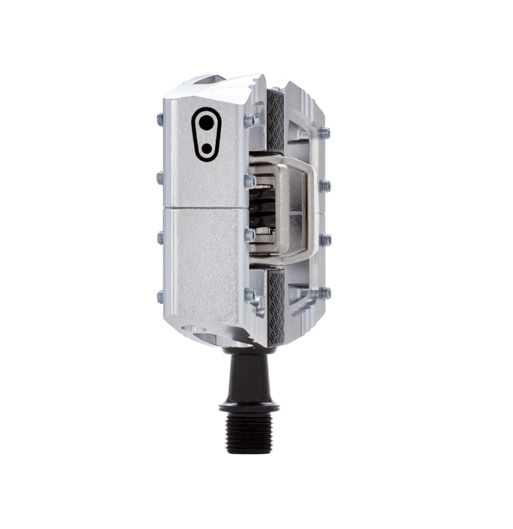

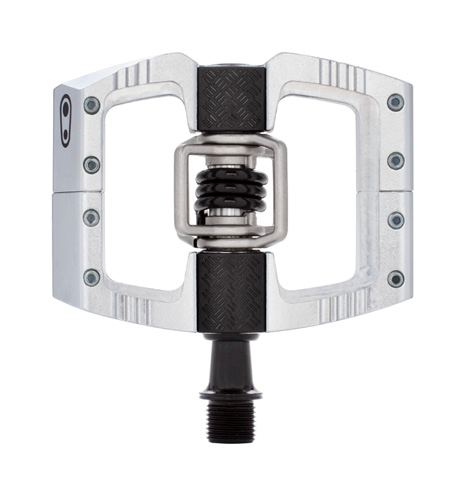

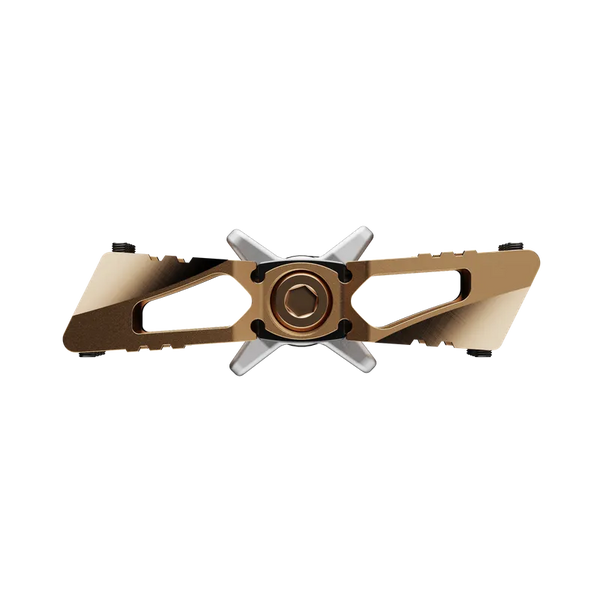

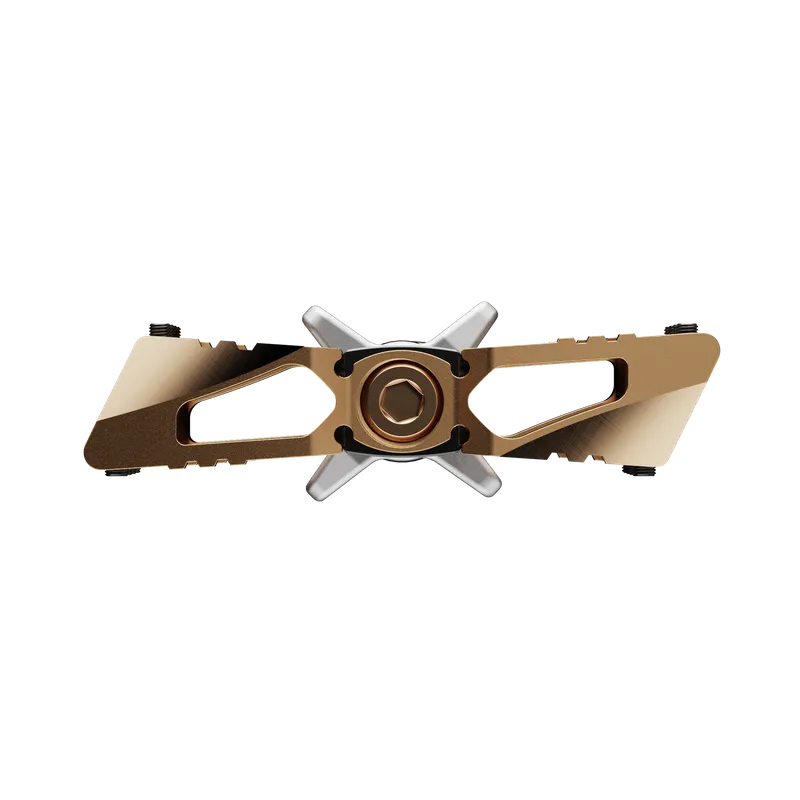

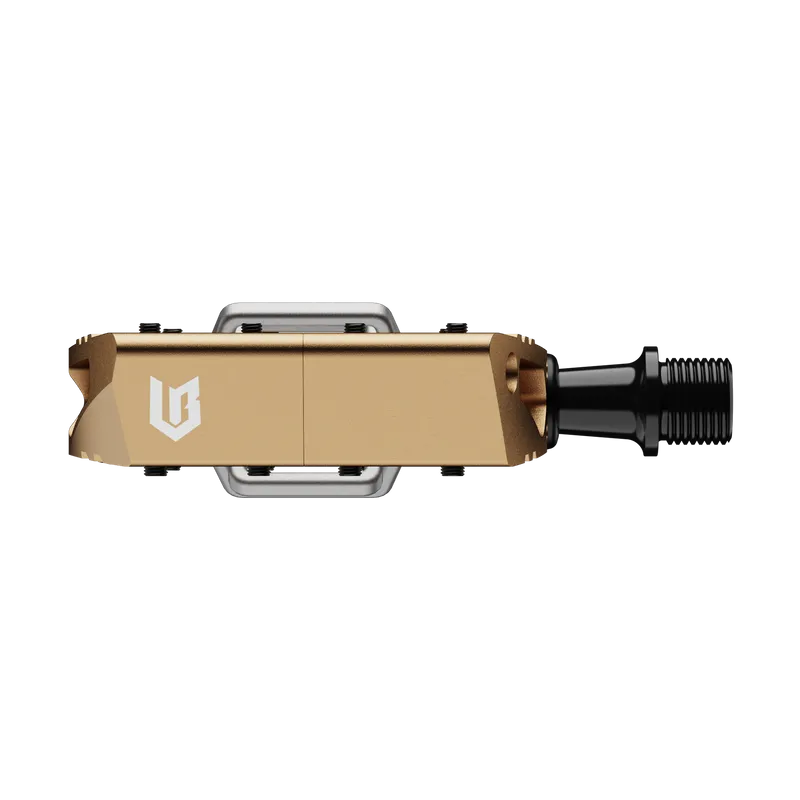

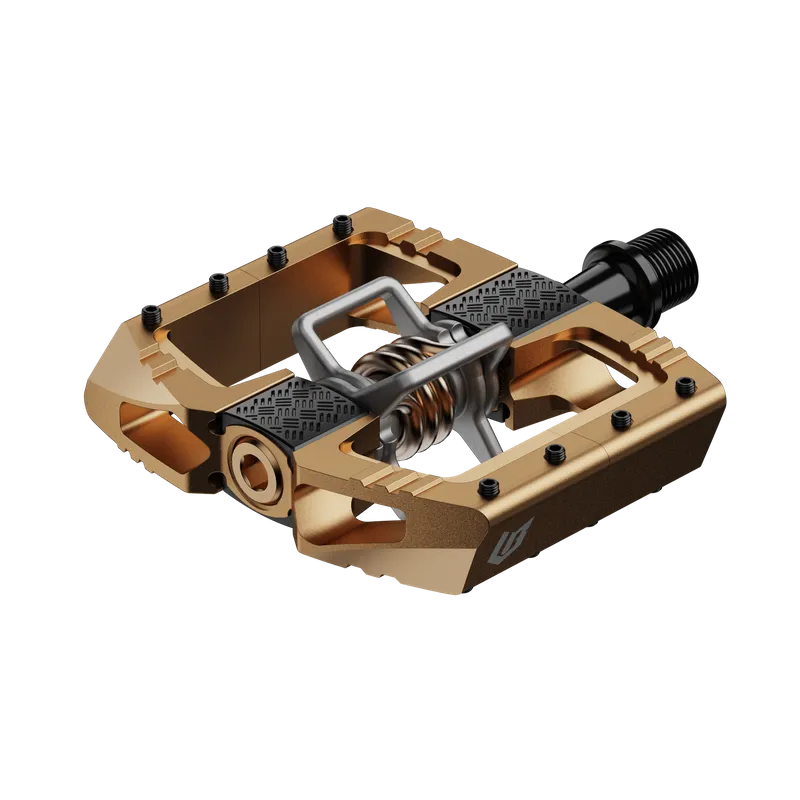

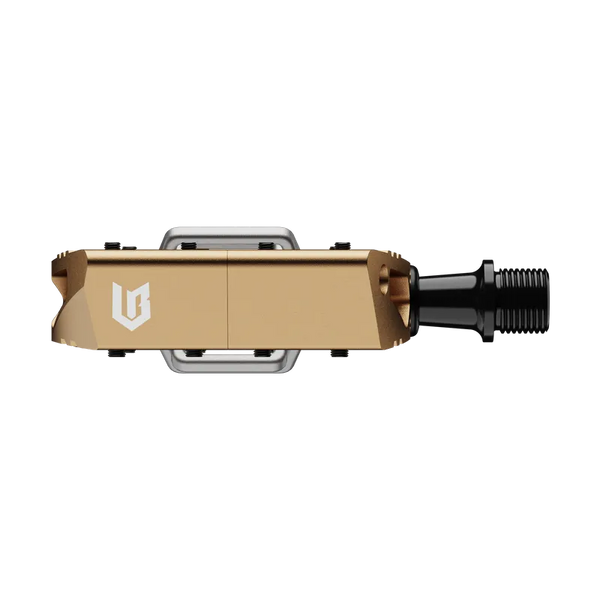

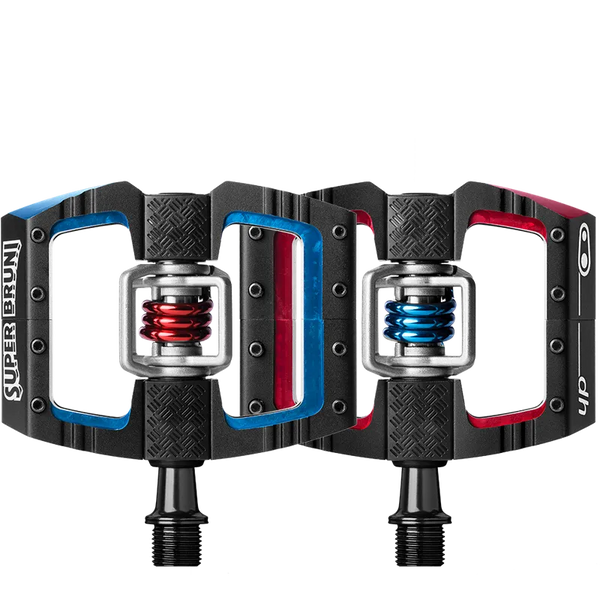

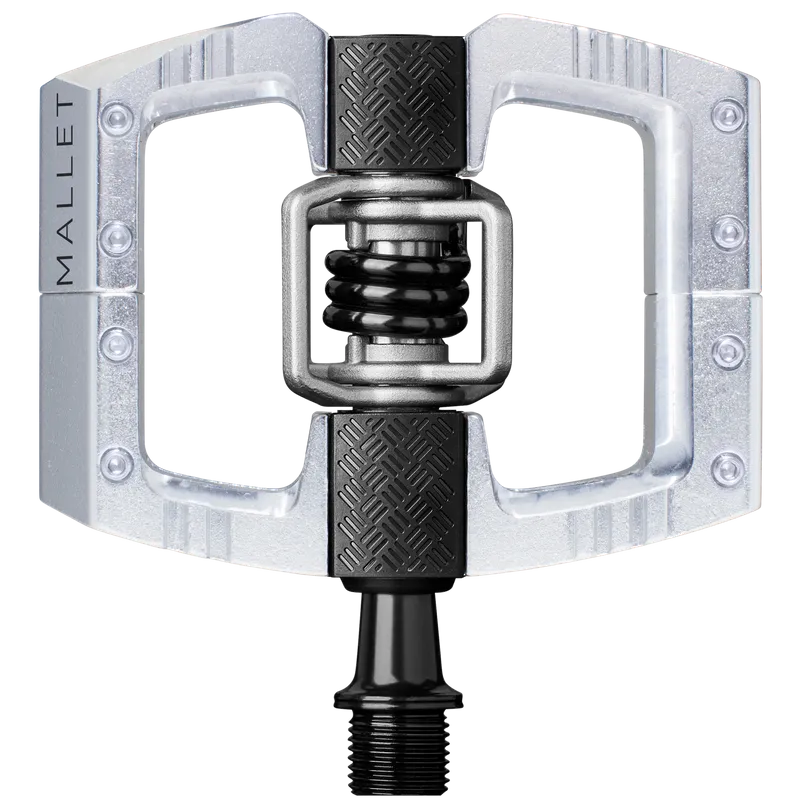

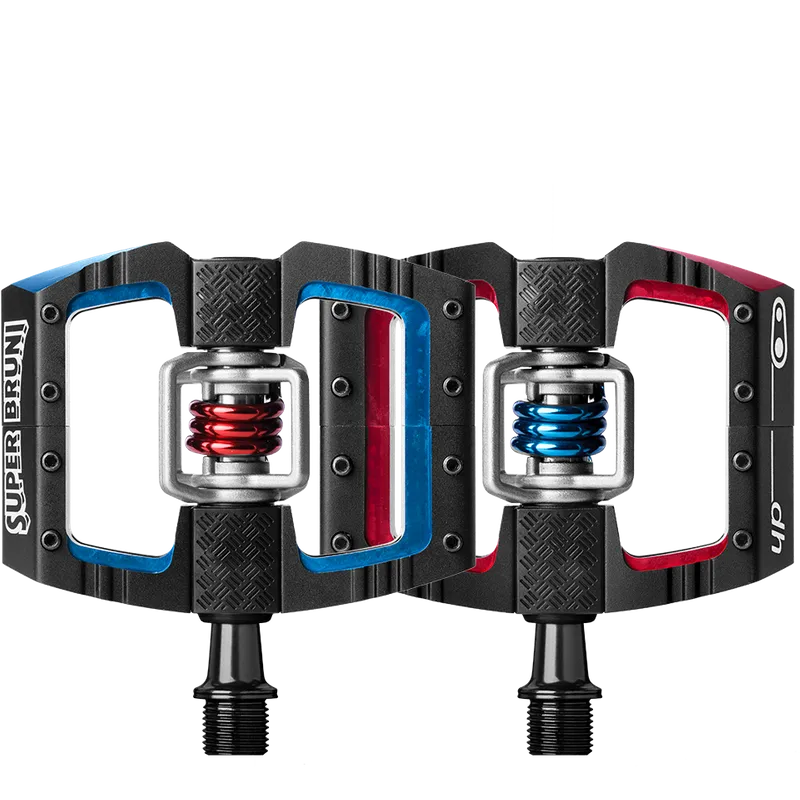

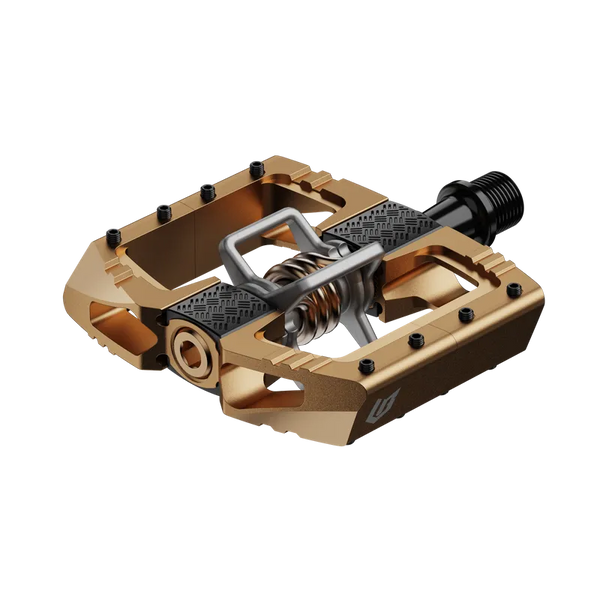

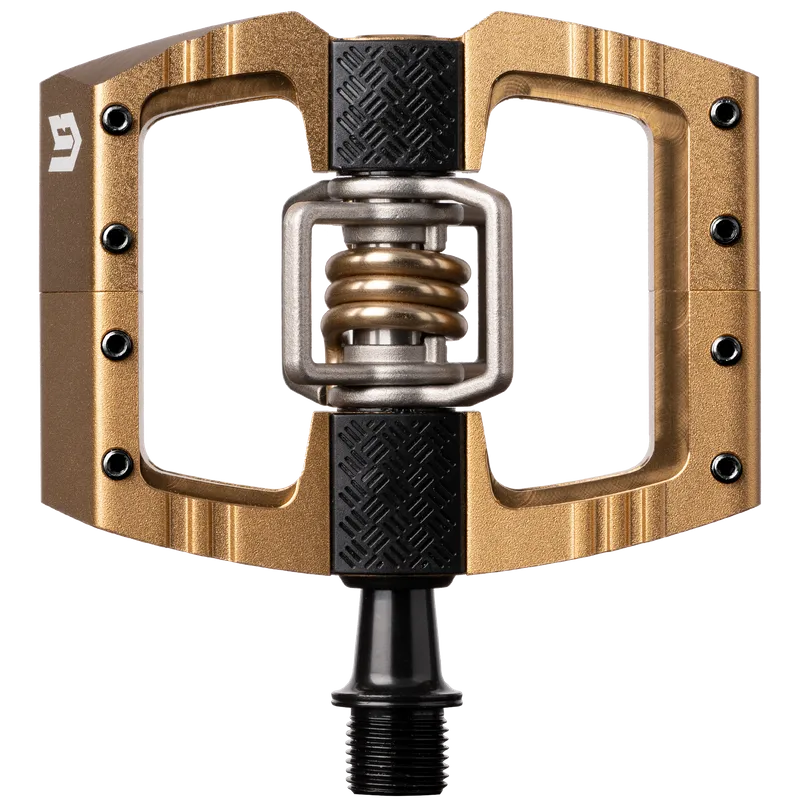

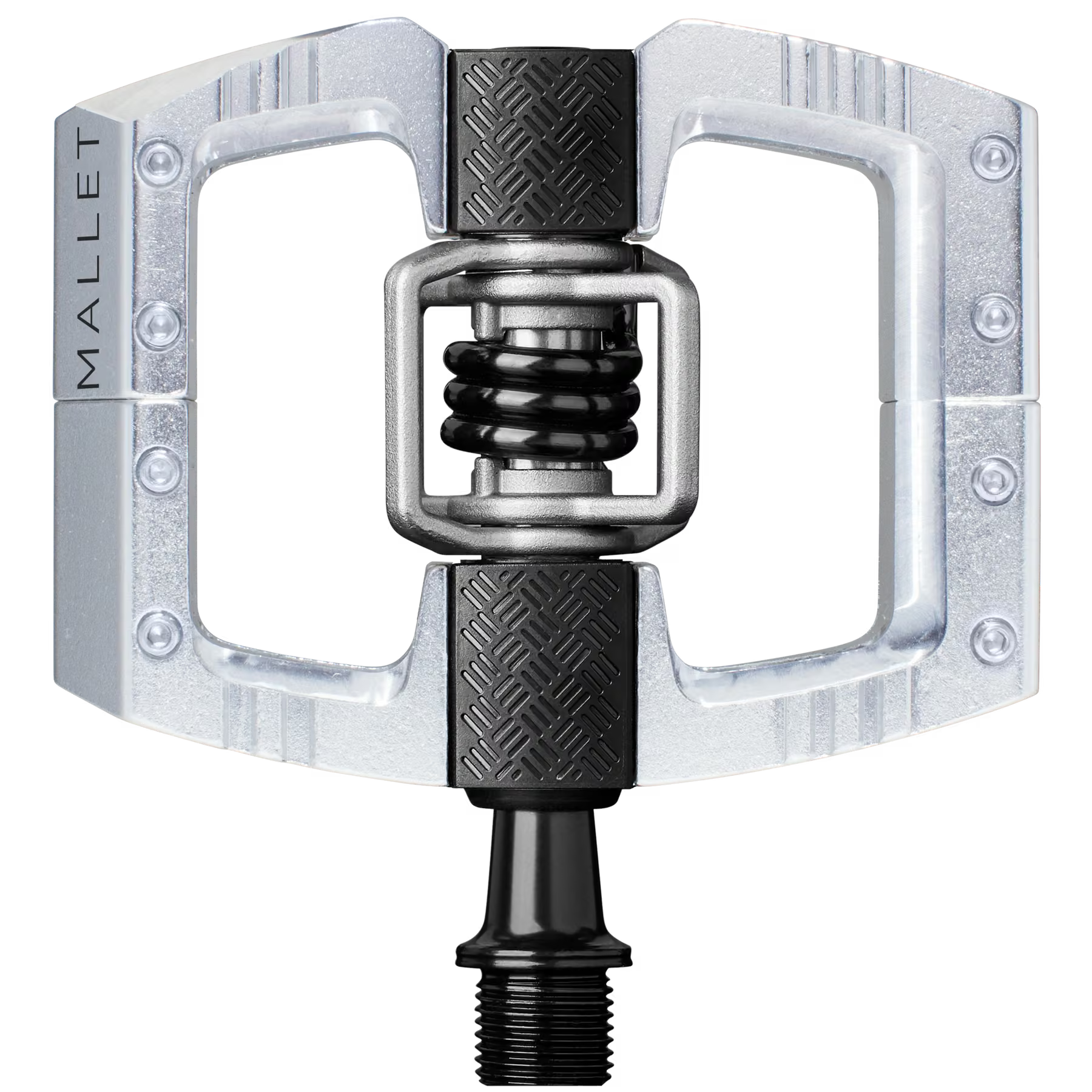

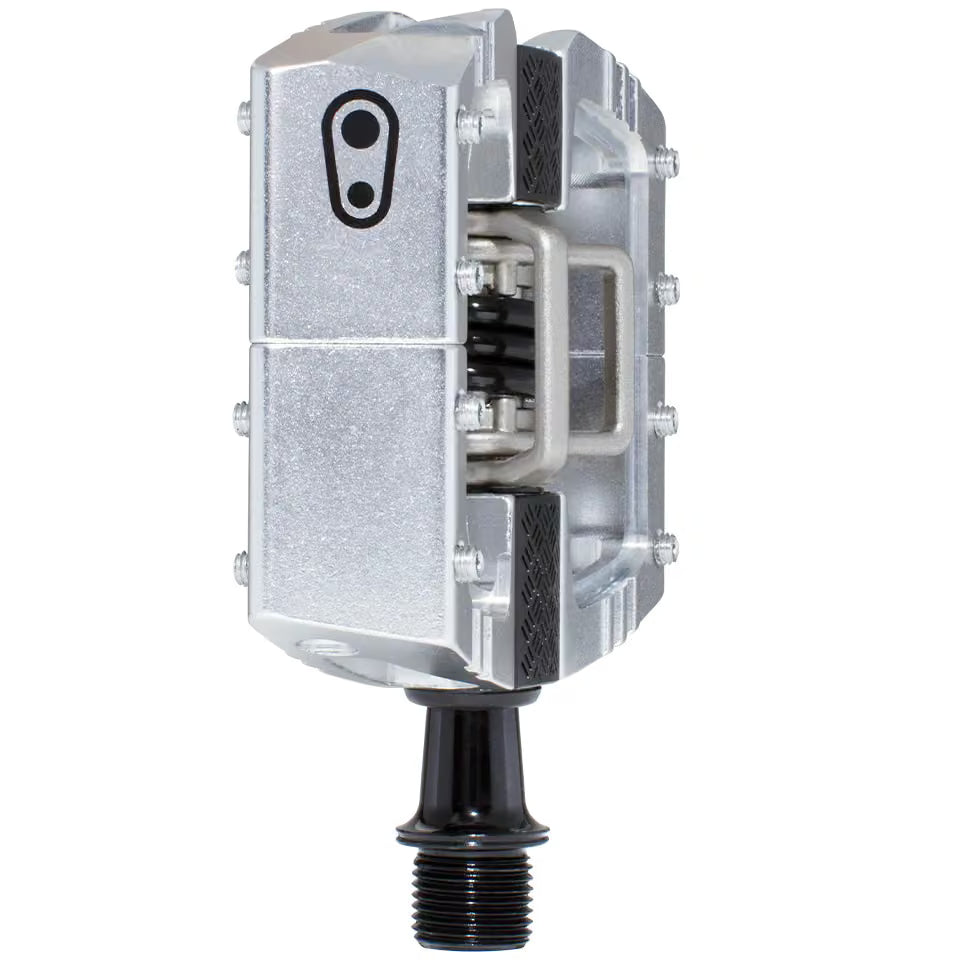

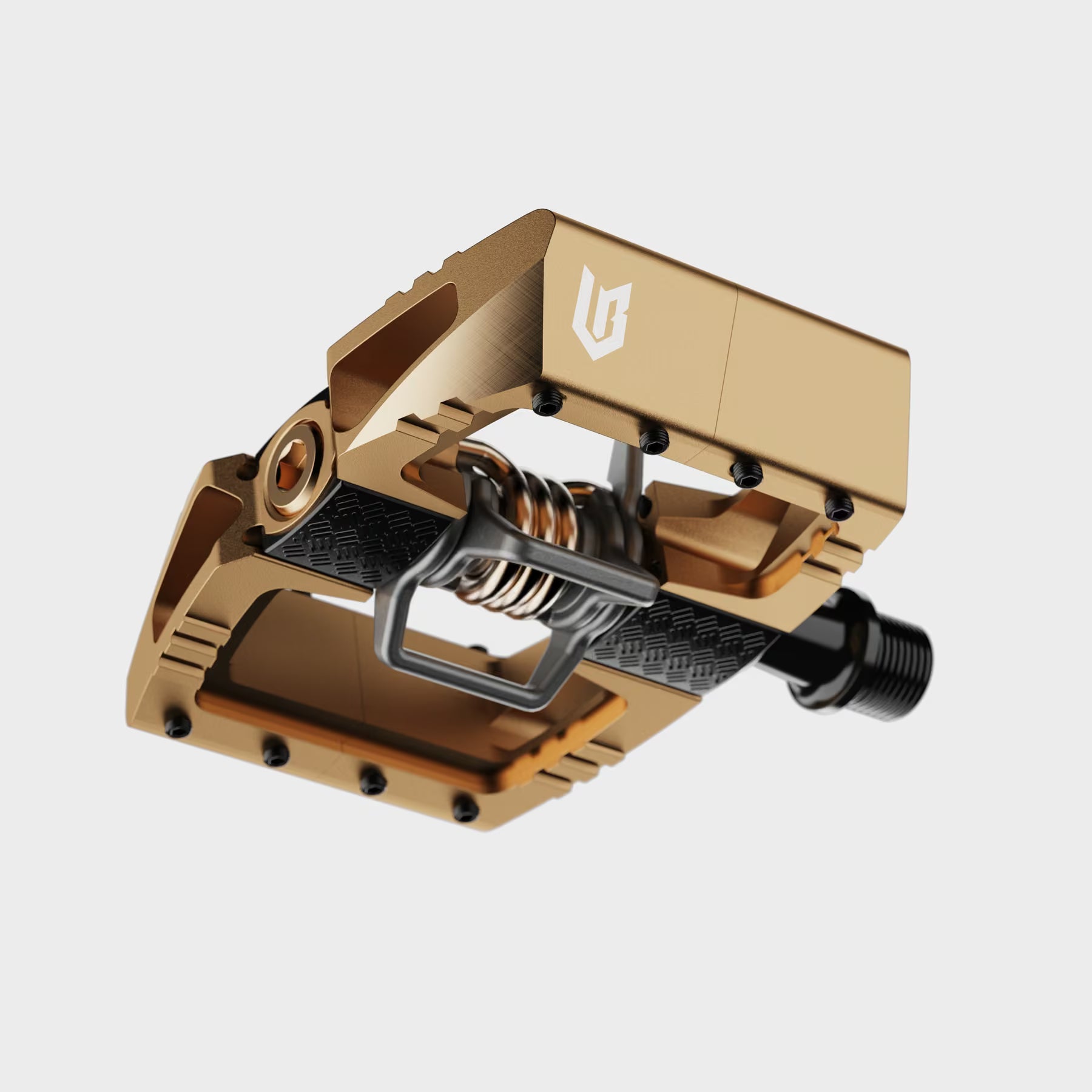

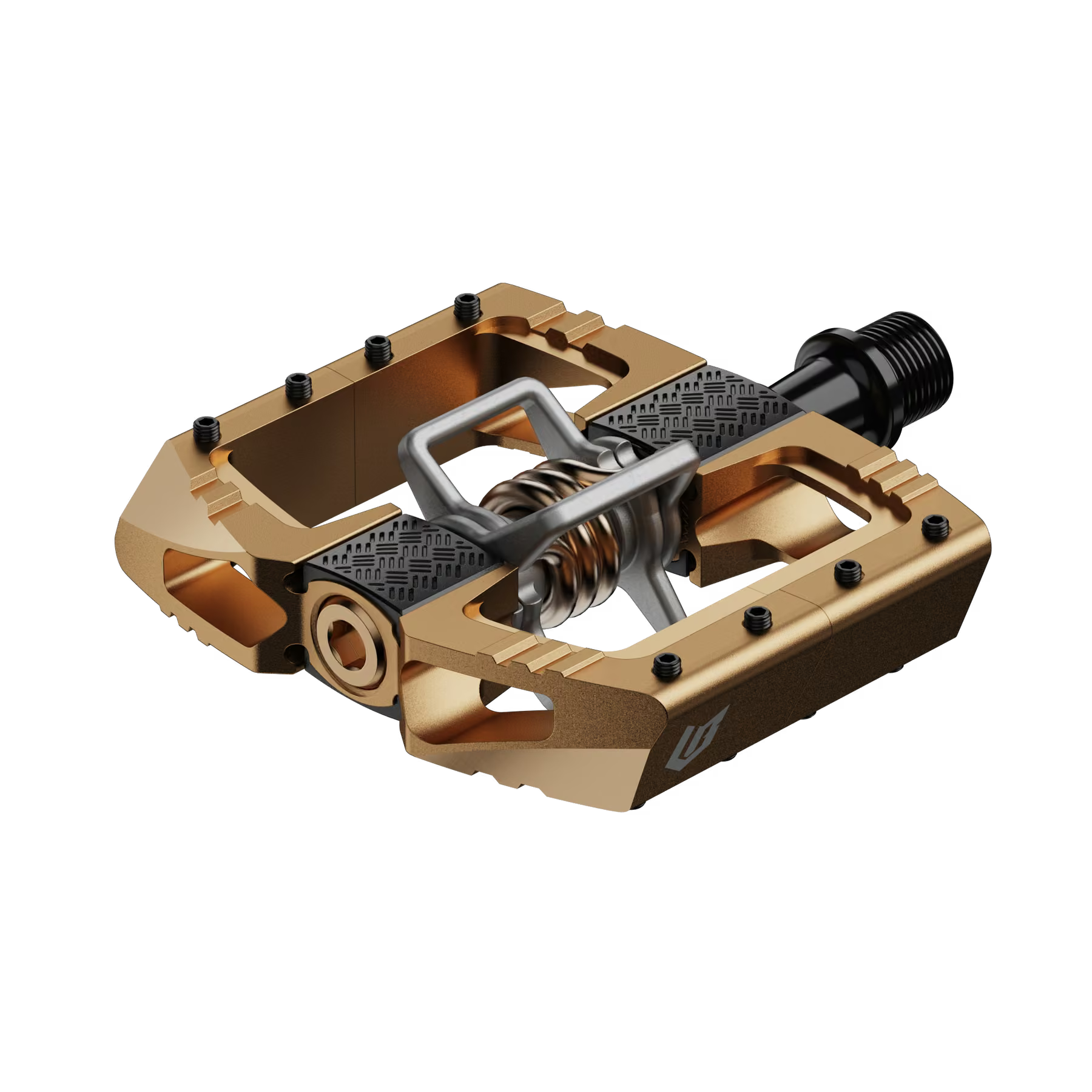

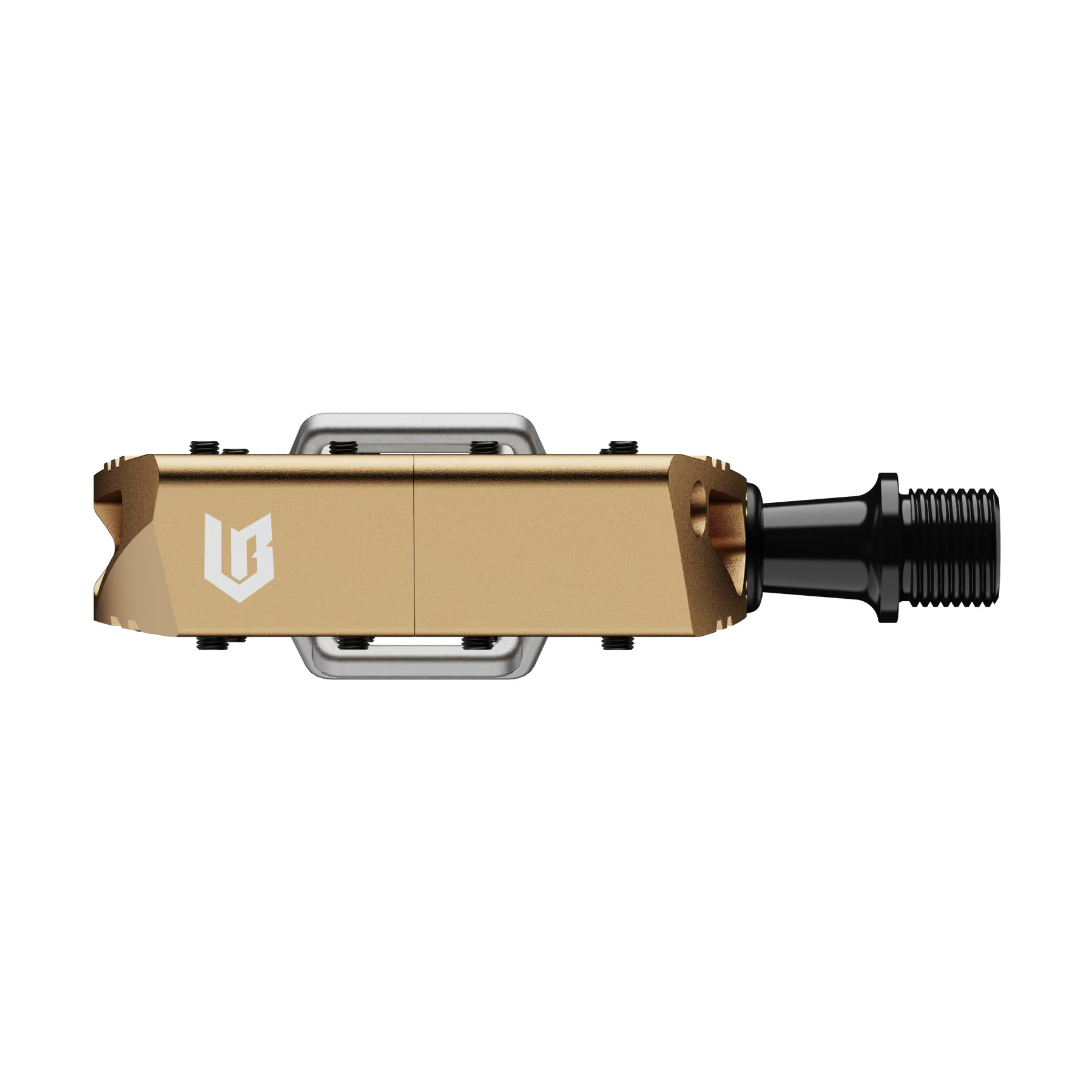

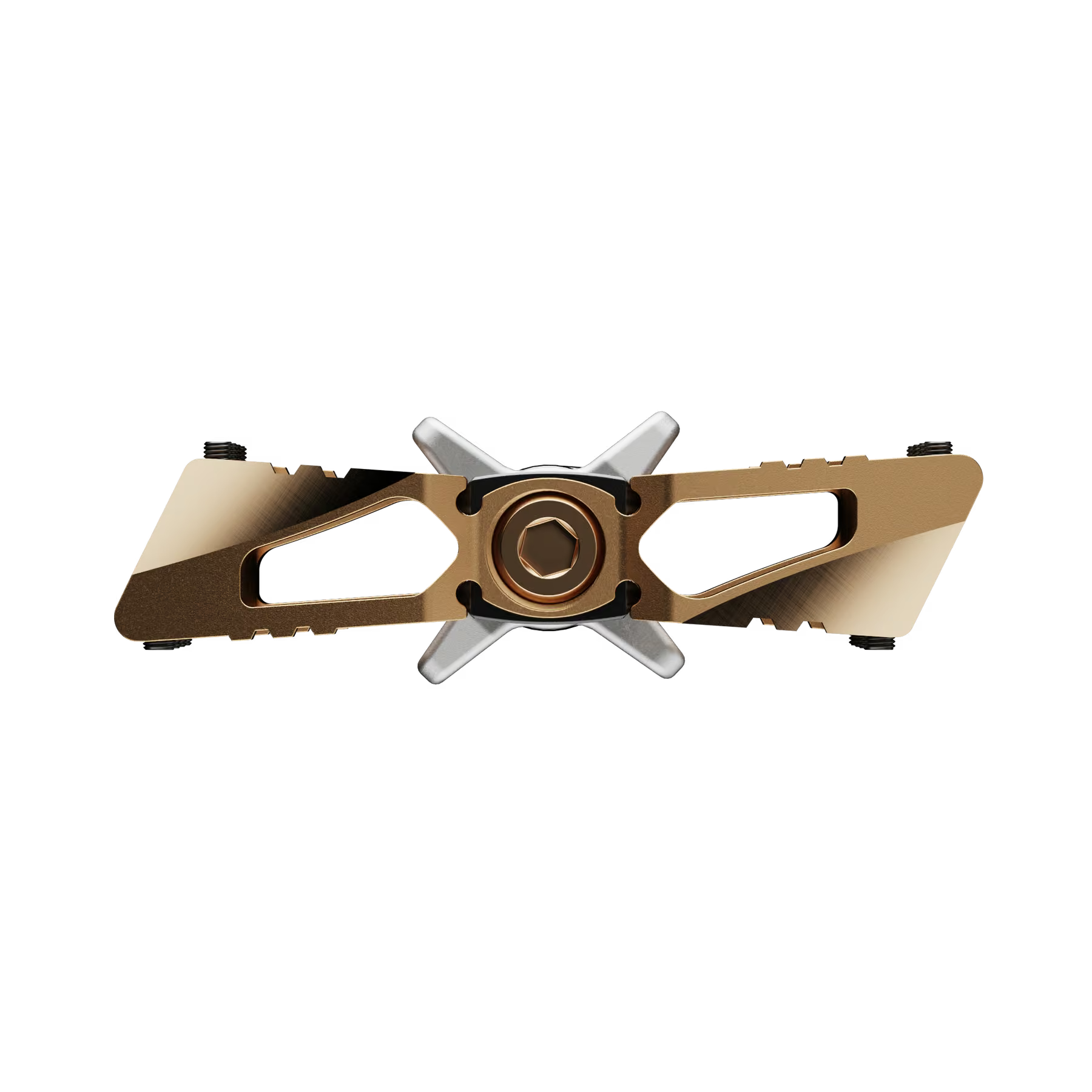

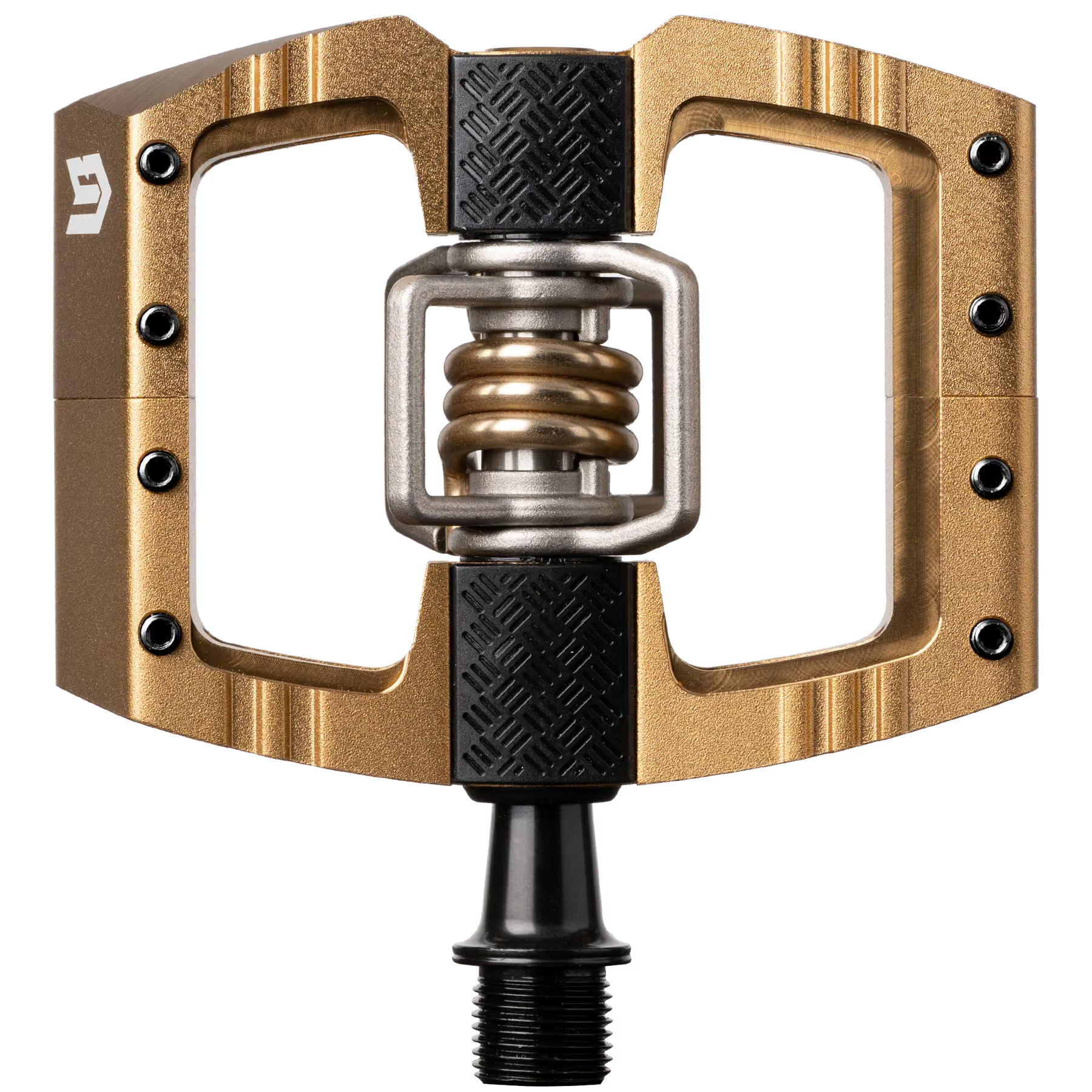

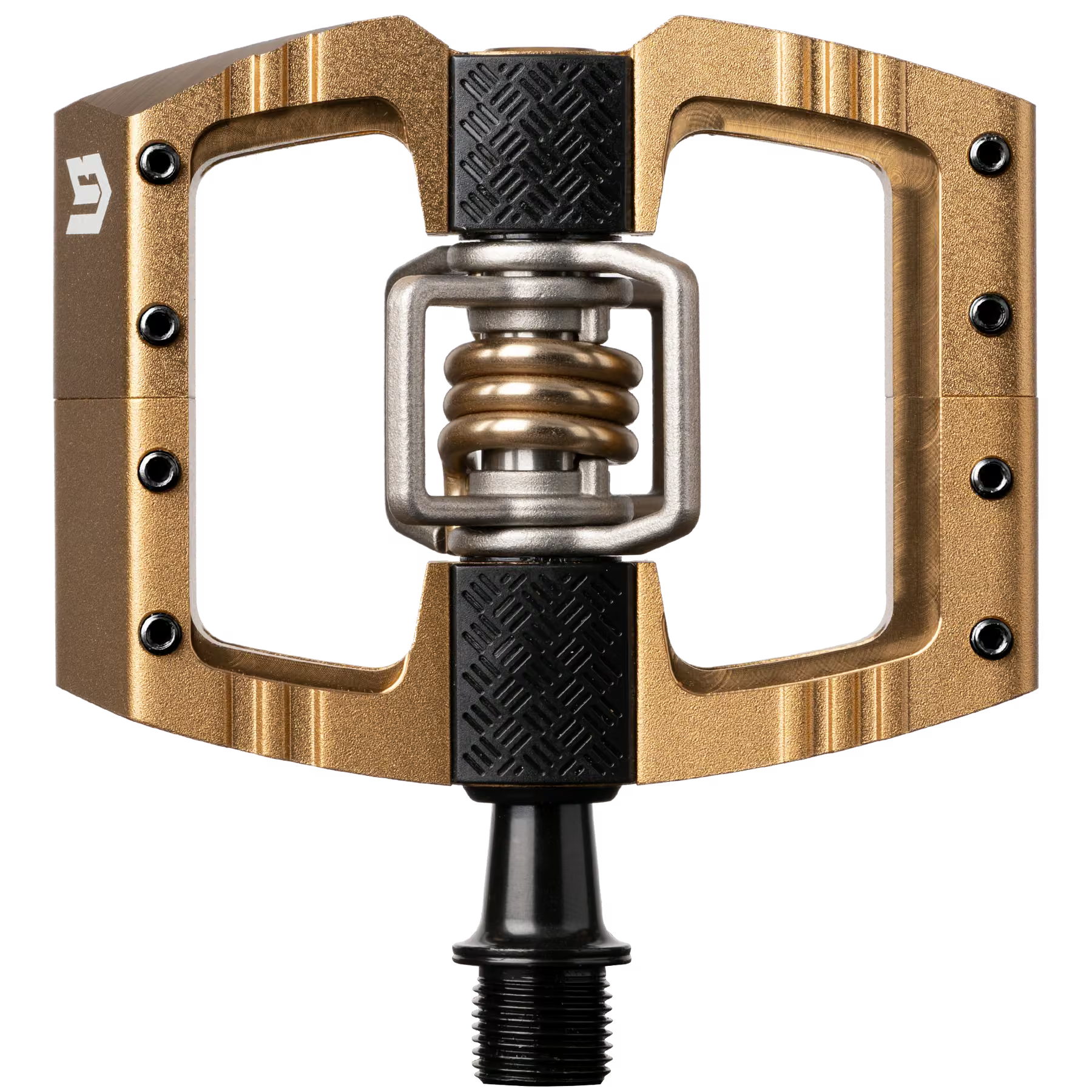

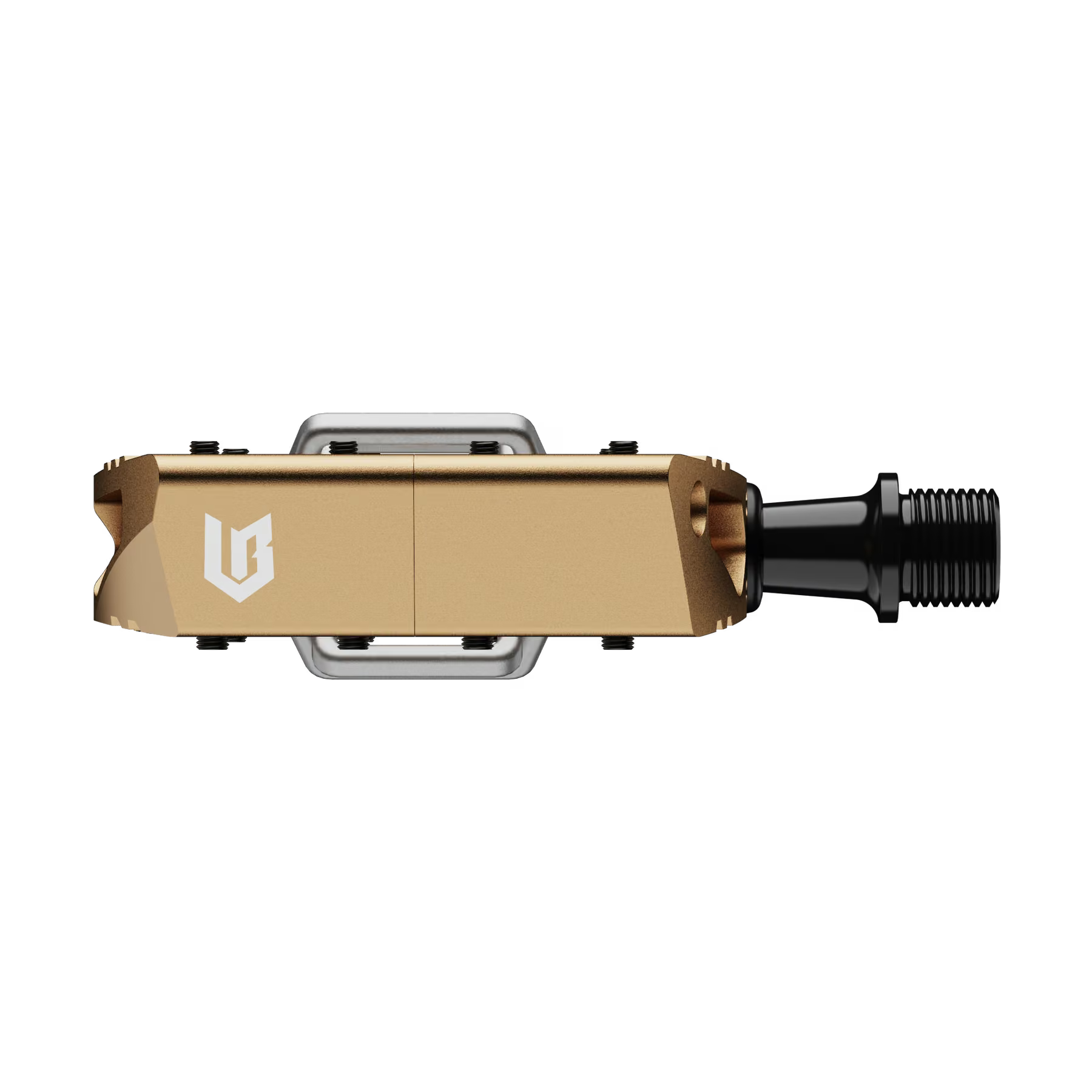

Crankbrothers Mallet DH Pedals
- Price
- $379.99

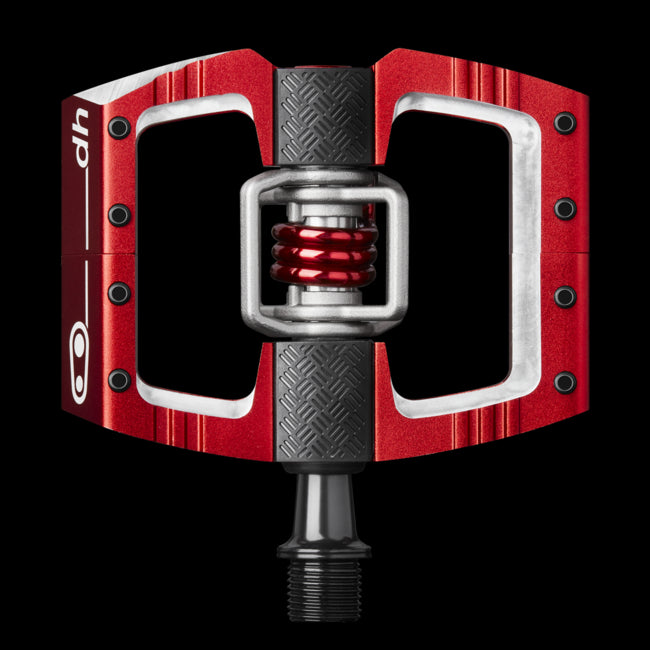

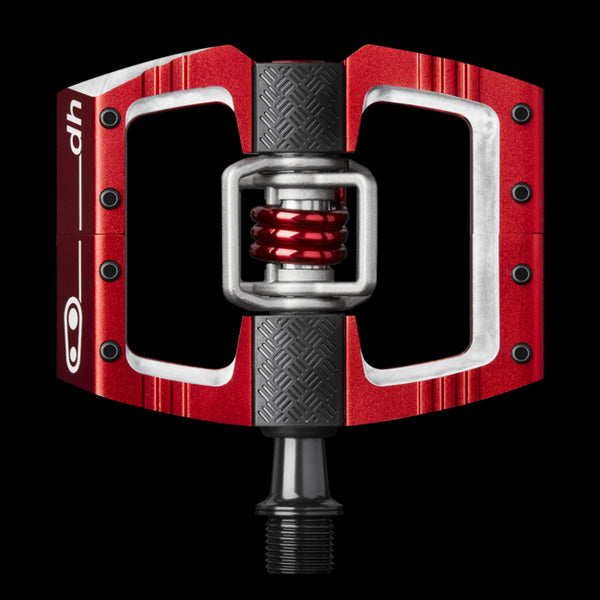

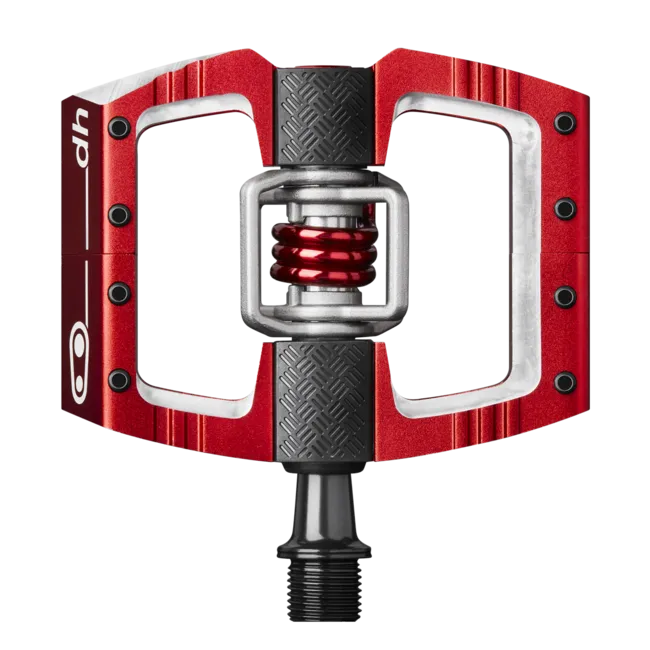

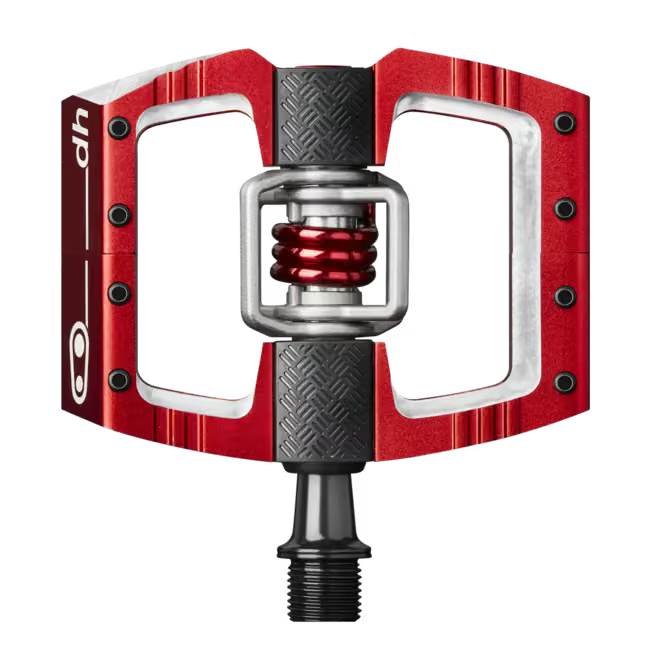

Variant:Crankbrothers Pedal Mallet DH Race Red
Only 5 left in stock!
Pickup currently unavailable at Bikefit Marlborough
The choice of DH world champions.

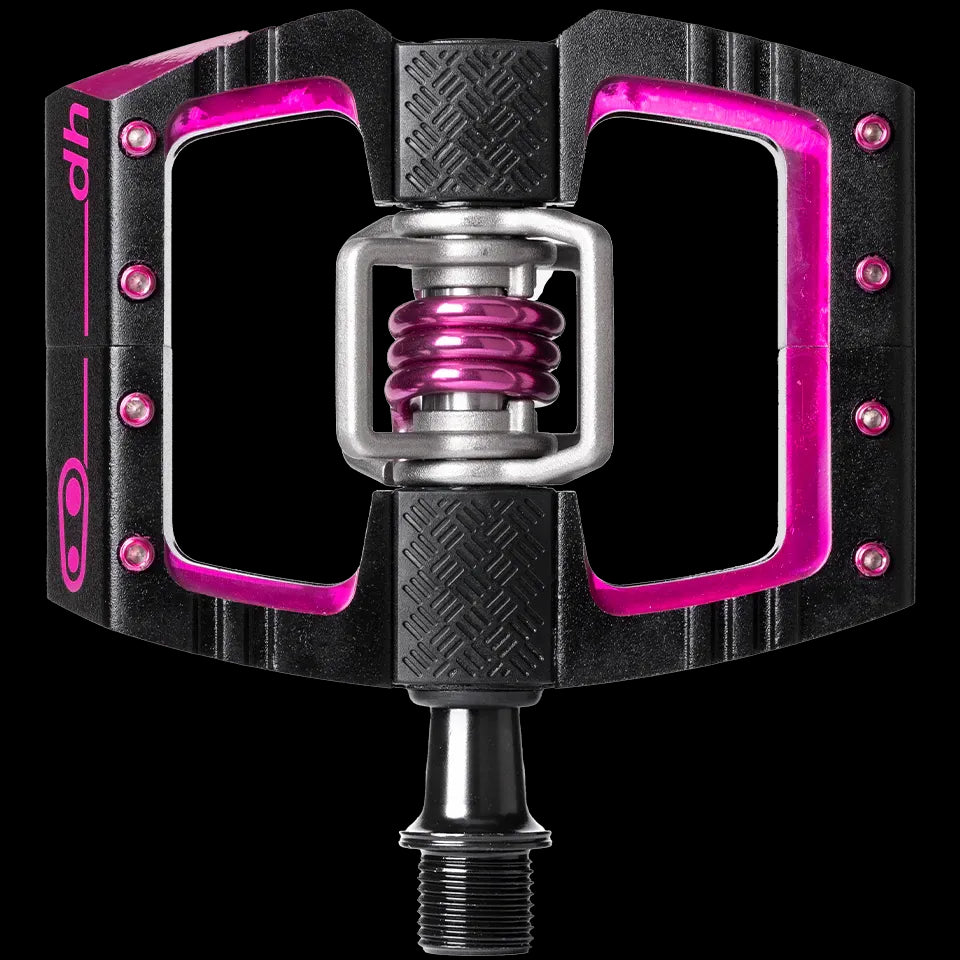

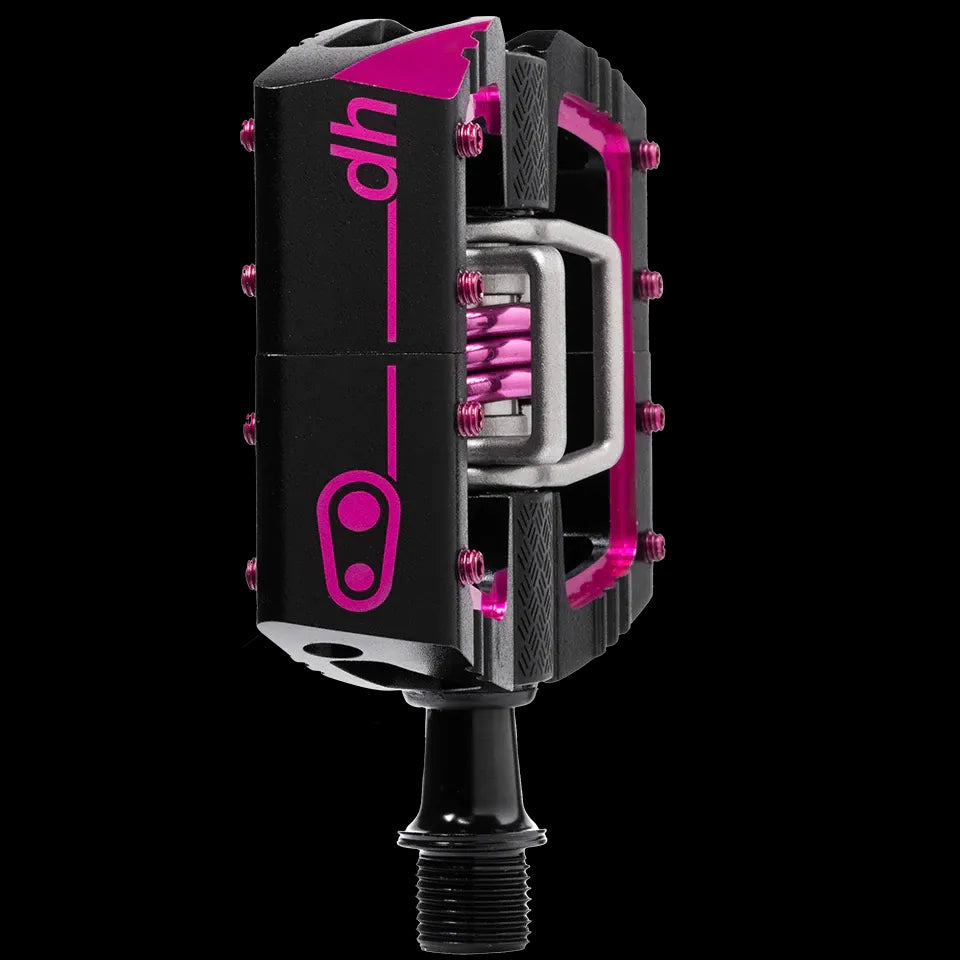

- Special Edition Mallet DH pedals featuring the signature black/pink colorway of Tahnee and Kaos Seagrave
- Concave platform for secure foothold
- 8 adjustable pins per side for grip
- Traction pad technology customizable interface
- Ribbed body for better traction when unclipped
- Chamfered edges to reduce rock-strikes
- 57mm q-factor for stability at speed
- 4-sided entry / superior mud shedding
- Customizable float & release angle
- Premium bearing & double seal system
Specs
Adjustable pins | 8 per side |
Body material | 6061-T6 Aluminium |
Cleats | Premium brass cleats with shims included |
Endcap | Hex alloy |
Inner bearing type | Igus LL-glide bearing |
Max rider weight | No restriction |
Outer bearing type | Enduro MAX cartridge bearing |
Q-factor | 57mm |
Release angle | 15° / 20° |
Spindle material | Forged scm 435 chromoly steel |
Spring material | 300 series stainless steel |
Warranty | 5 years |
Weight | 479g per pair |
Wing material | 17-4PH stainless |
