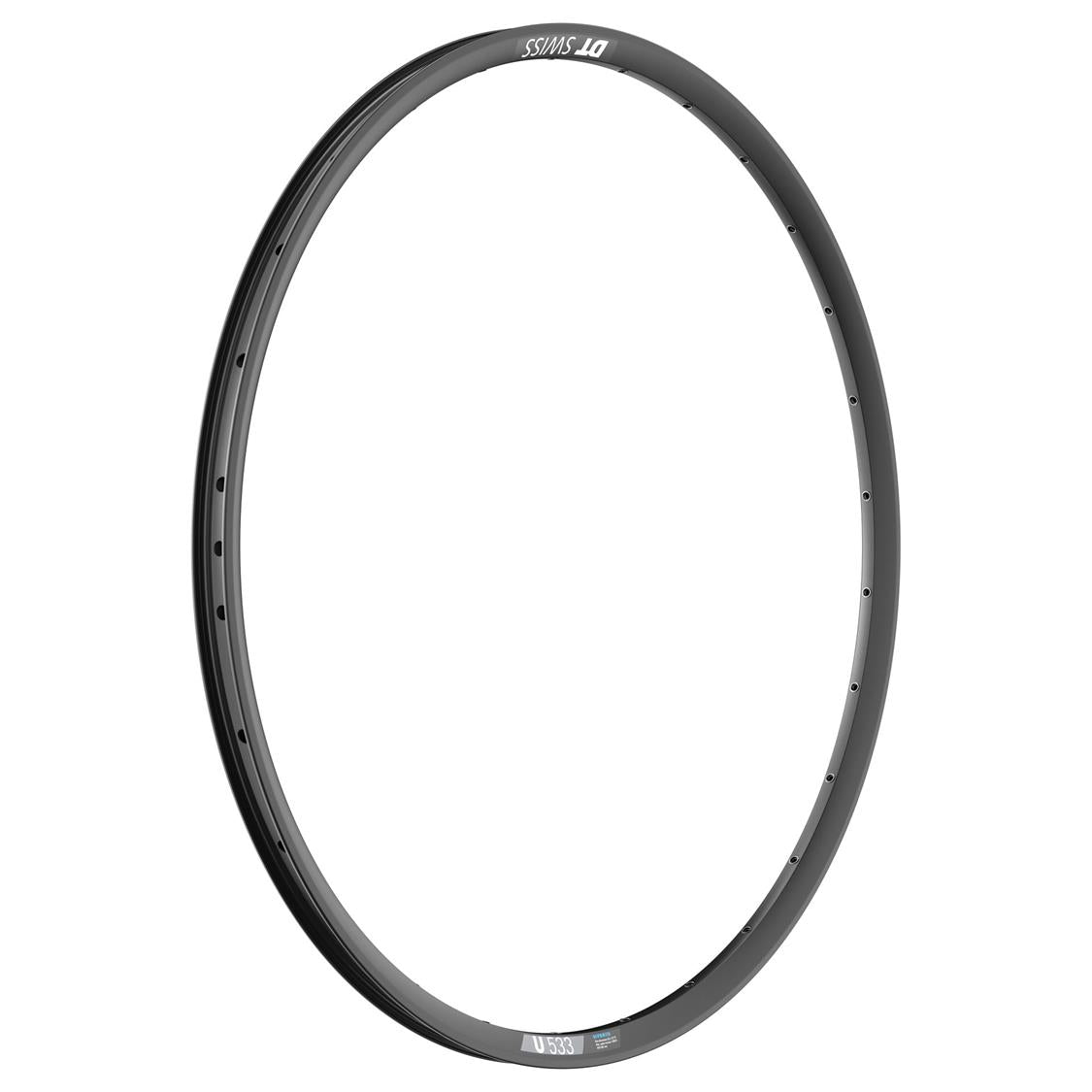

DT Swiss Rim U533

This 22 mm wide, robust rim is built to last for long trekking trips.  Built to last, this rim is ideally suited to the demands of today'se-touring and trekking bikes, which are ridden over longer distances and sometimes on rough terrain. Thanks to highly resistant aluminum and a reinforced rim shape, it’s the maximum system weight of up to 140 kg allows you to easily carry extra weight. Now, whether you want to go for a Sunday ride or a multi-day tour is up to you.

Material: Aluminium
Net weight:  g
Recommended system weight max: 140 kg
Recommended for E-Bikes: Yes (max. 32km/h or max. 250W)
ASTM classification: 2
Rim joint: Pin Joint
Tyre interface: Hooked / crotchet tubeless TC
Brake interface: Disc
Rim diameter: 559 mm (26")
Reference diameter ERD: 539 mm
Inner width: 22 mm
Outer width: 28 mm
Rim height: 20.5 mm
Spoke holes: 32
Spoke bore rim: Silver & Black Eyelet
Valve hole: Presta
