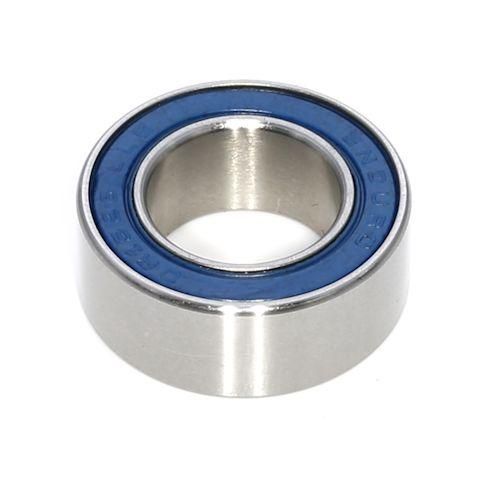

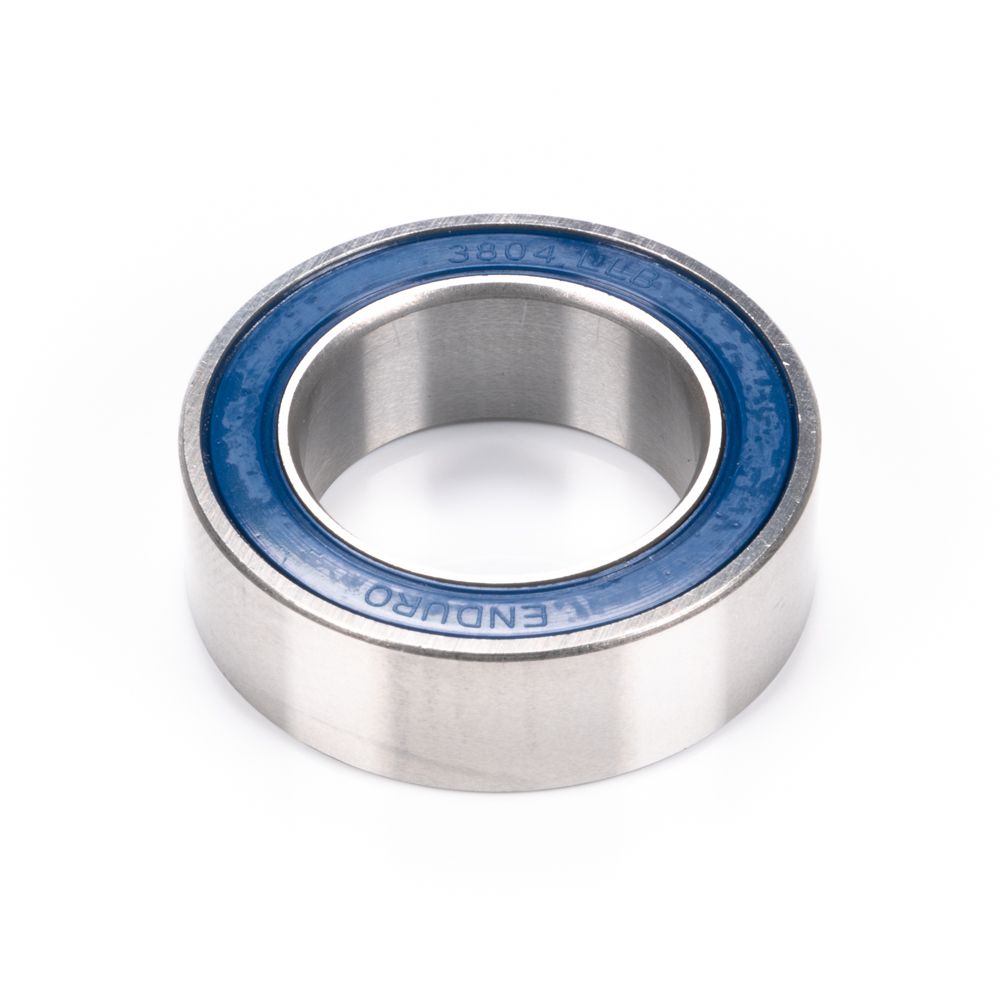

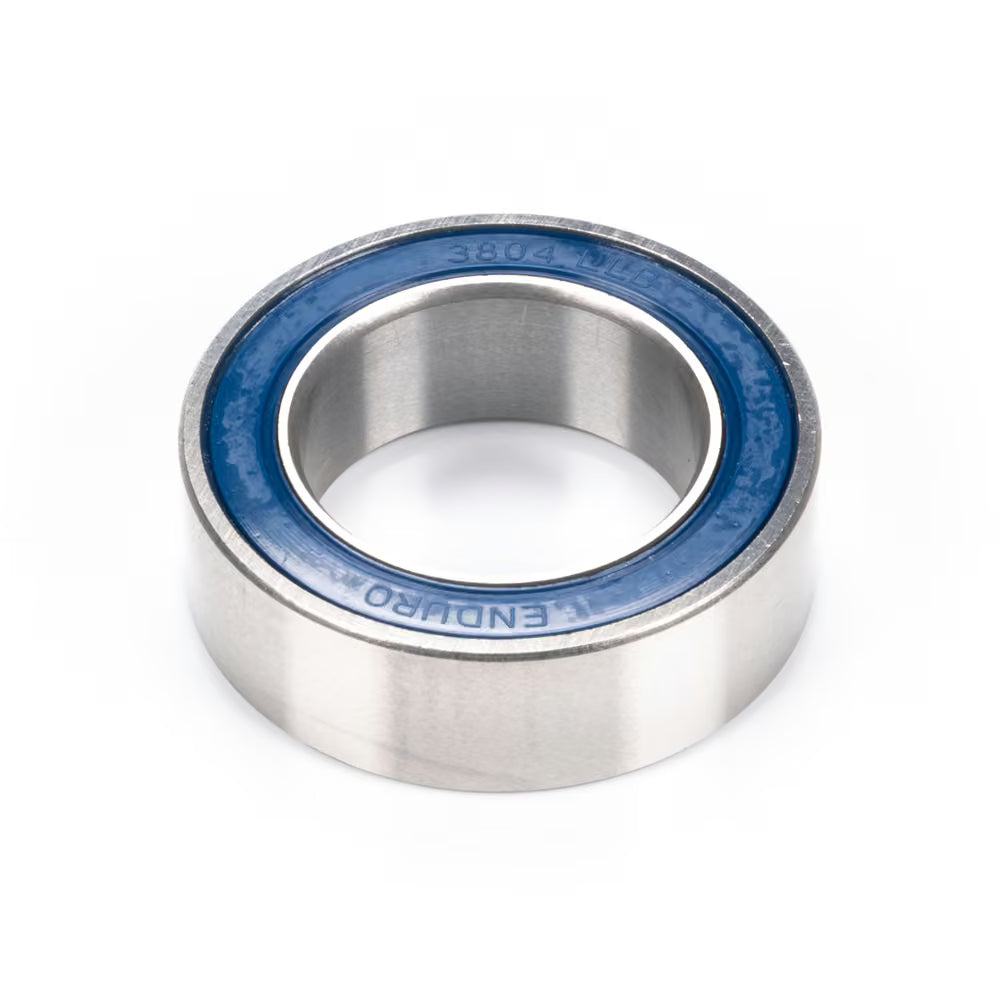

Enduro Double Row Bearing 3804 20 x 32 x 10

3804 LLB - Double-Row, ABEC-3 radial bearing - 20mm x 32mm x 10mm -

Applications include use in rear hubs and by many bike brands as a suspension pivot bearing including Rocky Mountain, though the MAX-type version of this bearing is better suited to suspension pivot applications. The double-row design greatly reduces flex in suspension linkages and rear hub axles, while requiring roughly 25% less width than two single-row, comparable bearings.

This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, LLB seals and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 1005lbf / 4.47kN
Weight - 26g
