Enduro Headset Bearing 1.5" XD-15 Stainless ACB 68

Price
$224.99
Variant:Enduro Headset Bearing 1.5" XD-15 Stainless ACB 6808 SXD 40 x 52 x 6.5 mm 36x45deg
In stock! Usually ships within 24 hours.
Pickup currently unavailable at Bikefit Marlborough

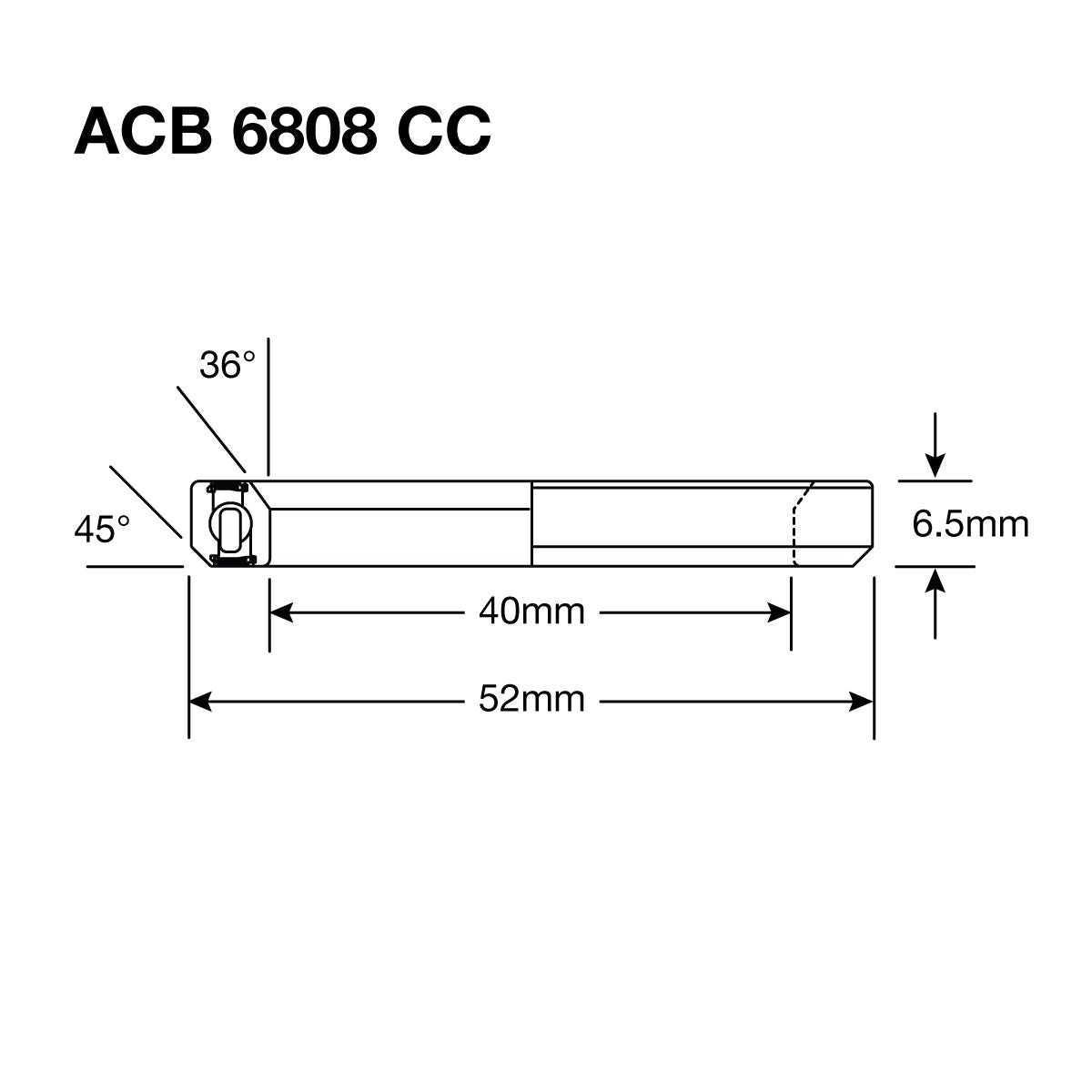

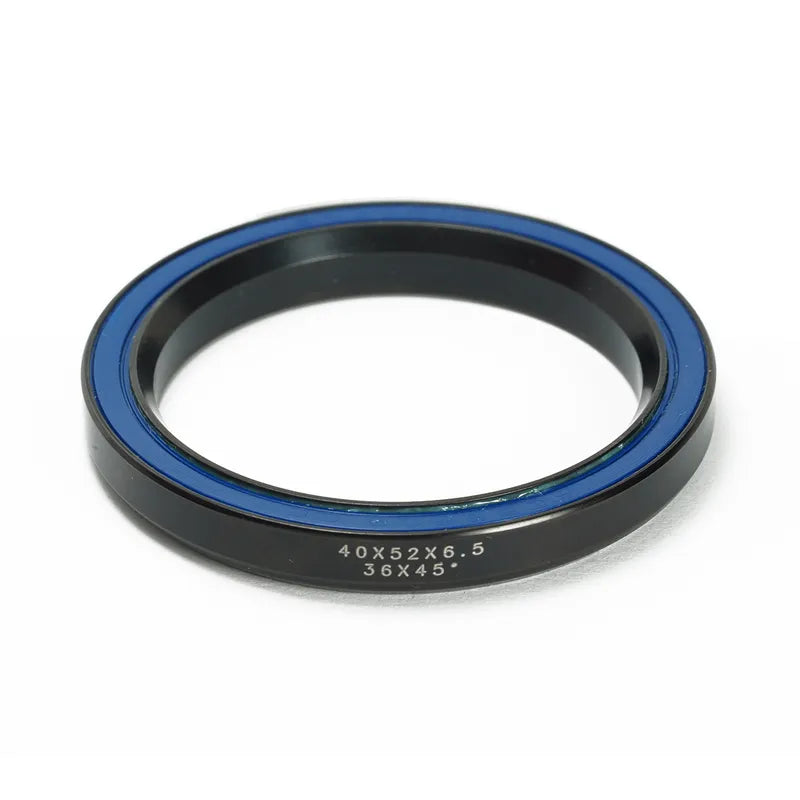

ACB 6808 CC 1-1/2" Angular Contact Black Oxide treated Headset bearing (40mm x 52mm x 6.5mm; 36 x 45deg) -

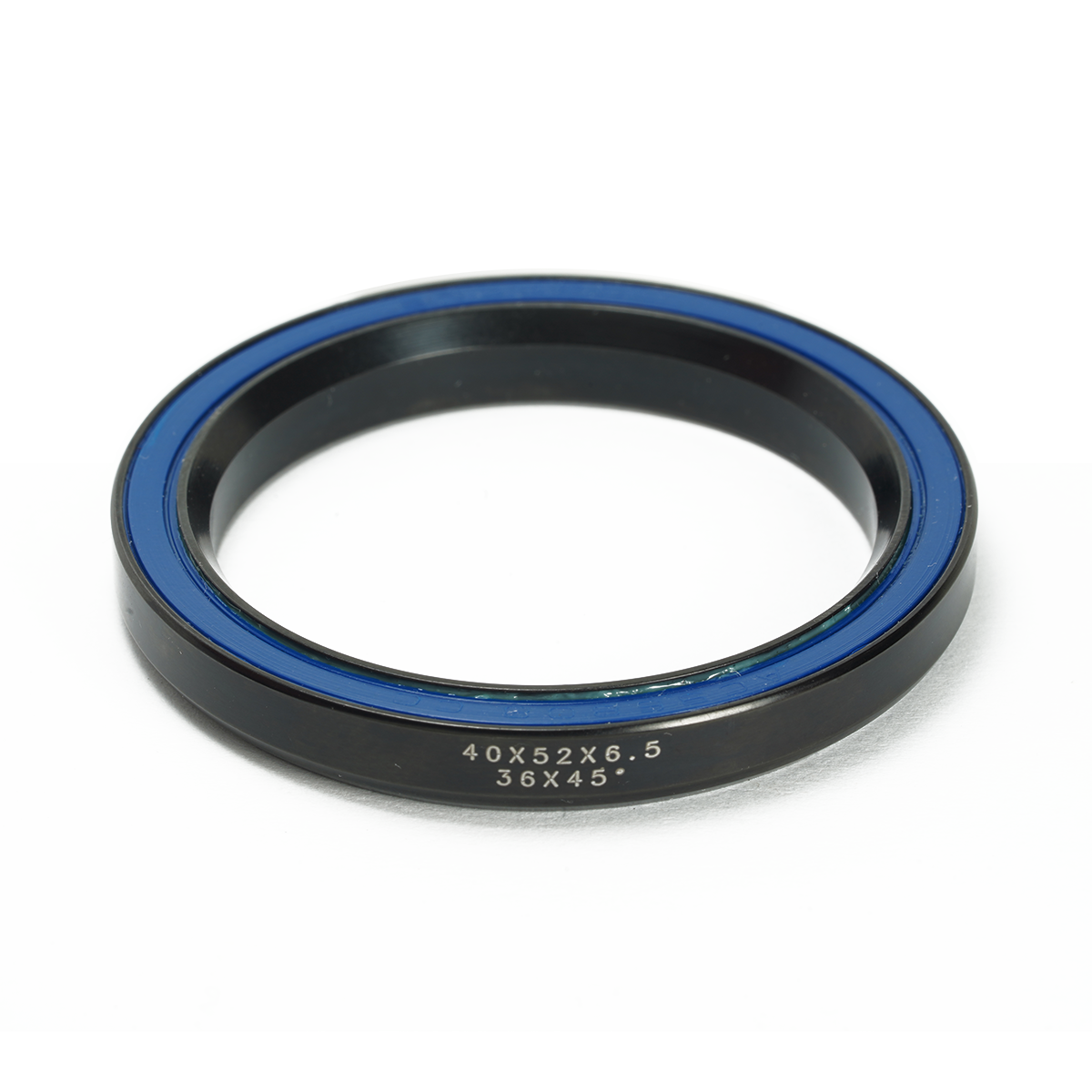

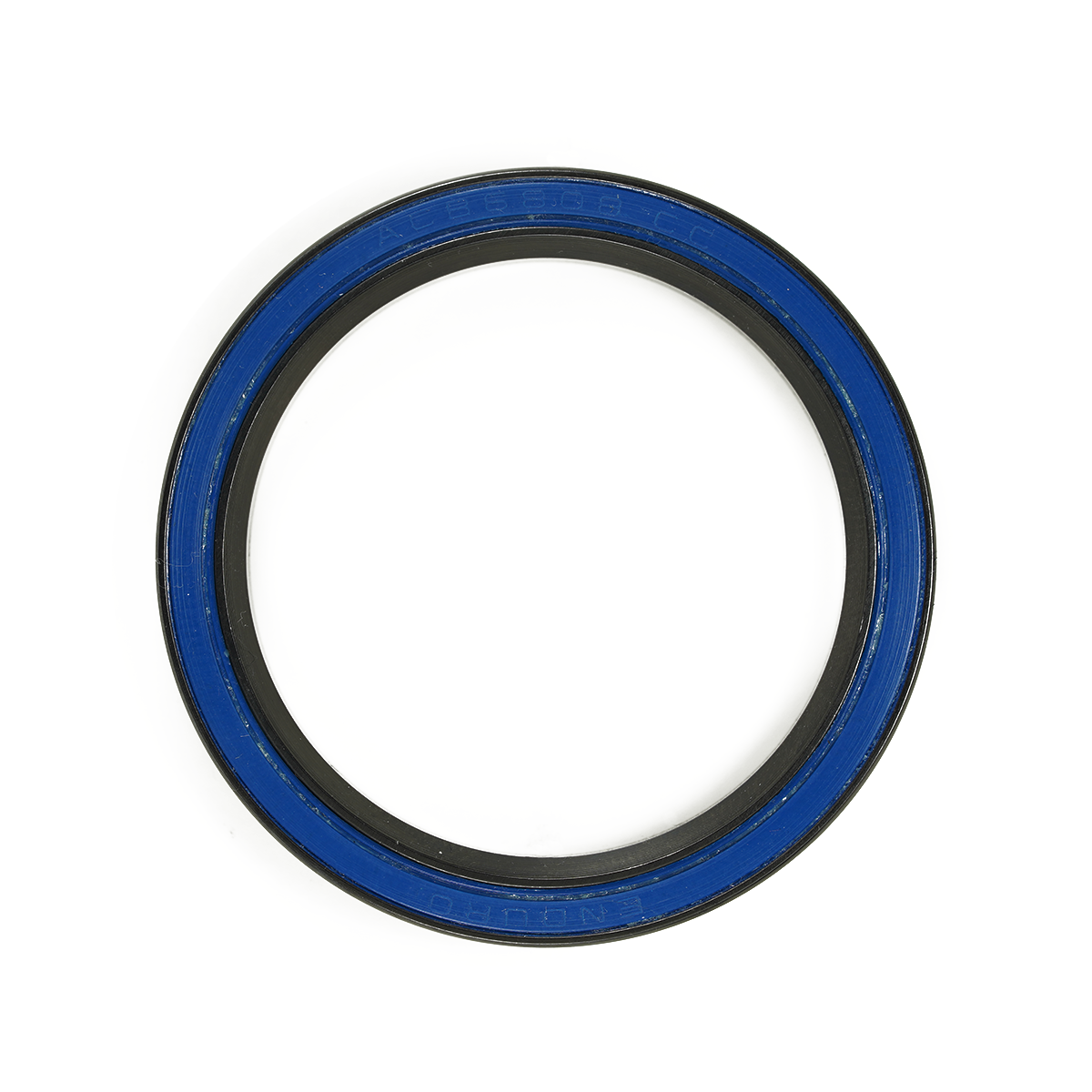

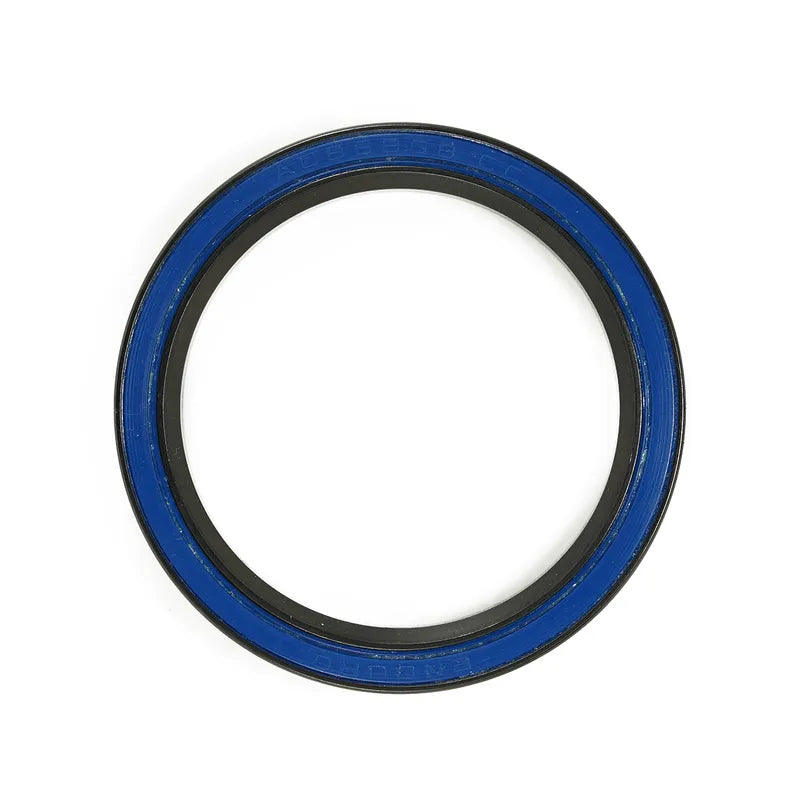

Black Oxide

Angular-contact headset bearing featuring anti-corrosion Black Oxide/Magnetite coated 52100 High-Carbon Chromium alloy races paired with grade 10 Balls. Black Oxide coating provides an extra level of corrosion resistance and extended worry-free performance.

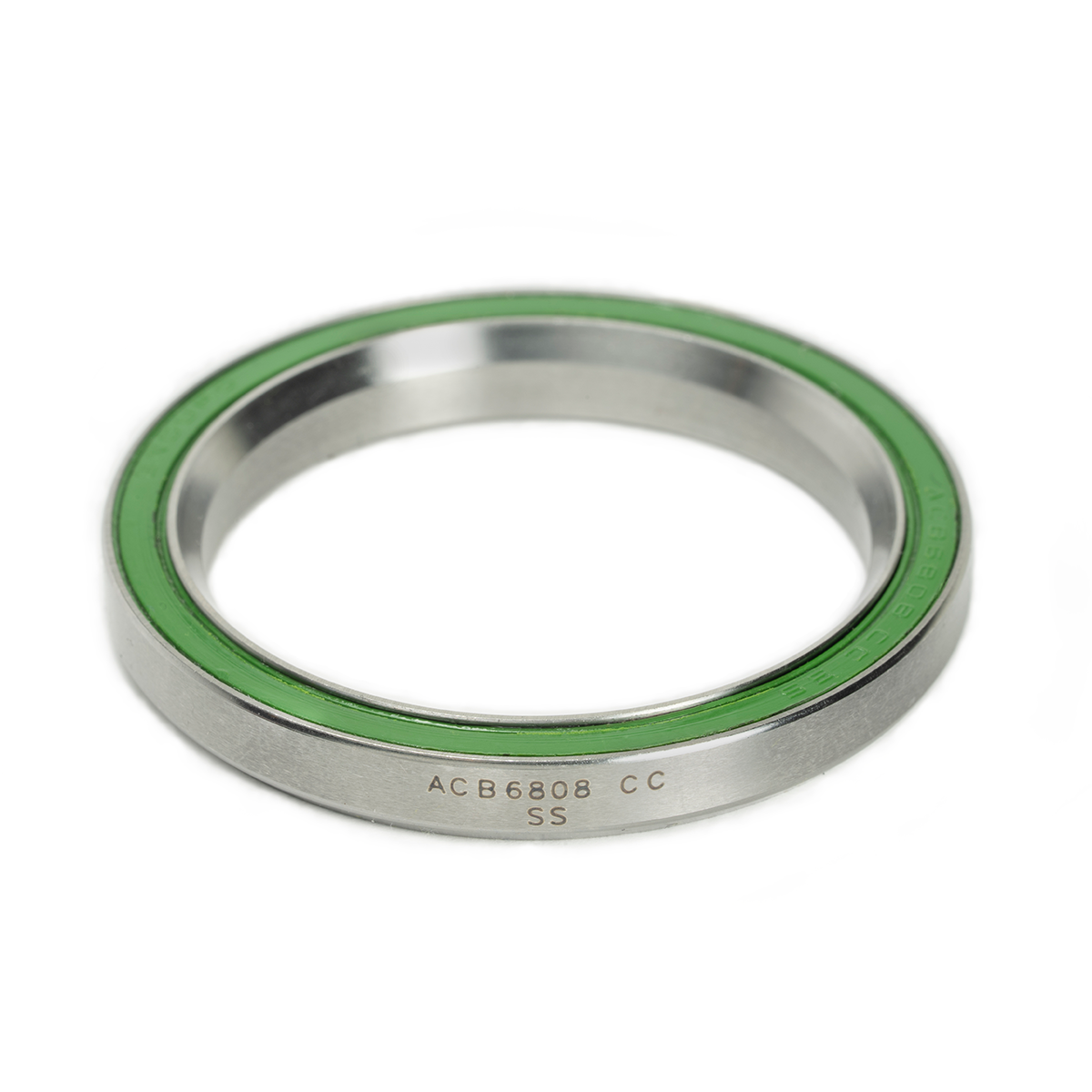

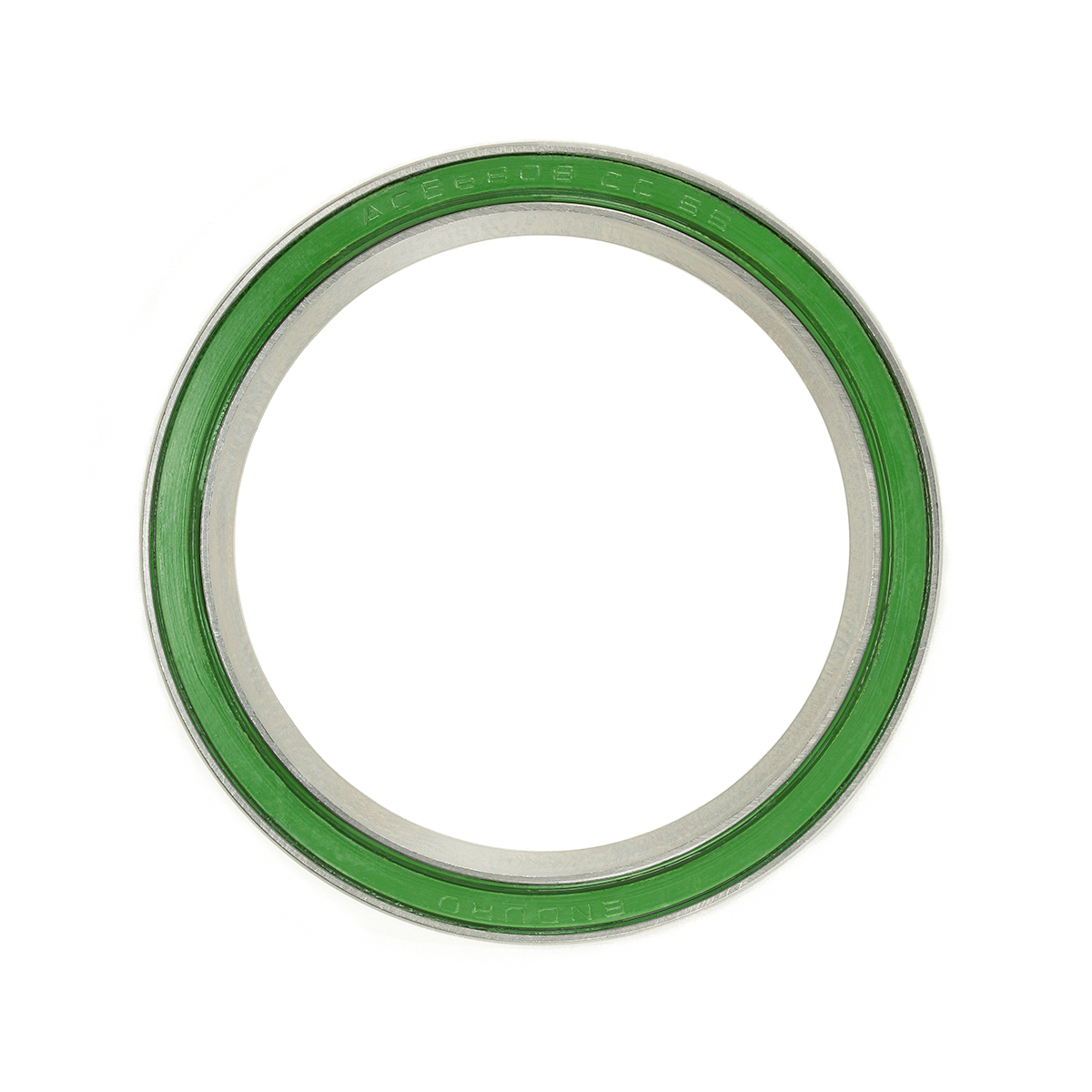

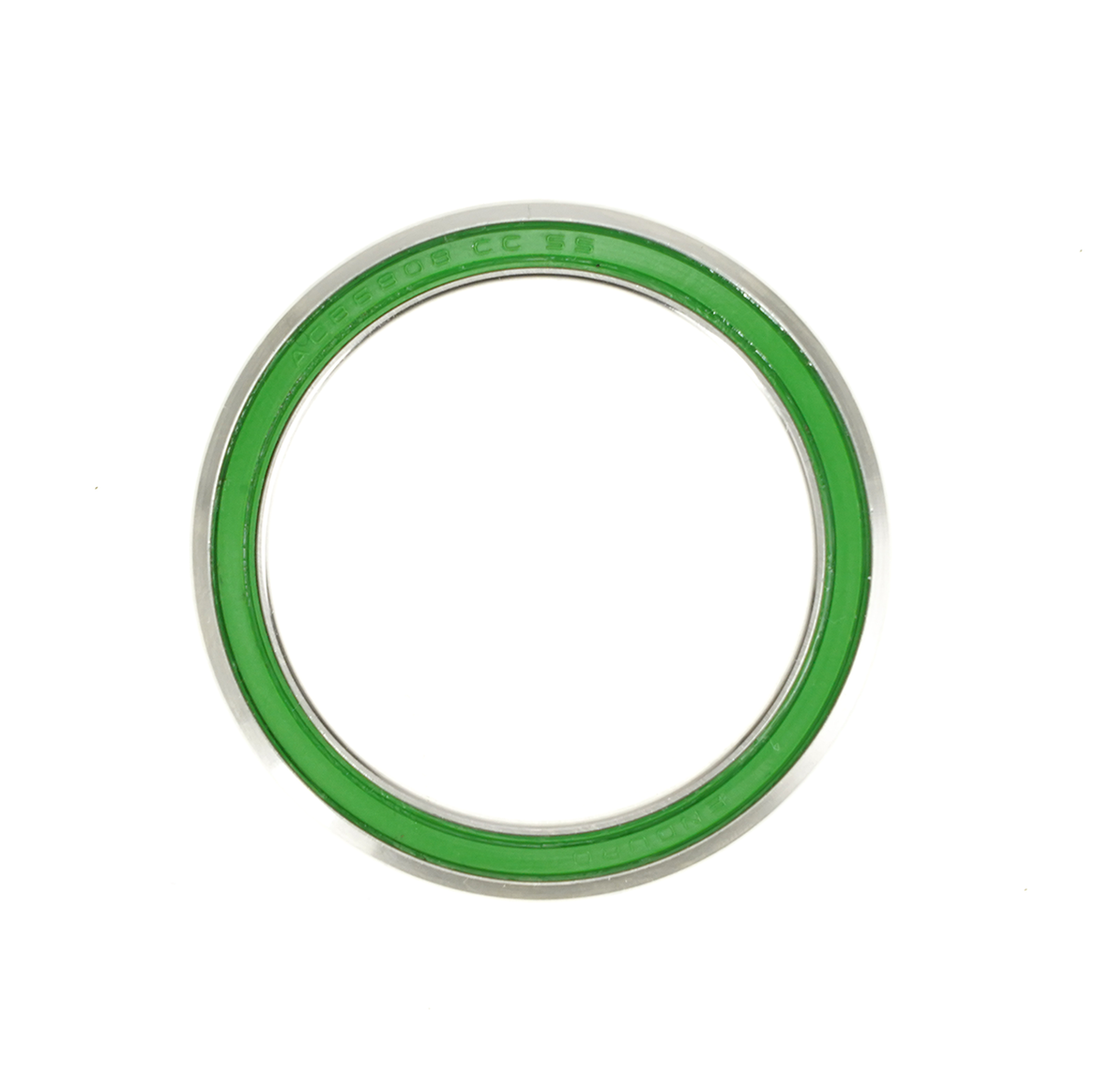

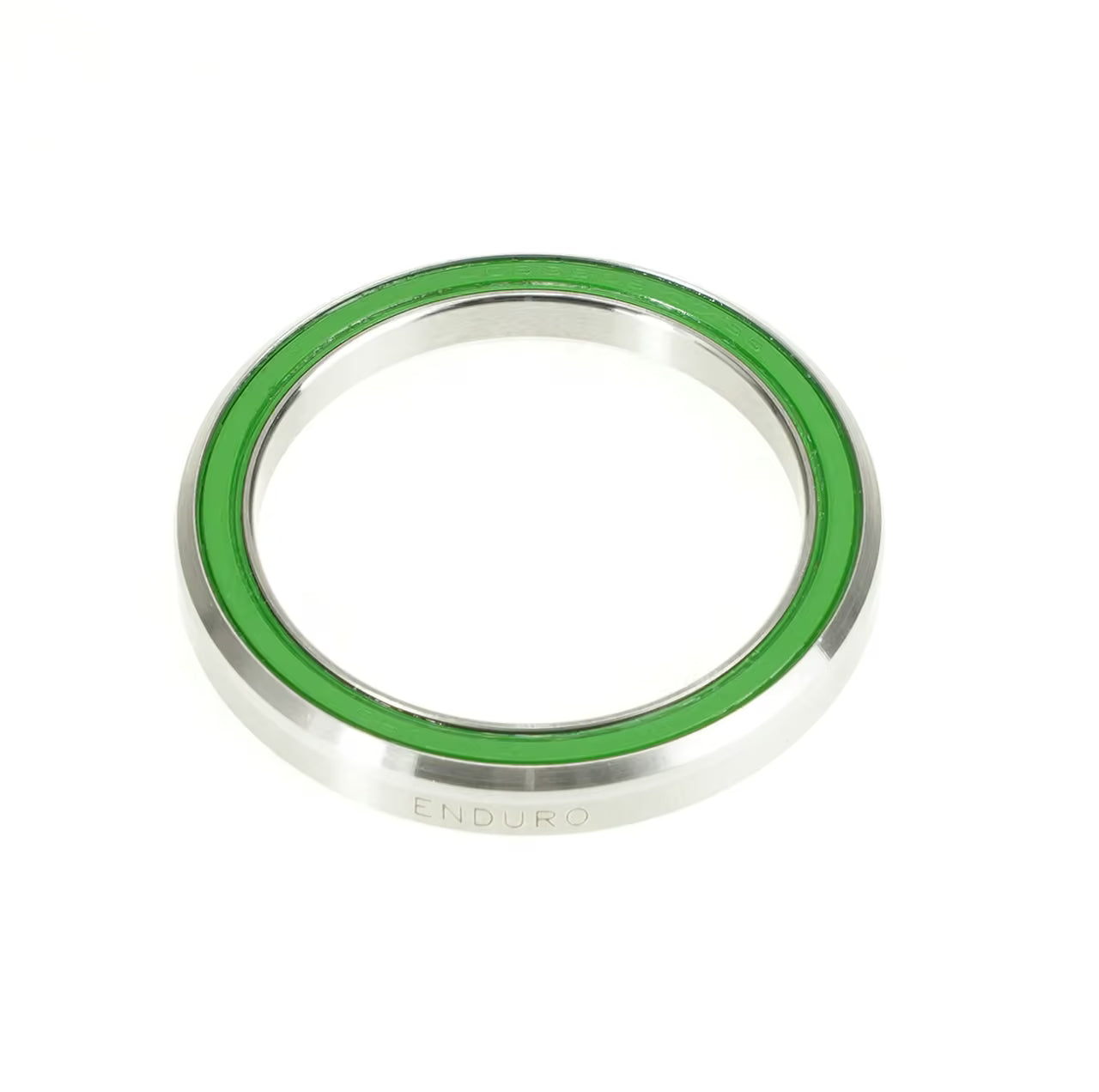

Stainless Steel

Angular-contact headset bearing featuring 440C stainless steel balls and races for superior corrosion protection.

Not all stainless steel is created equal.
Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatments to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem. Enduro Bearings also uses LLB type seals and CRC Marine Grease in these bearings to additionally water proof against the elements. Enduro 440C stainless headset bearings are the same bearings found in many popular headset brands, including those that carry a 110 year warranty.

XD-15

This is the last headset bearing you will ever install into your bike.
A recent Enduro development, these full XD-15 bearings are virtually identical in performance and corrosion resistance to our XD-15 Ceramic-hybrid bearings used for hubs and bottom brackets, but lend themselves better to the more abusive application of the headset. The mechanical properties of XD-15 stainless steel balls provide a level of impact resistance superior to ceramic balls for headset application. Enduro testing of bearings with XD-15 balls and races have been run in salt water for months without any corrosion, there is simply nothing on the market that compares. We are so confident in this material that we guarantee these full XD-15 headset bearings for life, against corrosion.





This size bearing is also known in the bike Industry by these part numbers:
HD 1404K
BAA0006K
MR-127
MR-196
MH-P25K
BAA1132
TH MR019

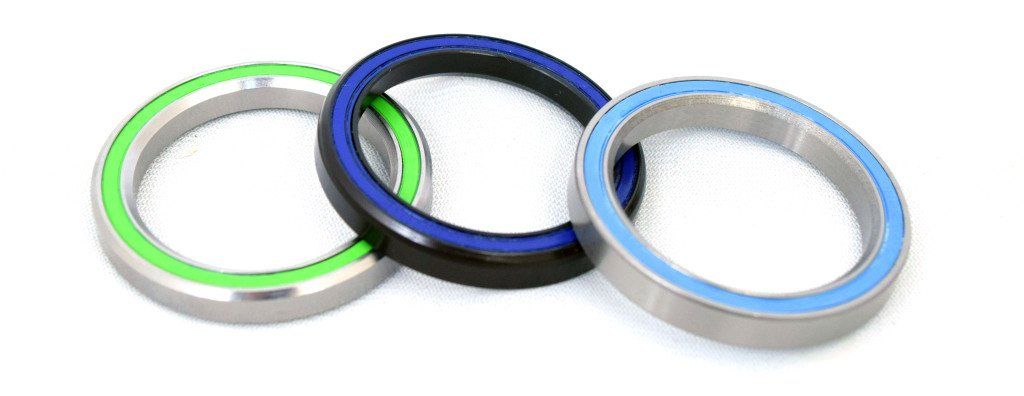

The Enduro line of angular-contact headset bearings start with Black Oxide treated Chromium steel races, steps up to full 440C stainless steel, and the top of the lines, lifetime-guaranteed, XD-15 aerospace-stainless (races and balls). They are always engineered with the largest balls possible, feature dual-lip seals riding in a micro-groove (labyrinth) and are filled 90% with high pressure water proof grease for the ultimate protection against sweat and the elements. Enduro Angular Contact (A/C) bearings are designed so all balls are evenly engaged to spread the force over a larger surface area, decreasing friction, minimizing wear and maximizing life.

Static load - 917lbf / 4.08kN
Weight - 24.9g
