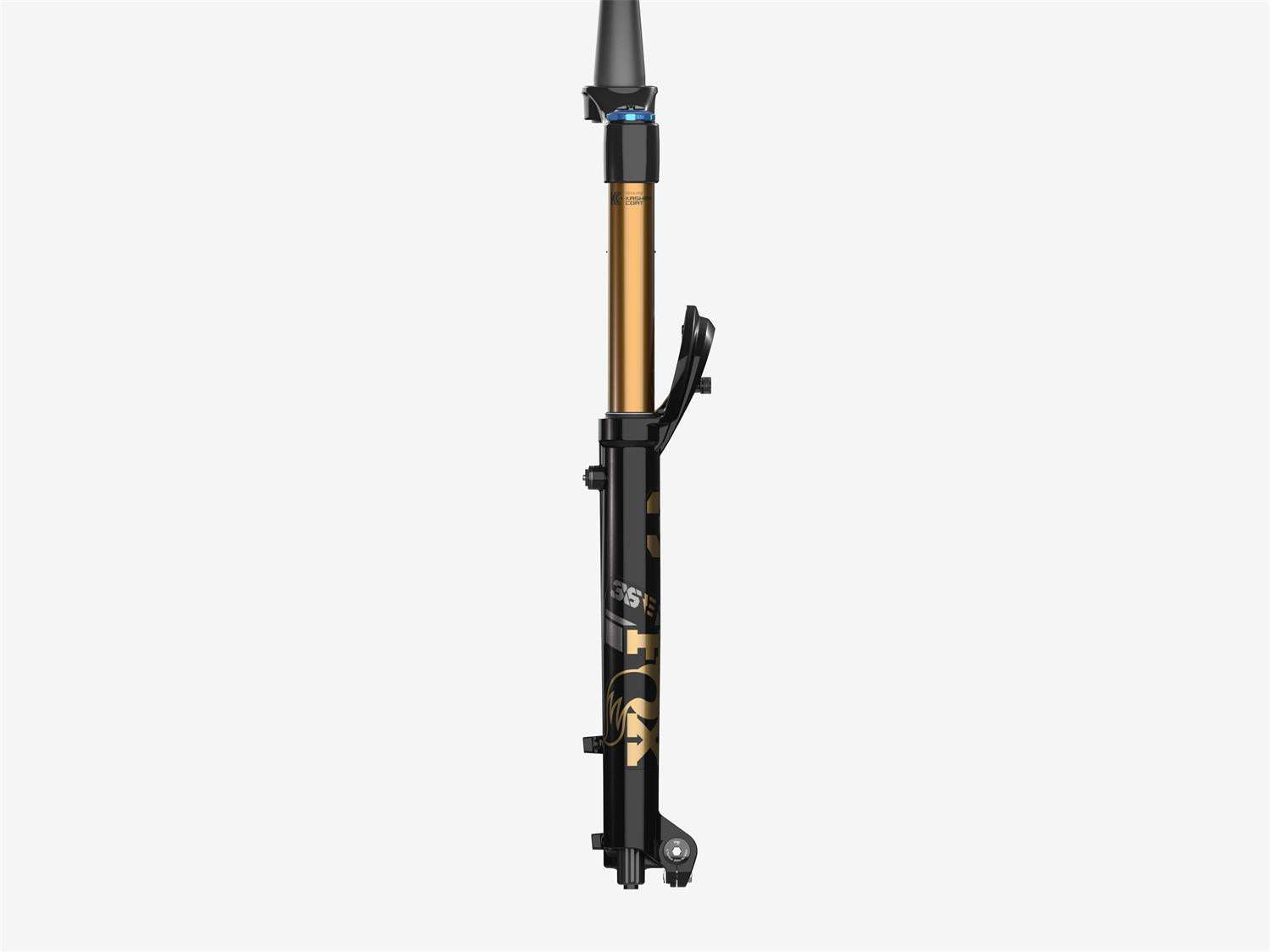

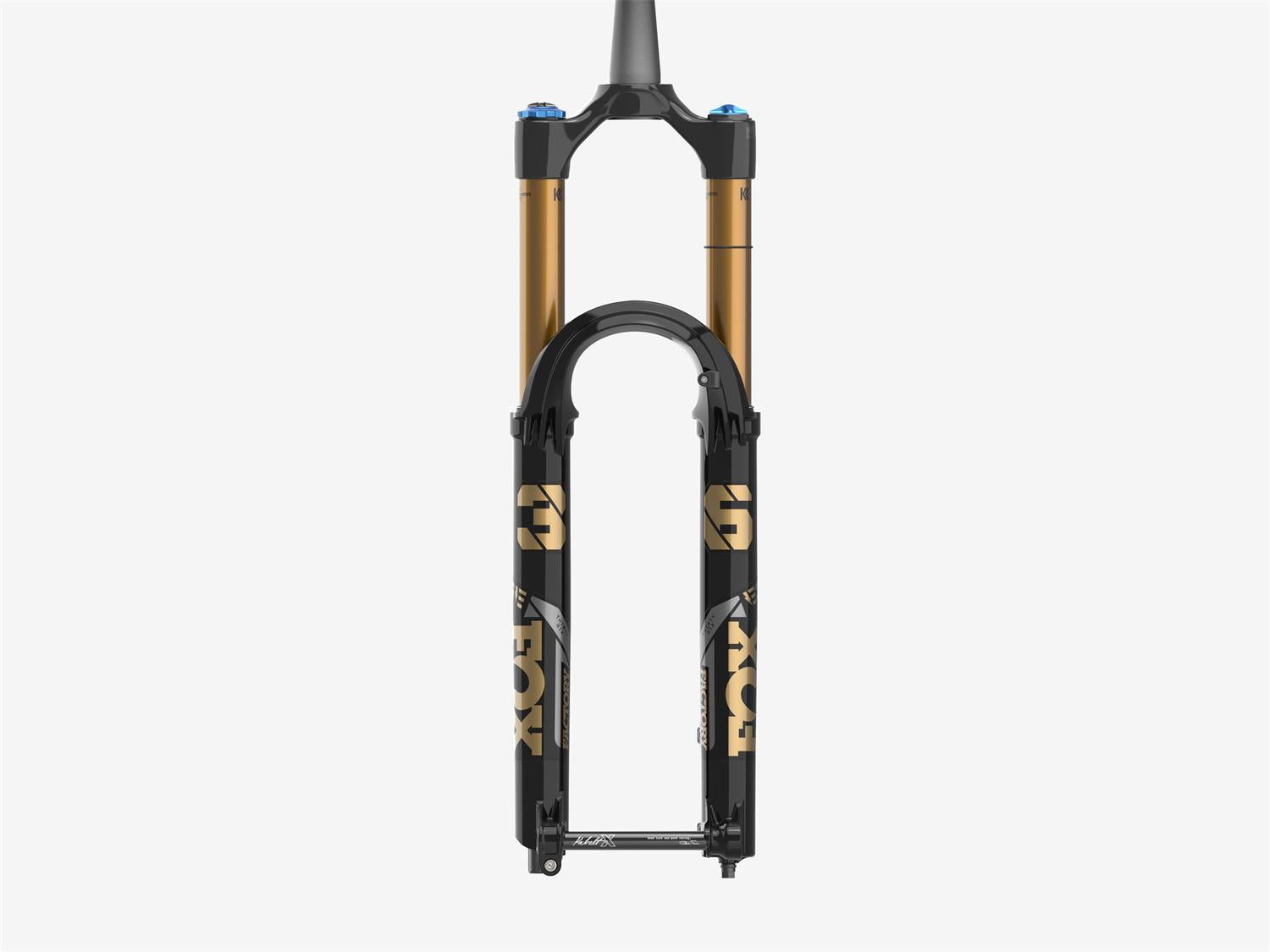

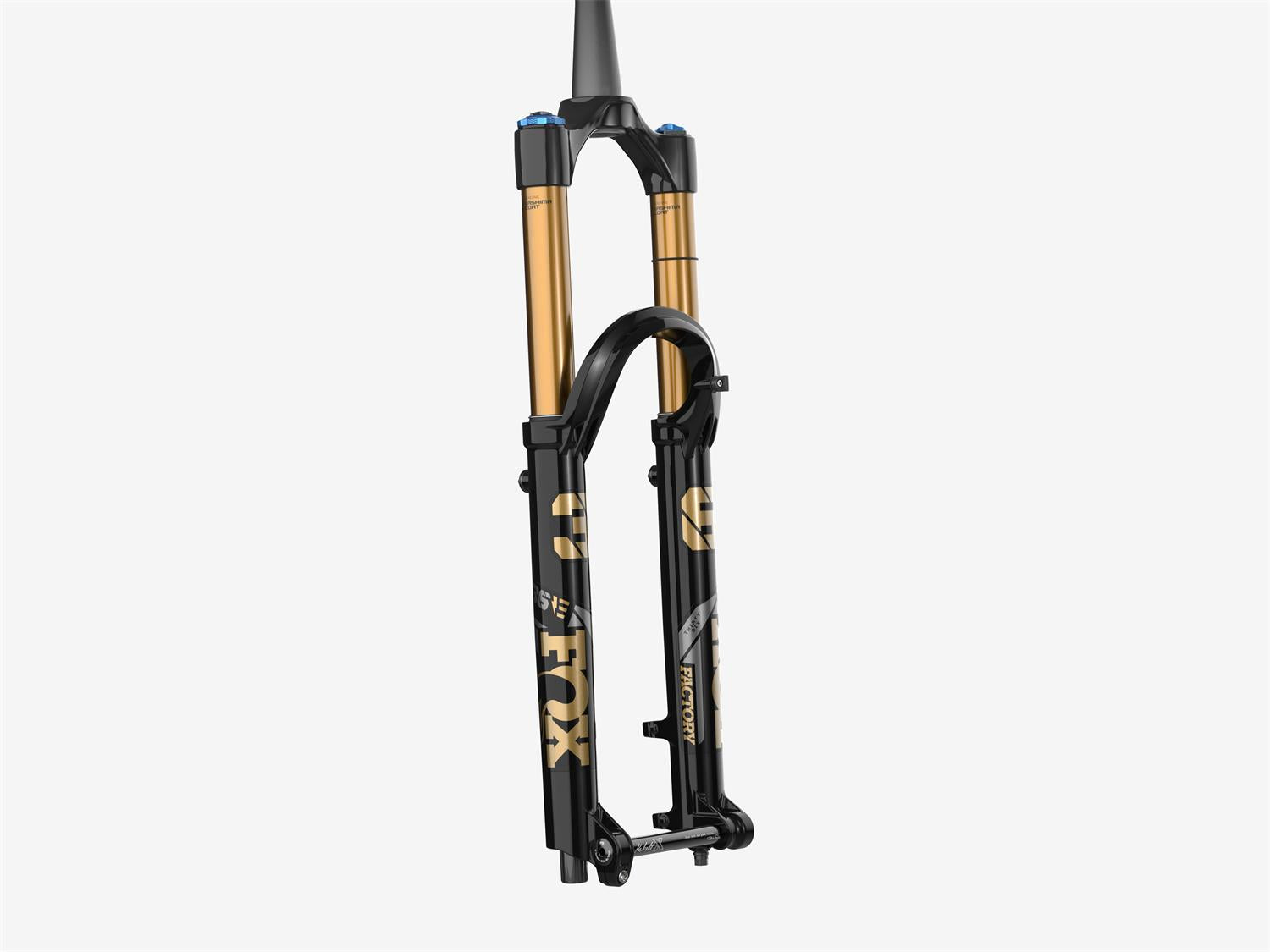

FOX - 36 EMTB FACTORY FORK - GRIP X2
The latest evolution of the revered 36 brings big fork energy to All-Mountain riding. Greater steering stiffness and smoother travel give the 36 an Enduro feel, without the weight.
GRIP X2
Greater traction and even more control at speed.The most tunable, supportive and smoothest descent-focused damper ever created by FOX.
ARCH AGAINST
The arch design wraps around the lowers to increase torsional stiffness of the fork by 20% over the previous 36.
GLIDECORE AIR SPRING
The seamlessly compliant FLOAT Glidecore air spring reduces friction by moving with the fork under dynamic load. The result? Smoother suspension action.
KEY FEATURES
- E-Optimised chassis for modern trail and eMTB demands
- Enhanced steering stiffness for improved control and precision
- Smoother travel for reduced fatigue and increased traction
- GRIP X2 damper with full adjustability (HSC, LSC, HSR, LSR)
- FLOAT EVOL GlideCore air spring for sensitivity and support
- Kashima-coated upper tubes for ultra-smooth performance
- Air channels and bleed valves for consistent ride feel
- Optional FOX mud guard with secure 4-point direct mount
SPEC
- SERIES: Factory
- CHASSIS: E-Optimized
- WHEEL SIZE: 29in
- TRAVEL: 160, 170mm
- DAMPER: GRIP X2
- DAMPER CONTROLS: HSC, LSC, HCR, LSR
- AXLE: Kabolt-X 110
- RAKE: 44mm
- STEERER: 1.5 Tapered
- UPPER TUBE FINISH: Kashima
- AIR CHANNELS: Yes
- BLEEDERS: Yes
- FLOATING AXLE: Yes
- ROTOR SIZE: 200 direct Post Mount, Up to 230 compatible
- AIR SPRING: FLOAT EVOL
- STARTING WEIGHT: 1920g (36, 29, F-S,Grip X, Kabolt-X)
