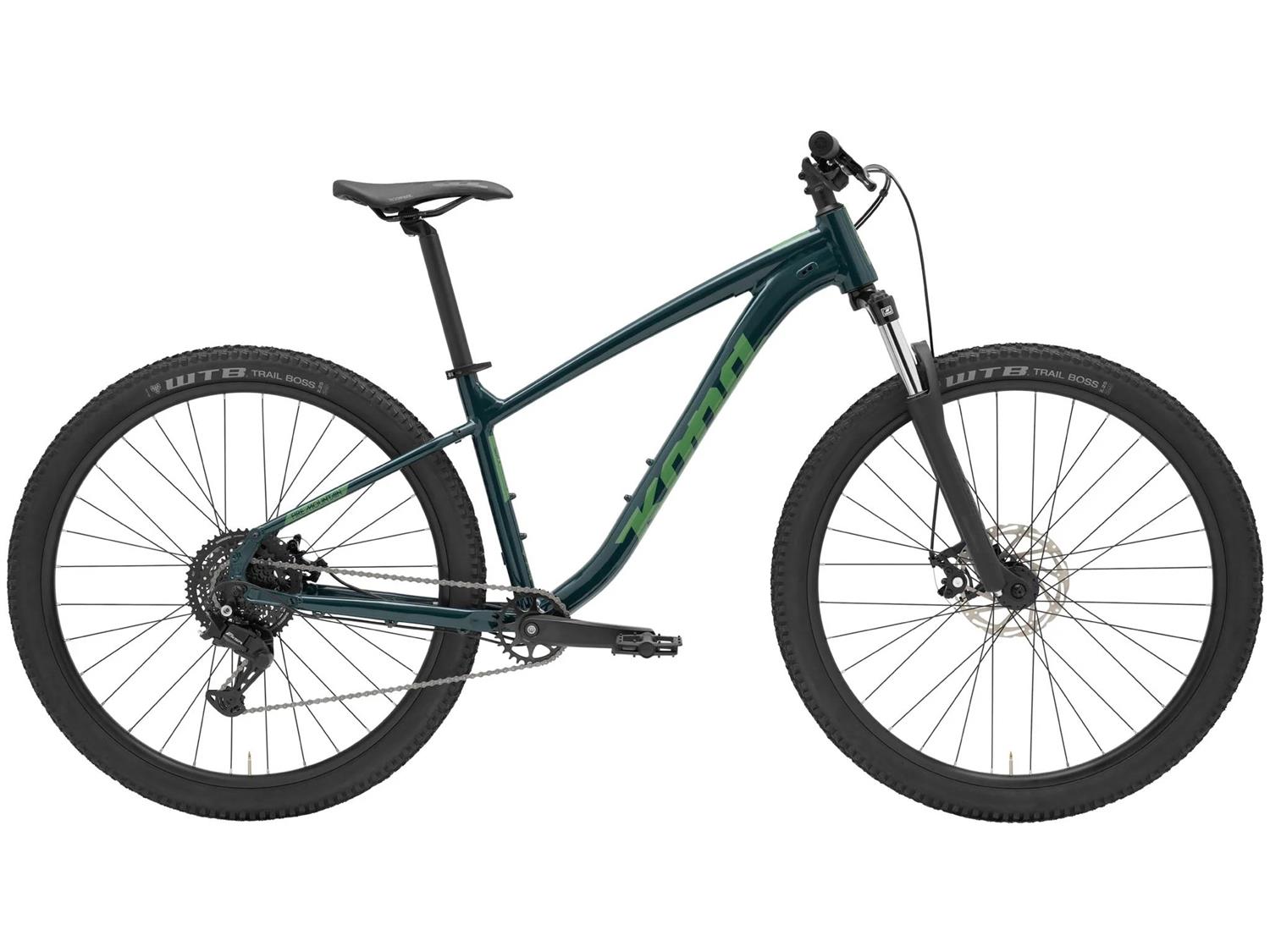

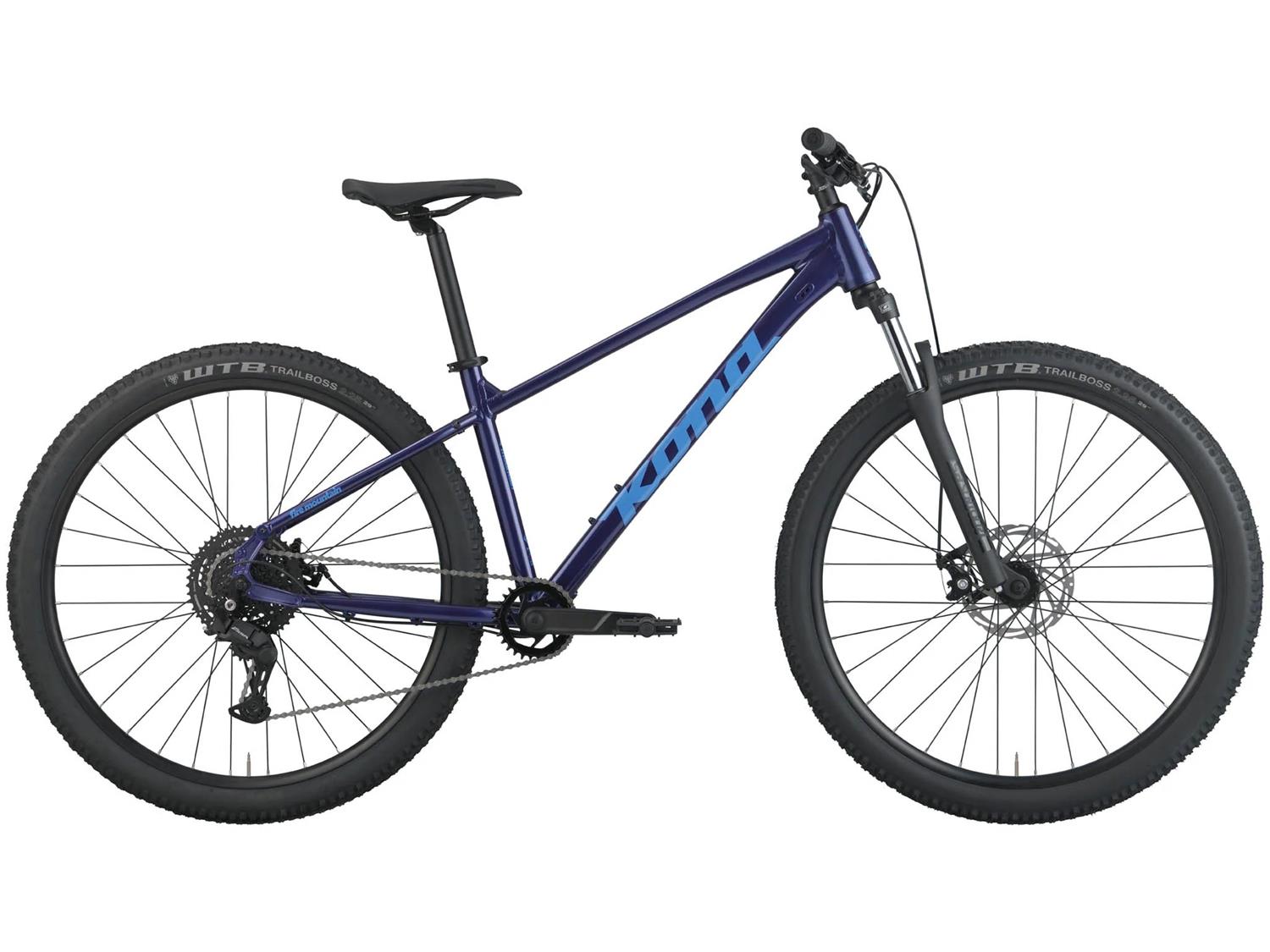

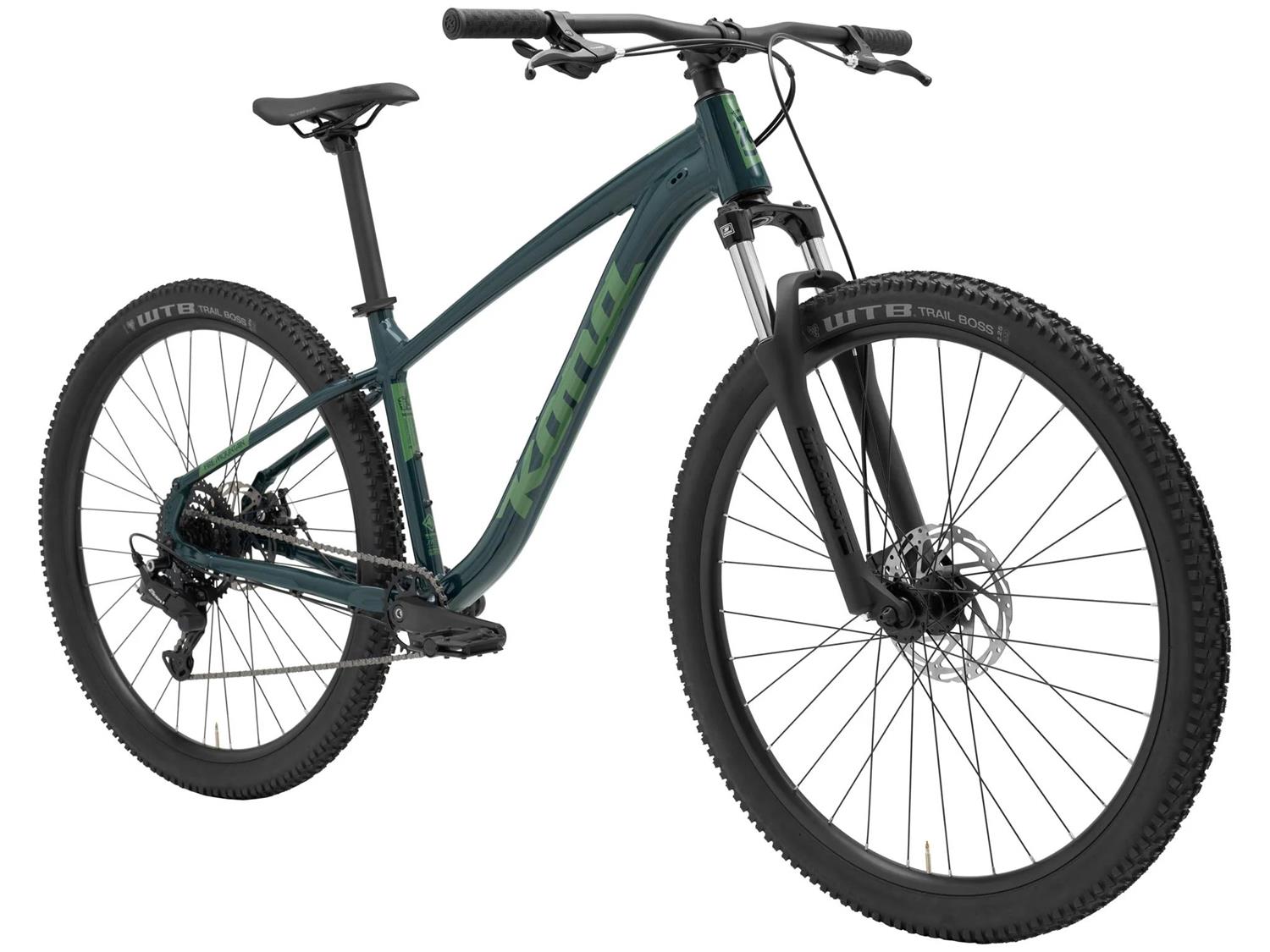

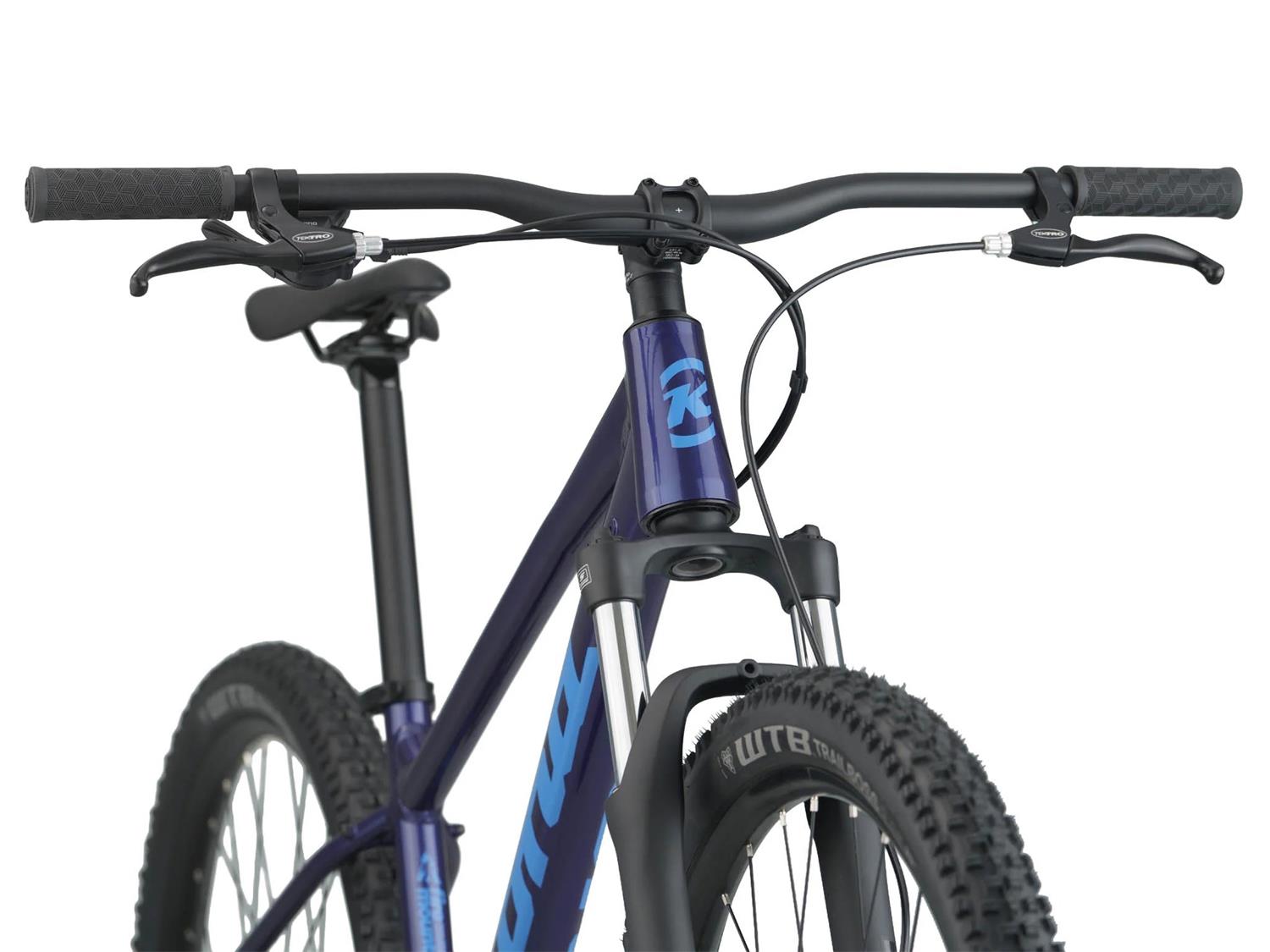

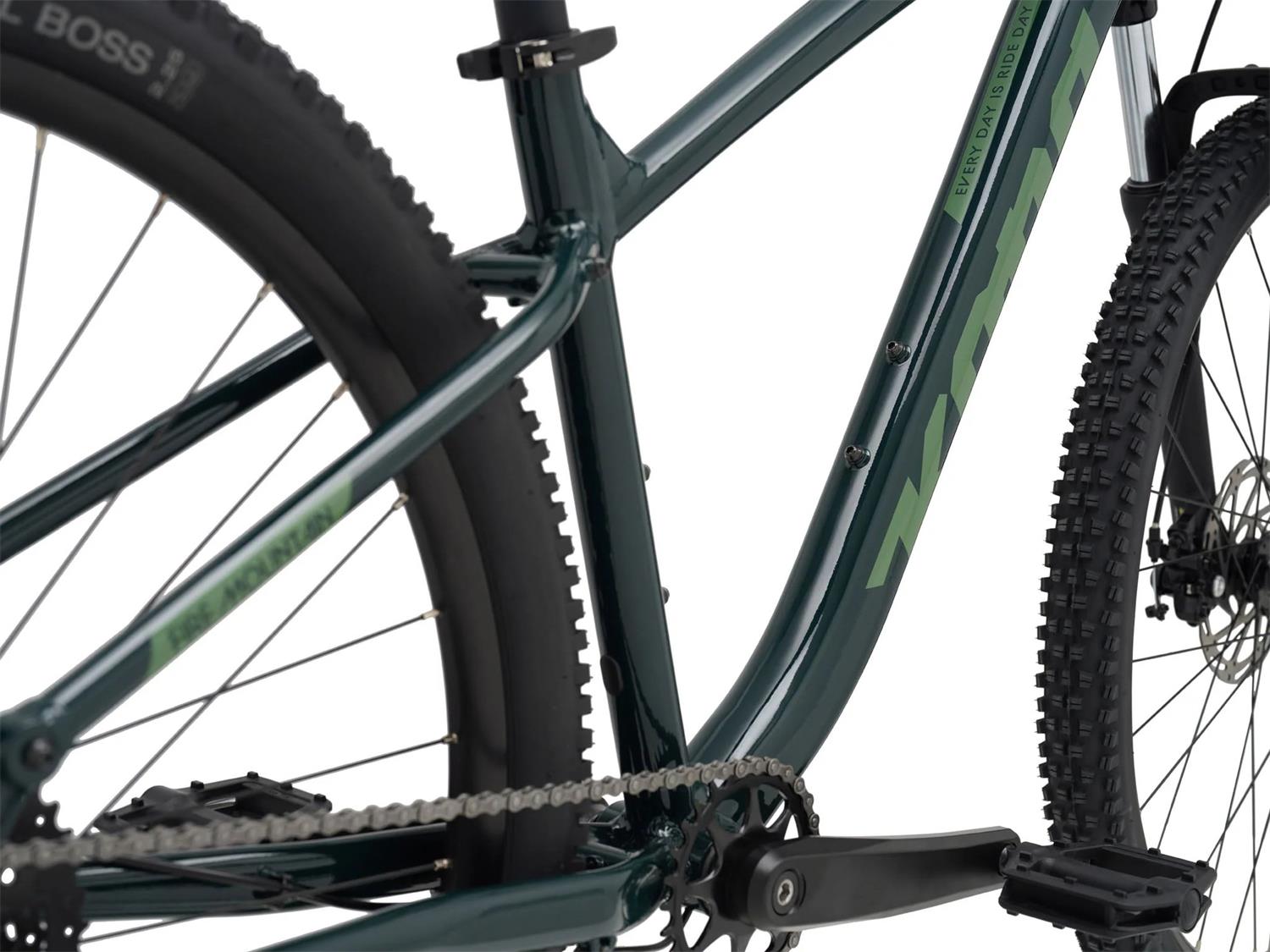

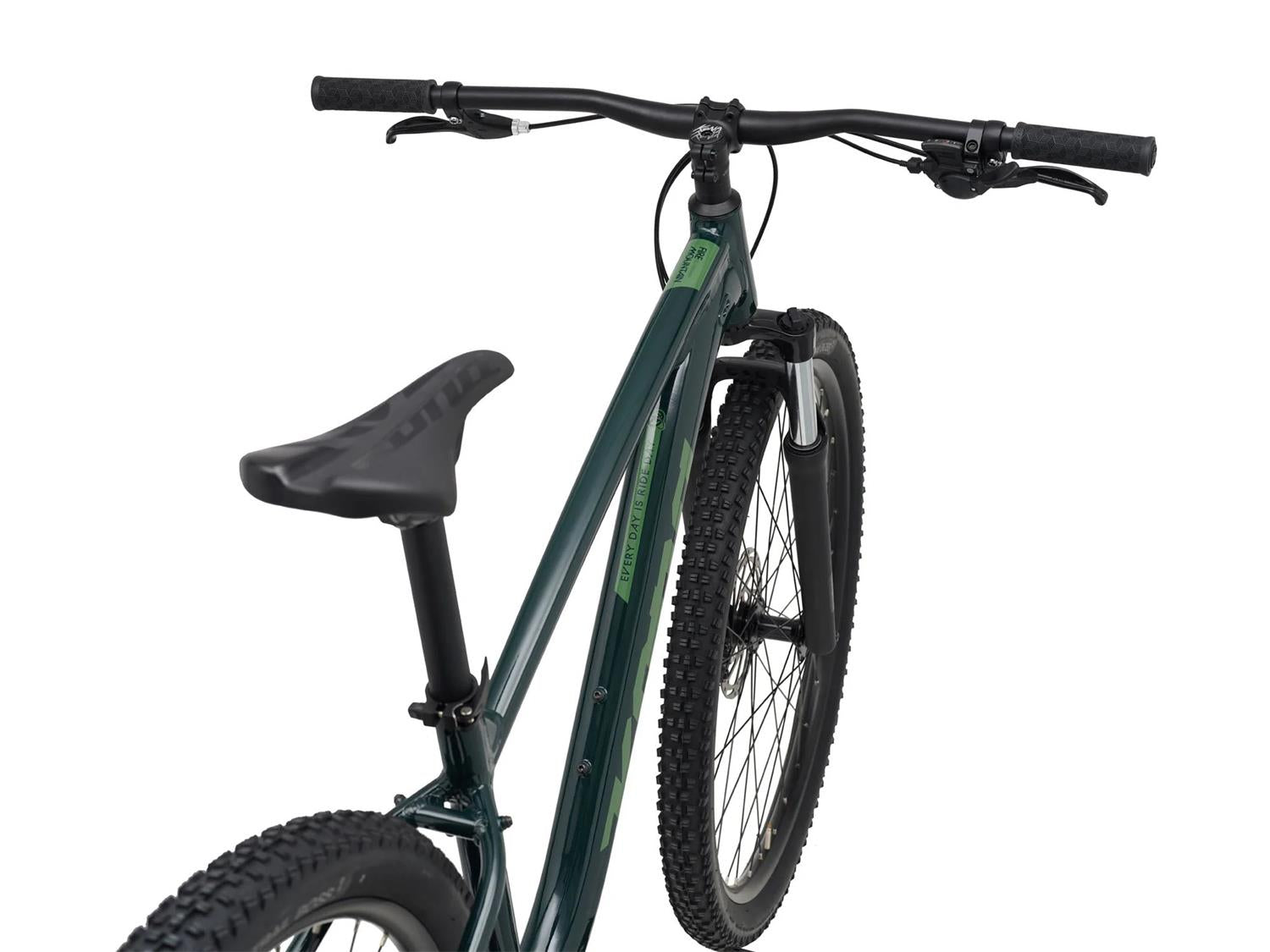

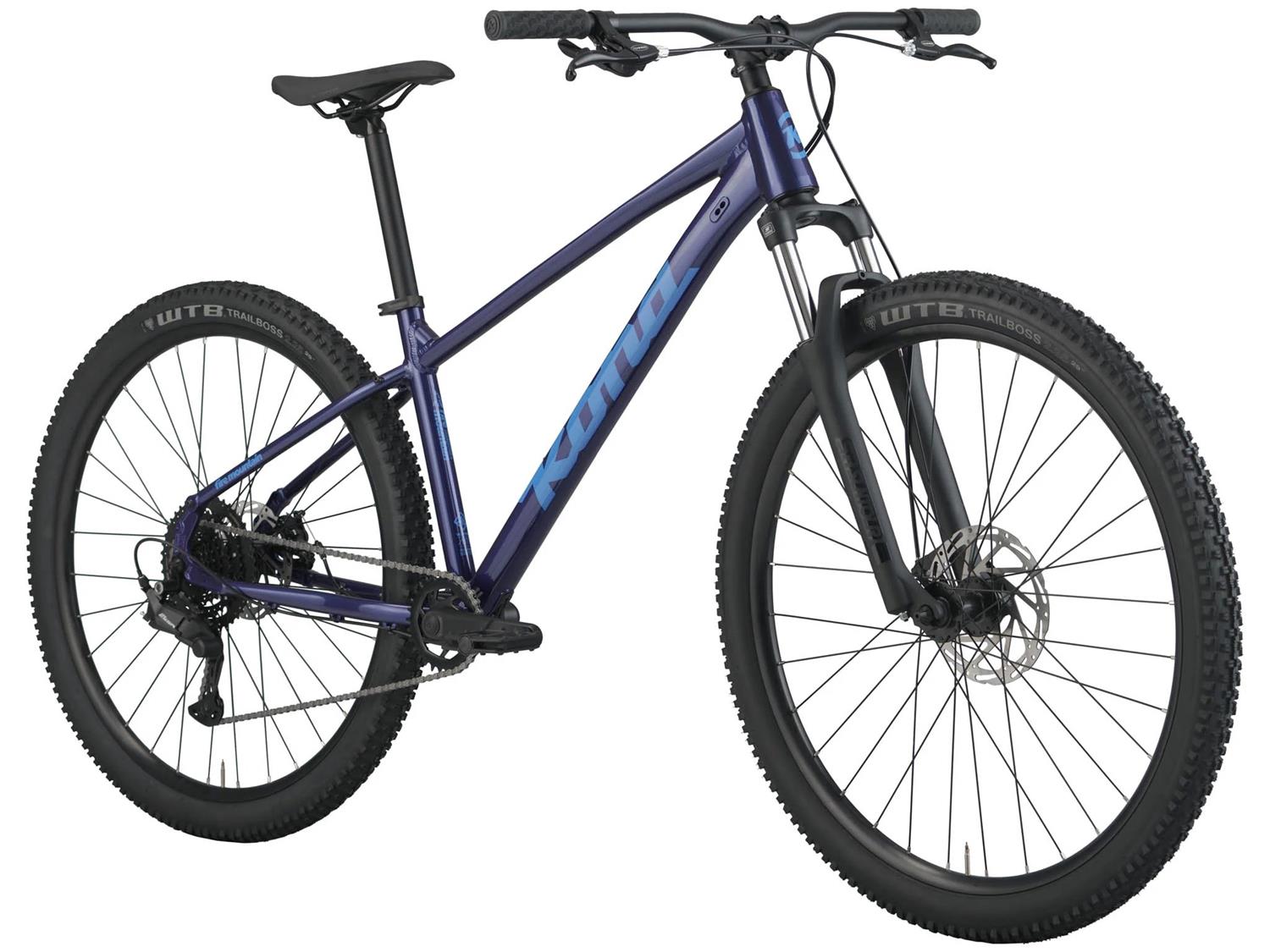

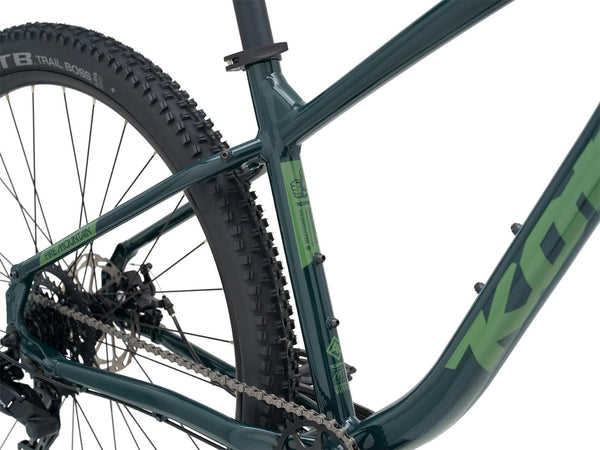

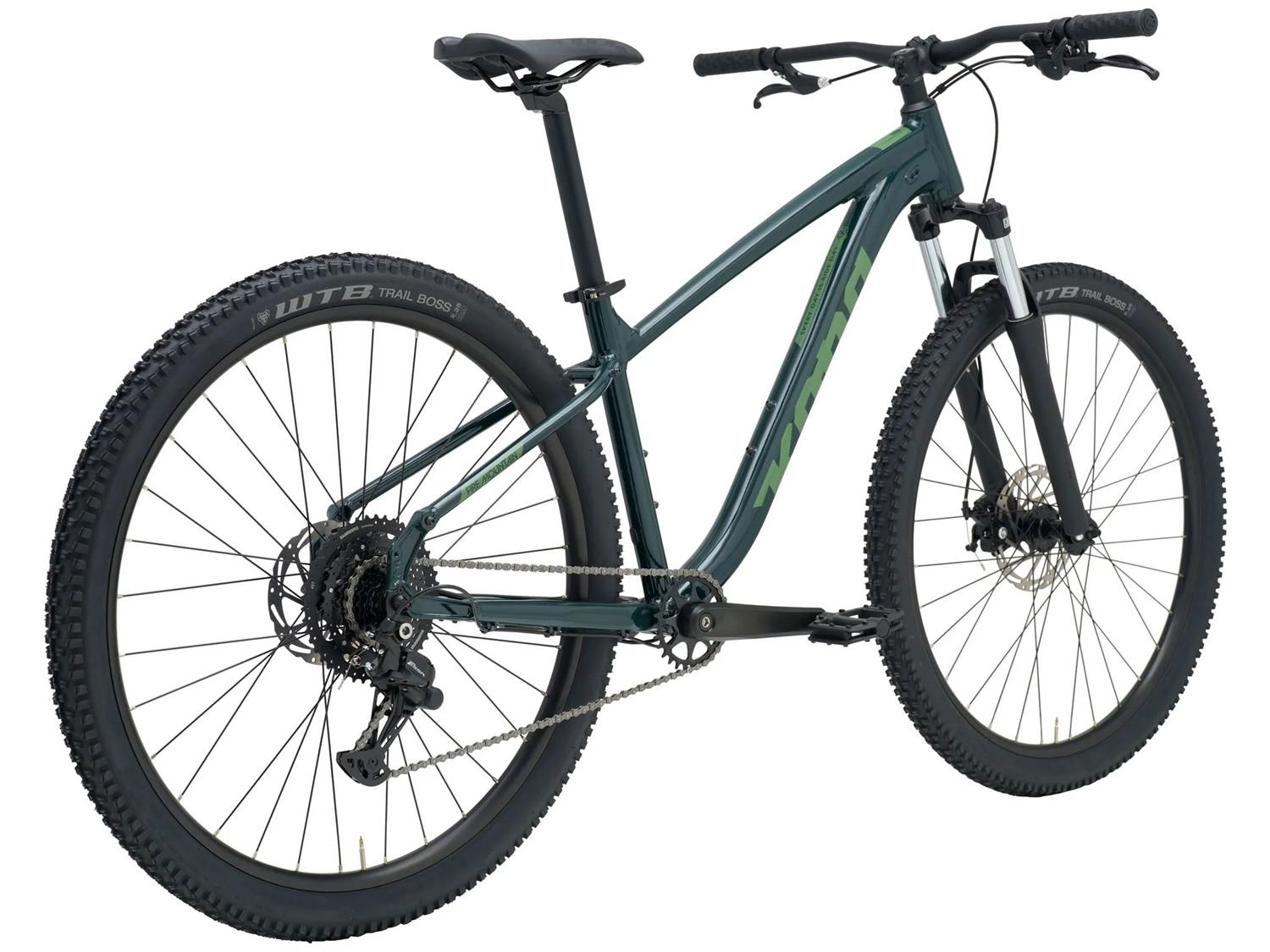

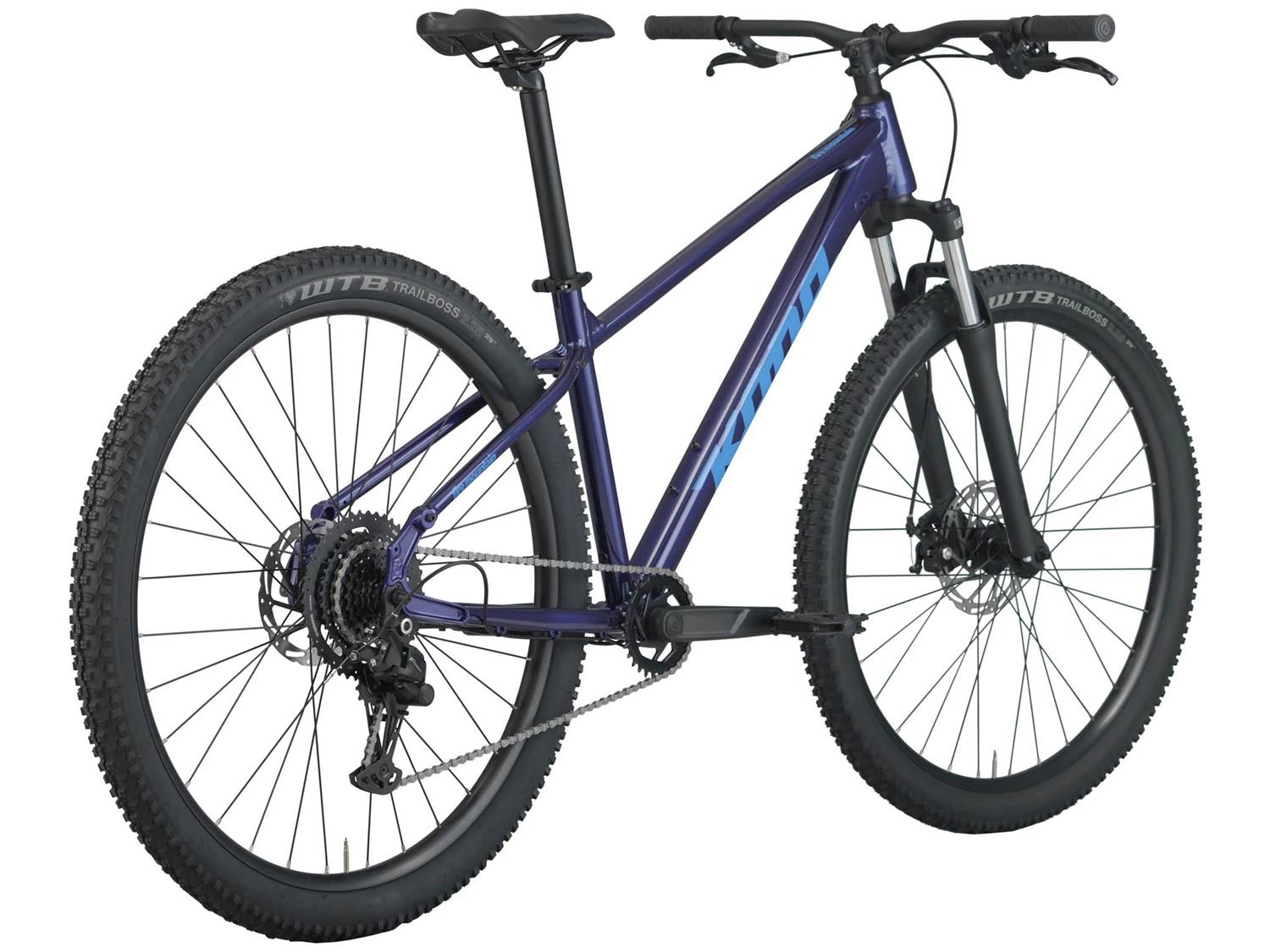

The Fire Mountain is an affordable hardtail mountain bike built for first trails, growing confidence, and the moment a casual ride becomes a full blown habit.
Born from Kona’s Pacific Northwest mountain bike heritage, it pairs a 100mm suspension fork with a dependable 8 speed drivetrain and mechanical disc brakes to keep rough terrain, loose dirt, and unpredictable conditions manageable.
Size specific wheels give riders a confident fit across the range, with 26” wheels on the XS, 27.5” wheels on the S, and 29” wheels on sizes M through XL. Consider it your introduction to mountain biking by trial, trail, and fire.
The mountains are calling, and this is where the origin story begins.
SPECIFICATIONS

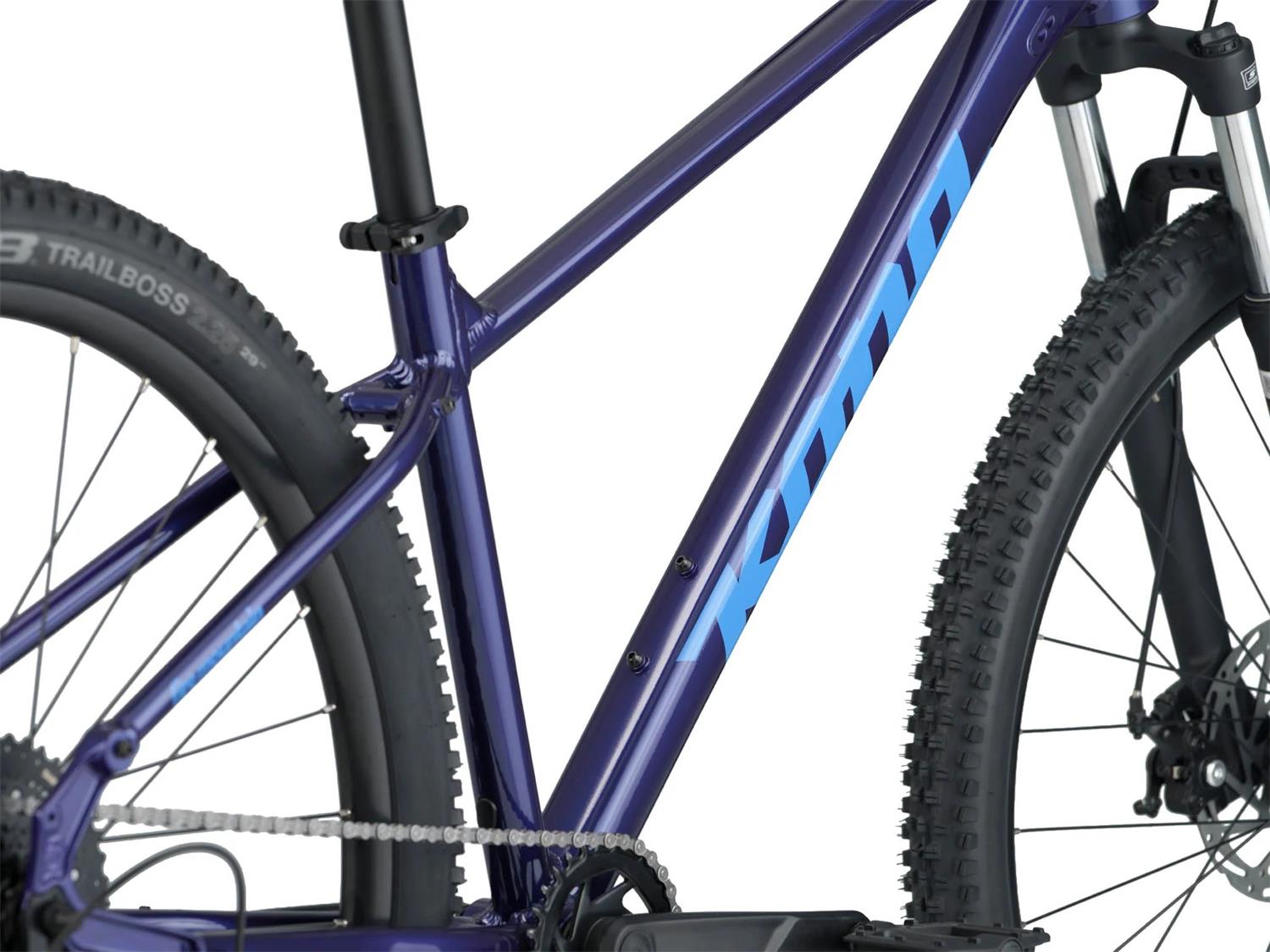

| FRAME | Kona 6061 Aluminum Butted |
| SIZES | XS, S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | SR/Suntour XCE28 Coil 100mm |

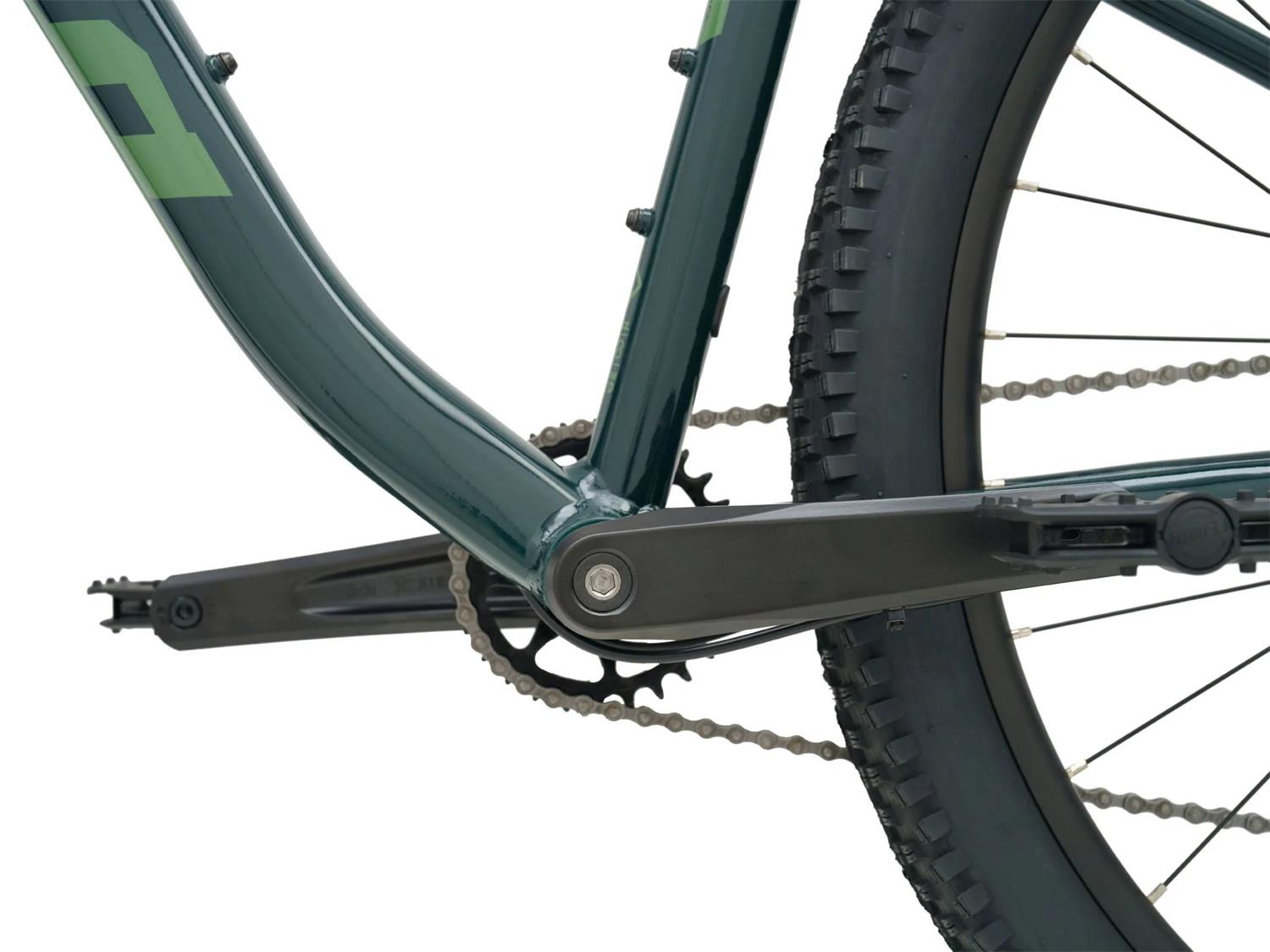

| CRANKSET | Prowheel EPRO-MD26 30t / Length XS-S 165mm / M-XL 170mm |

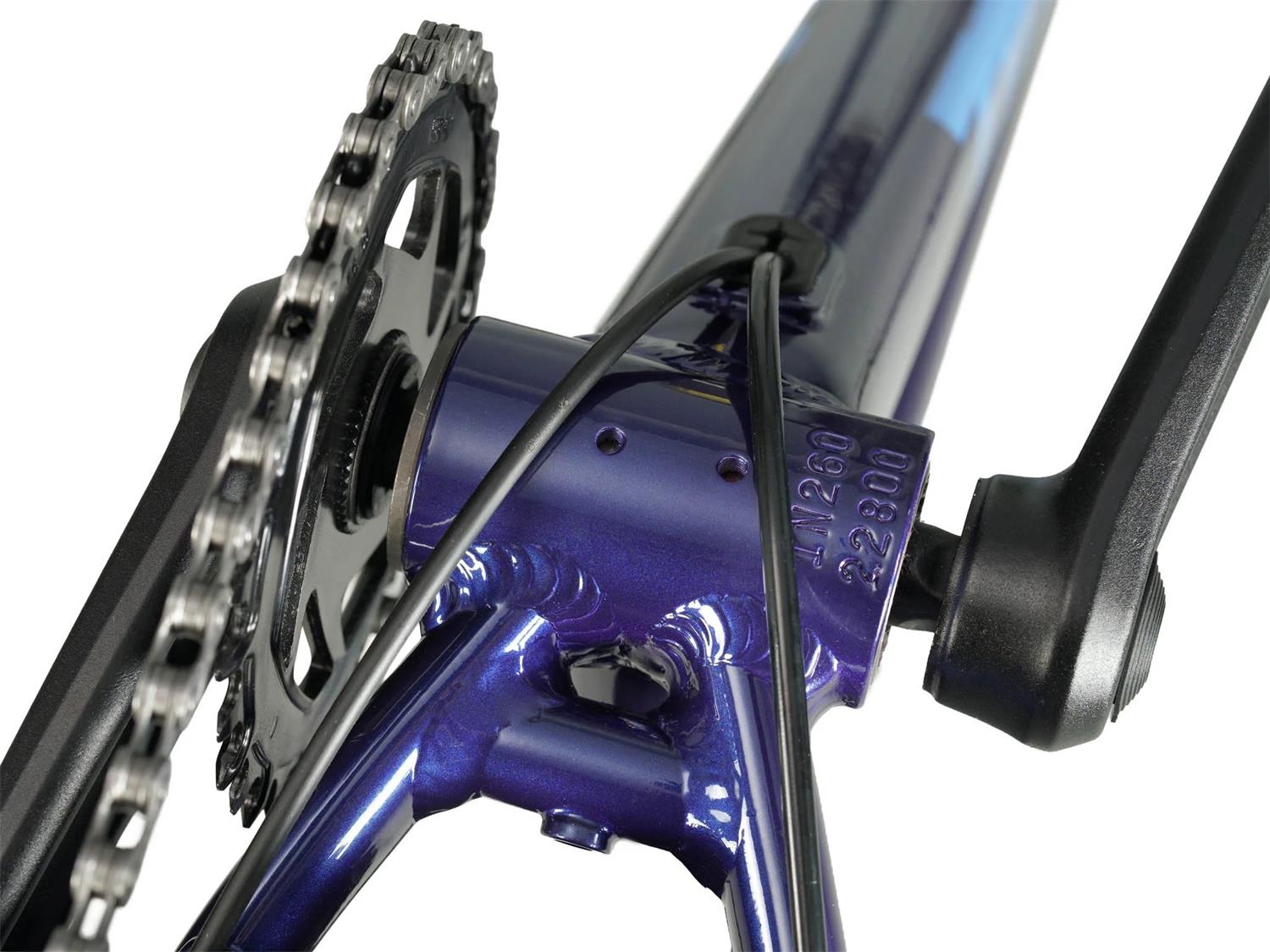

| BOTTOM BRACKET | Feimin BSA 73 |
| PEDALS | Kona JS2 |
| CHAIN | KMC Z8.3 |
| CASSETTE | Shimano ESSA HG300 11-45t 8spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Microshift Advent |
| SHIFTERS | Shimano ALTUS |
| BRAKE CALIPERS | Tektro M280 2-piston |
| FRONT BRAKE ROTOR | Tektro 180mm 6B 1.8mm |
| REAR BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| BRAKE LEVERS | Tektro CL-330RS Mechanical |
| HEADSET | Feimin ZS44/ZS56 |

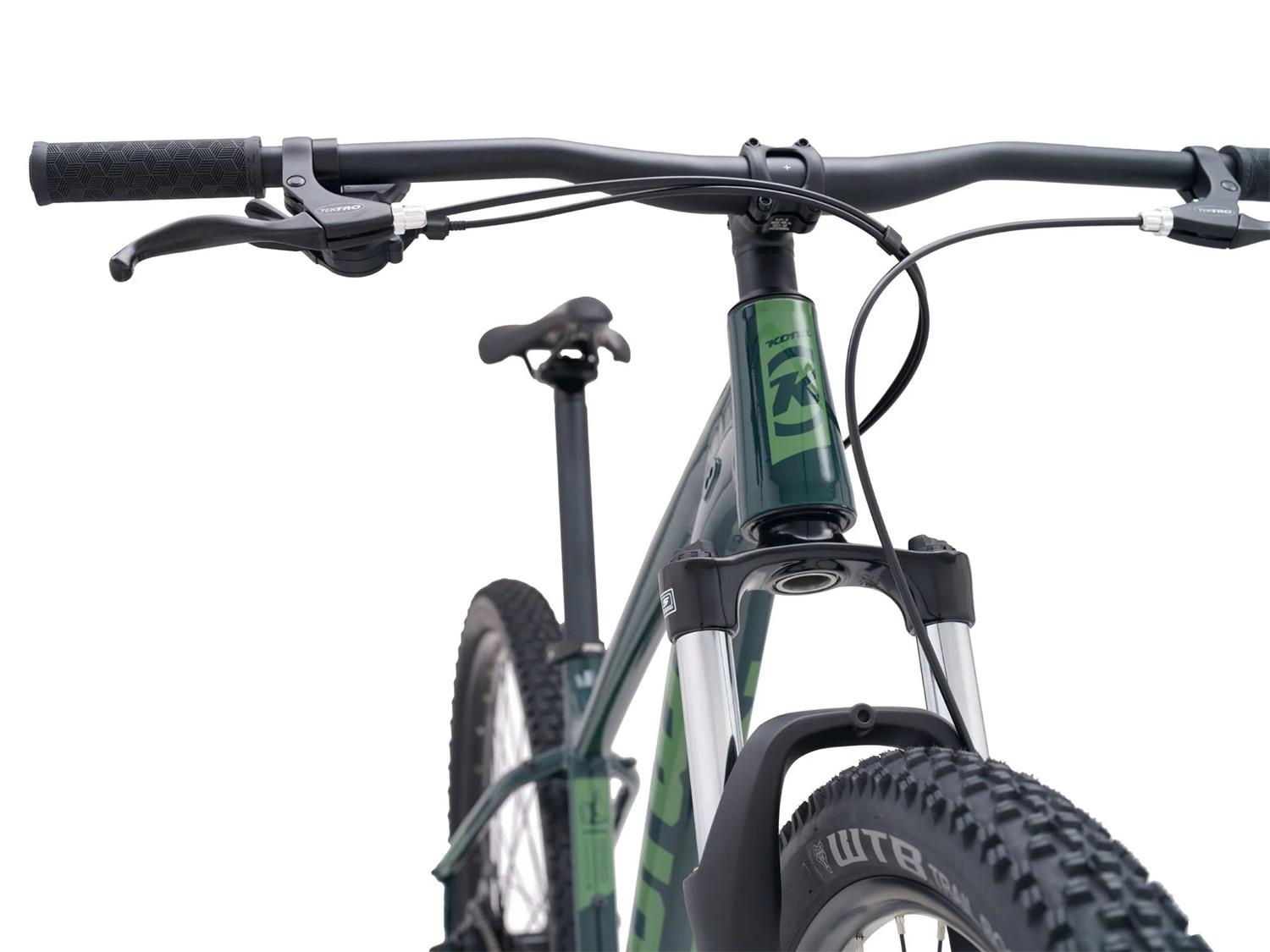

| HANDLEBAR | Kona 31.8mm / Back 6º / Rise 20mm / Width XS-S 740mm / M-XL 780mm |
| STEM | Kona 31.8mm / Rise 7º / Length XS-M 40mm / L-XL 50mm |
| SEATPOST | Kona w/Offset 31.6mm / Length XS-M 350mm / L-XL 400mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip |
| SADDLE | Kona MTB |
| FRONT HUB | Joytech 9x100mm |
| REAR HUB | Joytech 10x135mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | Double Wall Aluminum |
| FRONT TIRE | WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25" |
| REAR TIRE | WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25" |
| PAINT COLOR | Gloss Fancy Karman w/ Electric Blue Decals |
| PAINT COLOR | Gloss Emerald w/ Sage Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | XS | S | M | L | XL | |
| 1 | ST Length | 365 | 380 | 410 | 450 | 490 |
| 2 | TT Length | 560 | 587 | 622 | 650 | 687 |
| 3 | Reach | 410 | 430 | 455 | 480 | 515 |
| 4 | Stack | 561 | 586 | 624 | 633 | 642 |
| 5 | Standover | 679 | 699 | 728 | 726 | 721 |
| 6 | HT Angle | 67.5 | 67.5 | 67.5 | 67.5 | 67.5 |
| 7 | HT Length | 100 | 110 | 120 | 130 | 140 |
| 8 | ST Angle | 75 | 75 | 75 | 75 | 75 |
| 9 | CS Length | 435 | 435 | 450 | 450 | 450 |
| 10 | BB Drop | 30 | 45 | 60 | 60 | 60 |
| 11 | BB Height | 305 | 310 | 315 | 315 | 315 |
| 12 | Wheelbase | 1110 | 1132 | 1190 | 1219 | 1257 |
| 13 | Front Center | 676 | 701 | 746 | 755 | 814 |
| 14 | Fork Length | 490 | 490 | 509 | 509 | 509 |
| 15 | Fork Offset | 42 | 42 | 51 | 51 | 51 |
