Our intent with this bike was to position it as something “more” than just a race bike, because the Hei Hei embodies this incredible blend of sharpness and speed in a broadly capable, trail-friendly package that makes even the gnarliest climbs fun again. But then Cory Wallace went out and won ANOTHER 24 Hour World Championship aboard it, so, yeah. It does just fine as a race bike too.

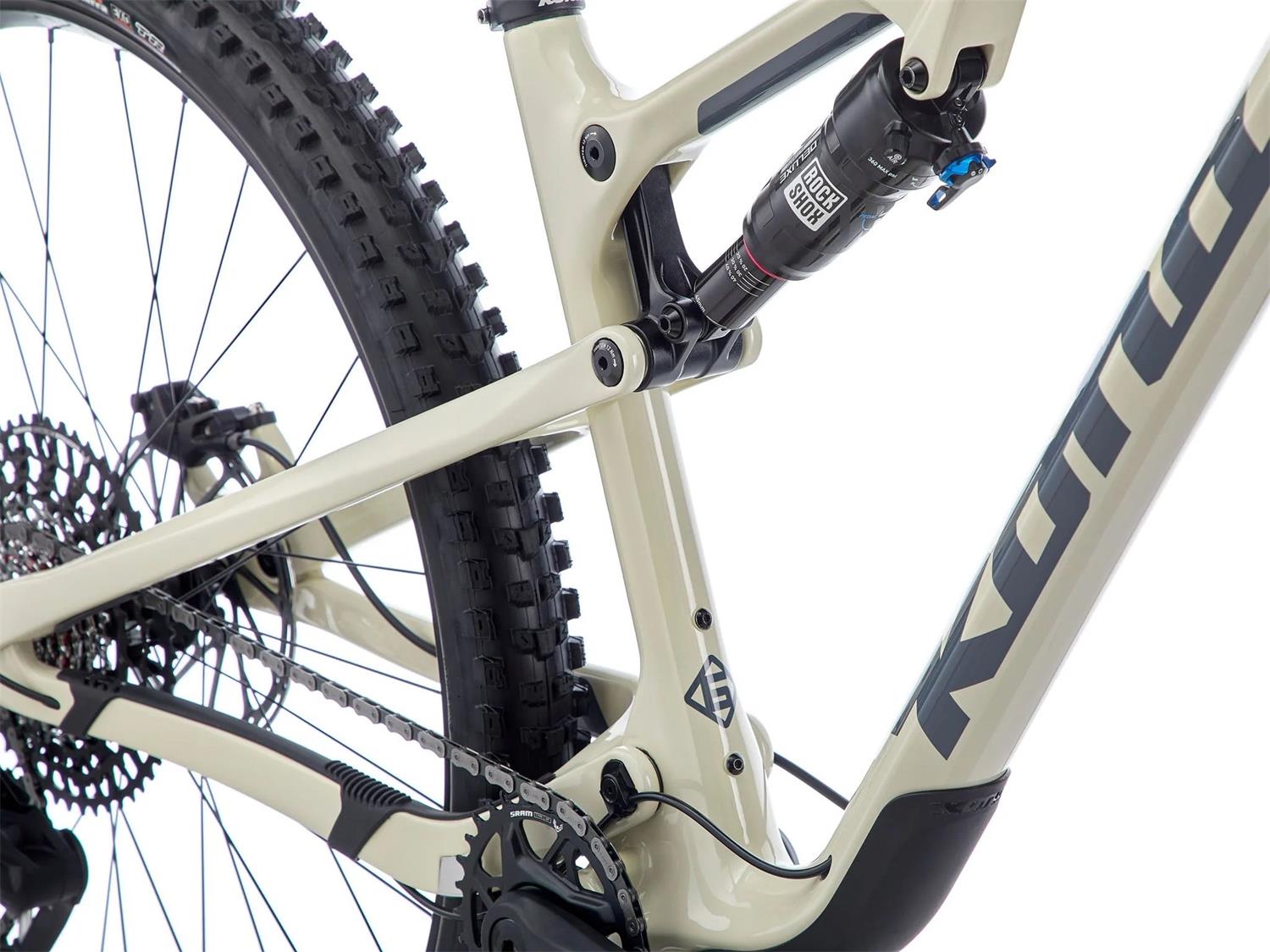

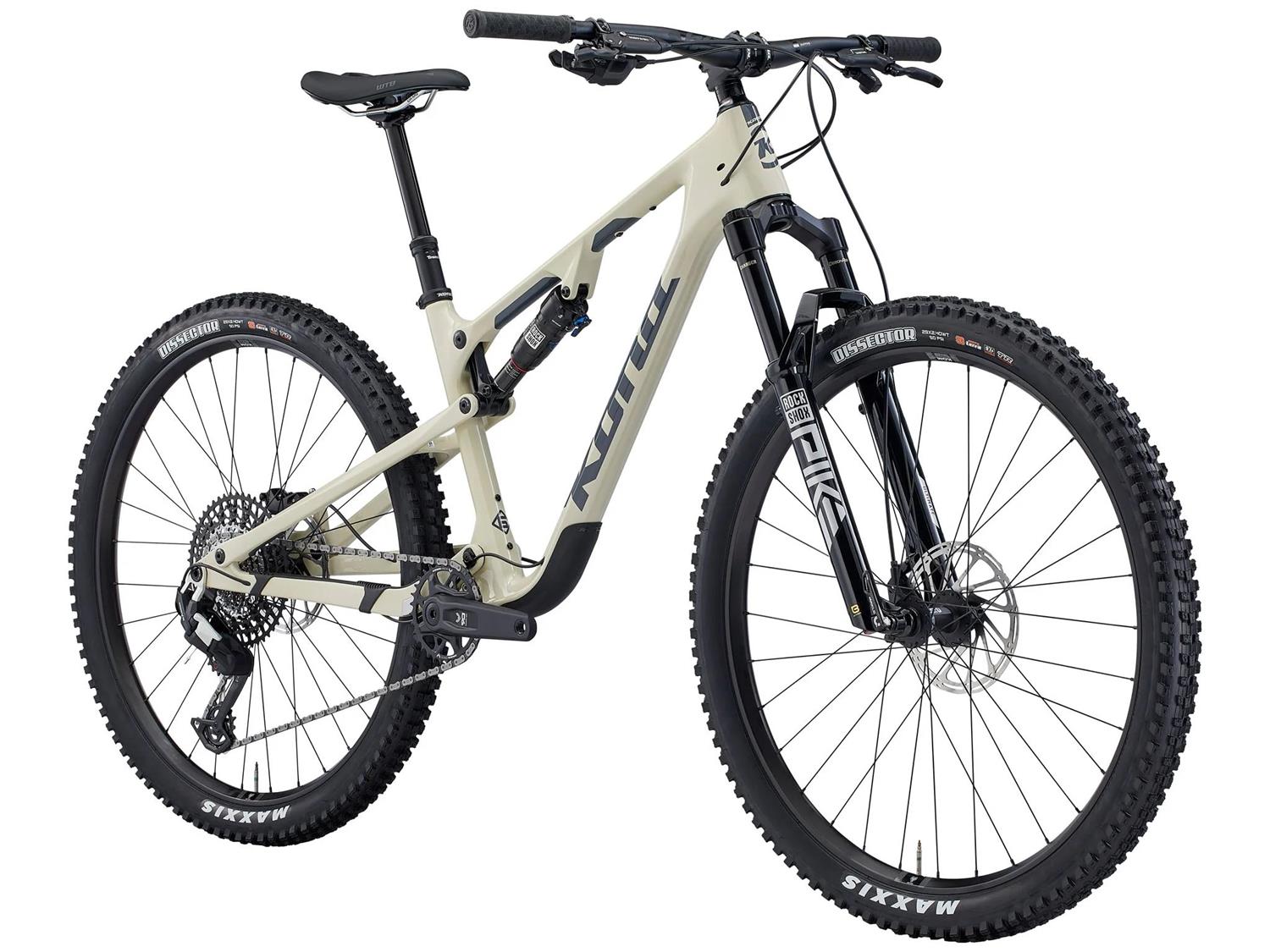

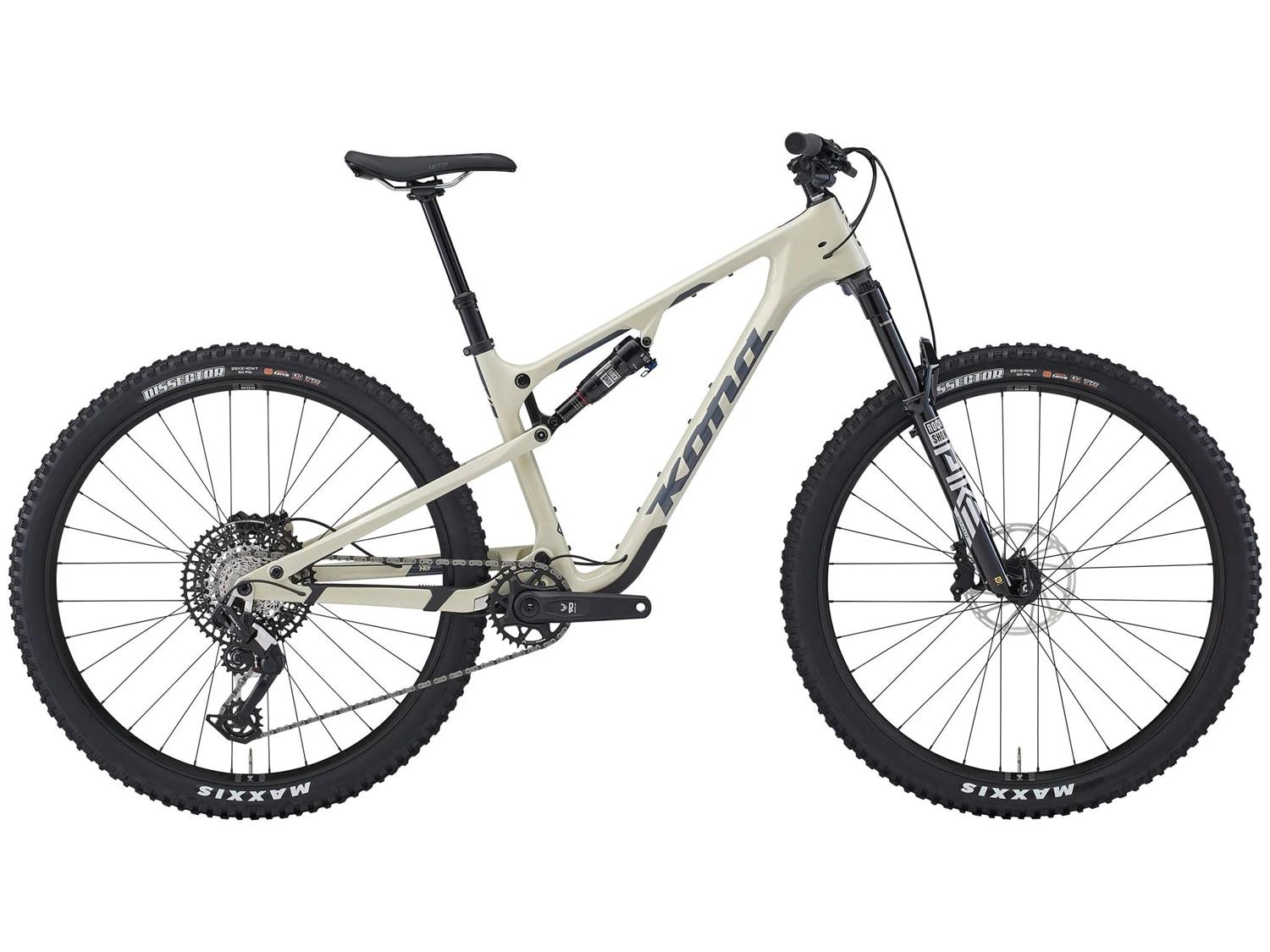

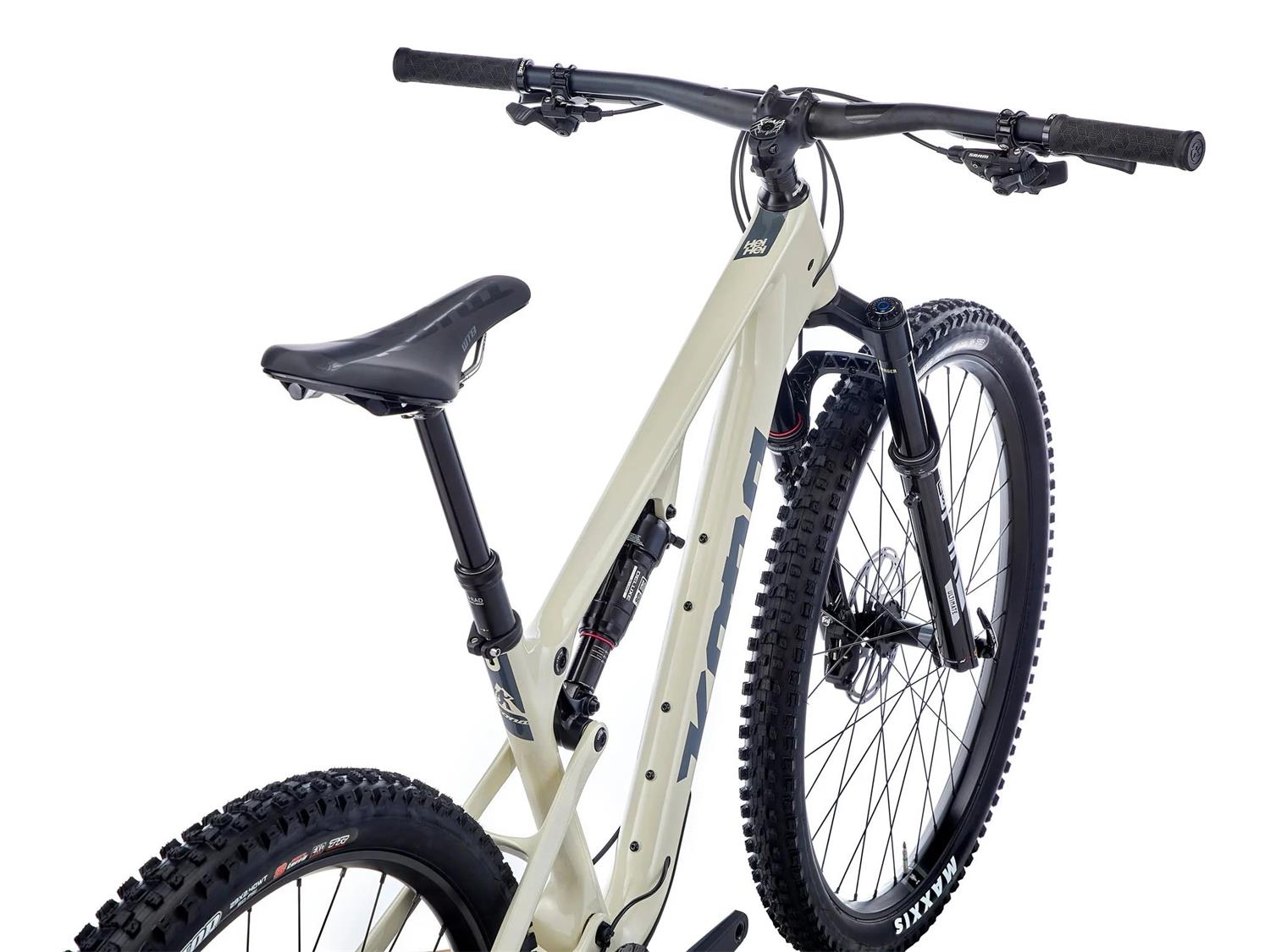

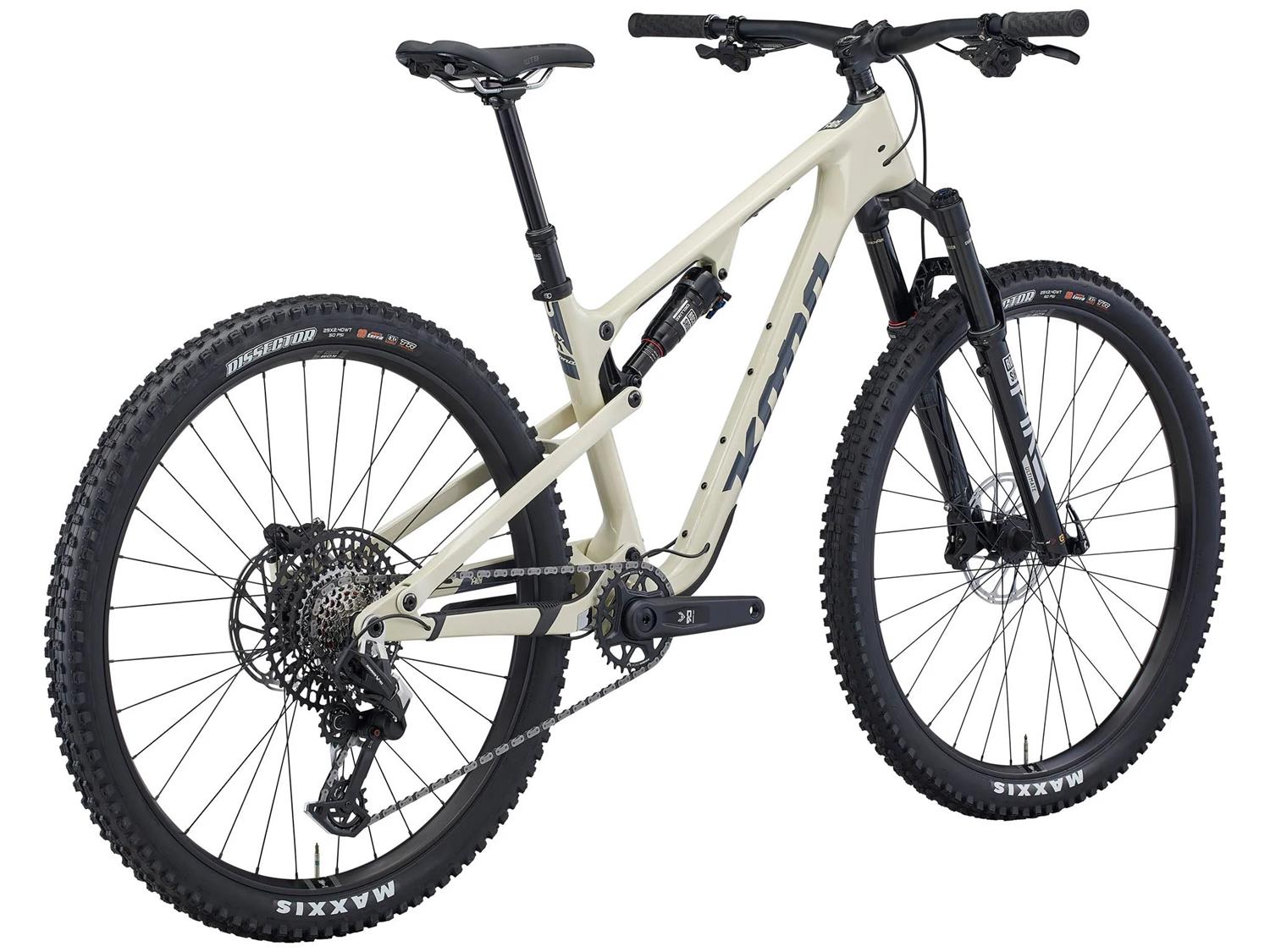

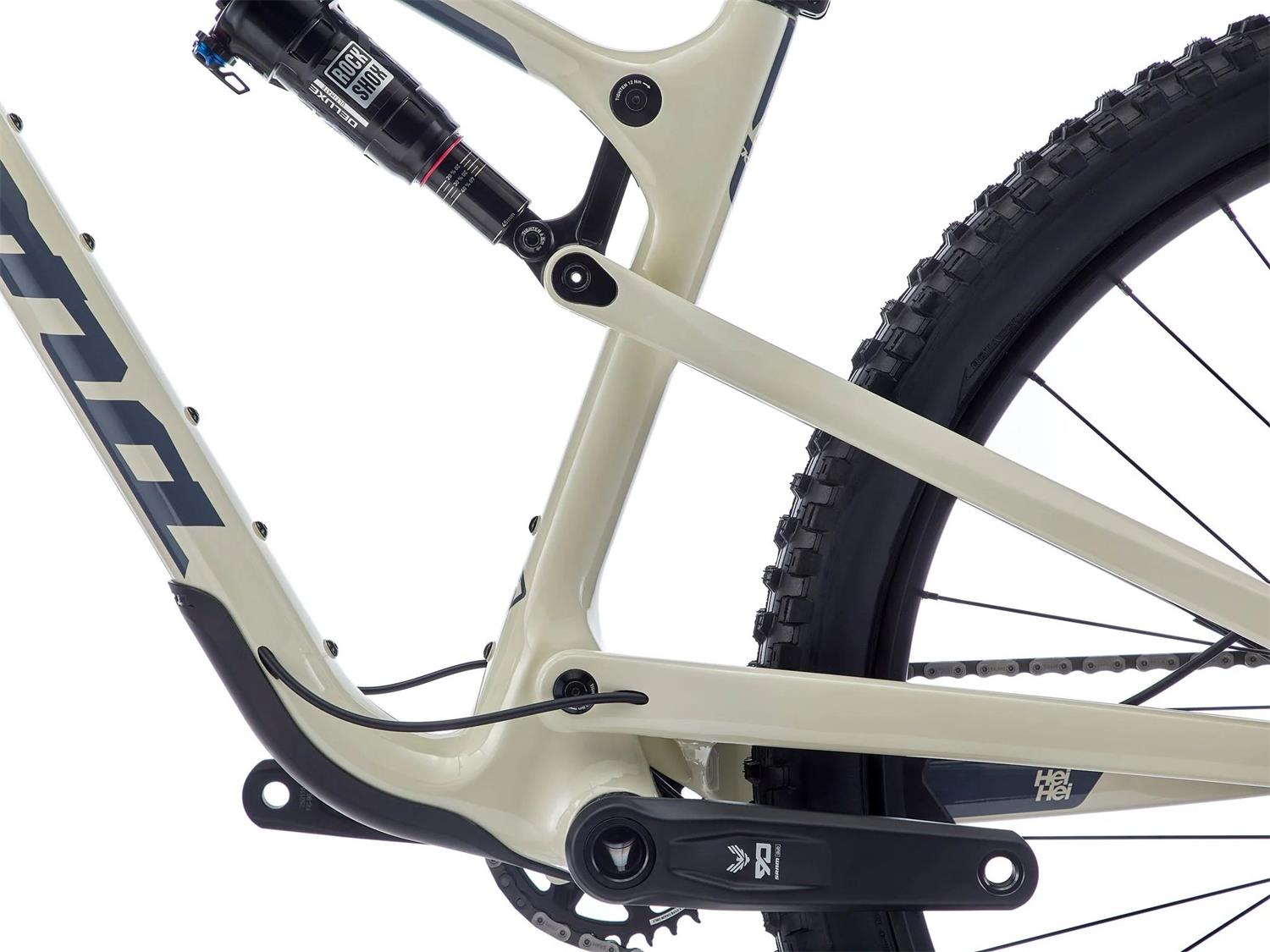

But the new Hei Hei CR is so much more than that. It couples Kona’s trademark long and low geometry with a feathery light but beautifully composed carbon fiber frame, then gets dressed up in a fitting ensemble of SRAM’s finest.
Whether you are harvesting KOMs or singletrack saturated smiles, the Hei Hei CR is gonna stack them up fast.
SPECIFICATIONS
| Frame Material | Kona Carbon |
| Sizes | S, M, L, XL |

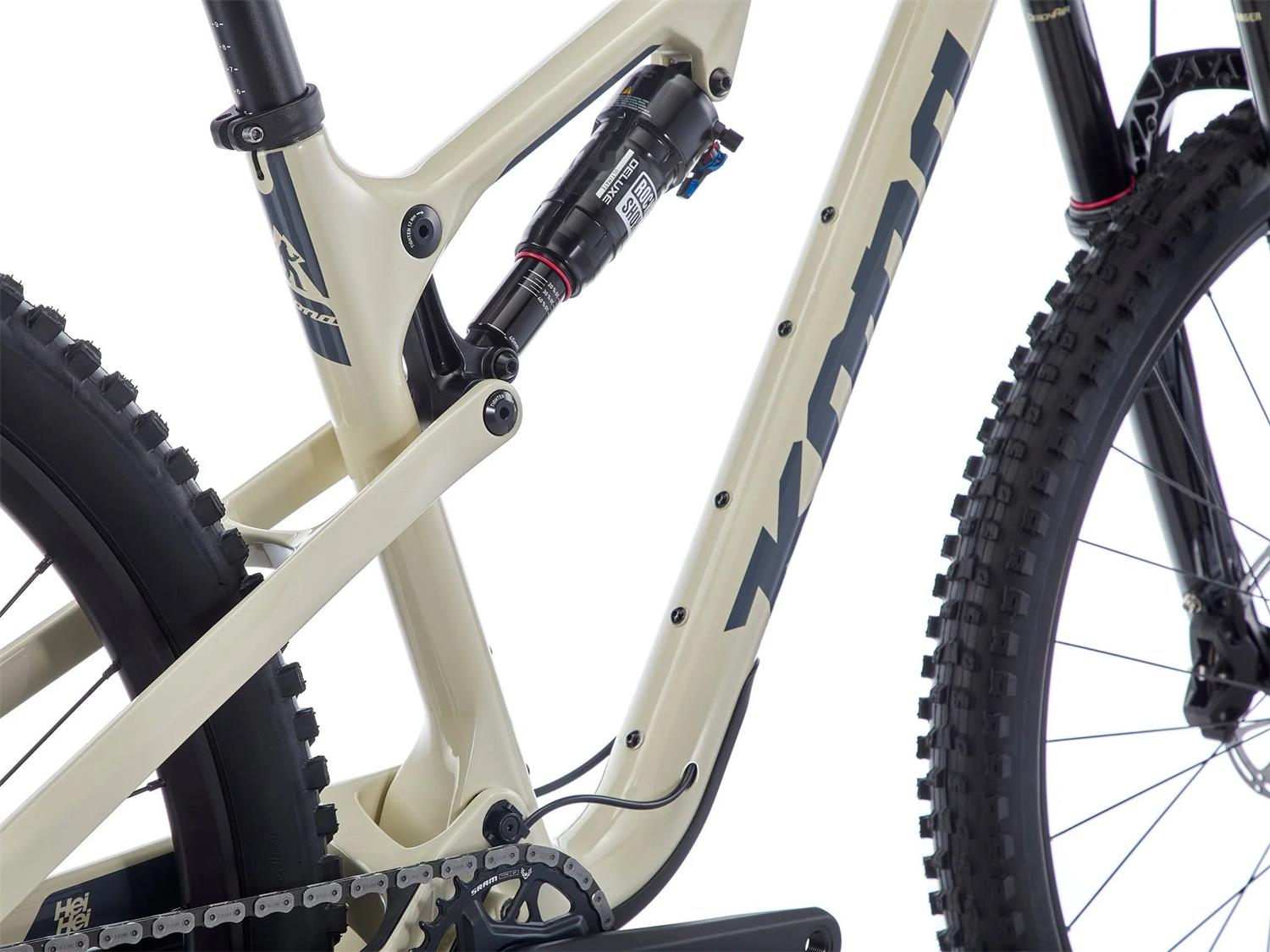

| Rear Shock | RockShox Deluxe Ultimate |
| Fork | RockShox Pike Ultimate Charger 3.1 RC2 130mm Tapered 110mm Spacing |
| Crankarms | SRAM Eagle 90 DUB |
| Chainrings | SRAM Eagle 90 32t |
| B/B | SRAM DUB PF92 |
| Pedals | n/a |
| Chain | SRAM Eagle 70 |
| Cassette | SRAM Eagle 90 Transmission 10-52t 12spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | SRAM Eagle 90 Transmission |
| Shifters | SRAM Eagle 90 Transmission |
| Brake Calipers | SRAM Motive Bronze 4-Piston Brakes |
| Front Brake Rotor | SRAM Centerline 180mm |
| Rear Brake Rotor | SRAM Centerline 180mm |
| Brake Levers | SRAM Motive Bronze |
| Headset | FSA No.57E |

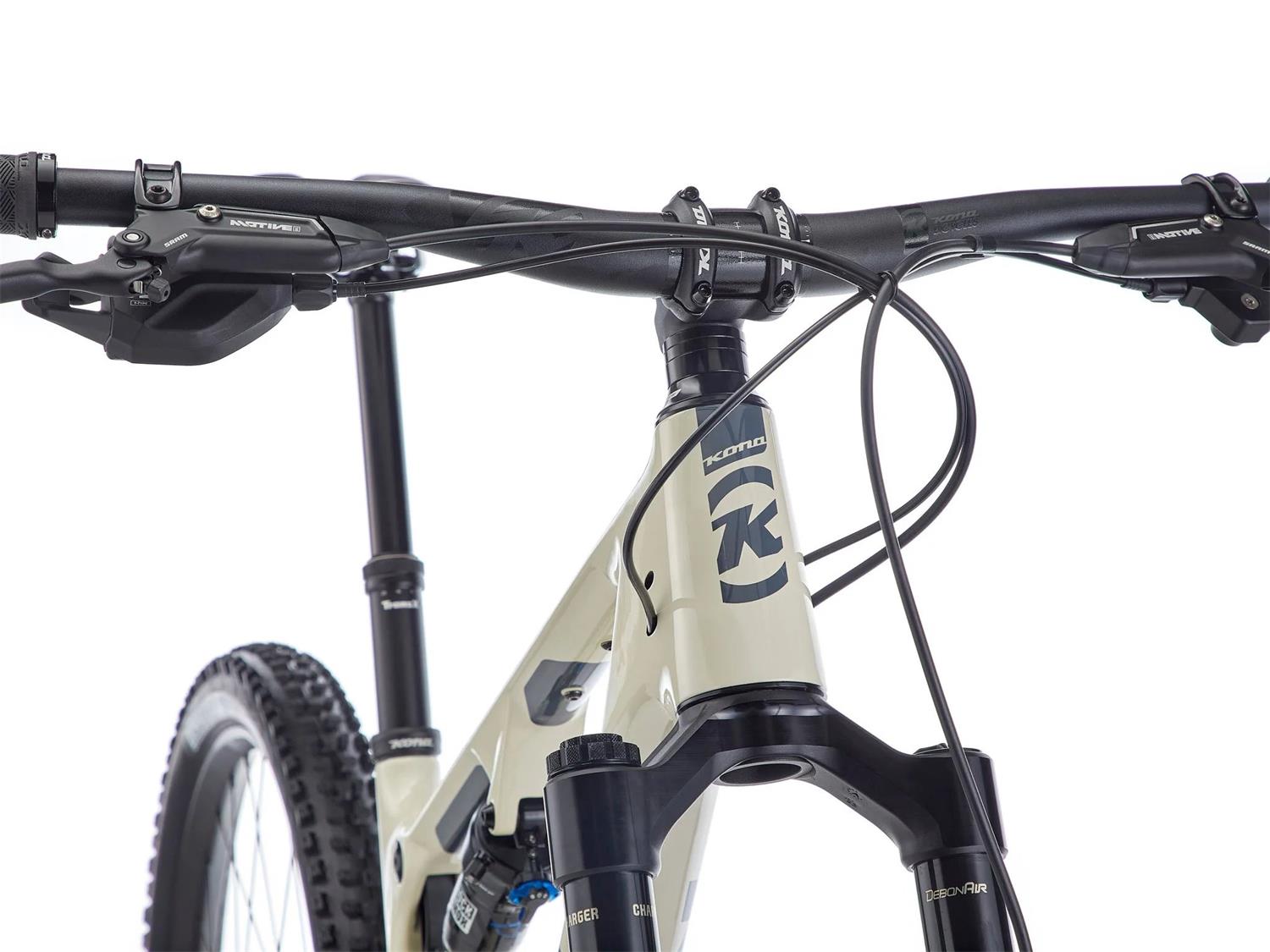

| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper +RAD Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | DT Swiss 370 110x15mm |
| Rear Hub | DT Swiss 370 148x12mm |
| Spokes | Sandvik Stainless Black 2.0/1.8 Butted |
| Rims | WTB KOM Team i30 TCS 2.0 |
| Front Tire | Maxxis Dissector EXO TR 29x2.4WT" |
| Rear Tire | Maxxis Dissector EXO TR 29x2.4WT" |
| Paint Color | Gloss Bone w/ Charcoal Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 410 | 450 | 490 |
| 2 | TT Length | 575 | 605 | 633 | 671 |
| 3 | Reach | 424 | 449 | 474 | 509 |
| 4 | Stack | 606 | 620 | 630 | 639 |
| 5 | Standover | 752 | 752 | 753 | 755 |
| 6 | HT Angle | 66 | 66 | 66 | 66 |
| 7 | HT Length | 105 | 120 | 130 | 140 |
| 8 | ST Angle | 76.1 | 76 | 75.9 | 75.8 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 31 | 31 | 31 | 31 |
| 11 | BB Height | 344 | 344 | 344 | 344 |
| 12 | Wheelbase | 1163 | 1194 | 1223 | 1262 |
| 13 | Front Center | 730 | 761 | 790 | 829 |
| 14 | Fork Length | 542 | 542 | 542 | 542 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
