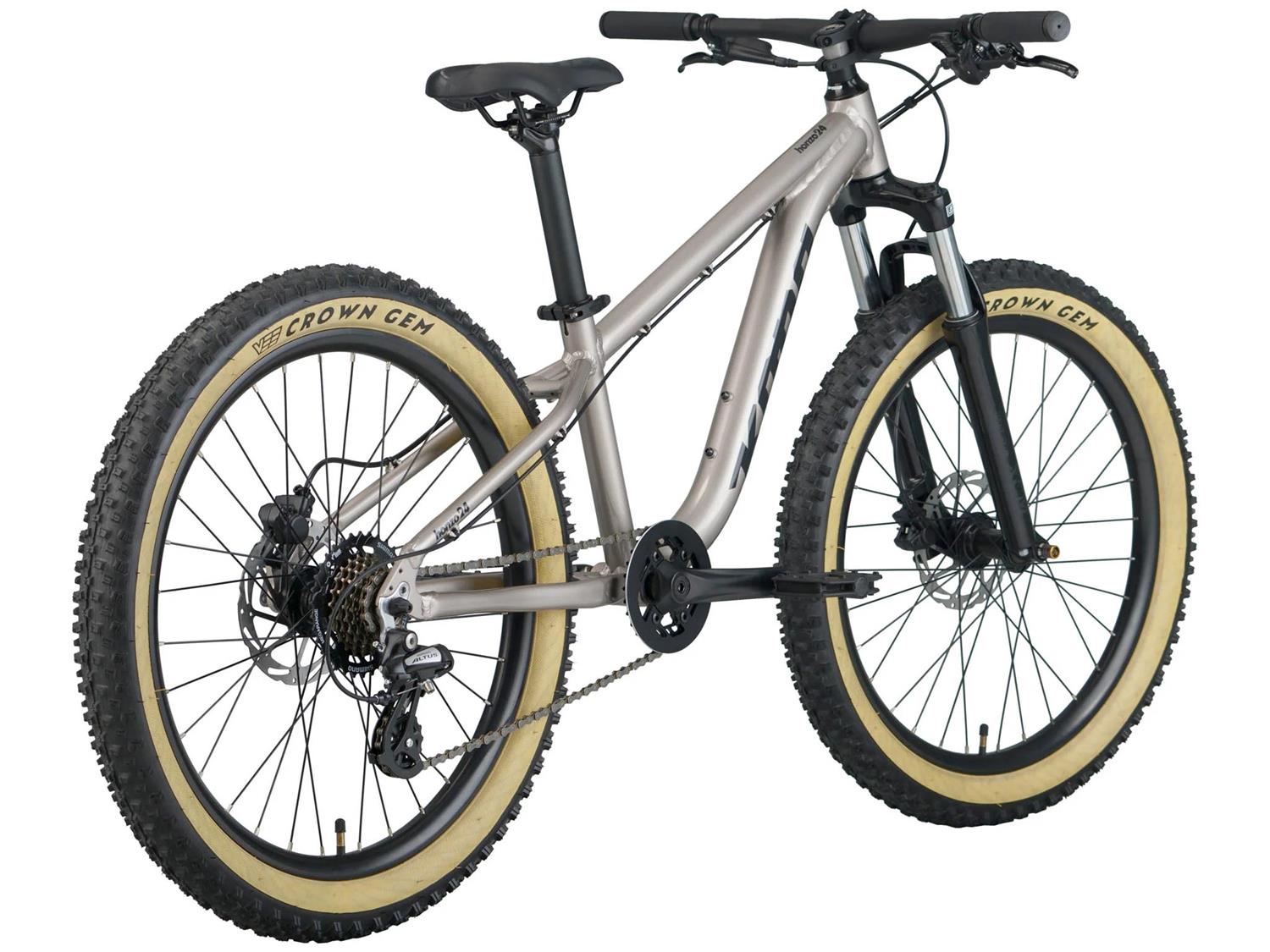

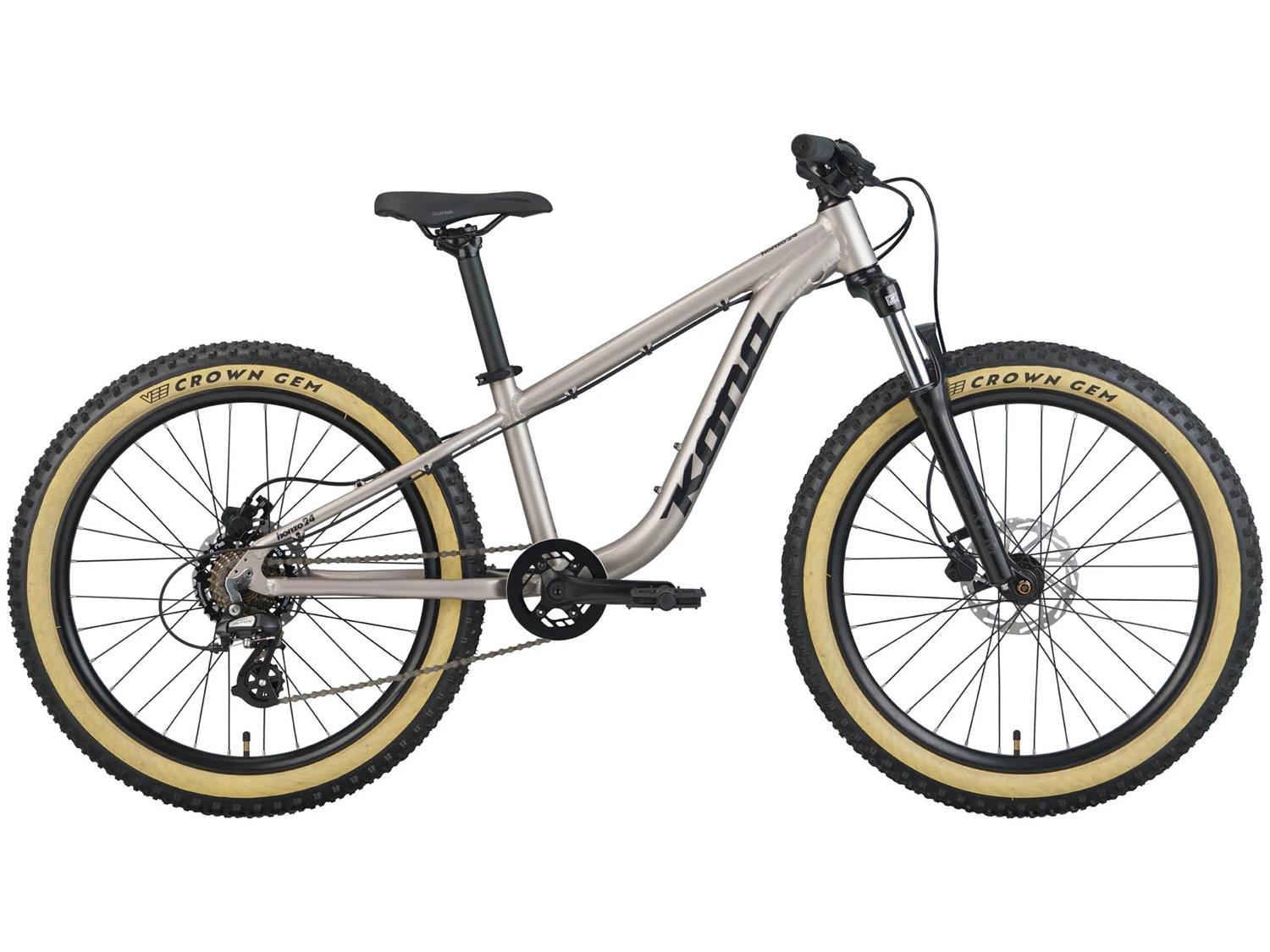

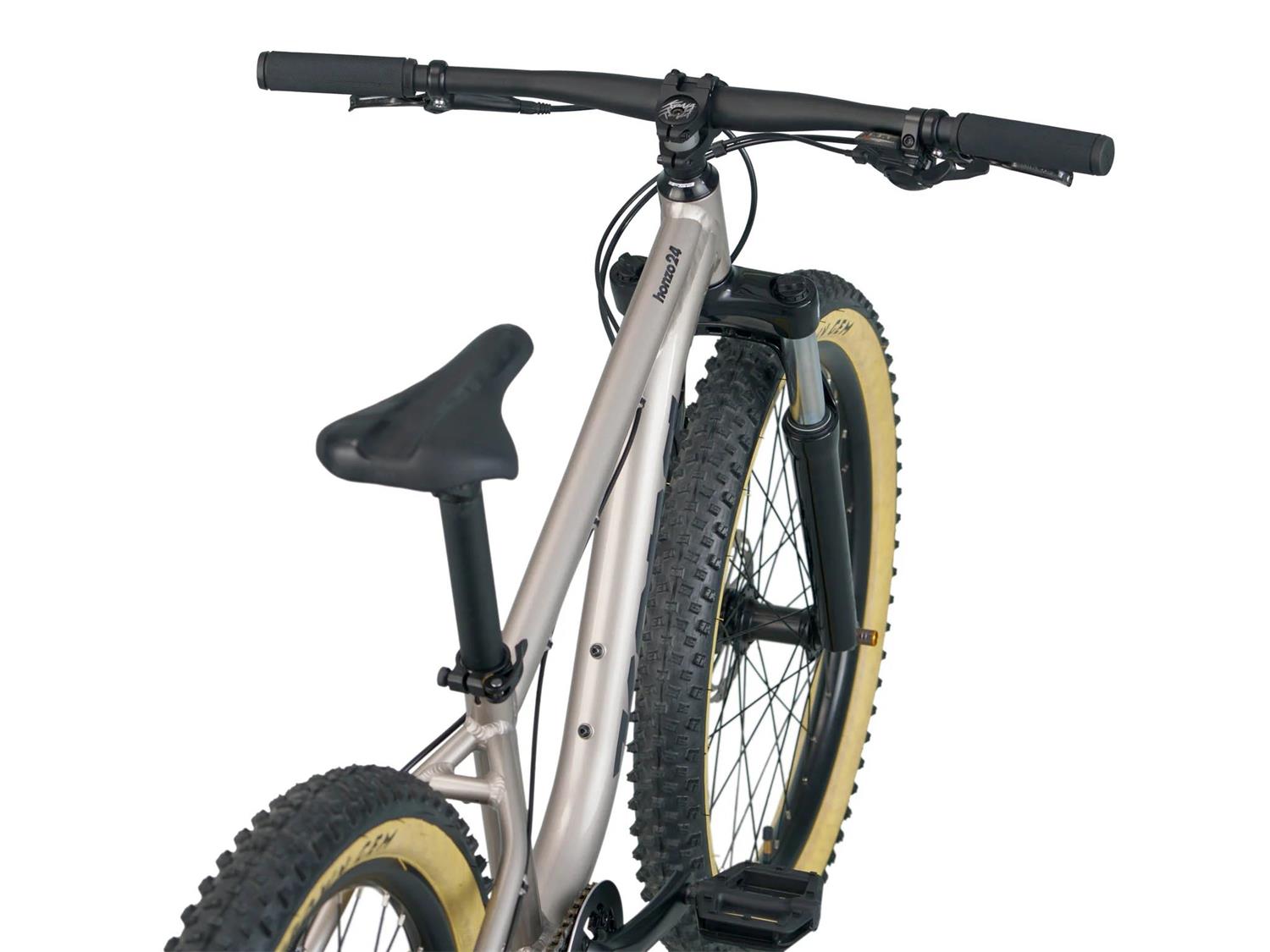

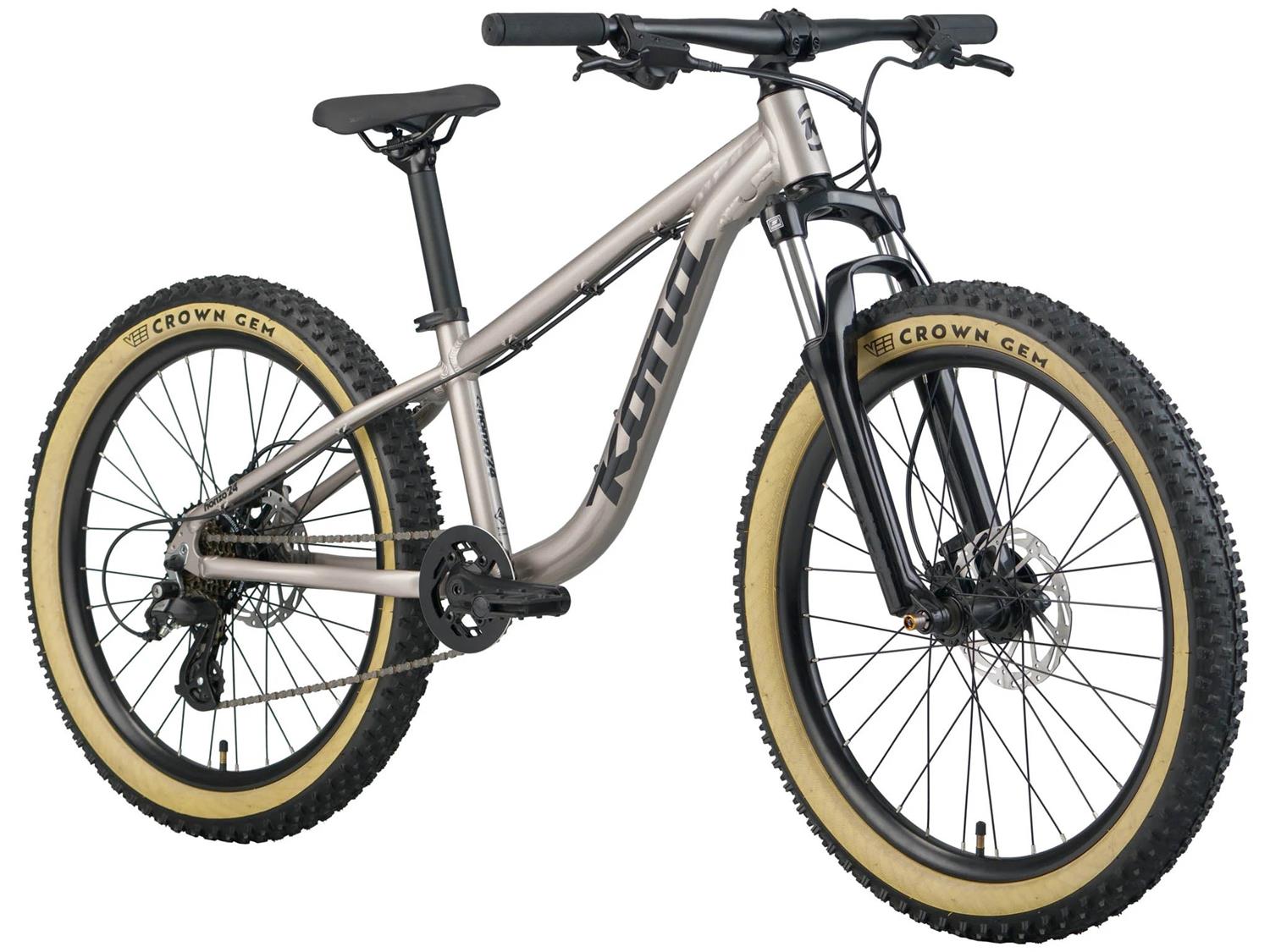

The Honzo 24 is a 24” kids’ mountain bike for young riders who are getting faster, riding farther, and starting to look at every patch of dirt as a potential trail.
Its wide 2.6” tires add plenty of grip and confidence, while an 80mm suspension fork helps smooth out roots, rocks, jumps, and rough backyard lines.
Built with the same trail-first spirit as the full-size Honzo, it gives growing riders a capable youth mountain bike they can keep progressing on.
There may already be a Honzo in the garage. Now there’s one sized for the rider looking to steal your line.
SPECIFICATIONS

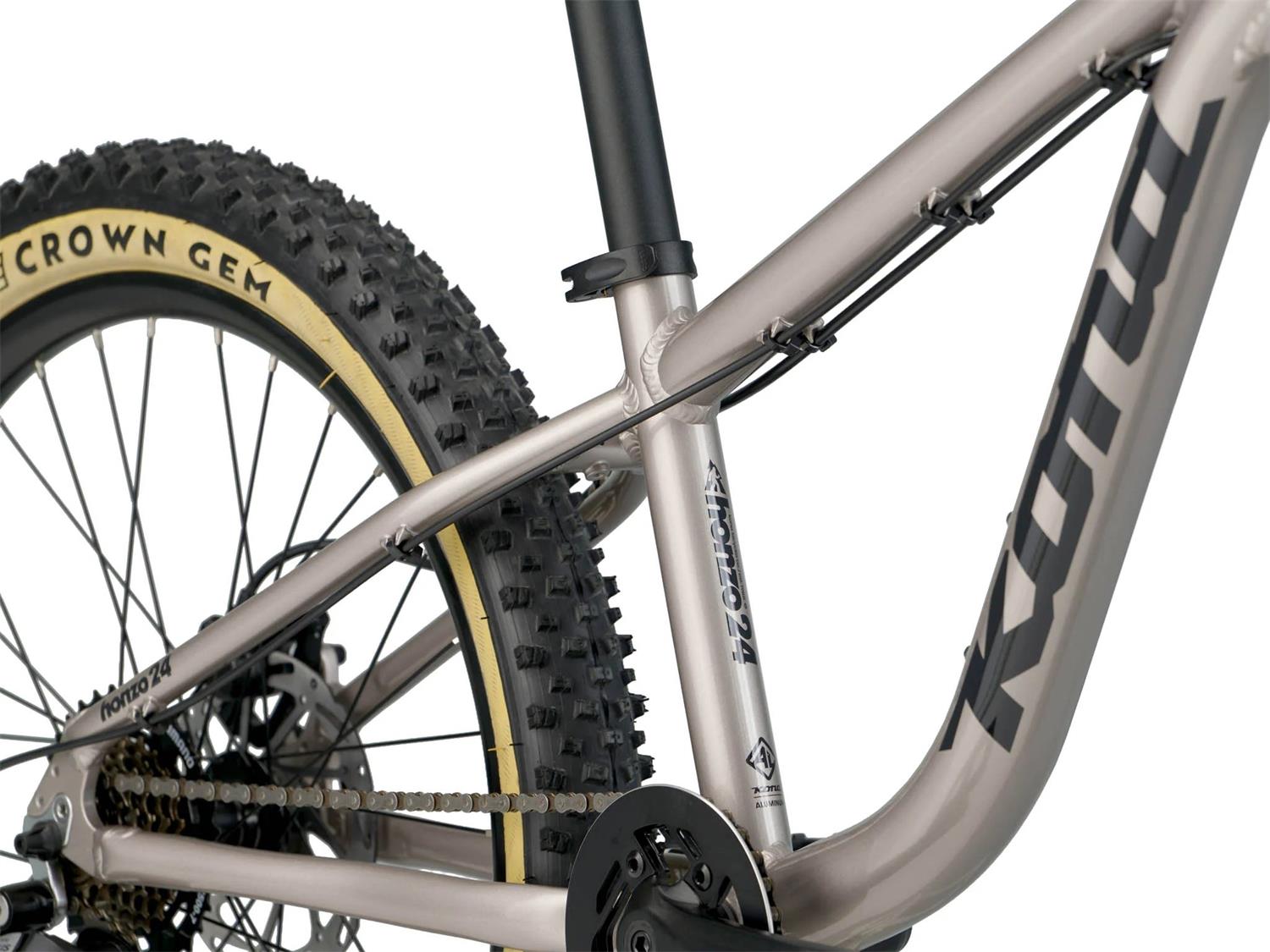

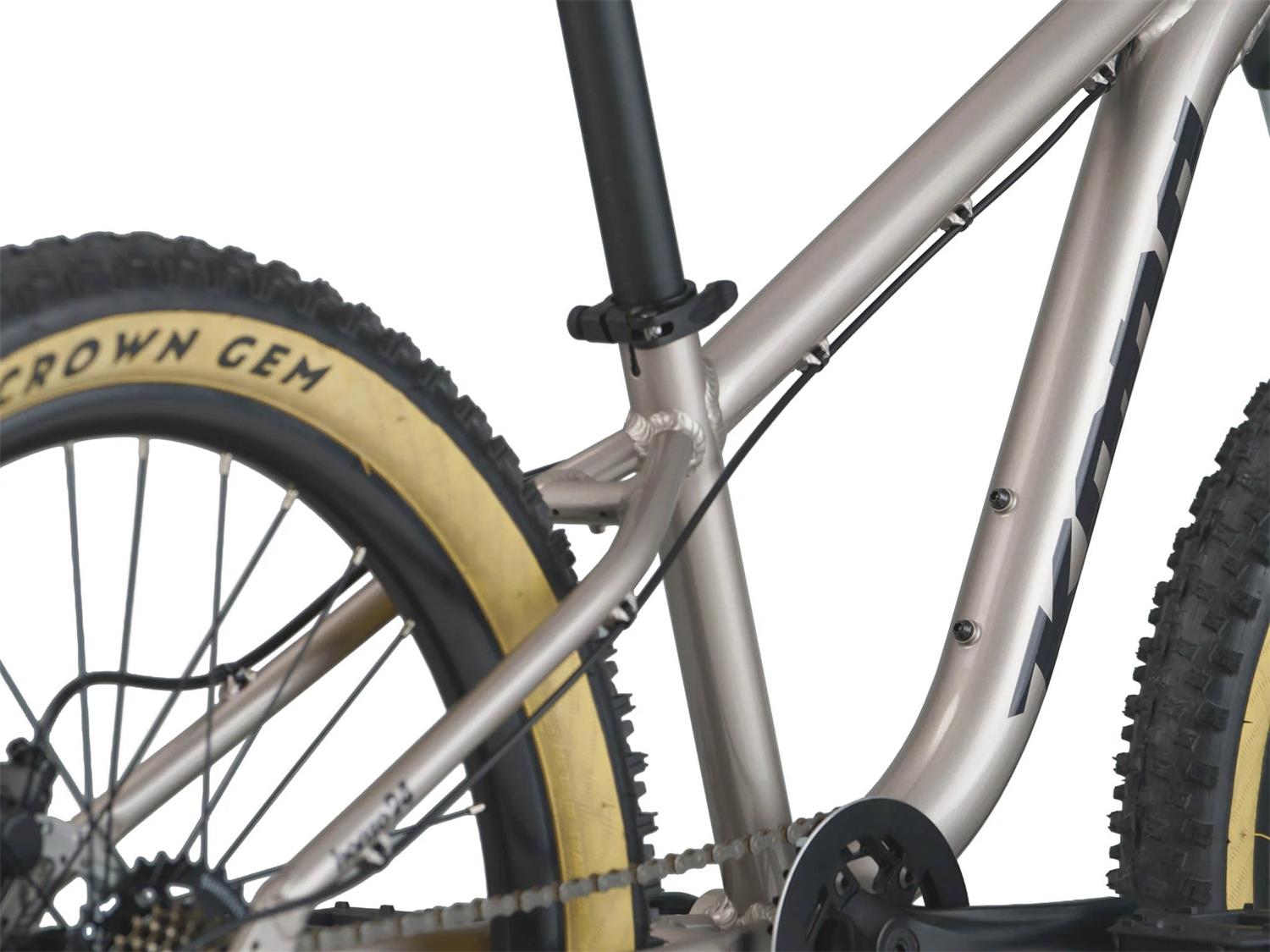

| FRAME | Kona 6061 Aluminum Butted |
| SIZES | 13" |
| REAR SHOCK | n/a |
| FORK | Suntour XCM30 DS Boost Plus Coil 80mm |

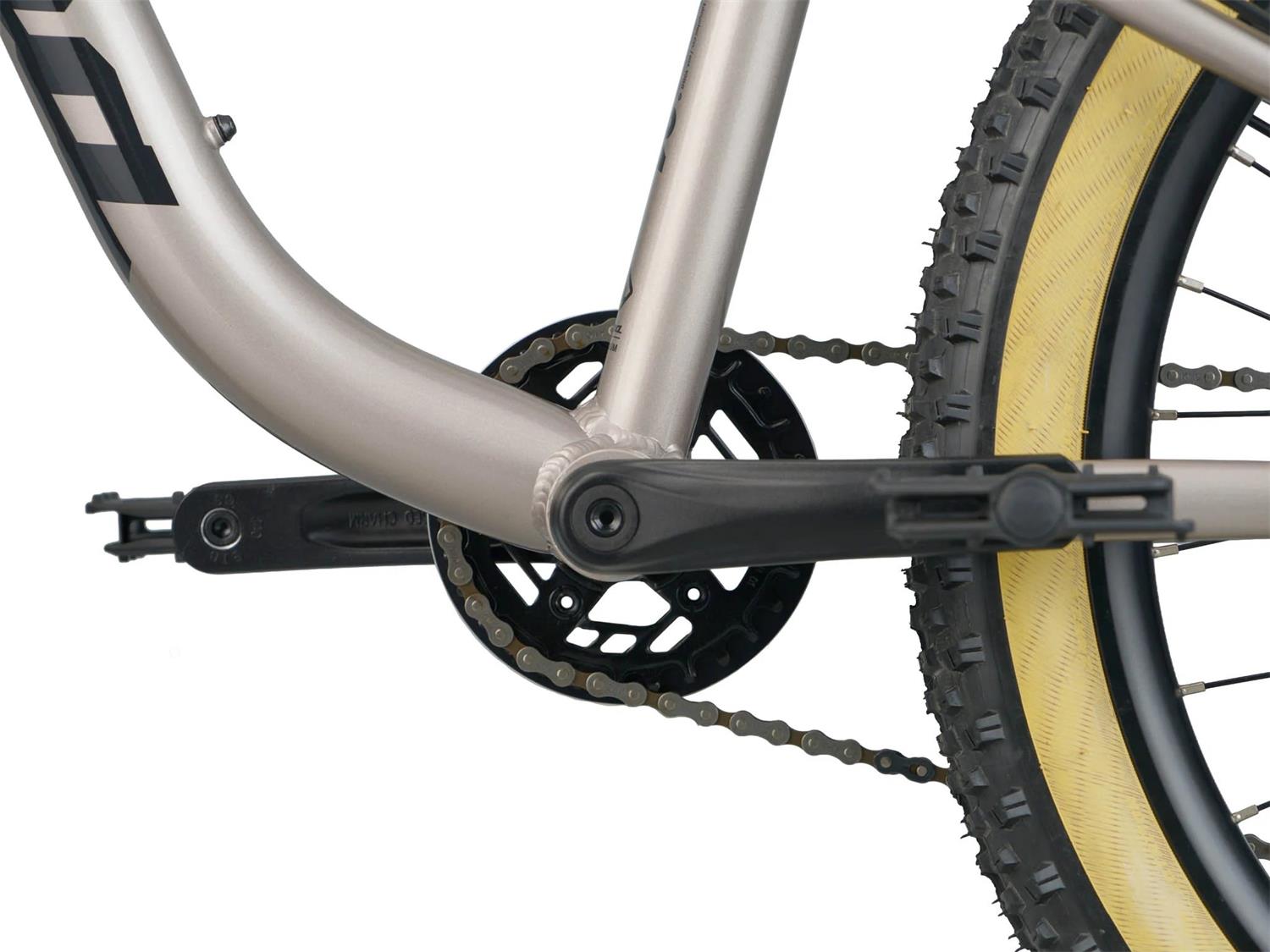

| CRANKSET | Prowheel CHARM 30t 4-bolt 76mm / Length 140mm |
| BOTTOM BRACKET | Feimin BSA 68x113mm |
| PEDALS | Feimin Platform |
| CHAIN | KMC HV500 |
| CASSETTE | Shimano Tourney 14-34t 7spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano Altus |
| SHIFTERS | Shimano Altus Rapid Fire |
| BRAKE CALIPERS | Tektro HDM276 Hydraulic |
| FRONT BRAKE ROTOR | Tektro TR160 160mm |
| REAR BRAKE ROTOR | Tektro TR160 160mm |
| BRAKE LEVERS | Tektro HDM276 Hydraulic |
| HEADSET | FSA No.10 ZS44/ZS44 |

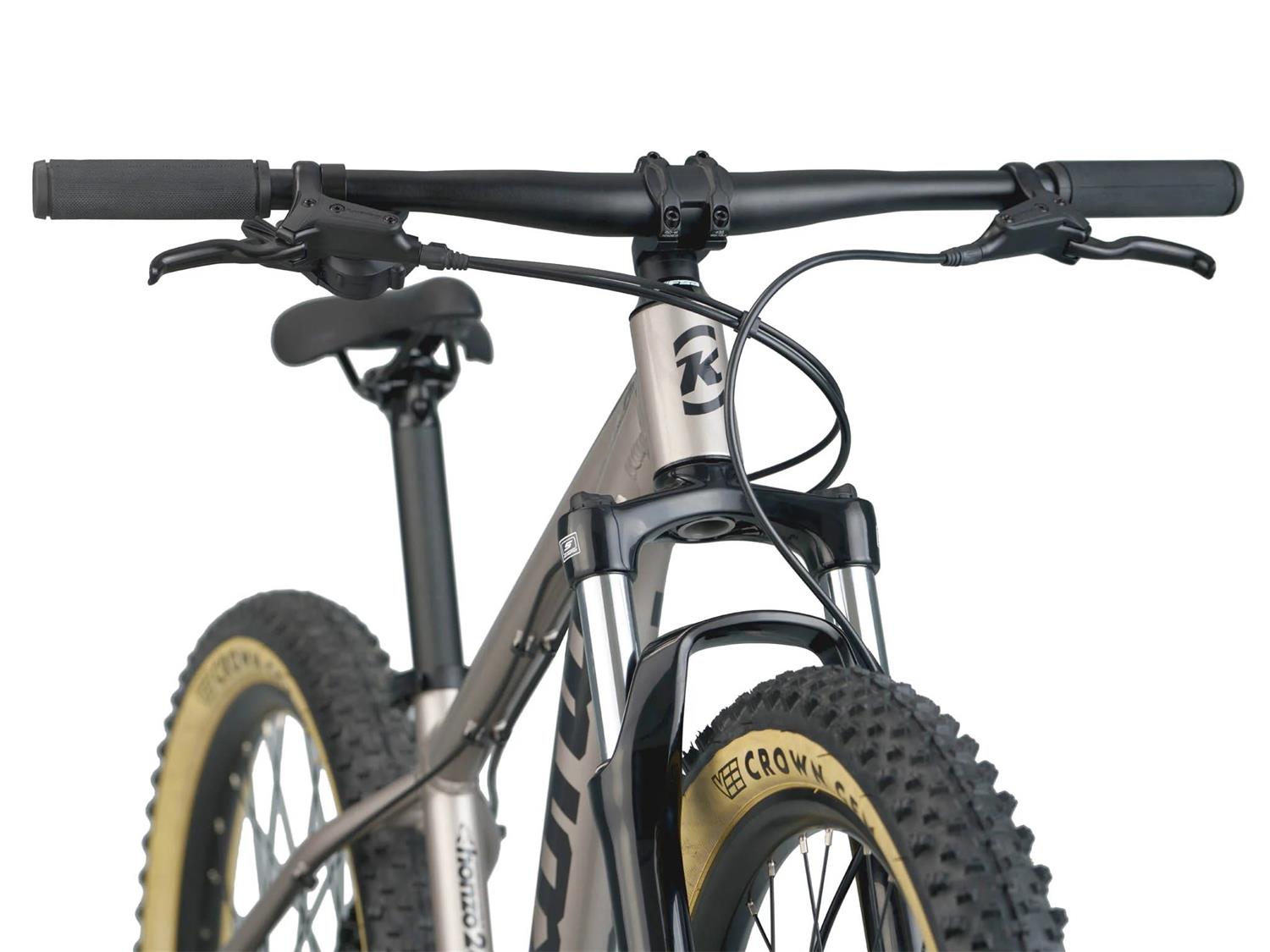

| HANDLEBAR | Kona OB 680mm |
| STEM | Kona OB |
| SEATPOST | Kona Thumb 31.6mm |
| SEAT CLAMP | Kona QR |
| GRIPS | Kona DJ |
| SADDLE | Kona DJ |
| FRONT HUB | Joytech 15x110mm Thru Axle |
| REAR HUB | Joytech 10x135mm QR |
| SPOKES | Stainless 2.0mm Black |
| RIMS | Double Wall Aluminum |
| FRONT TIRE | Vee Tire Crown Gem 24x2.6" |
| REAR TIRE | Vee Tire Crown Gem 24x2.6" |
| PAINT COLOR | Gloss Metallic Nickel w/ Charcoal Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | |
| 1 | ST Length | 300 |
| 2 | TT Length | 511 |
| 3 | Reach | 370 |
| 4 | Stack | 508 |
| 5 | Standover | 643 |
| 6 | HT Angle | 67.5 |
| 7 | HT Length | 90 |
| 8 | ST Angle | 74.5 |
| 9 | CS Length | 415 |
| 10 | BB Drop | 10 |
| 11 | BB Height | 315 |
| 12 | Wheelbase | 1034 |
| 13 | Front Center | 620 |
| 14 | Fork Length | 462 |
| 15 | Fork Offset | 40 |
