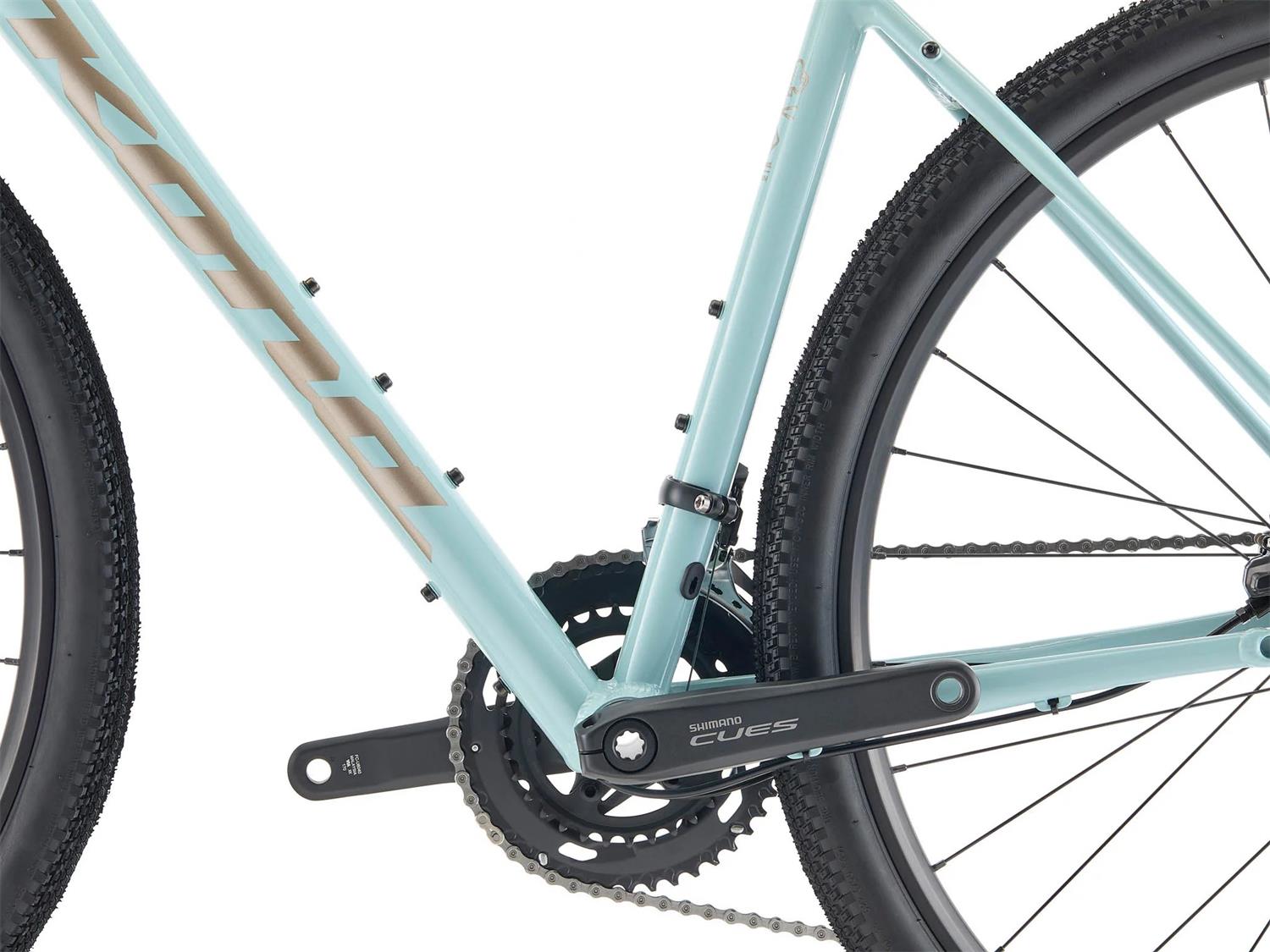

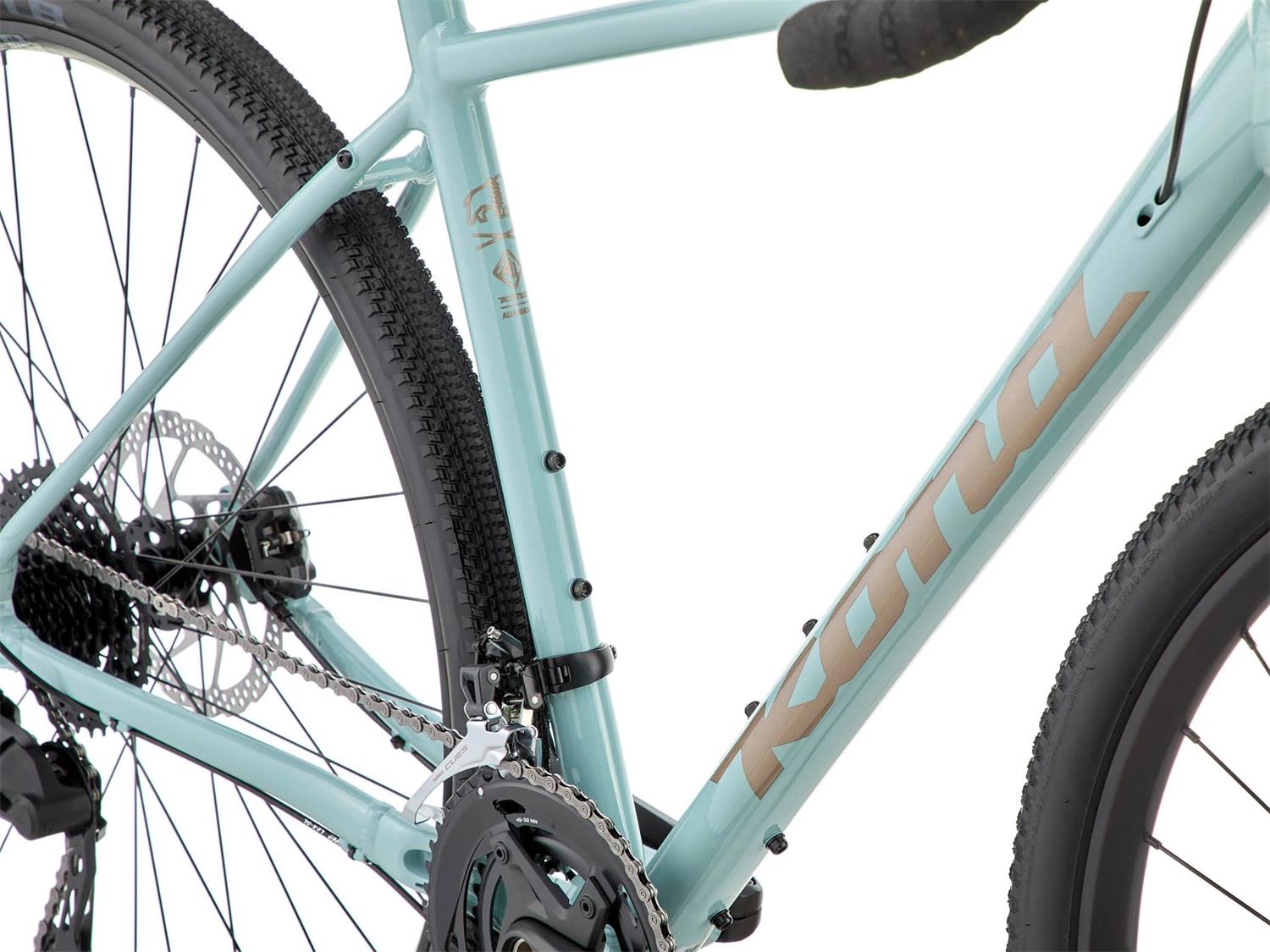

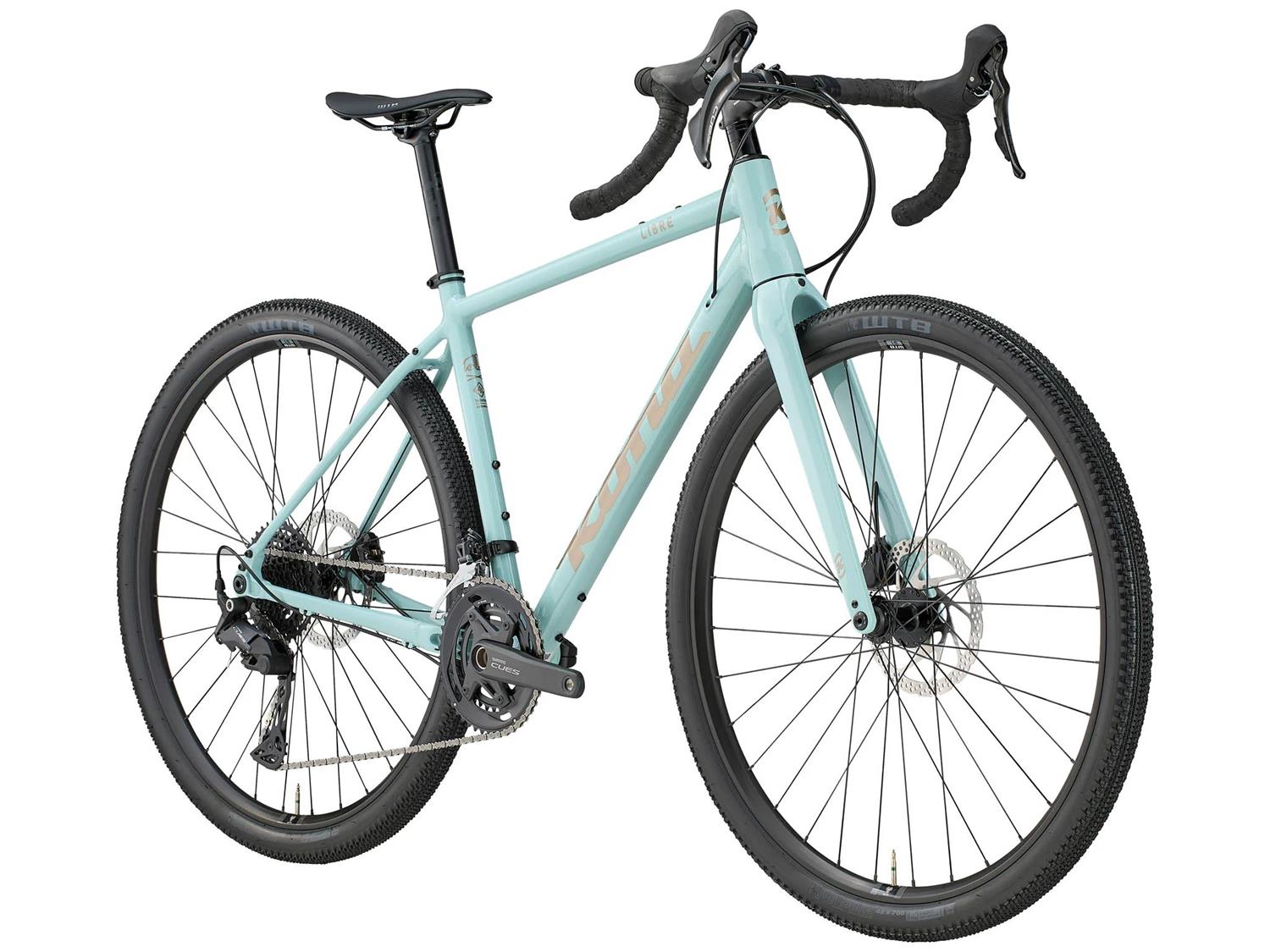

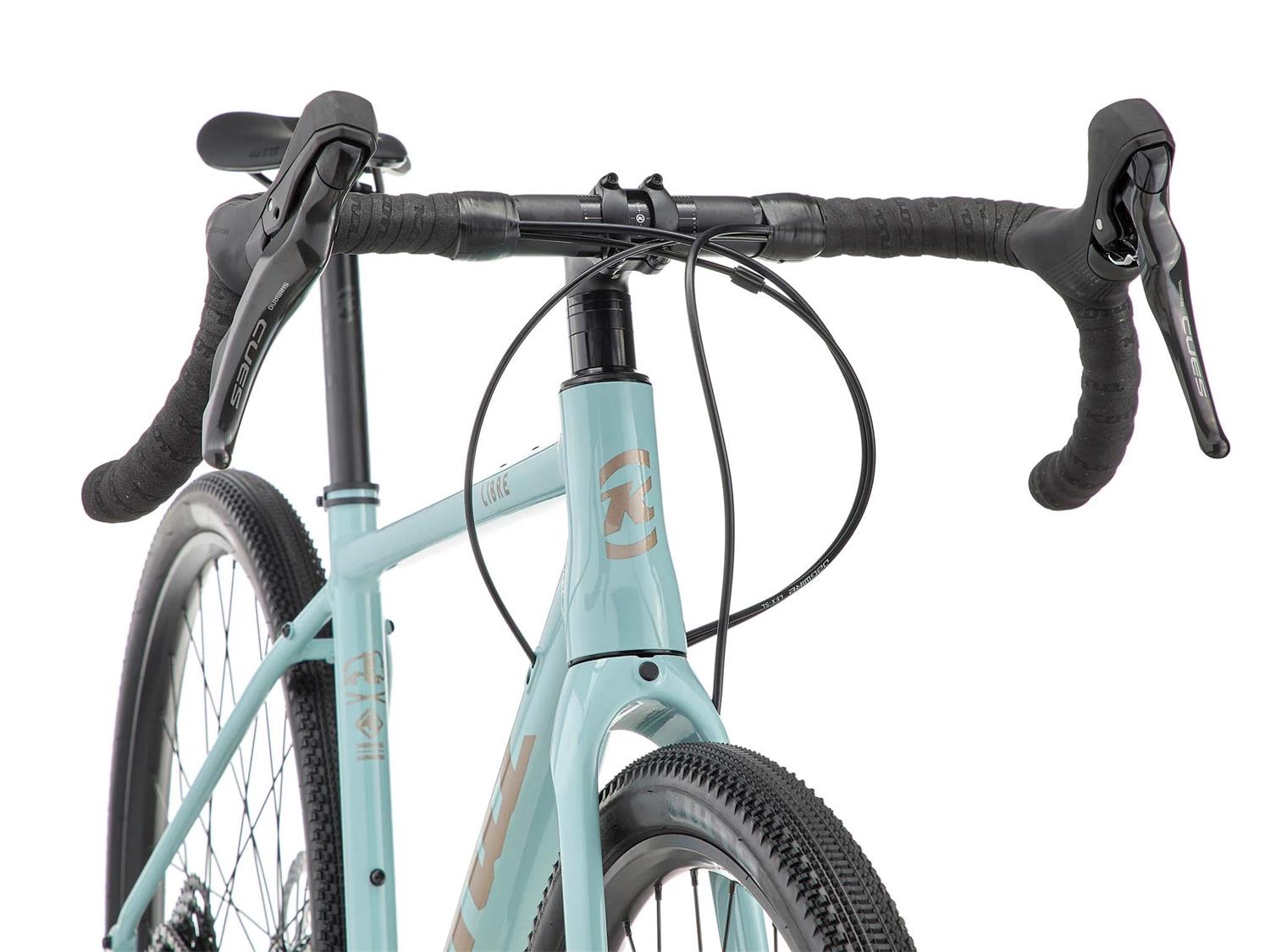

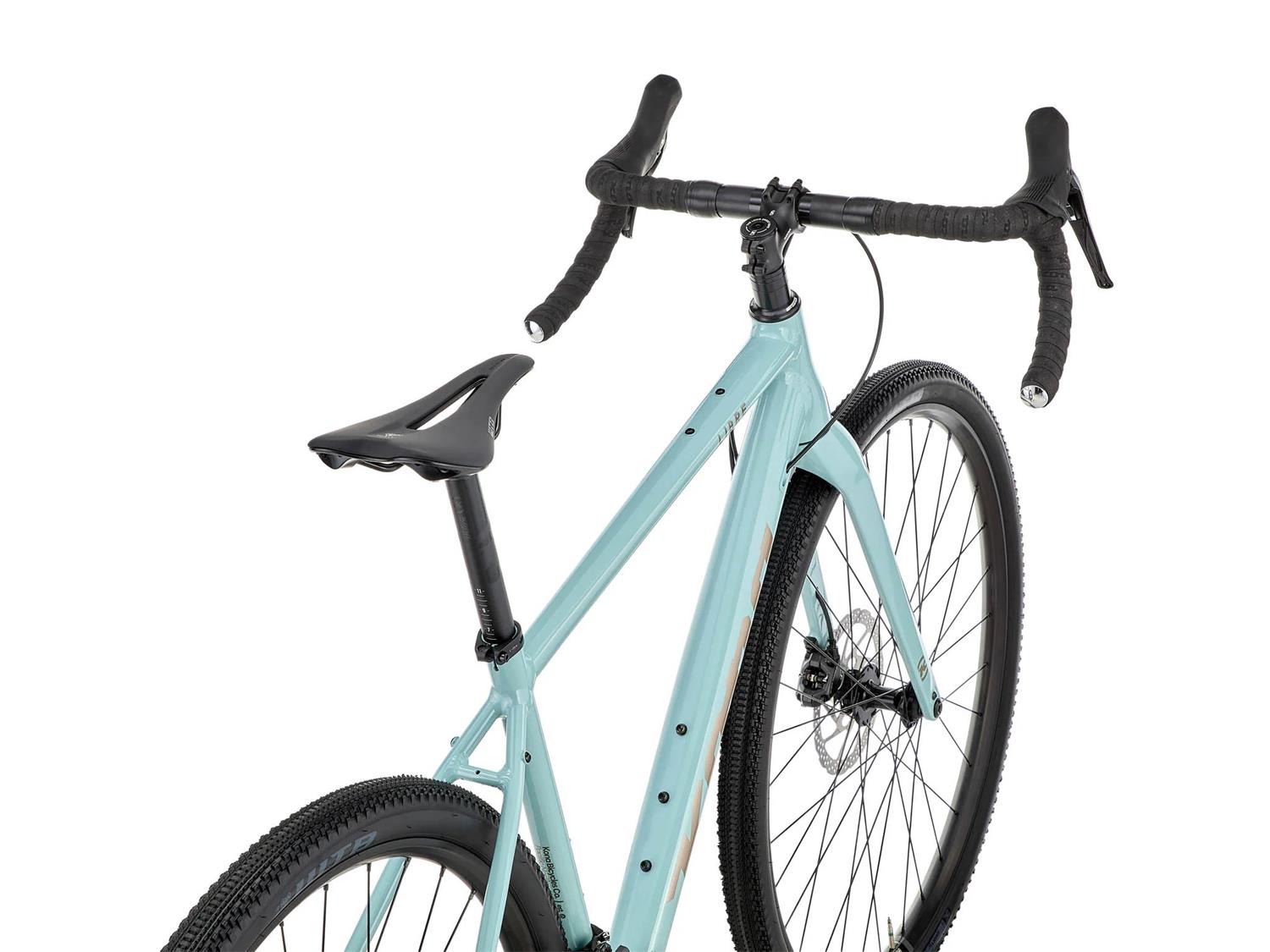

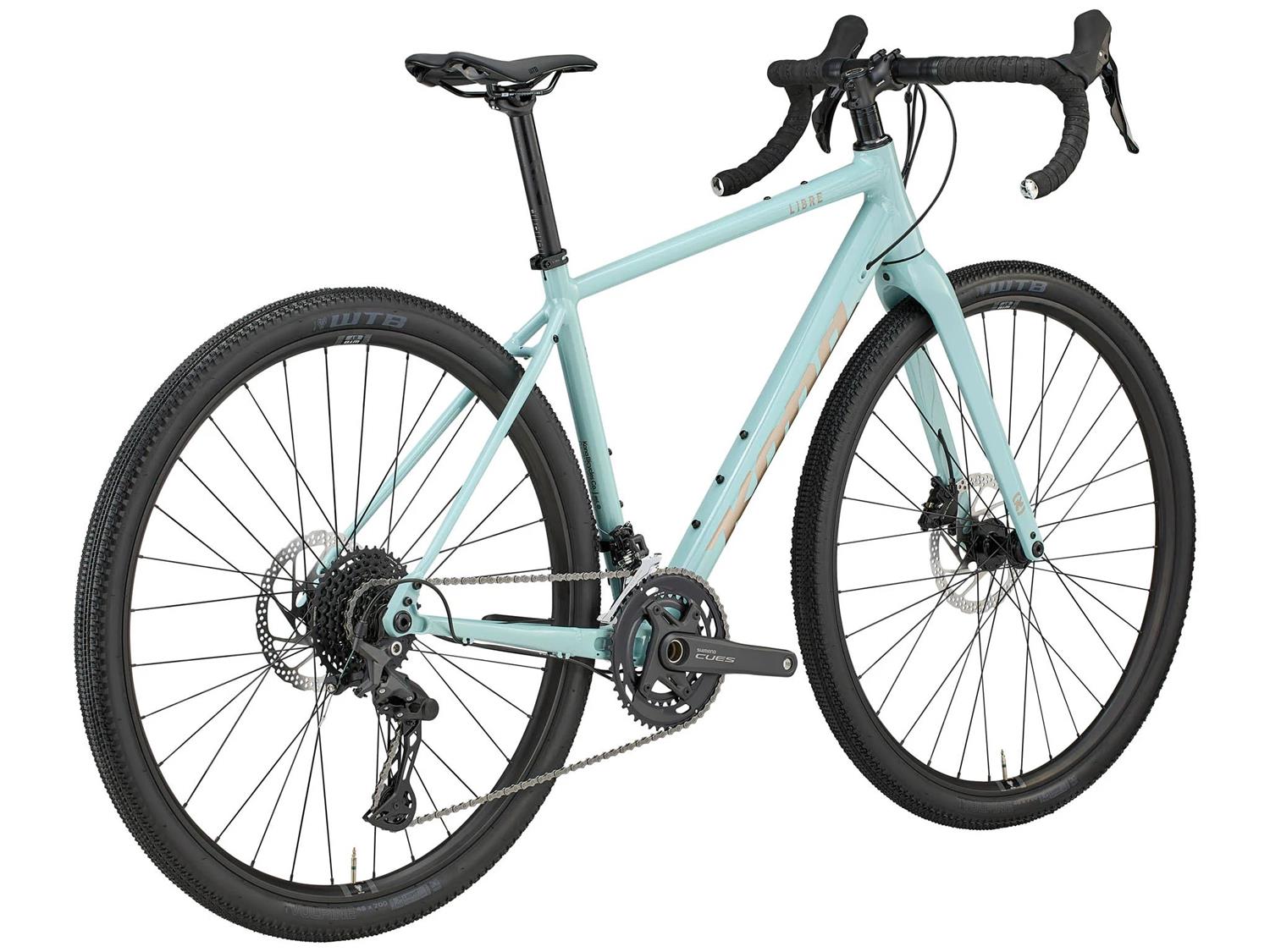

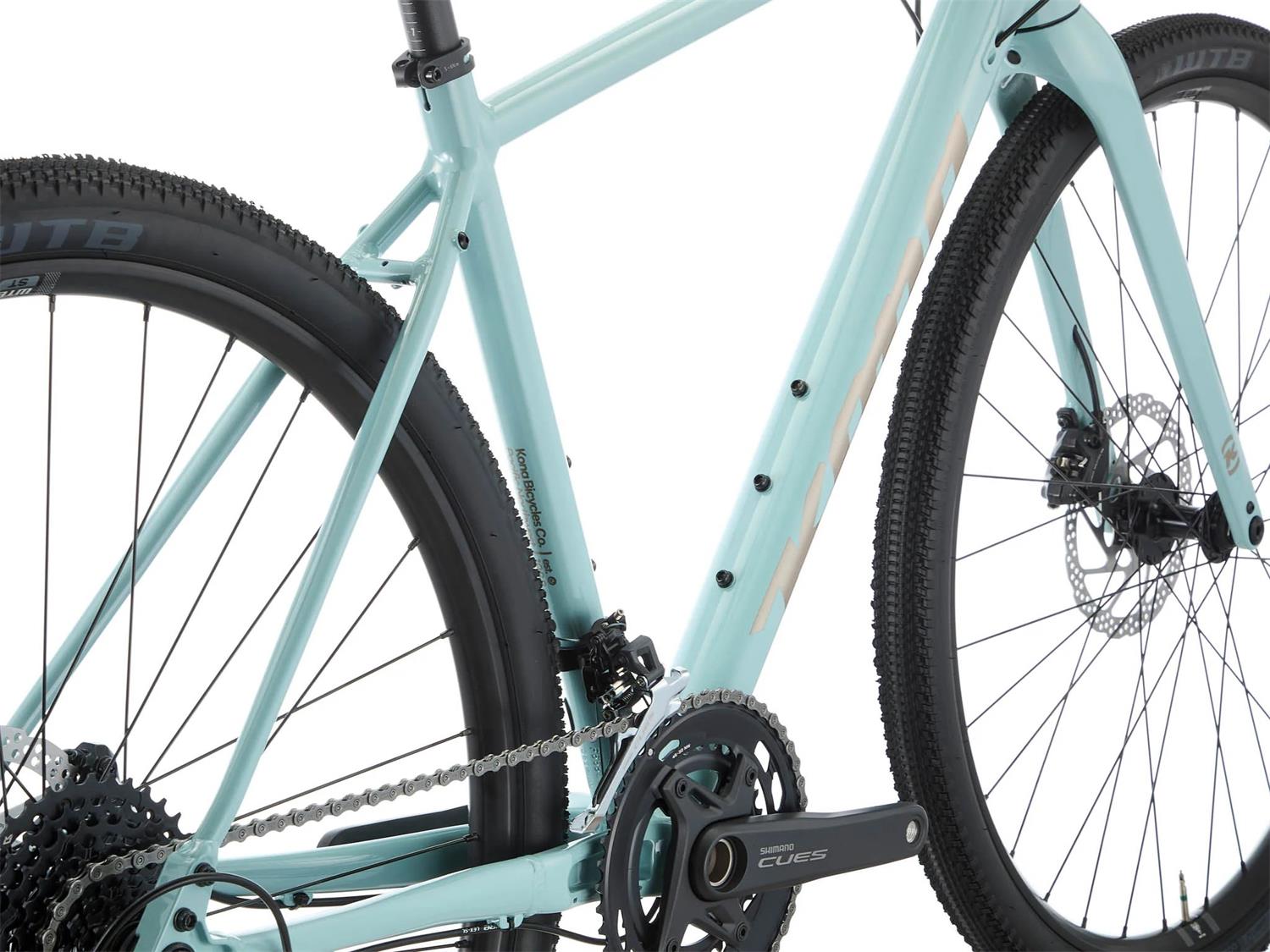

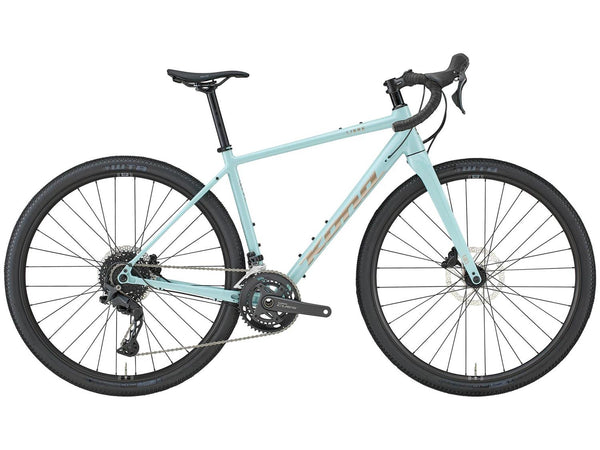

The Libre is a performance gravel bike with the speed to chase pavement and the confidence to keep going when it disappears.
Its aluminum frame and carbon fork deliver a lively, precise ride that stays composed over washboard, rough backroads, and whatever else gets between you and the horizon. It’s quick when you put the power down, comfortable enough to stay out all day, and built with enough mountain-bike DNA to make the rough way look like the right way.
The Libre doesn’t ask you to choose between fast and far. It assumes you’re doing both.
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | 48, 50, 52, 54, 56, 58 |
| REAR SHOCK | n/a |
| FORK | Kona Libre Carbon Flat Mount Disc |
| CRANKSET | Shimano CUES 6040 32/46t / Length 48-54 170mm / 56-58 175mm |
| BOTTOM BRACKET | Shimano PF86.5 |
| PEDALS | n/a |
| CHAIN | Shimano CUES LG500 |
| CASSETTE | Shimano CUES LG300 11-39t 10spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | Shimano CUES 6030 |
| REAR DERAILLEUR | Shimano CUES 6020 |
| SHIFTERS | Shimano CUES 6030 |
| BRAKE CALIPERS | Shimano CUES 6030 |
| FRONT BRAKE ROTOR | Shimano RT56 180mm 6B |
| REAR BRAKE ROTOR | Shimano RT56 180mm 6B |
| BRAKE LEVERS | Shimano CUES 6030 |
| HEADSET | FSA Orbit No.57E ZS44/ZS56 |
| HANDLEBAR | Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm |
| STEM | Kona Gravel Deluxe 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm |
| SEATPOST | Kona Thumb w/Offset 27.2mm / Length 48-50 325mm / 52 350mm / 54-58 375mm |
| SEAT CLAMP | Kona Clamp 31.8mm |
| GRIPS | Kona Cork Tape |
| SADDLE | WTB Gravelier Steel Fusion Form |
| FRONT HUB | Formula 12x100mm 6B |
| REAR HUB | Formula 12x142mm 6B HG |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB ST i25 TCS 2.0 CVX |
| FRONT TIRE | WTB Vulpine TCS Light 700x45c |
| REAR TIRE | WTB Vulpine TCS Light 700x45c |
| PAINT COLOR | Gloss Winter Sky w/ Metallic Nickel Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 440 | 460 | 480 | 510 | 540 | 570 |
| 2 | TT Length | 527 | 542 | 556 | 573 | 590 | 610 |
| 3 | Reach | 380 | 385 | 390 | 395 | 400 | 405 |
| 4 | Stack | 550 | 565 | 580 | 600 | 620 | 650 |
| 5 | Standover | 733 | 752 | 770 | 799 | 825 | 855 |
| 6 | HT Angle | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT Length | 109 | 125 | 140 | 165 | 186 | 218 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 75 | 75 | 75 | 72 | 72 | 72 |
| 11 | BB Height | 285 | 285 | 285 | 288 | 288 | 288 |
| 12 | Wheelbase | 1030 | 1040 | 1050 | 1064 | 1076 | 1092 |
| 13 | Front Center | 606 | 616 | 626 | 639 | 651 | 667 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
