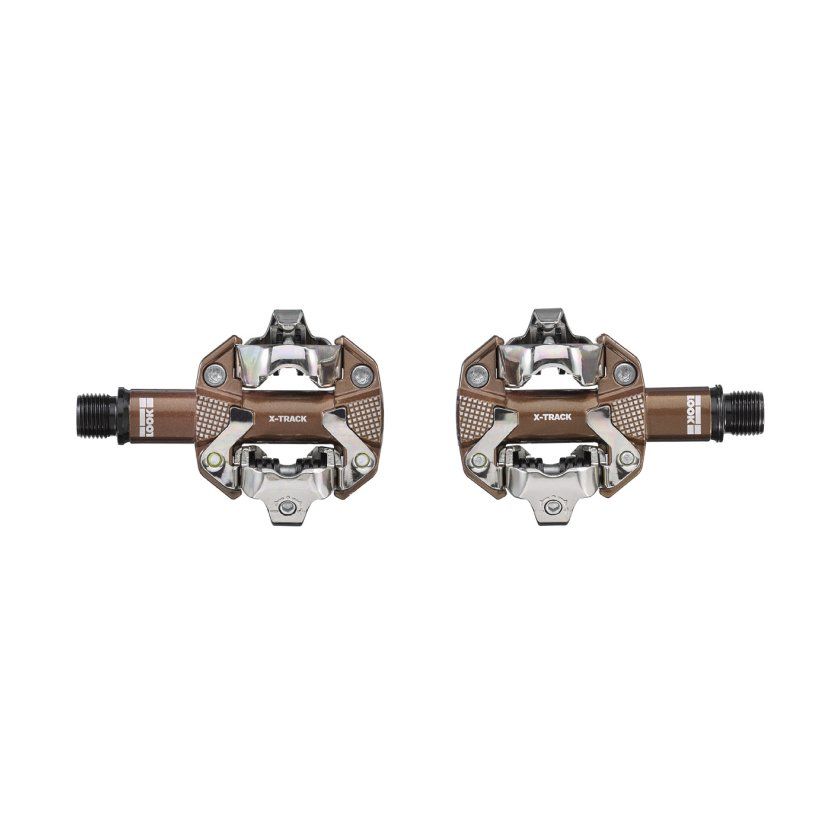

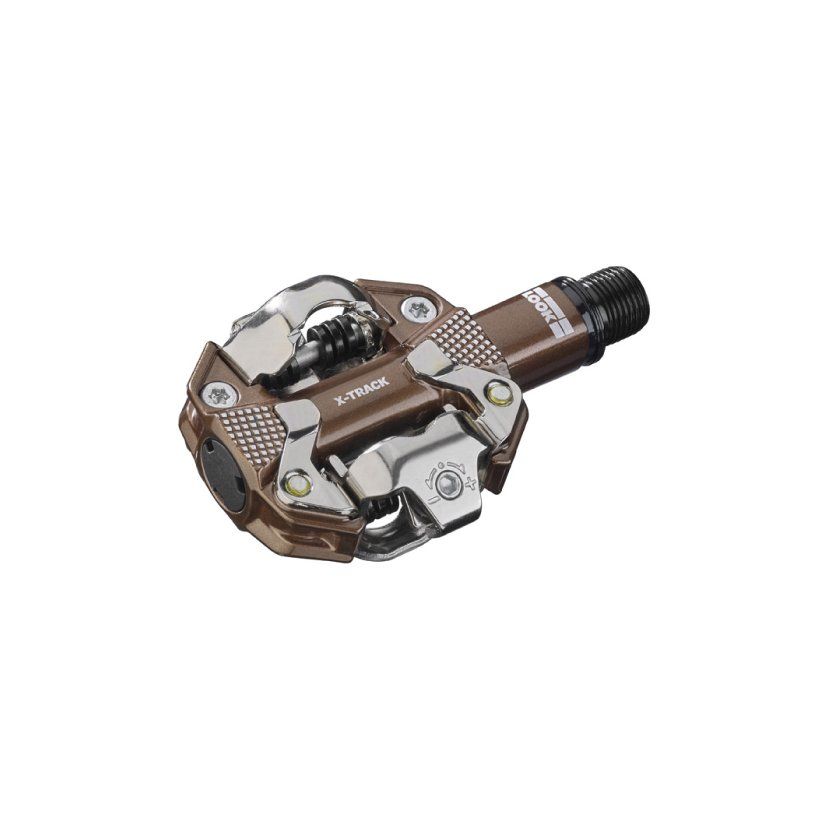

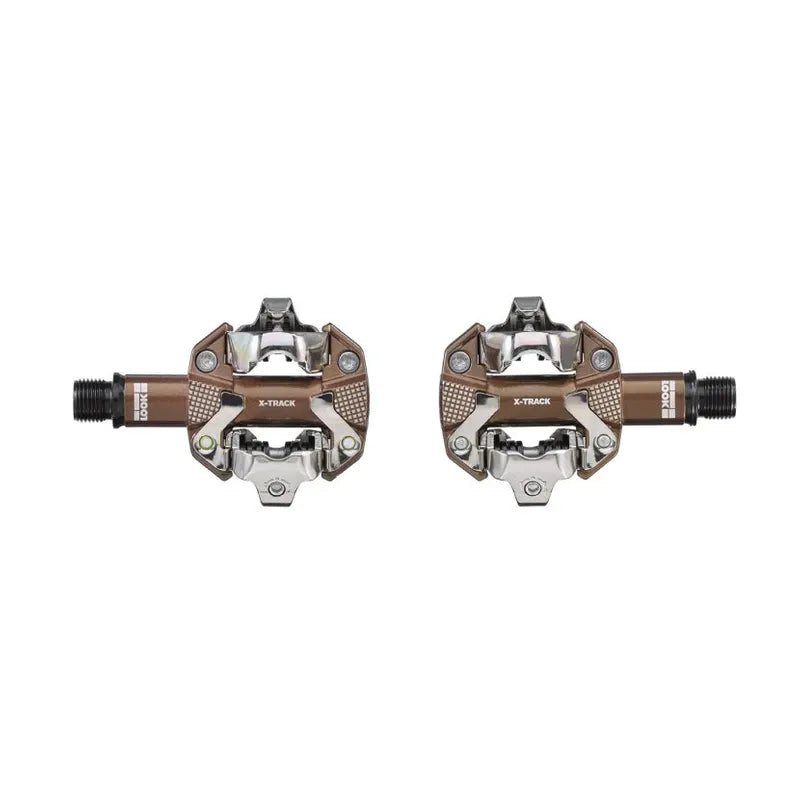

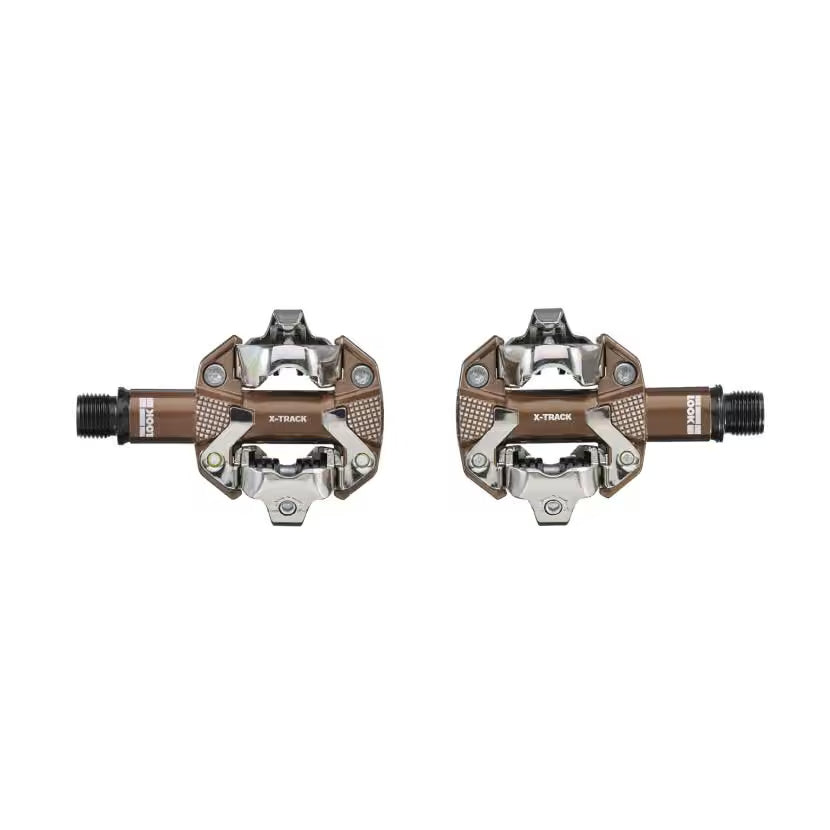

The X-TRACK GRAVEL EDITION is LOOK's entry level off-road pedal, which does not mean technology is left aside. The aluminum body and Chromoly+, double-sealed axle are robust and ensure total fluidity thru the pedalstroke. Tension can be quickly and easily adjusted from 6 thru 14.
Ready for Any Terrain
The X-Track adapts to your riding: versatile Gravel, punchy XC, demanding CX. Thanks to its double-sided mechanism, clipping in is immediate and intuitive: one pedal stroke and you’re engaged, whichever side you hit. Less hesitation off the line, more flow in accelerations, and a natural learning curve for most riders—from the first ride to the most committed outings.
Optimized Platform Support
The X-Track delivers the best power-to-weight ratio in its category: 515 mm² of contact area with optimized overall weight. Its design maximizes contact between the shoe lugs and the pedal for exceptional stability and the feeling of being one with the bike.
Intuitive, Precise Entry
Compatible with SPD-standard cleats, the LOOK-developed and patented mechanism ensures precise, consistent, predictable engagement and release—so you clip in naturally in any situation. Proven in the lab and on the trail, it’s built to last, whatever the conditions.
Optimized Mud Shedding
The compact X-Track design and the open space between the body and mechanism promote fast mud evacuation. Result: more reliable engagement in wet conditions and consistent function when the terrain gets clogged.
Technical Specs
| Spindle material |
Chromoly + |
| Technology |
X-TRACK |
| Body material |
Aluminium |
| Platform area |
350 mm² |
| Platform width |
57 mm |
| Total stack height (pedal + cleat) |
16,8 mm (10,7 + 6,1 mm) |
| Q Factor |
53 mm |
| Retention |
6 to 14 |

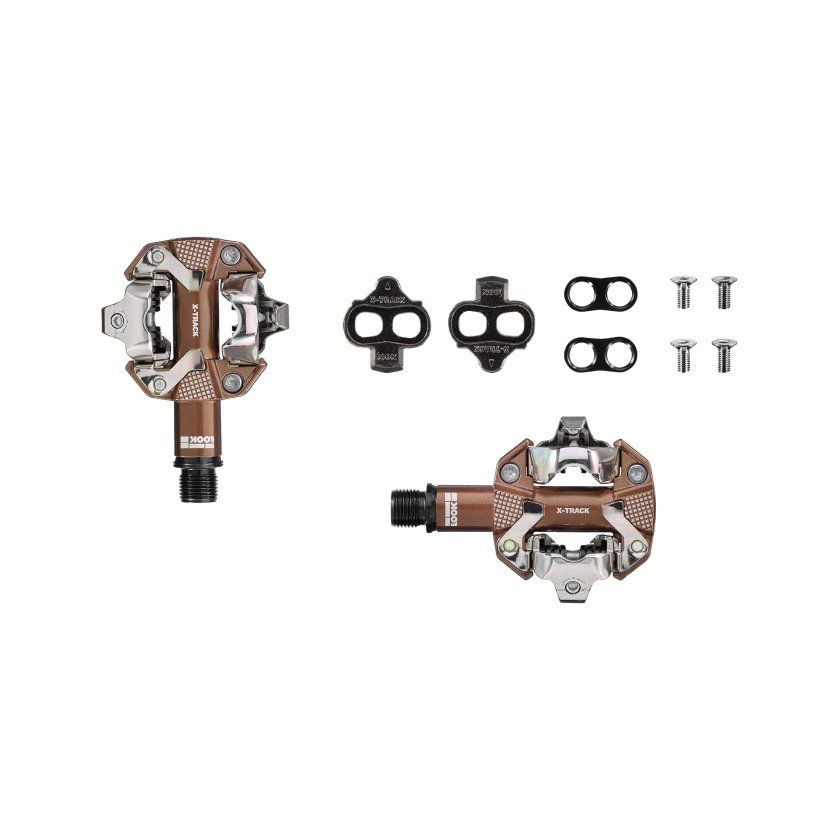

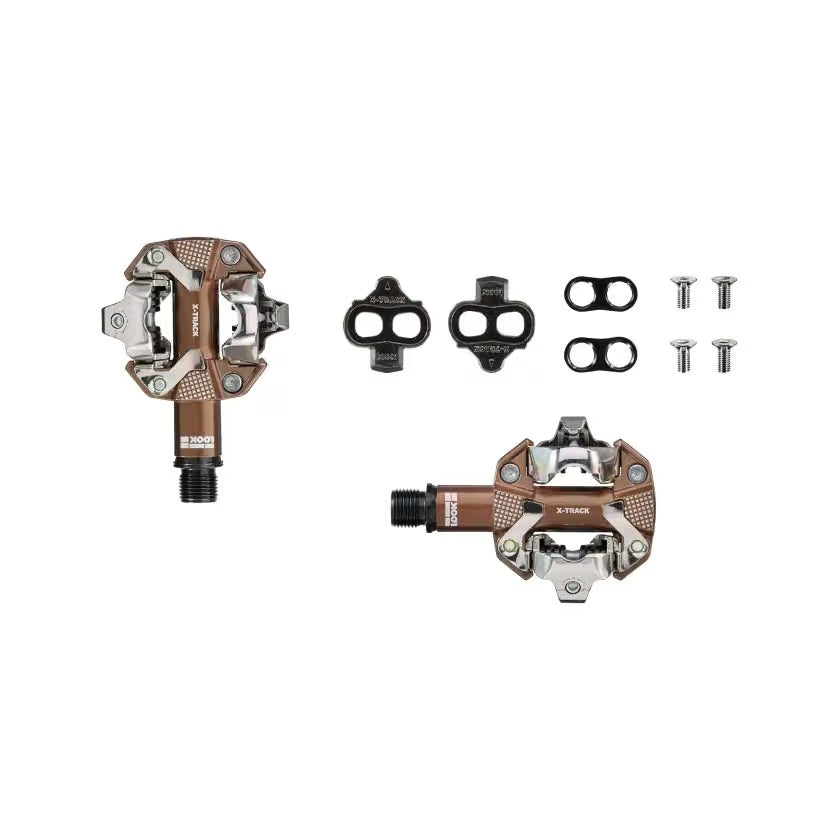

| Cleats |
Standard cleat included |
| Cleats standard |
SPD Compatible |
| Float angle |
6° |
| Release angle |
13° |
| Pedal |
200 g |
| Weight pair + cleats |
450 g |
