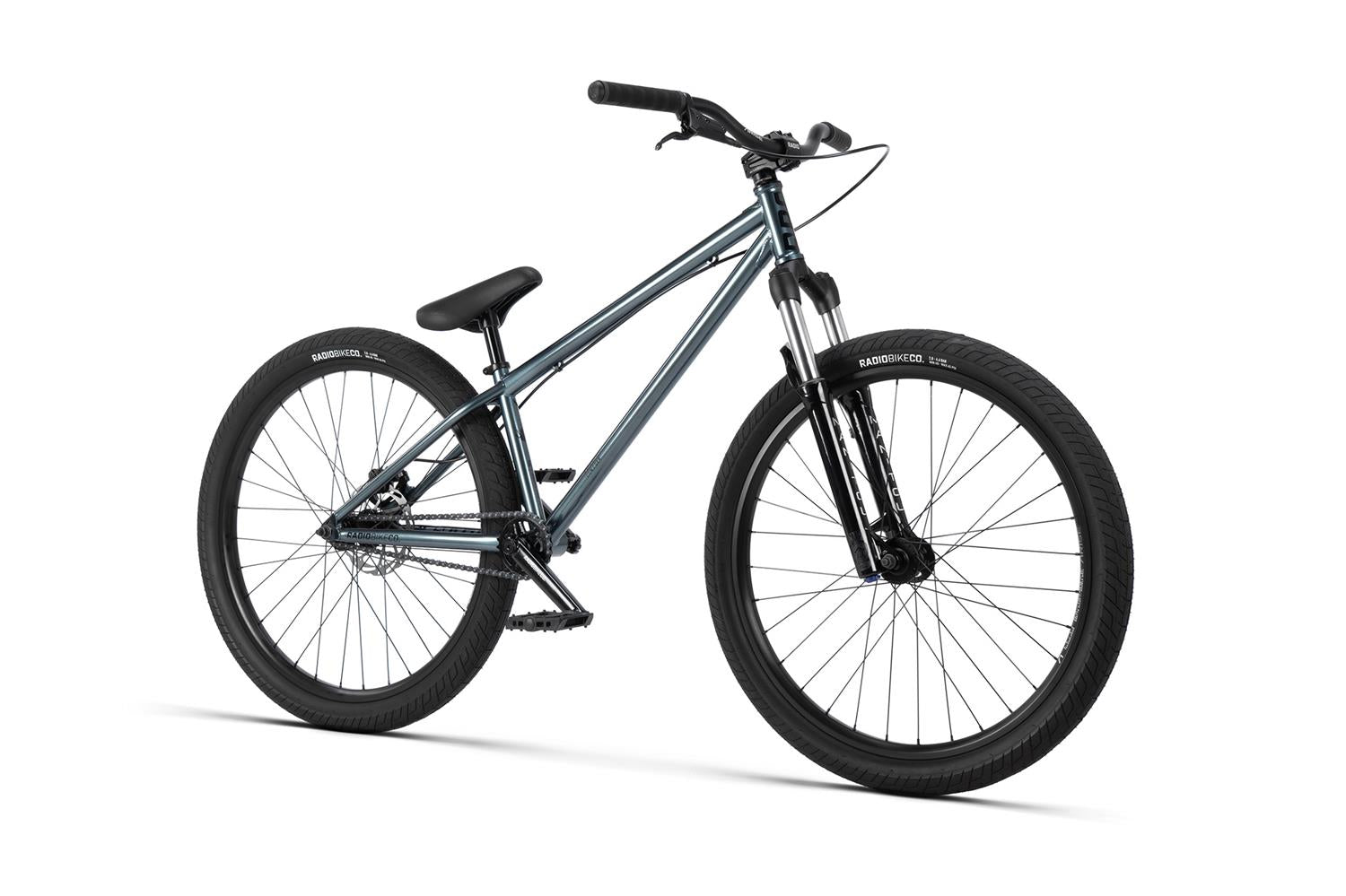

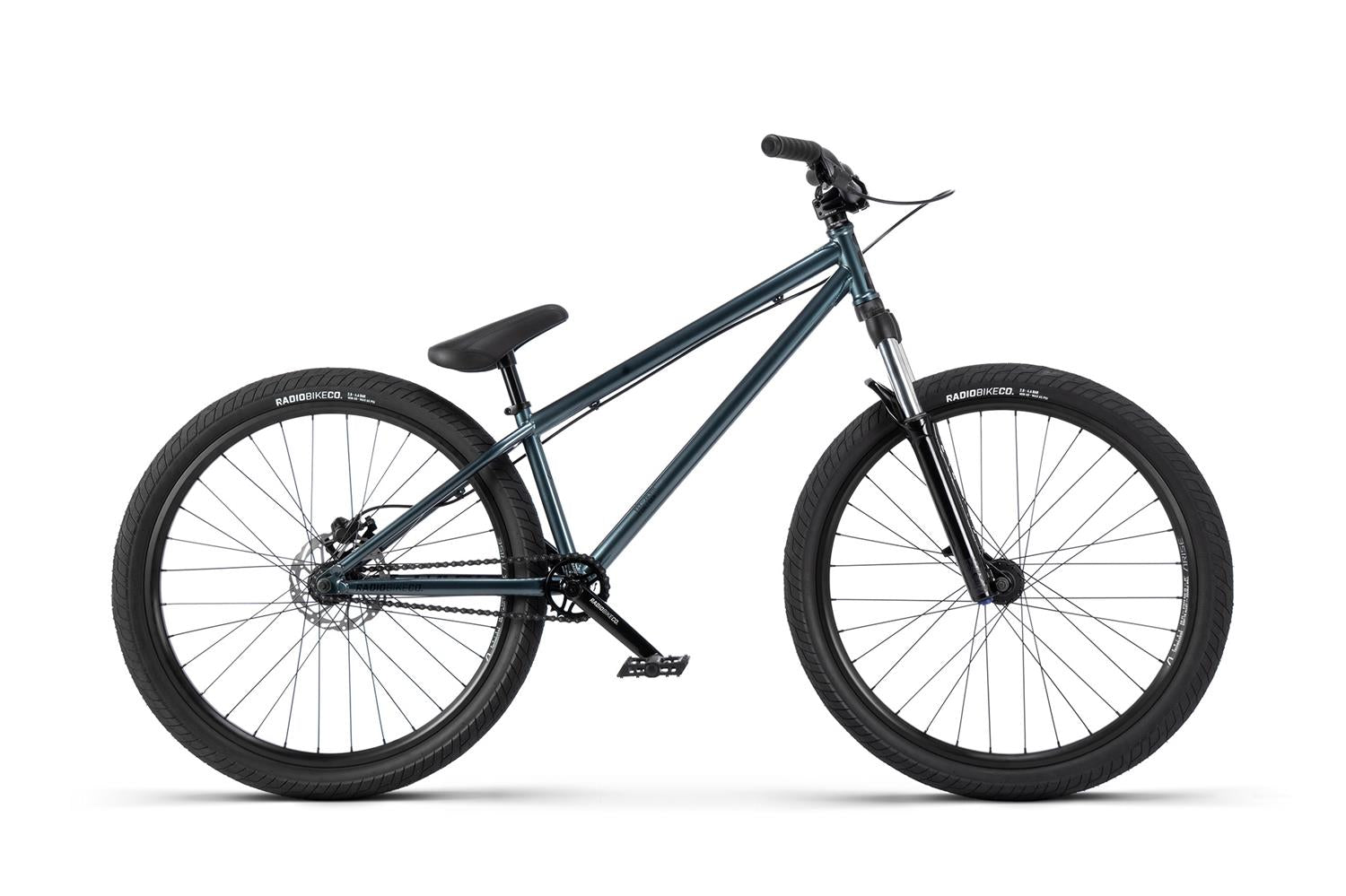

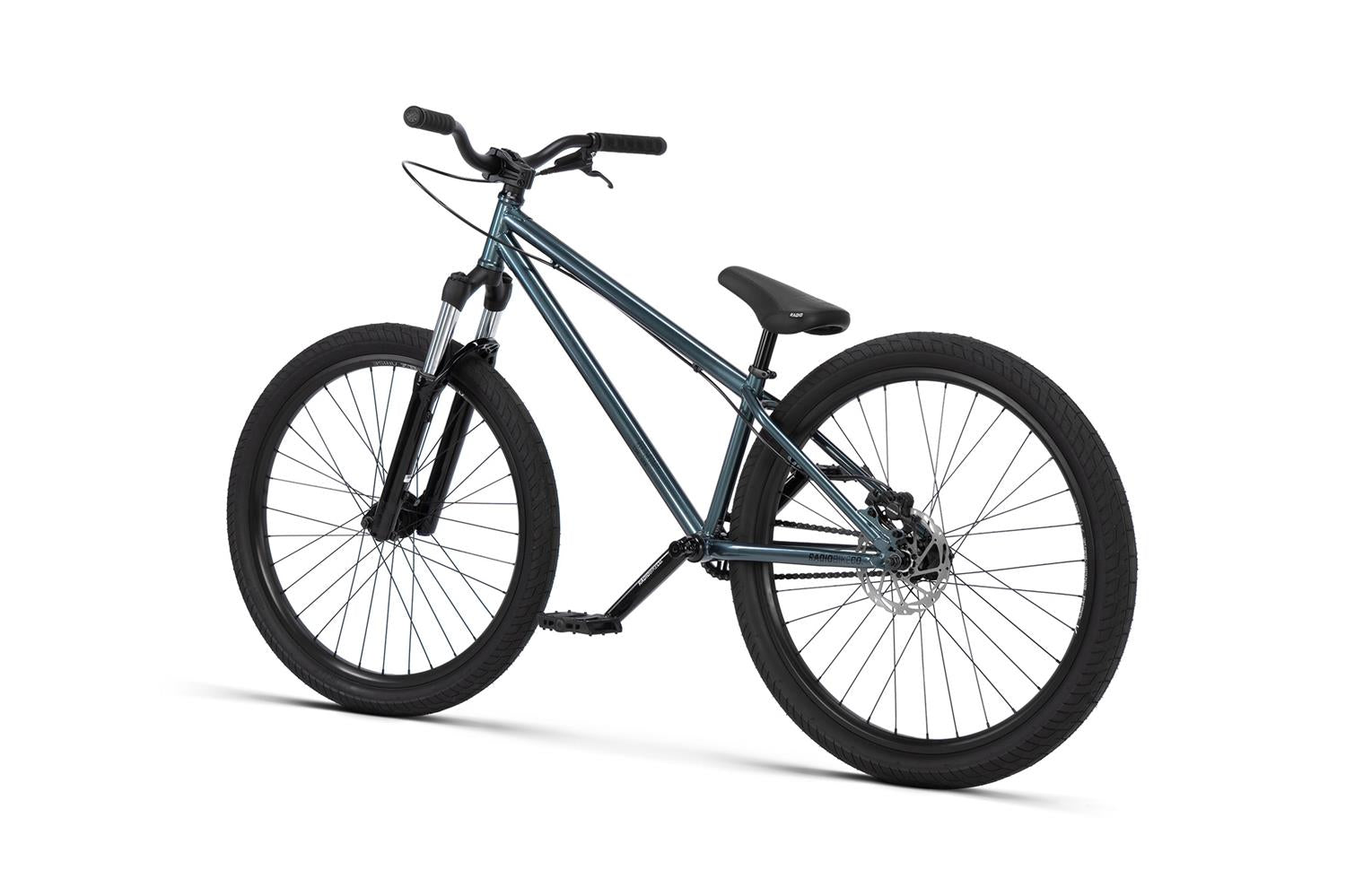

The ASURA PRO uses our full Chromoly aftermarket dirt jump frame as a base, and then injects a PRO level parts upgrade in the form of a MANITOU “CIRCUS COMP” fork, TEKTRO hydraulic disc brake and fully sealed RADIO PRO DJ wheels. Perfect for blasting the trails, sessioning the skatepark or even street missions, the ASURA PRO is a bike which might just surprise you on how versatile it is...

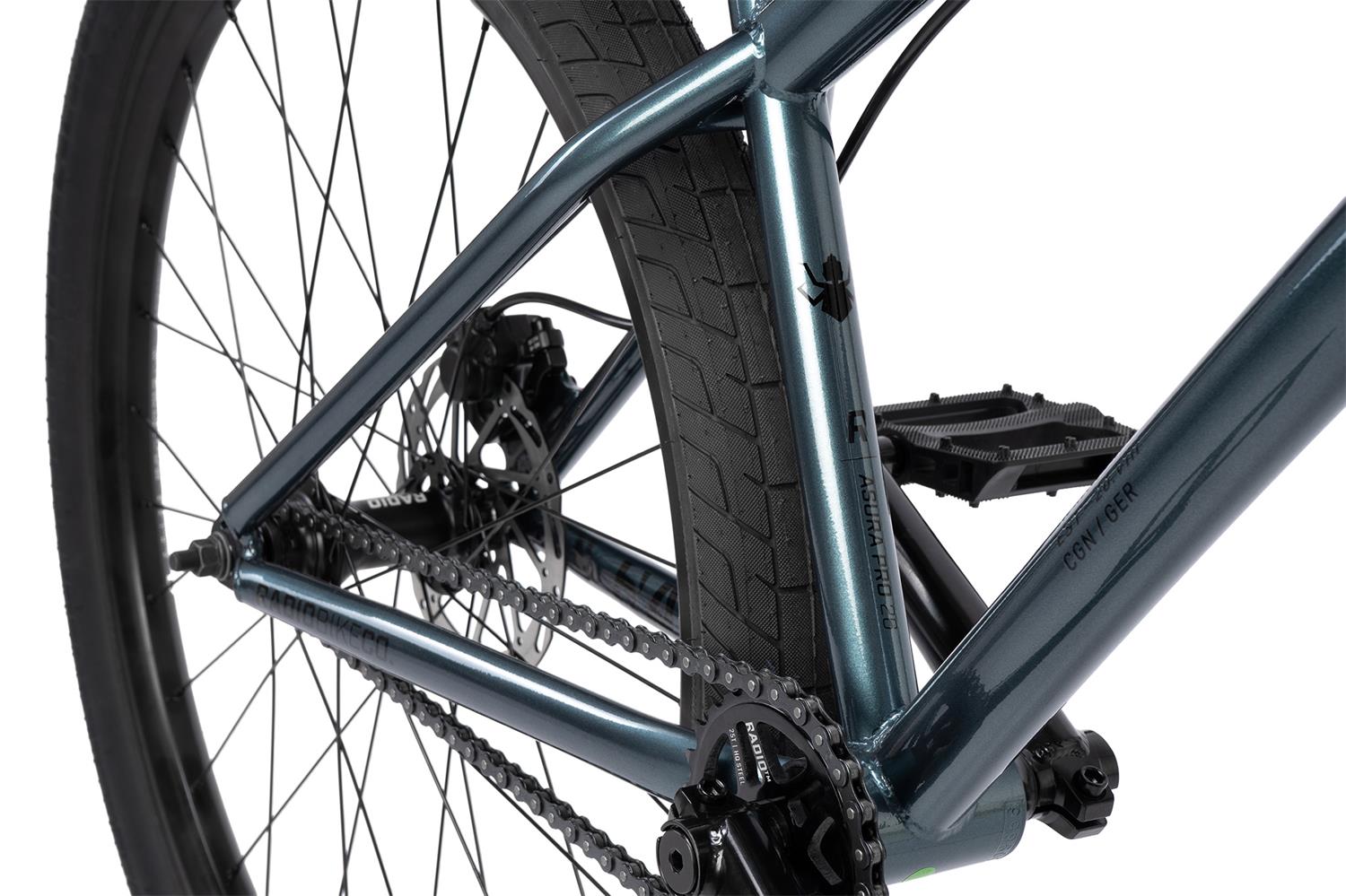

- FRAME: RADIO "ASURA PRO" frame, full 4130 crmo

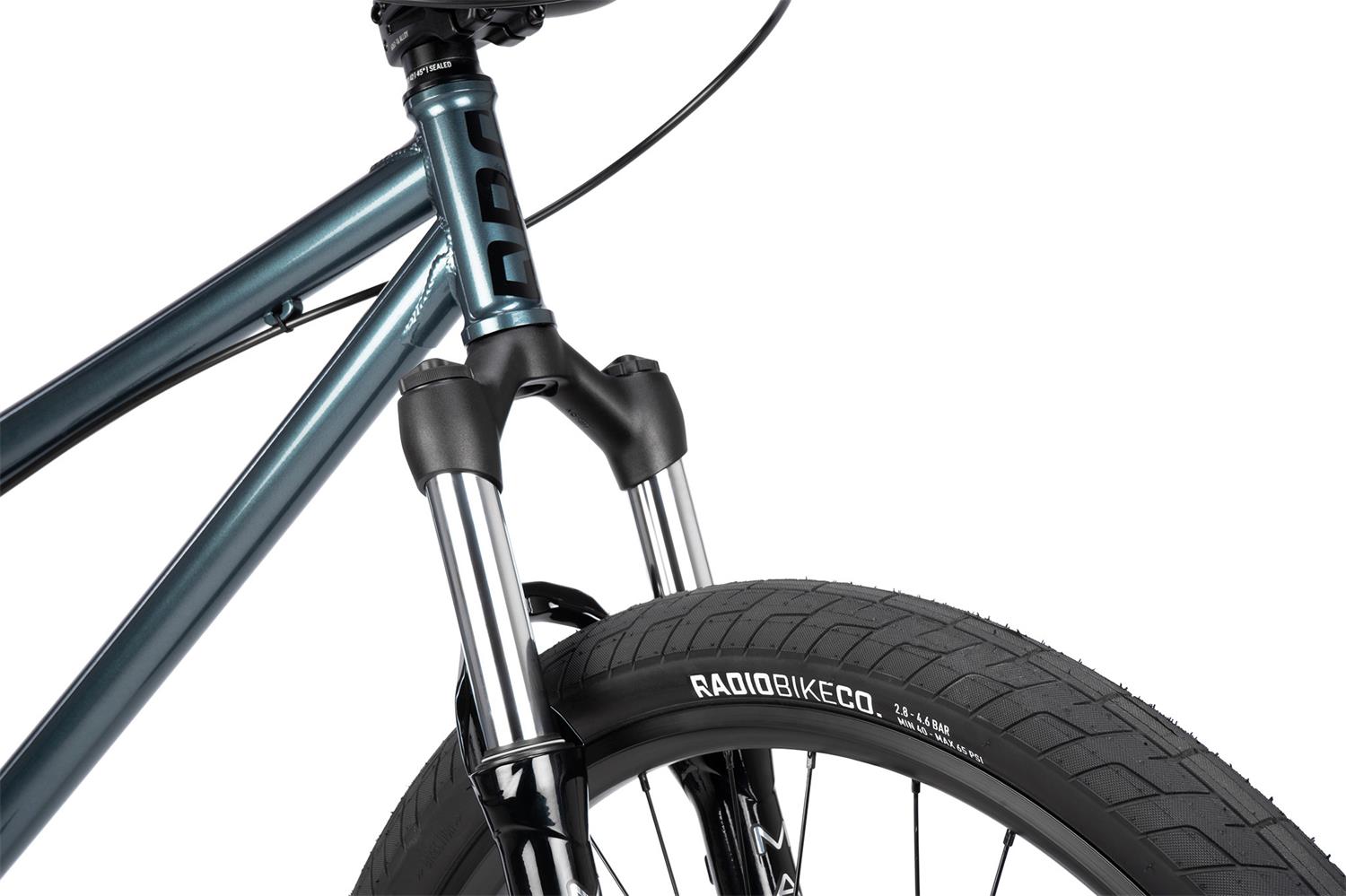

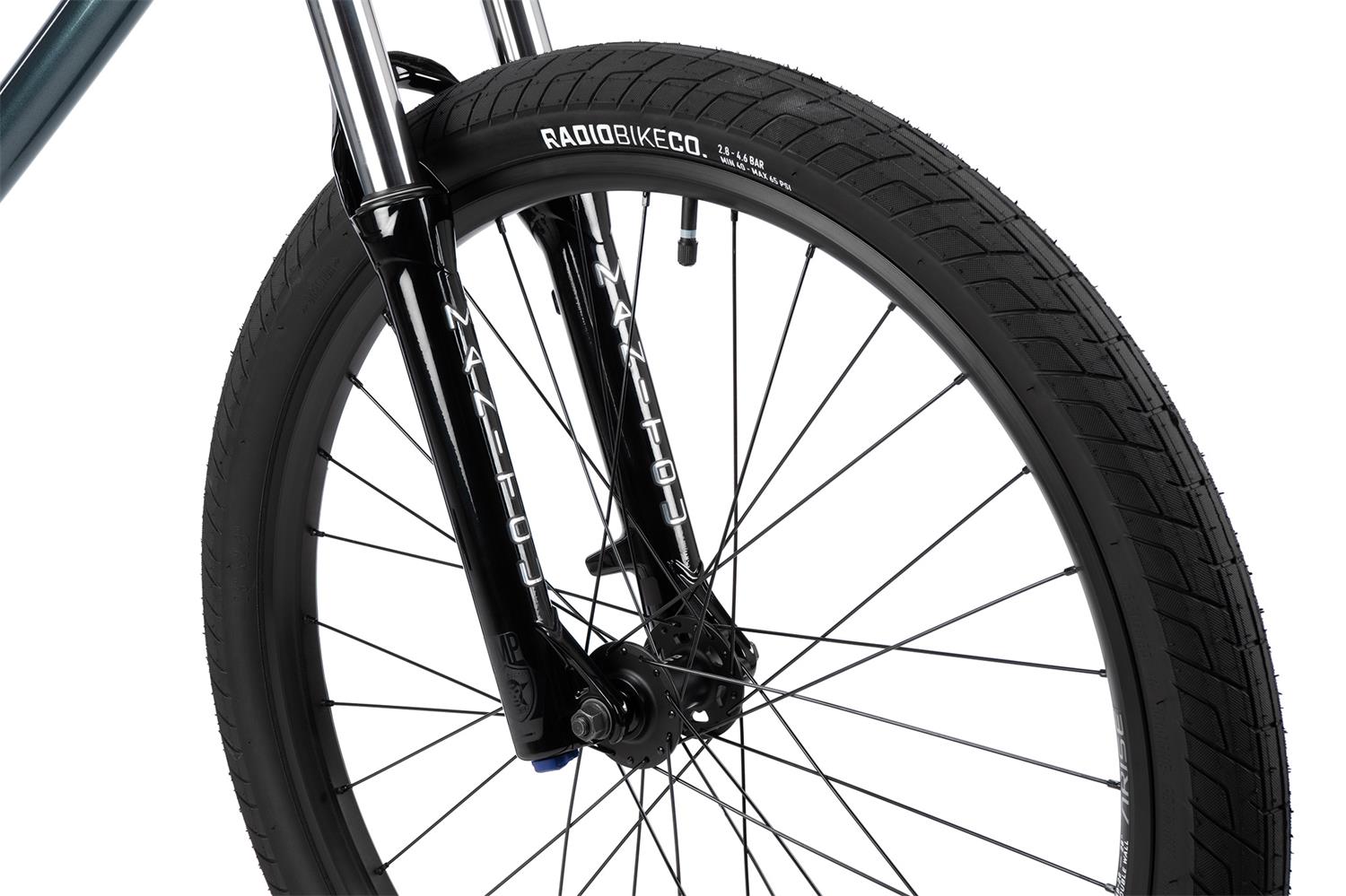

- FORK: MANNITOU "Circus Comp", 100mm travel

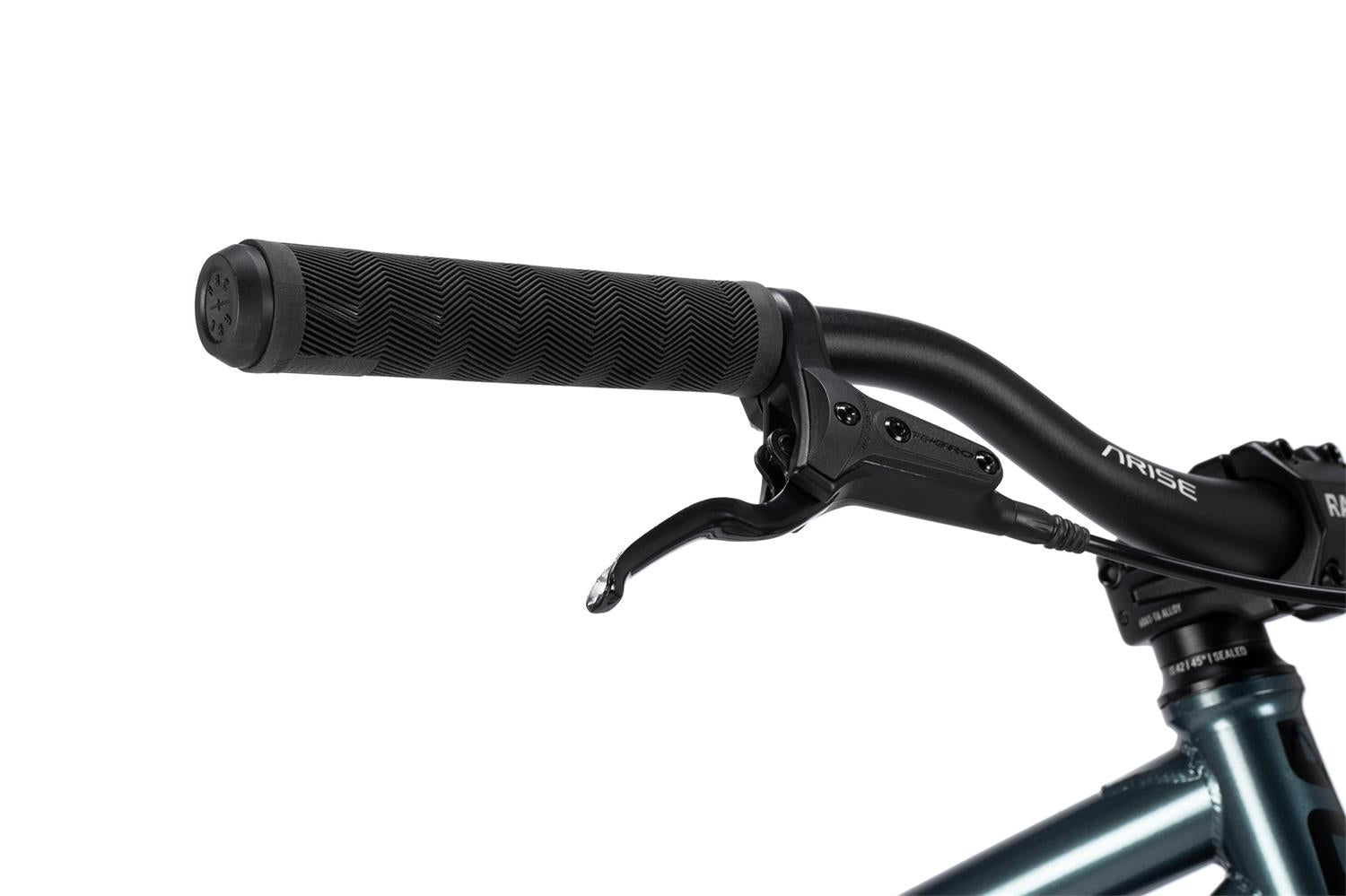

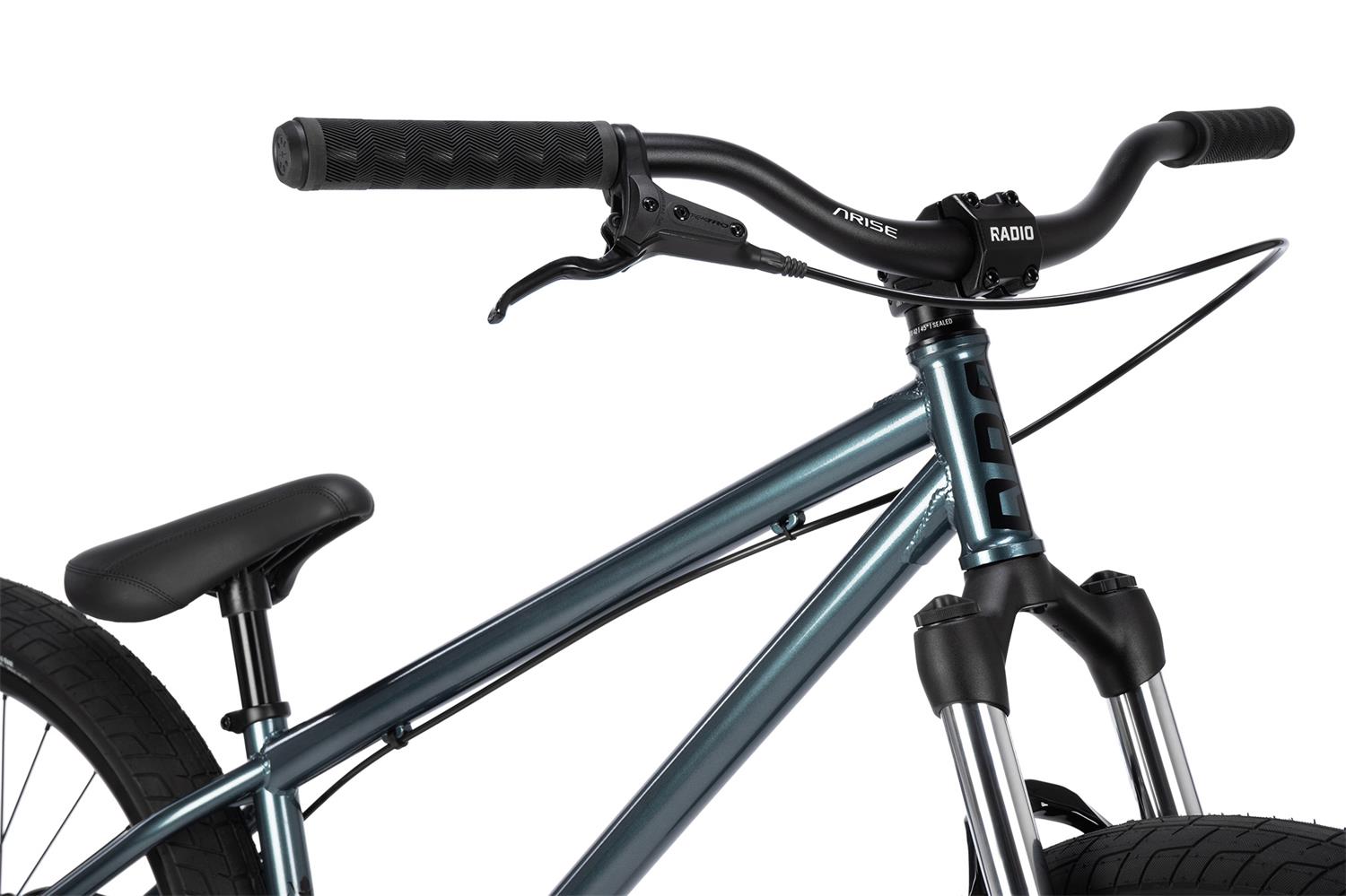

- HANDLEBAR: RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
- GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm

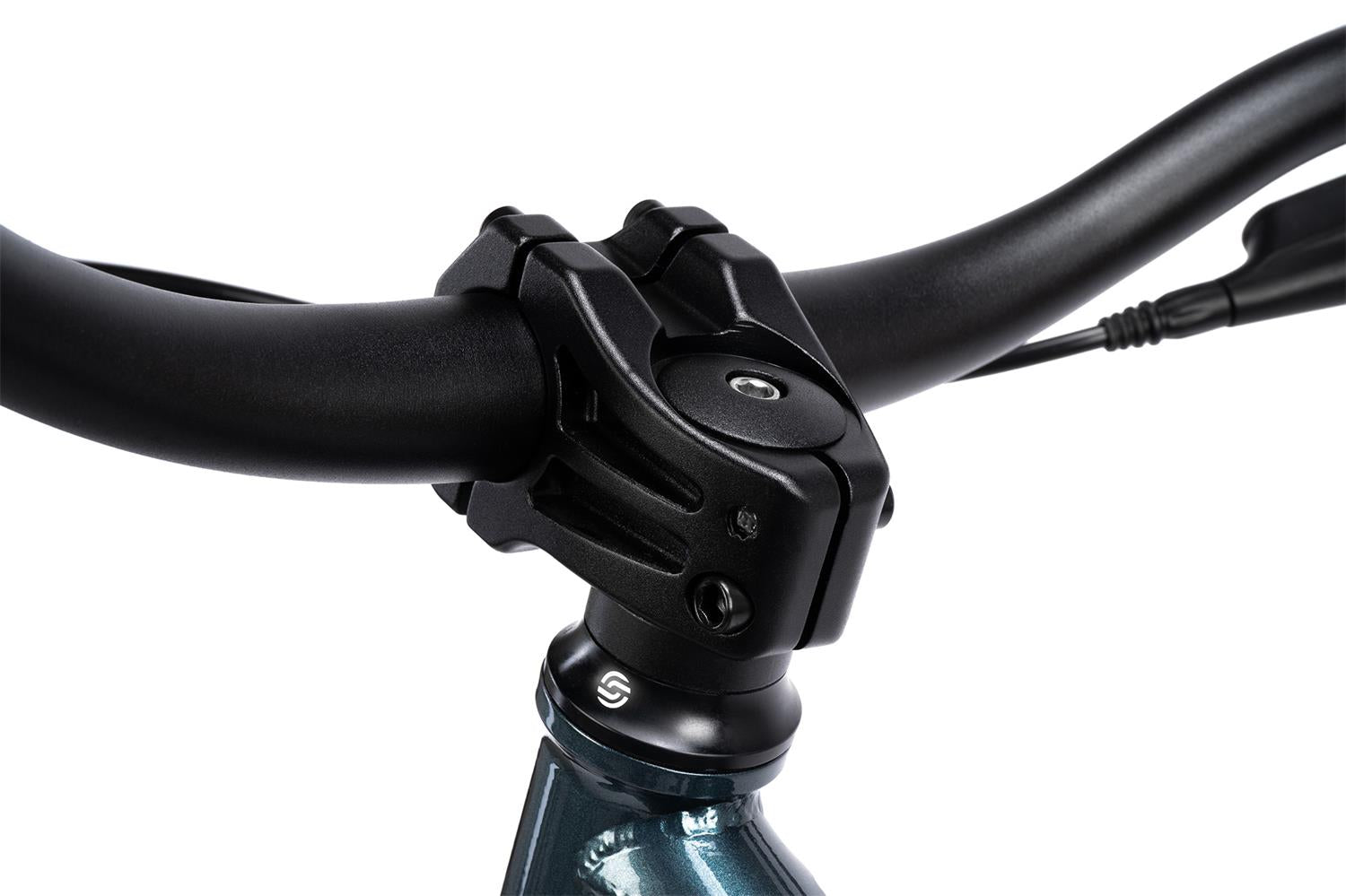

- STEM: RADIO "ZOOM" frontload stem, alloy, 40mm reach
- HEADSET: SALT "PRO" integrated headset, sealed bearing
- BRAKE LEVER: TEKTRO "RS-360A" front lever / TEKTRO " HD-M275" rear lever

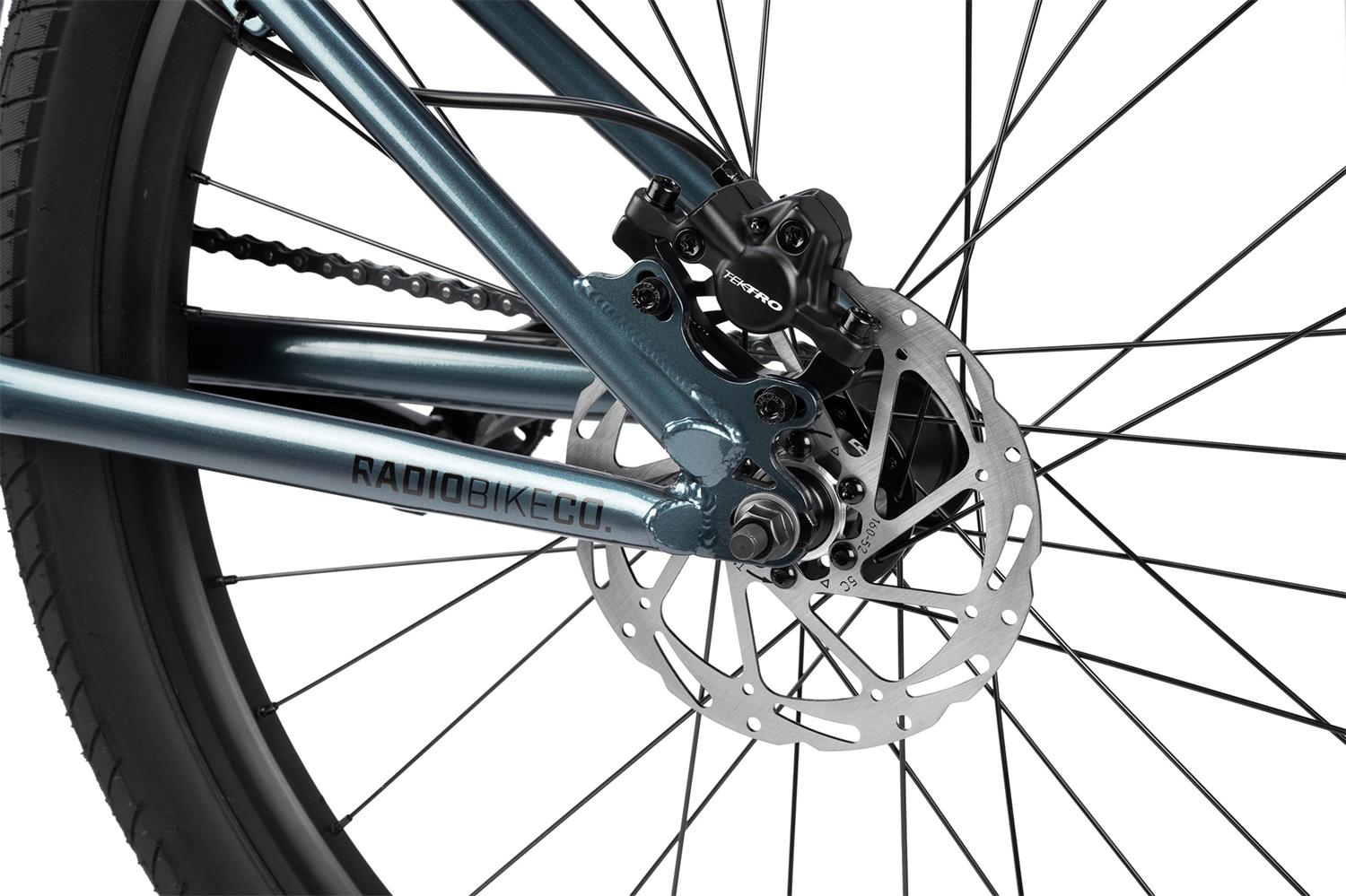

- BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / TEKTRO "HD-M275" hydraulic disc brake, 160mm rotor, rear

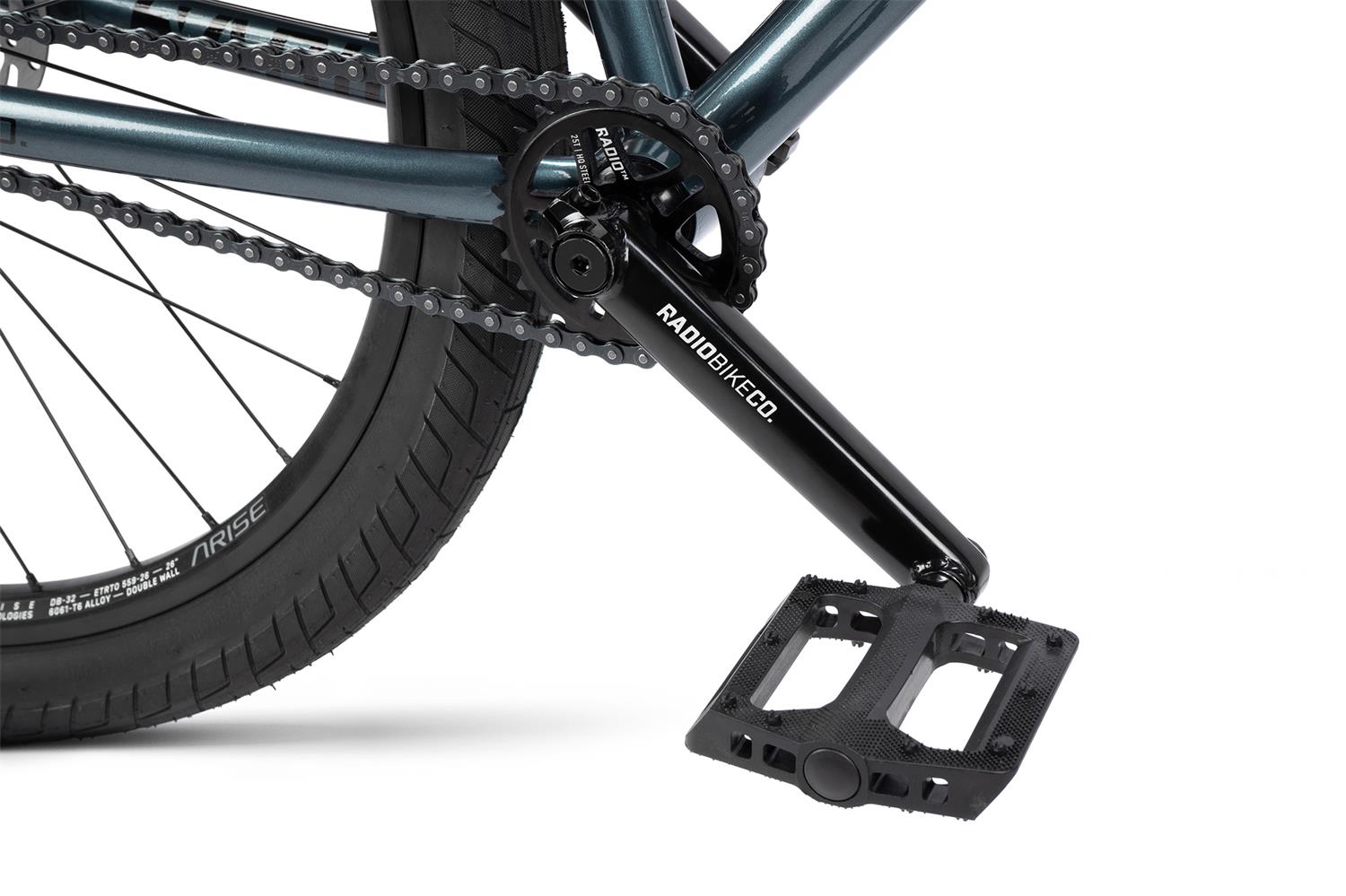

- CRANK: RADIO "PRO" 3pc crank, tubular, crmo, 170mm, 8 spline
- BB: RADIO "MID" bb set, press fit, sealed bearing
- PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type

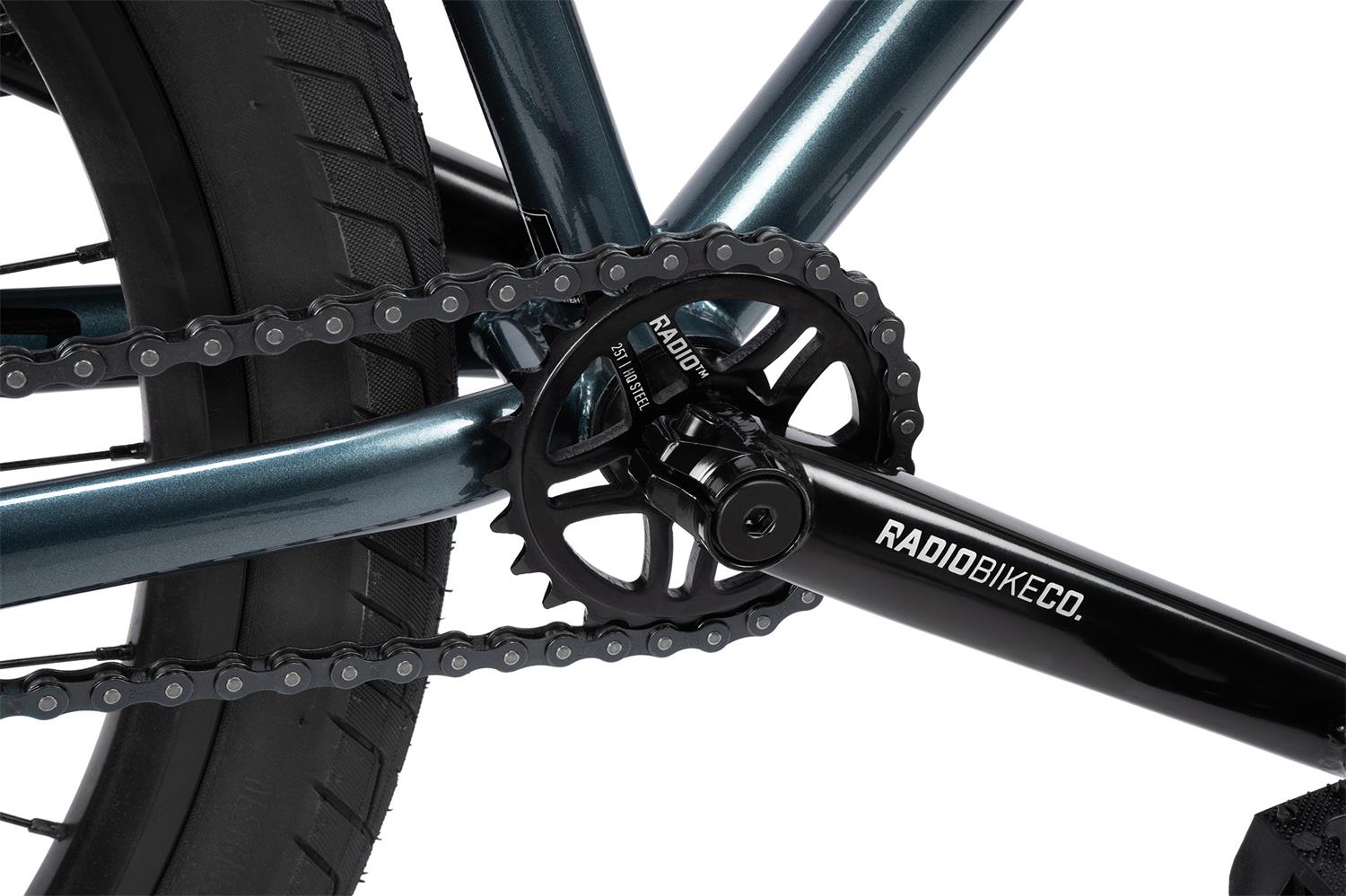

- SPROCKET: RADIO "VISION" sprocket, alloy, 25t
- DRIVER: cassette driver, 10t, sealed bearing

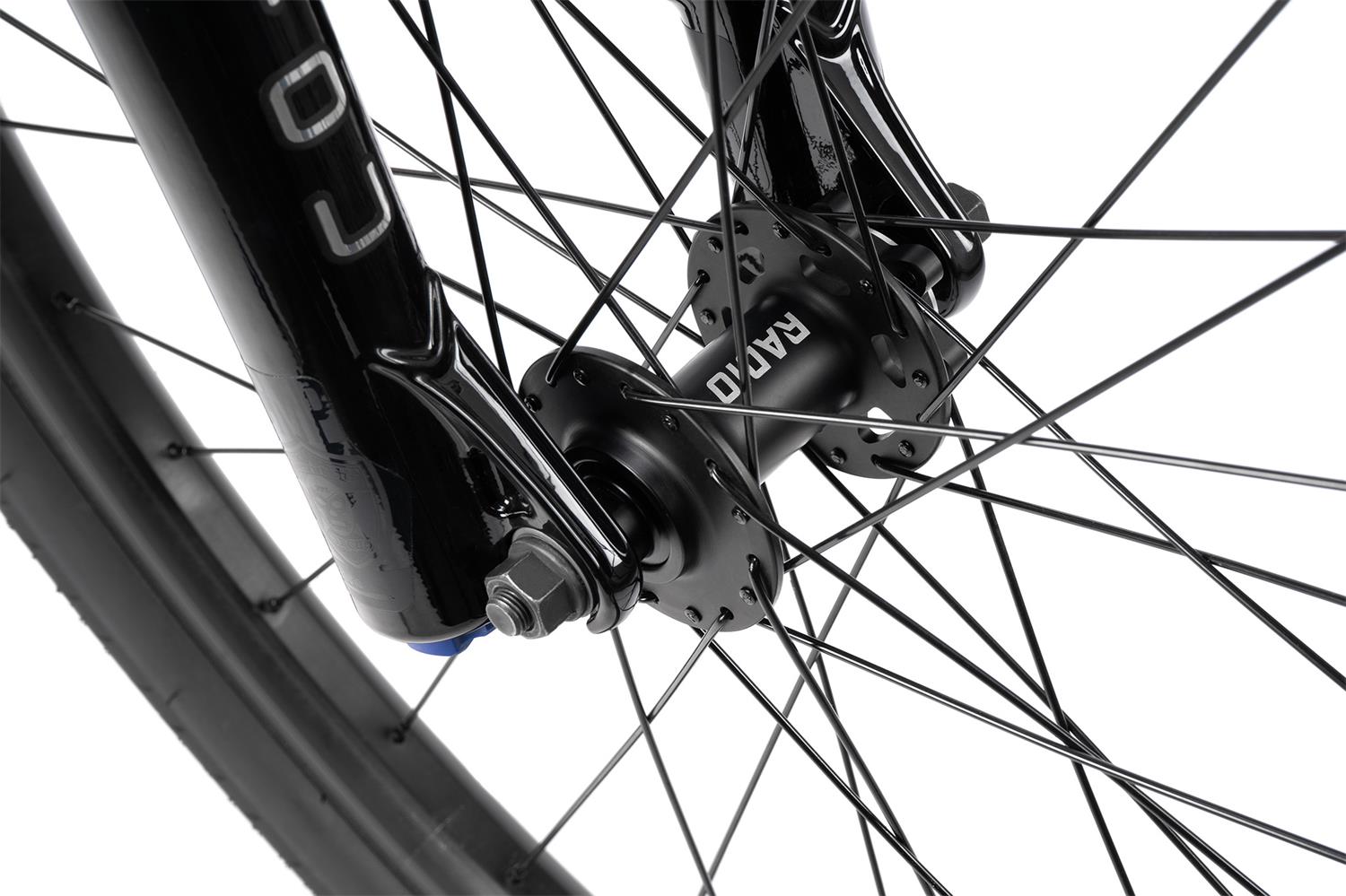

- FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h

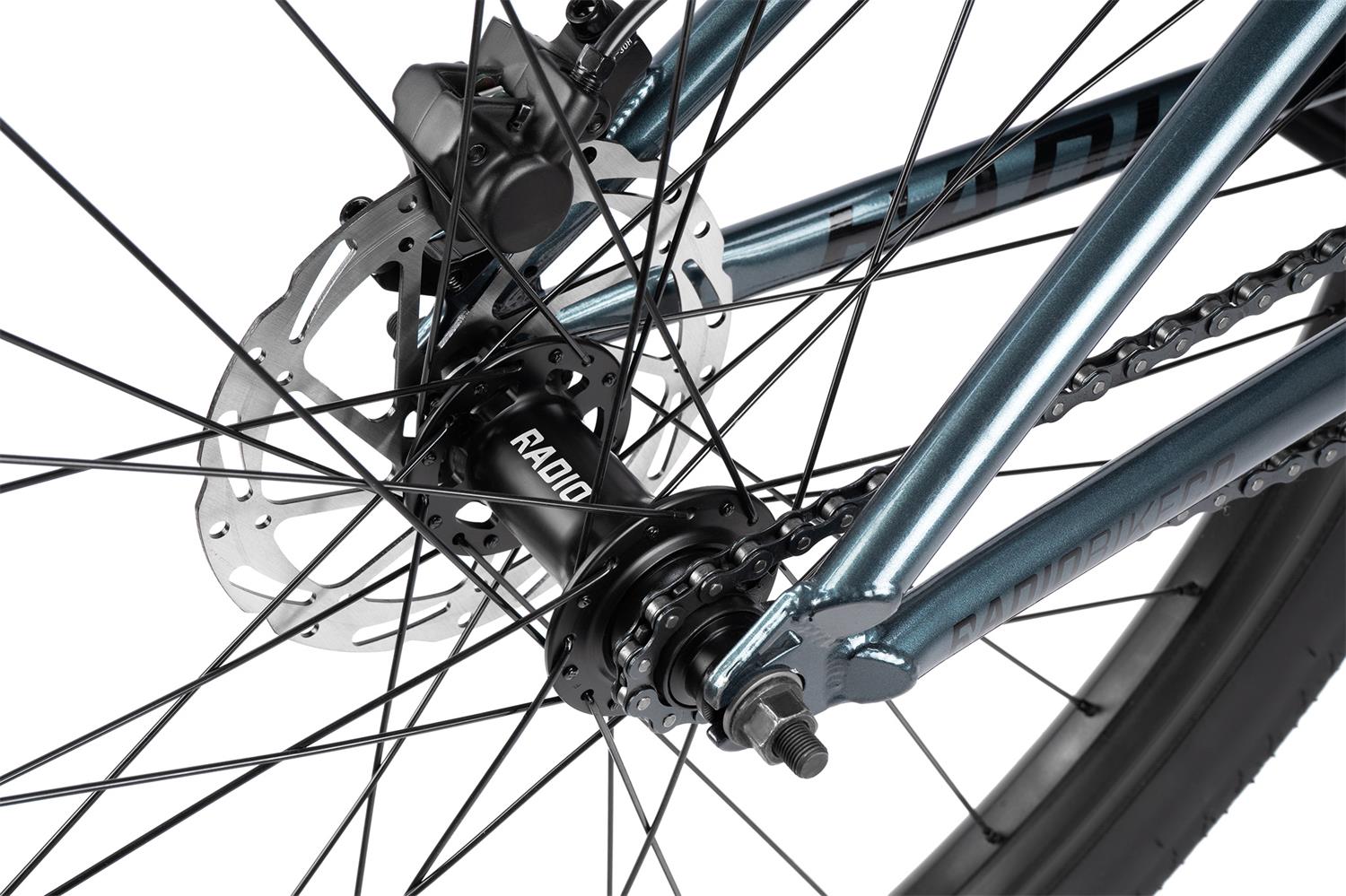

- REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
- FRONT RIM: RADIO "DB32" rim, double wall
- REAR RIM: RADIO "DB32" rim, double wall

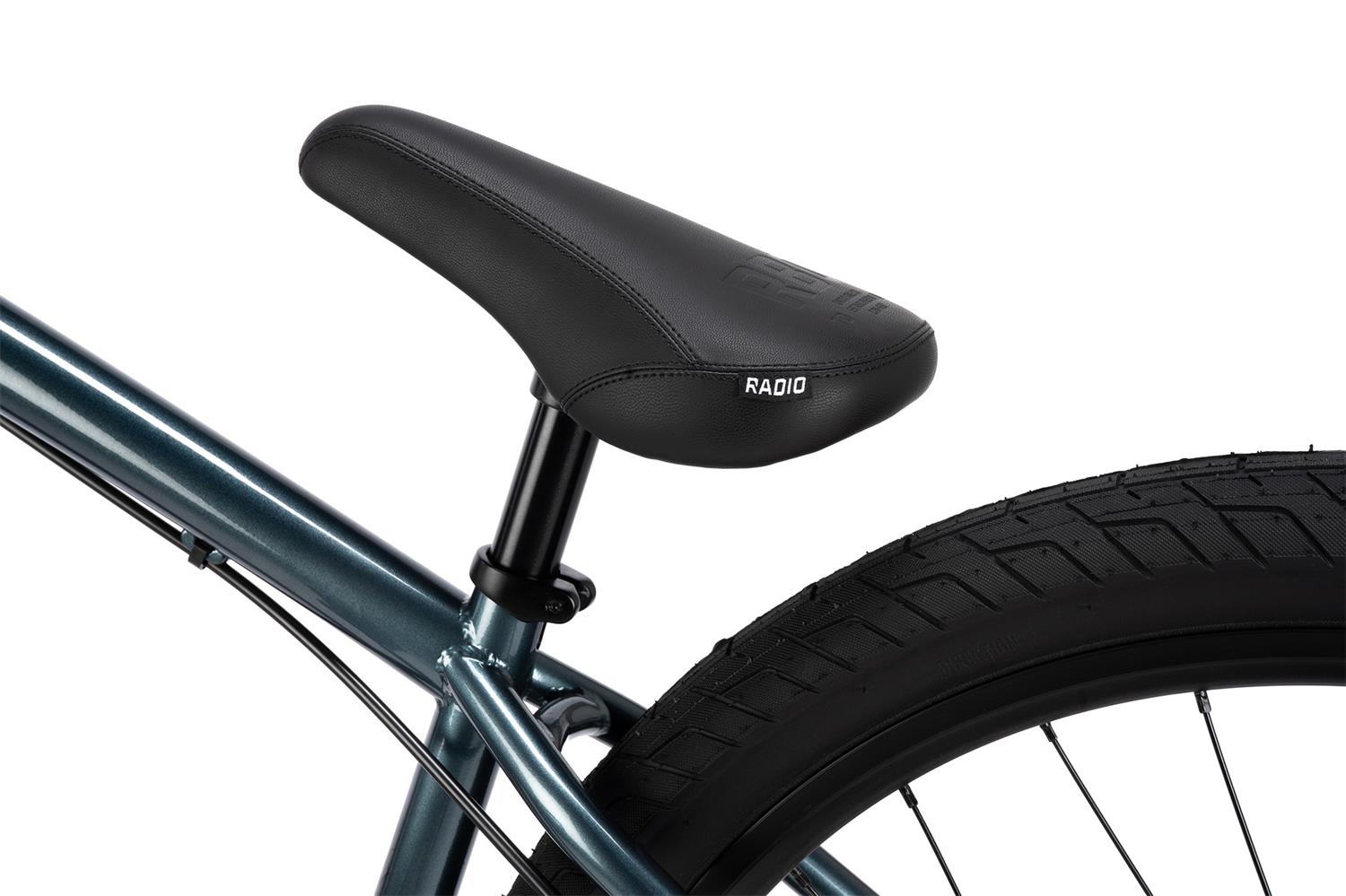

- SEAT: RADIO "DJ" combo seat, medium padded
- SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
- TIRES: MAXXIS "DTH" tires, 2.3", front & rear
Weight: 12.74kg / 28.1lbs
Frame Geometry:
| Top Tube Length |
22.7" |
| Chain Stay Length |
15" |
| Head Tube Angle |
70° |
| Seat Tube Angle |
72.5° |
| Bottom Bracket Height |
4mm drop |
| Standover Height |
10.5" |
Handlebar Geometry:
| Rise |
50mm |
| Width |
740mm |
| Backsweep |
8° |
| Upsweep |
3° |
