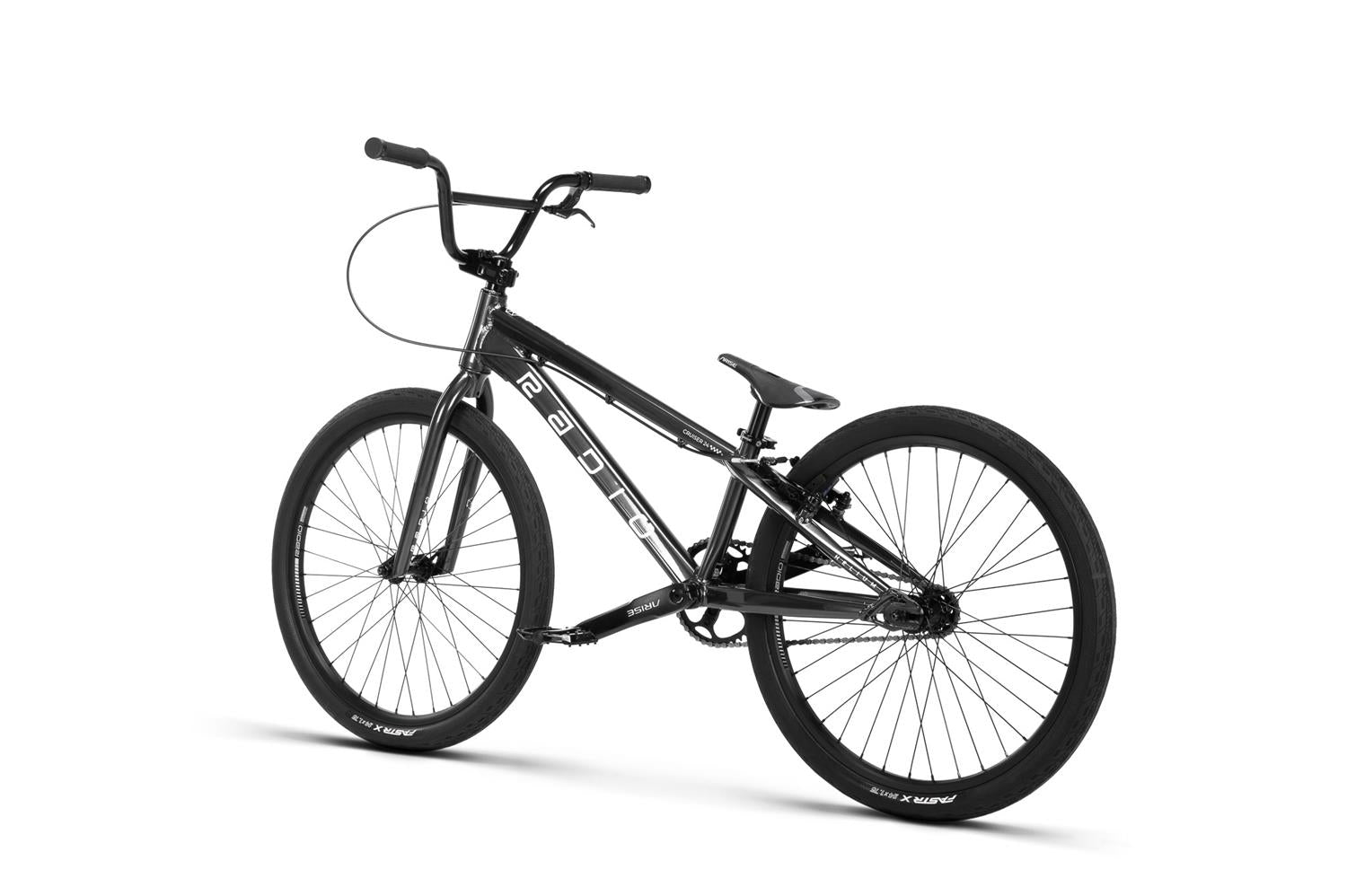

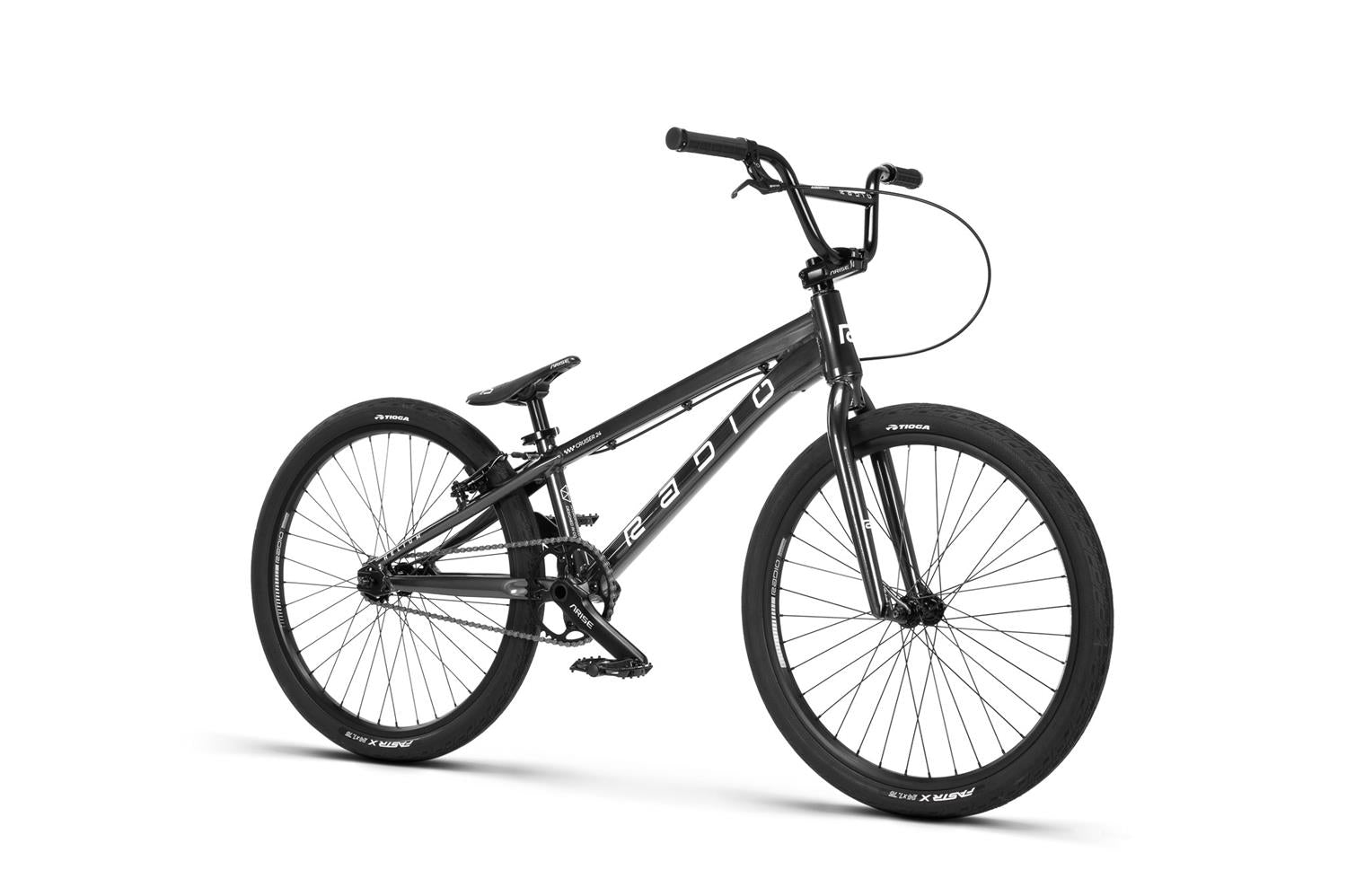

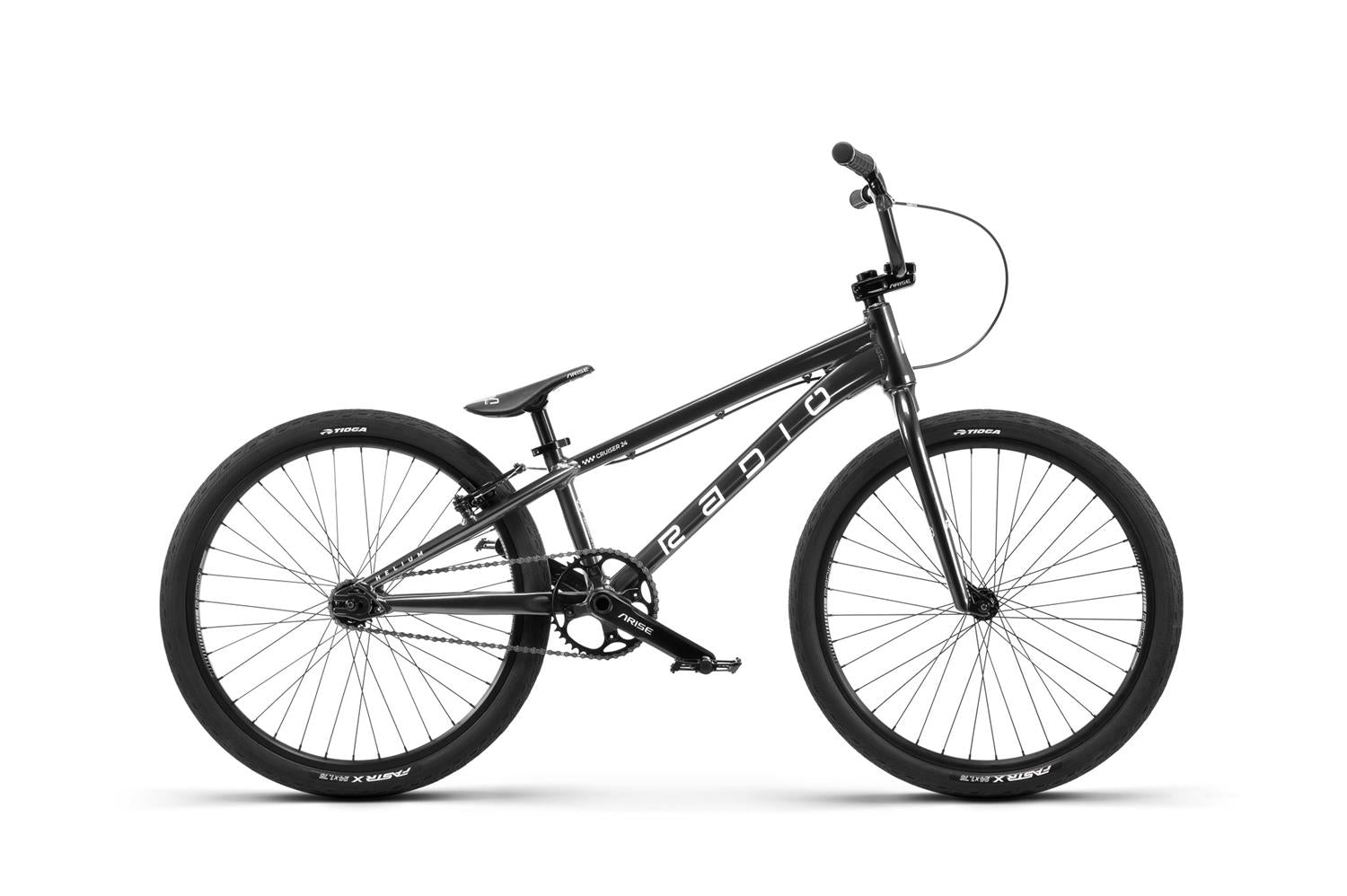

A bike that has developed quite the following, the Helium Cruiser XL is our 24” workhorse. Taking our aftermarket Helium cruiser frame and injecting it with a full pro parts package, we spared no details here.
From forged dropouts to our very own aftermarket Argon PRO Rims to parts from Promax and Tioga, this 24″ machine is a bike with no limits.

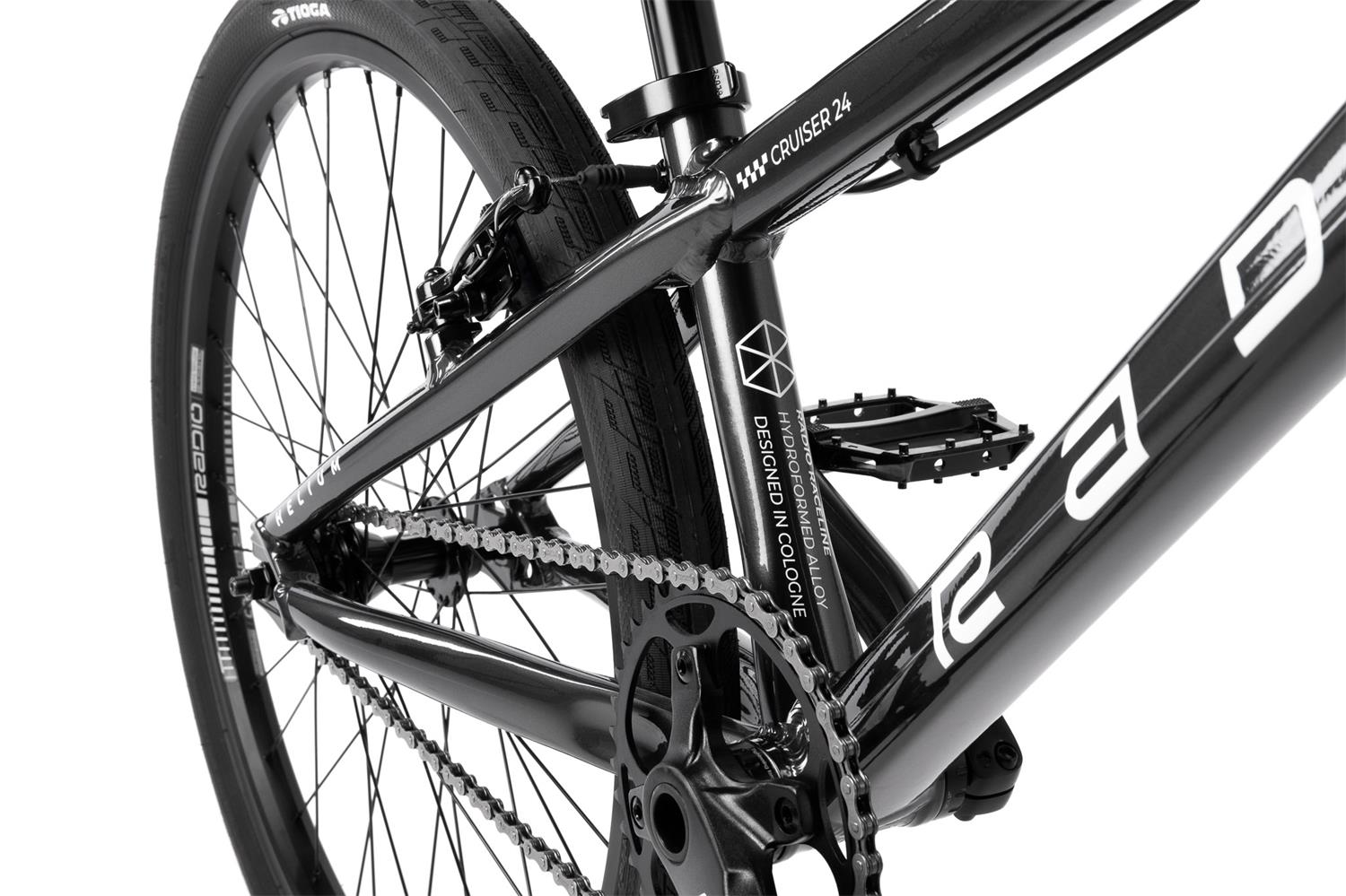

- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners

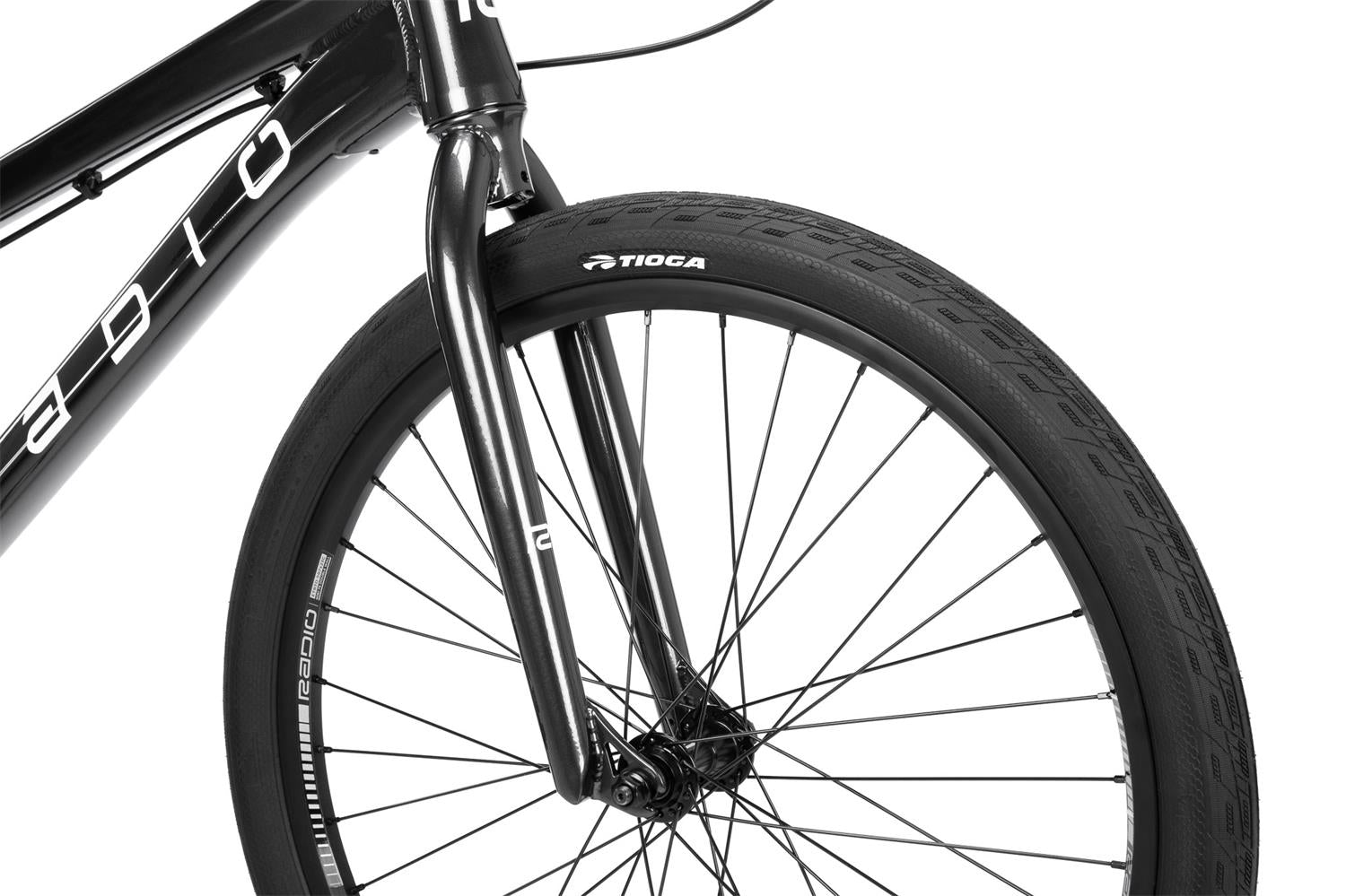

- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

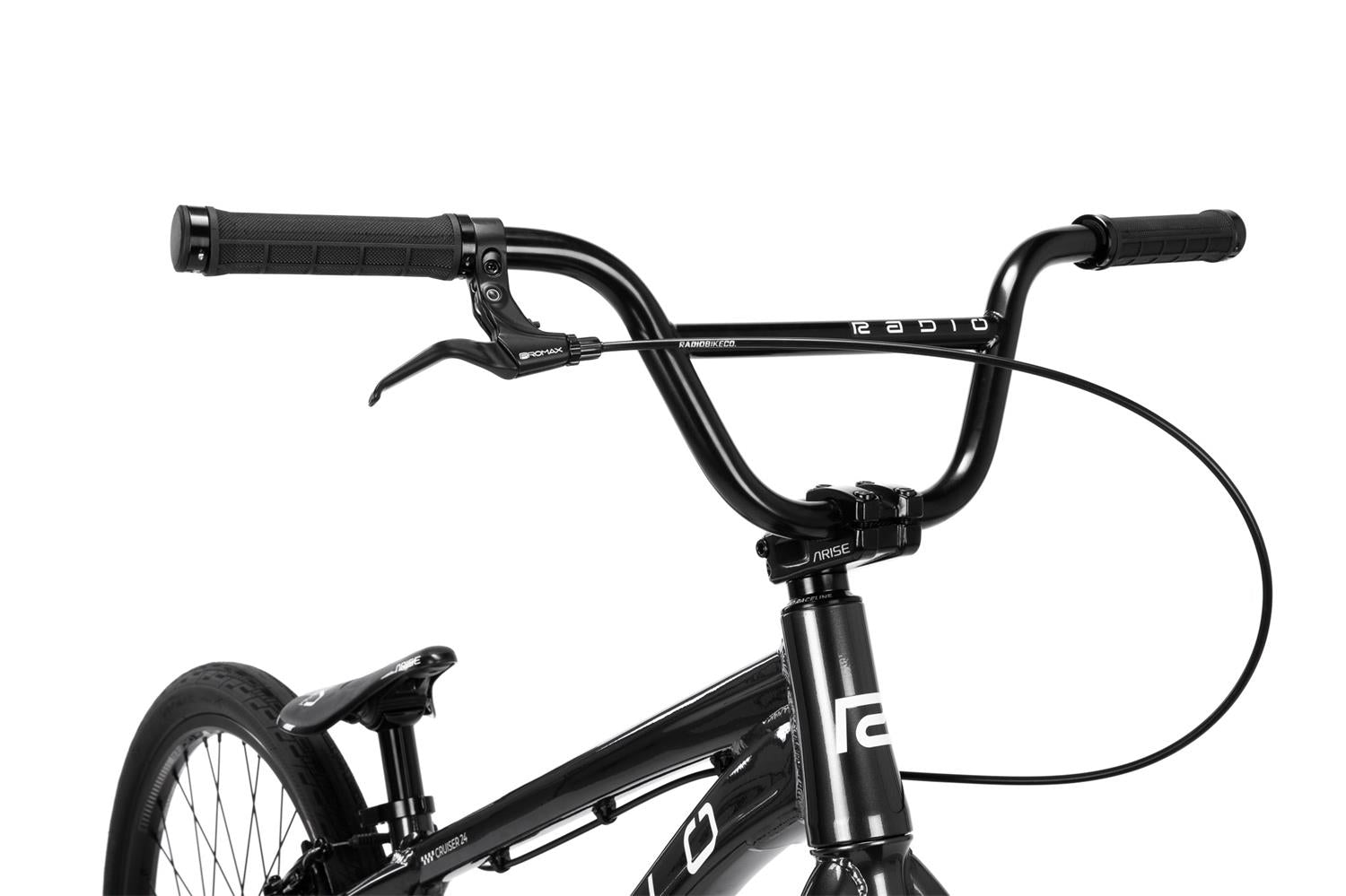

- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

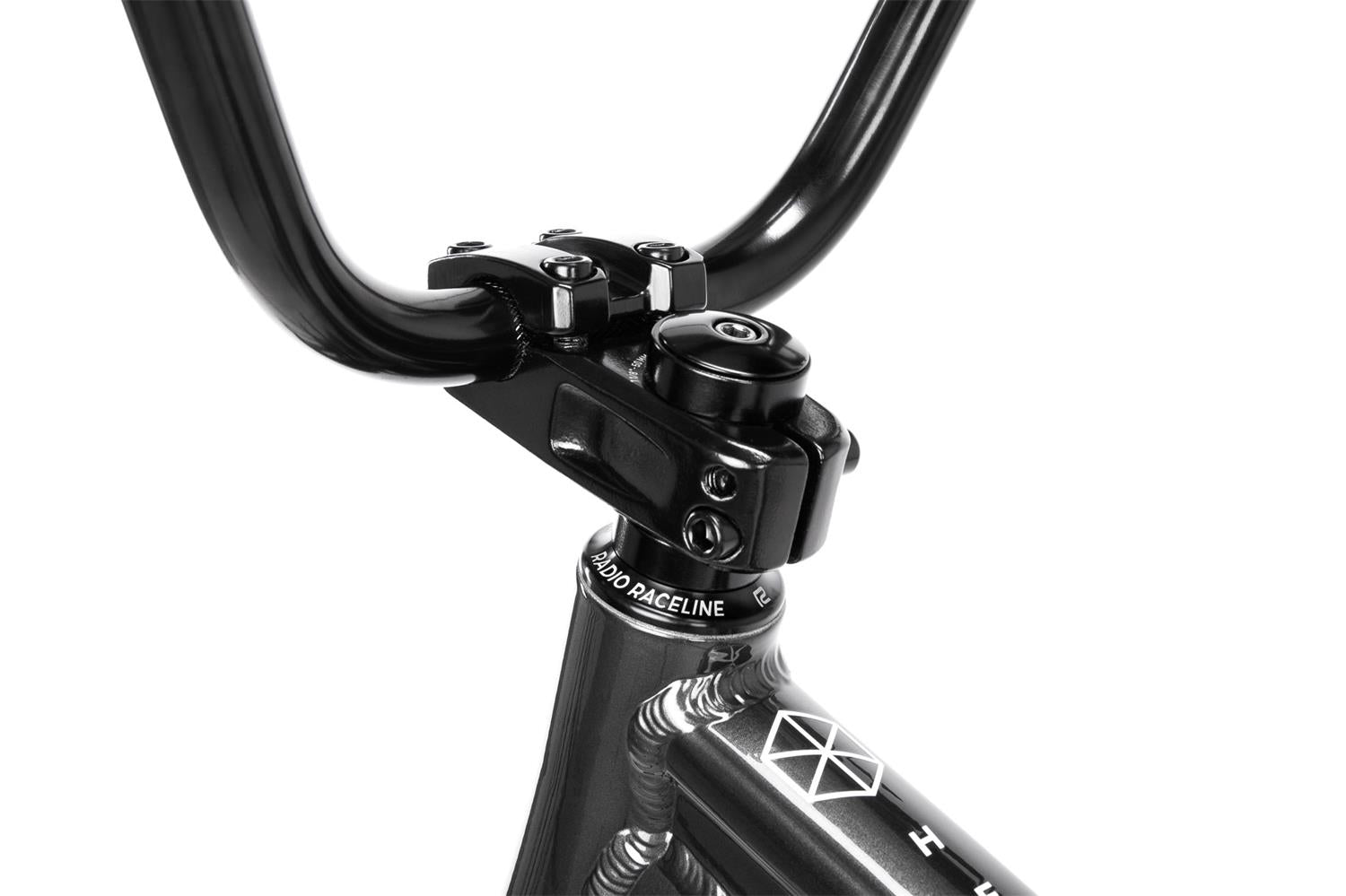

- STEM: ARISE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy

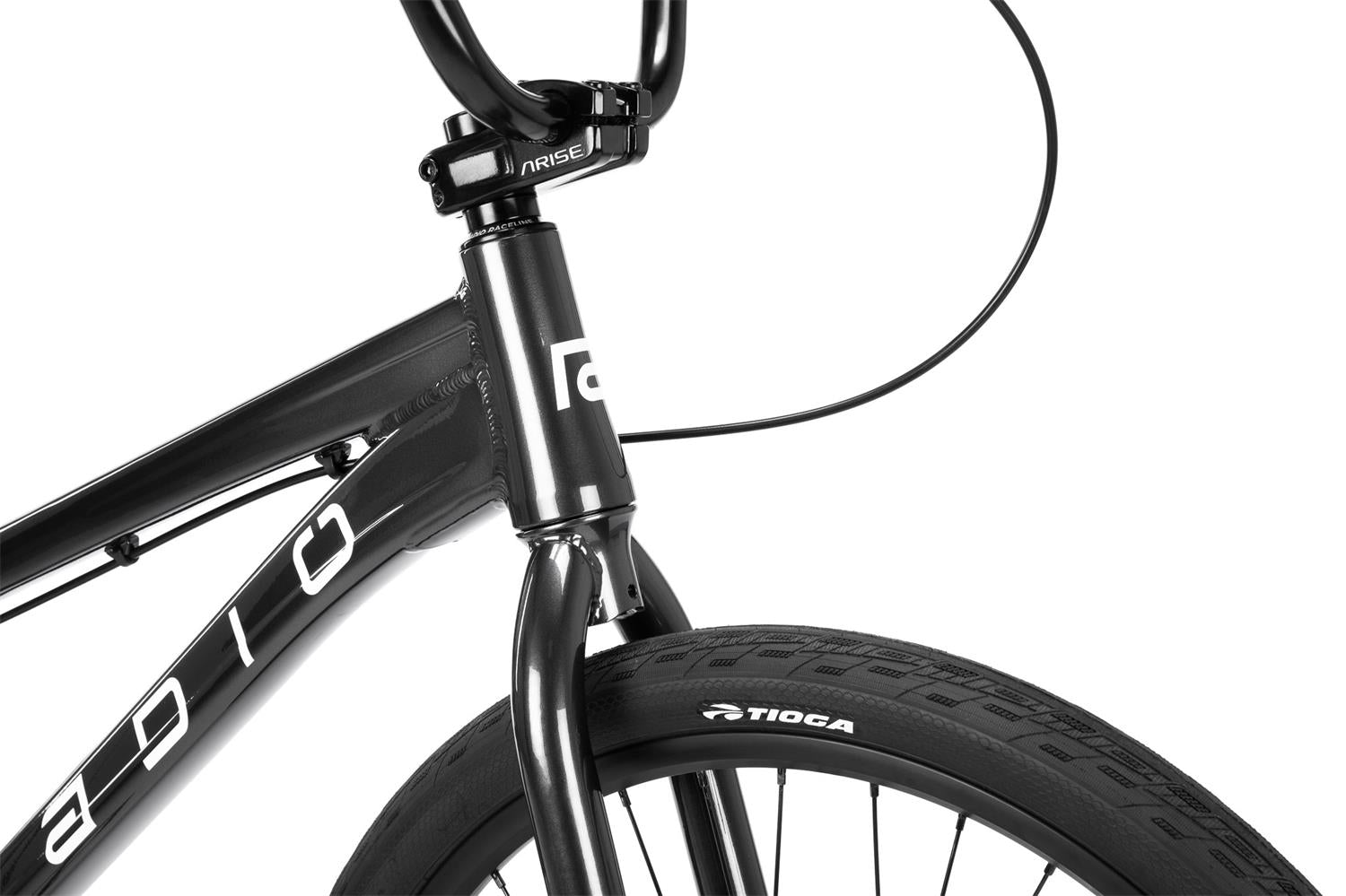

- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter

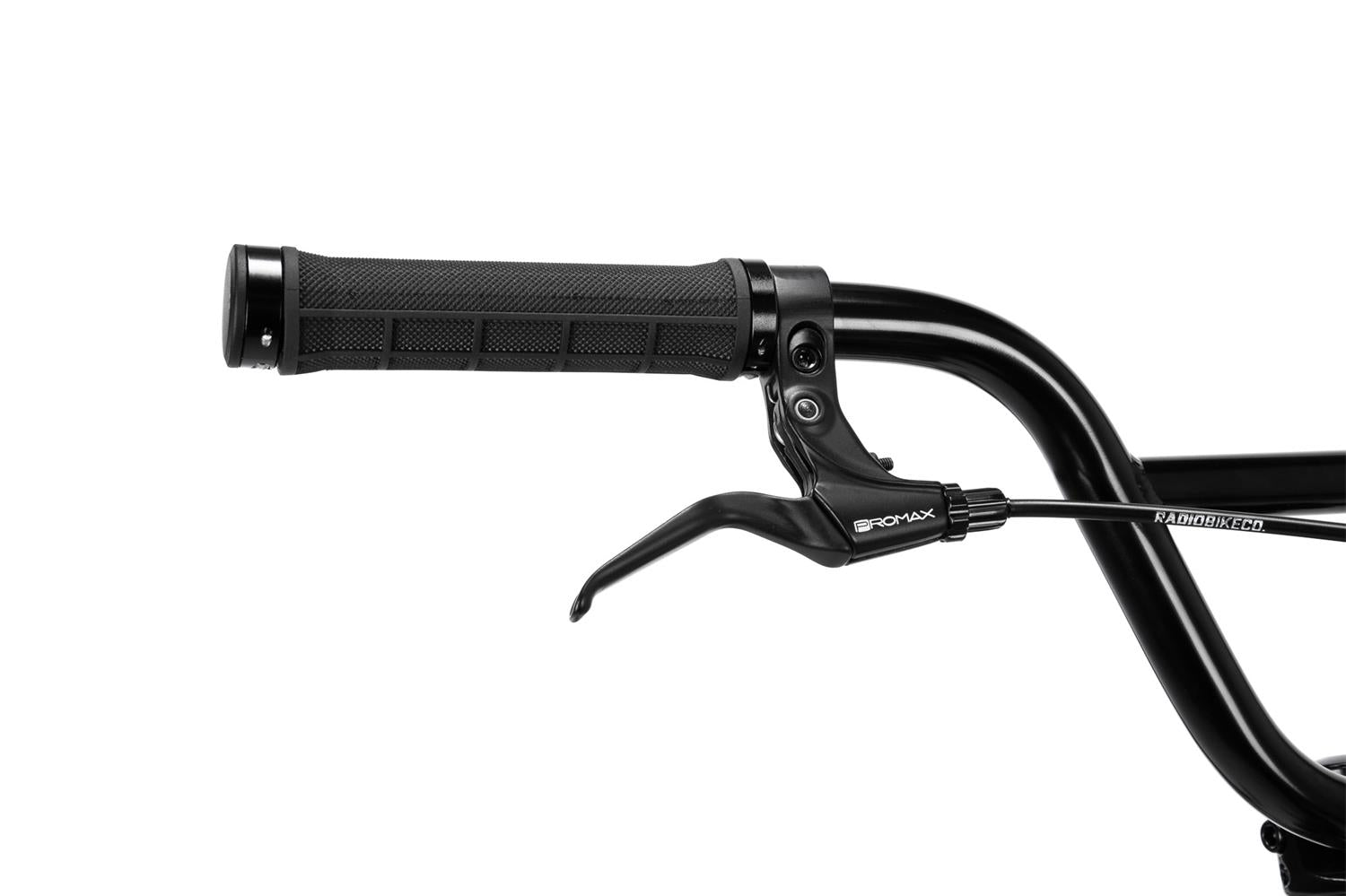

- BRAKE LEVER: PROMAX "XL-373" brake lever, rear
- BRAKE: PROMAX "TX-131" brake, rear

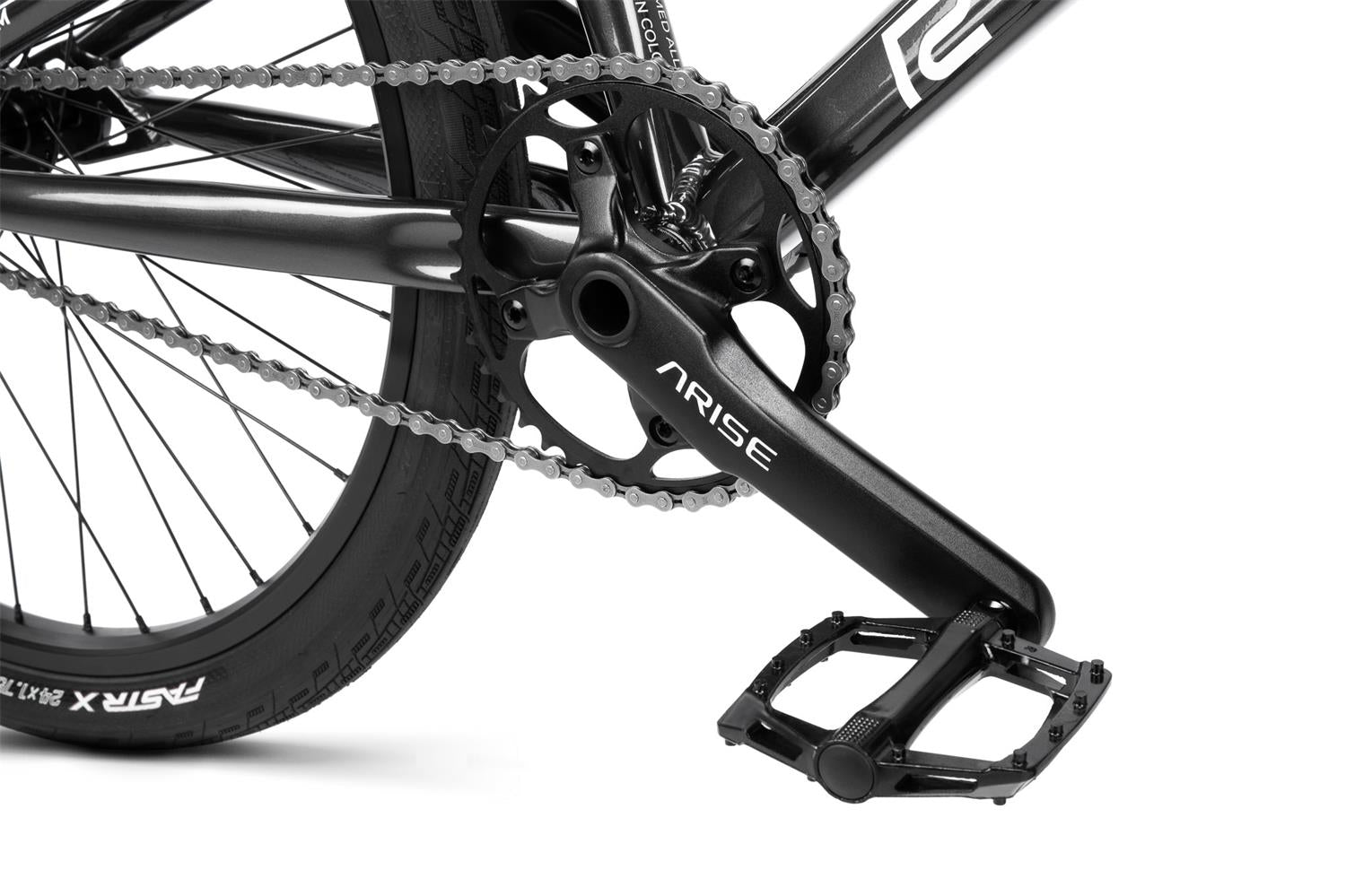

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
-
CHAIN: KMC "Z6" chain, 1/2" x 3/32"
-
SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 41T, alloy
-
DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
-

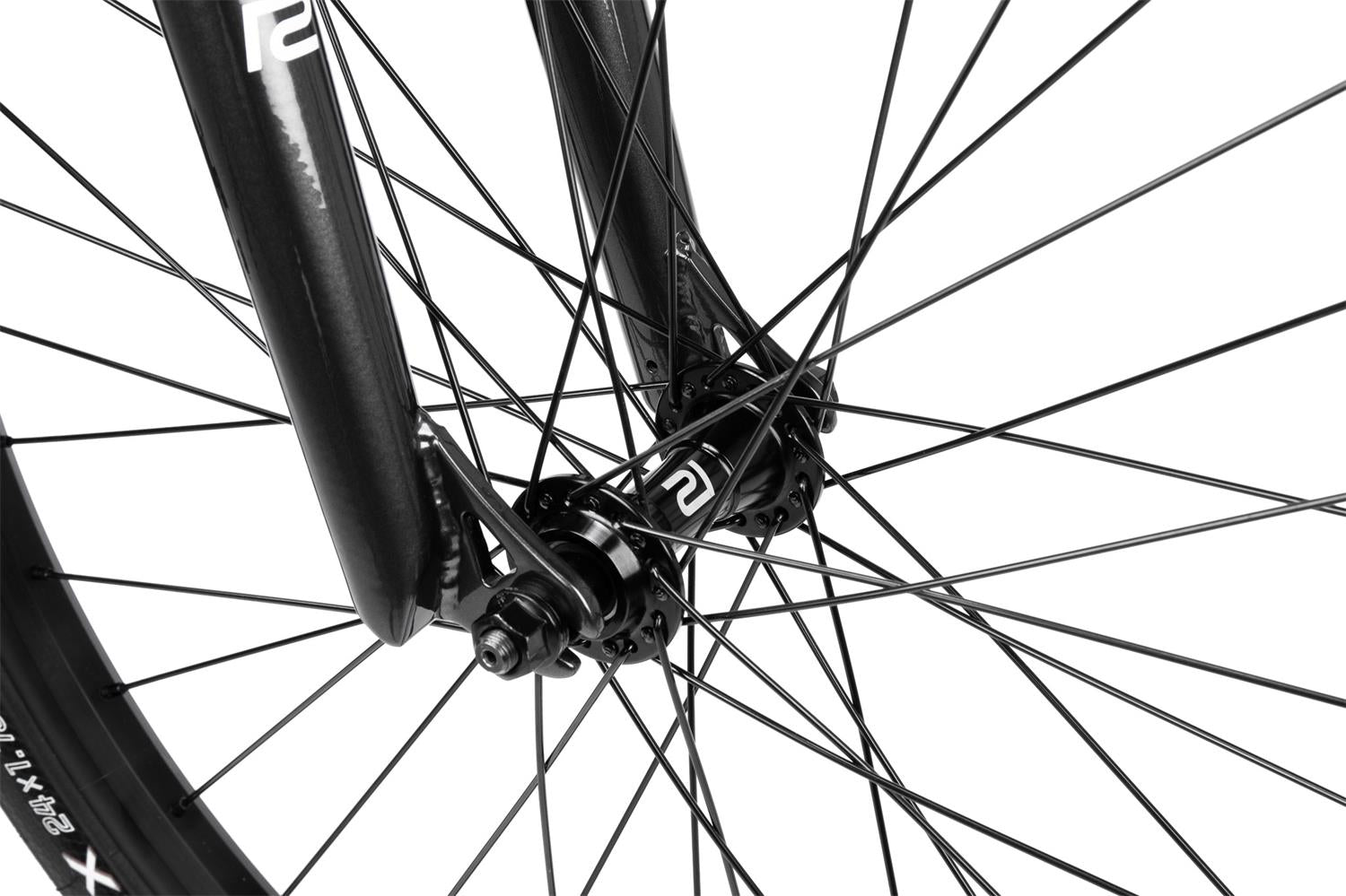

FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle
-

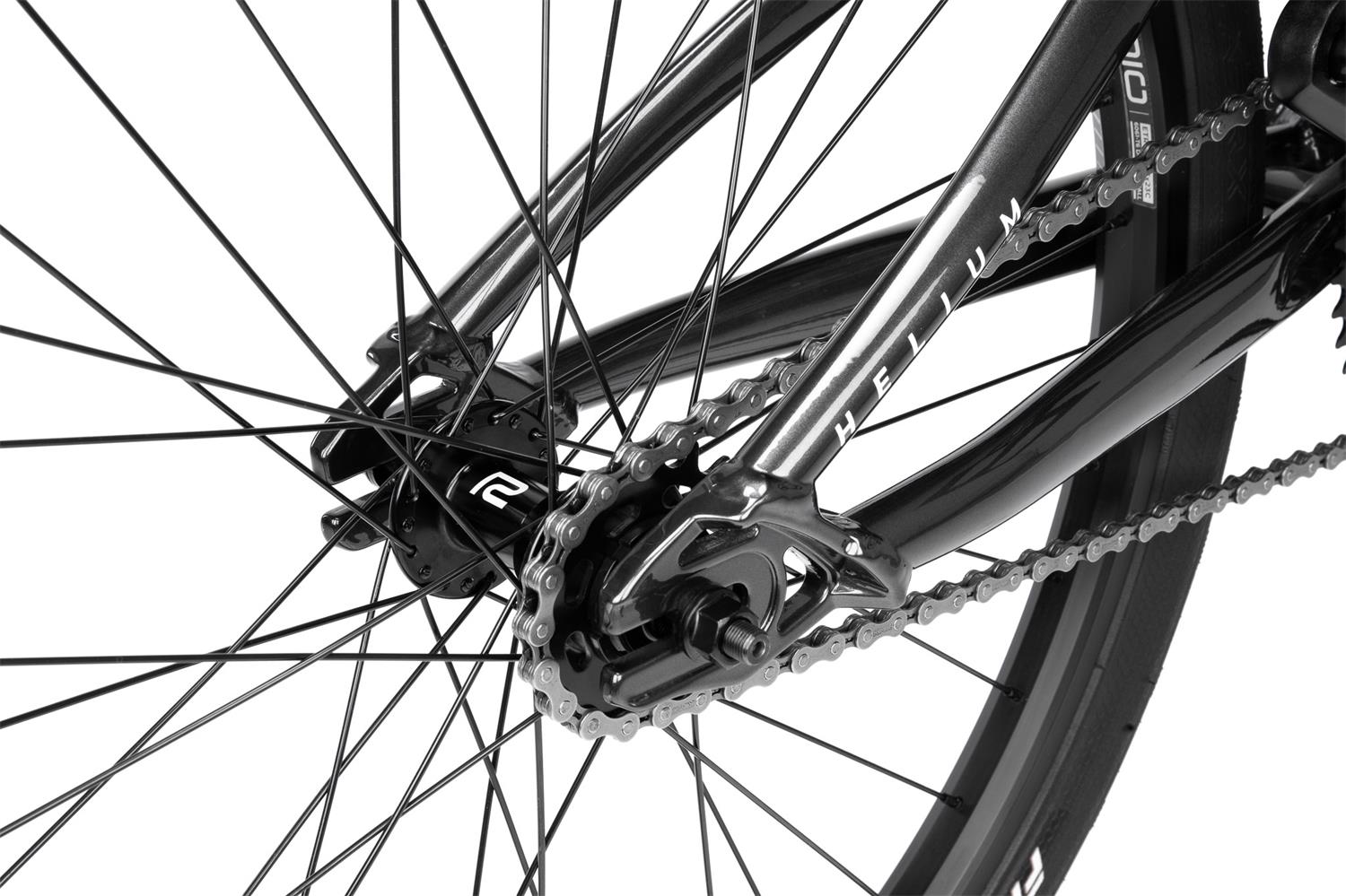

REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
-
FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
-
REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
-

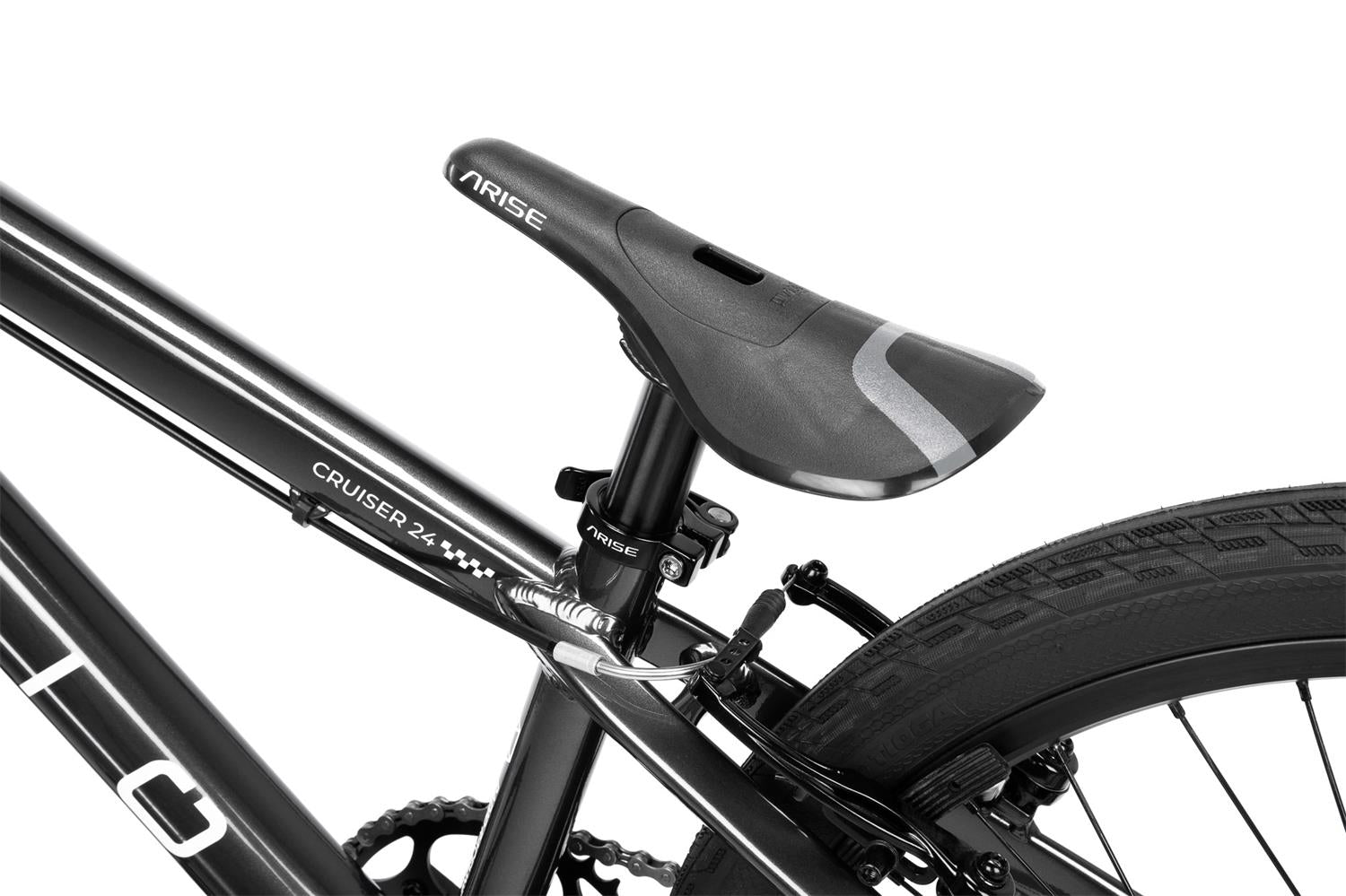

SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
-
SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
-
SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
-
TIRES: TIOFA FASTR tires, front: 24" x 1.75" and rear: 24" x 1.6"
Weight: 10.24kg / 22.79lbs
Frame Geometry:
| Top Tube Length |
22" |
| Chain Stay Length |
15.15" |
| Head Tube Angle |
74° |
| Seat Tube Angle |
71° |
| Bottom Bracket Height |
12" |
Handlebar Geometry:
| Rise |
6.1" |
| Width |
26.75" |
| Backsweep |
8° |
| Upsweep |
2° |
