The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time.

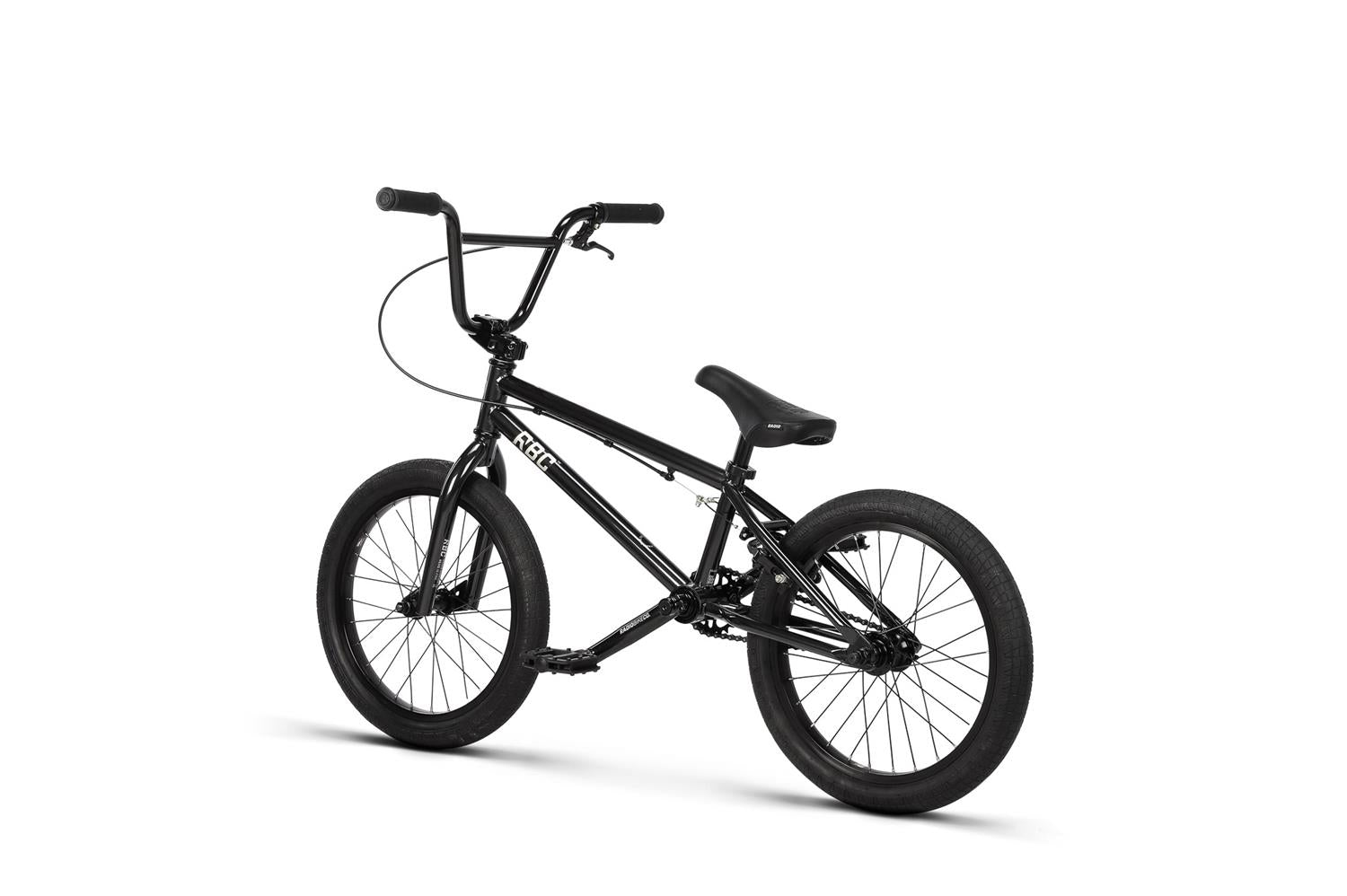

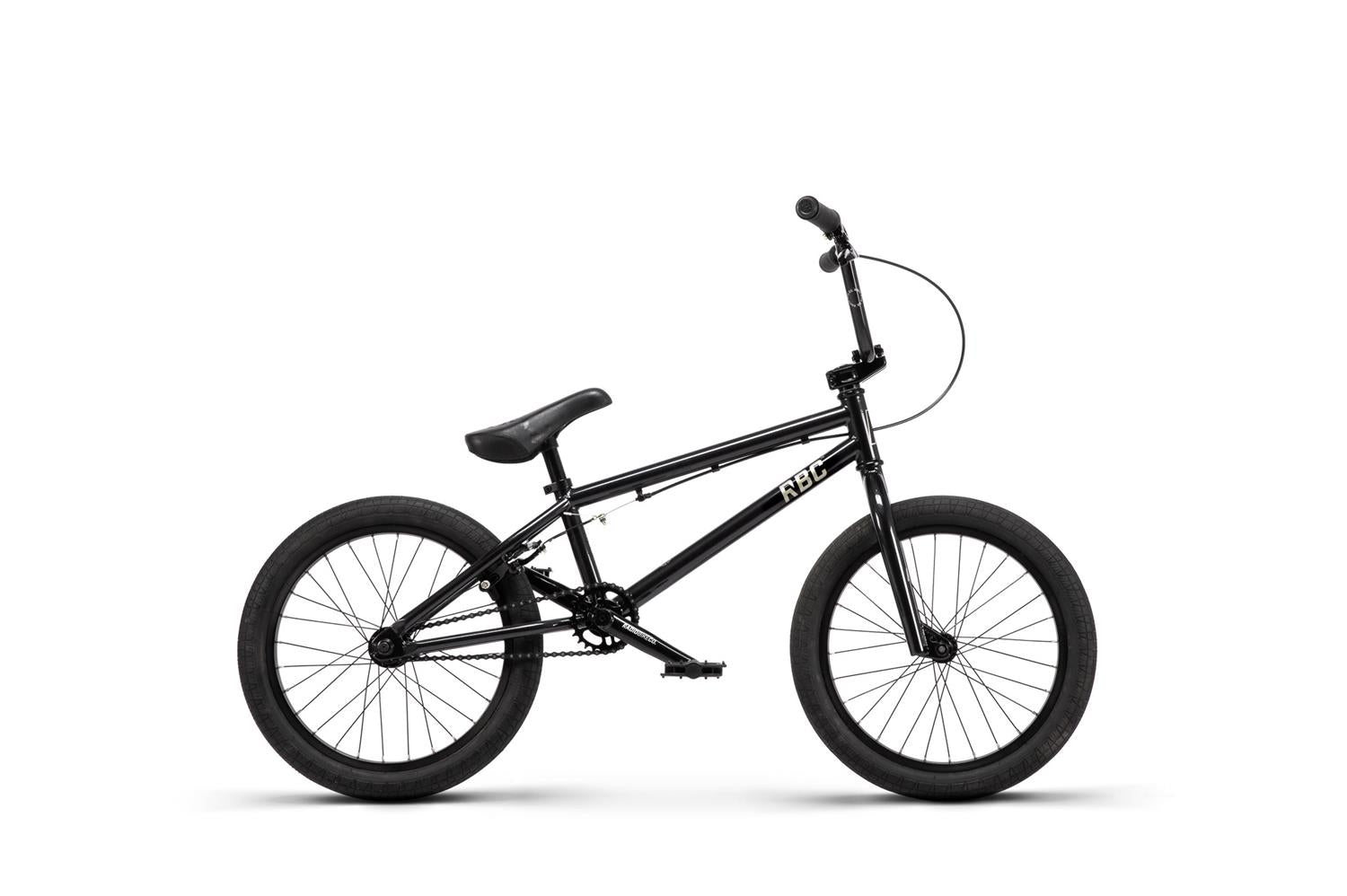

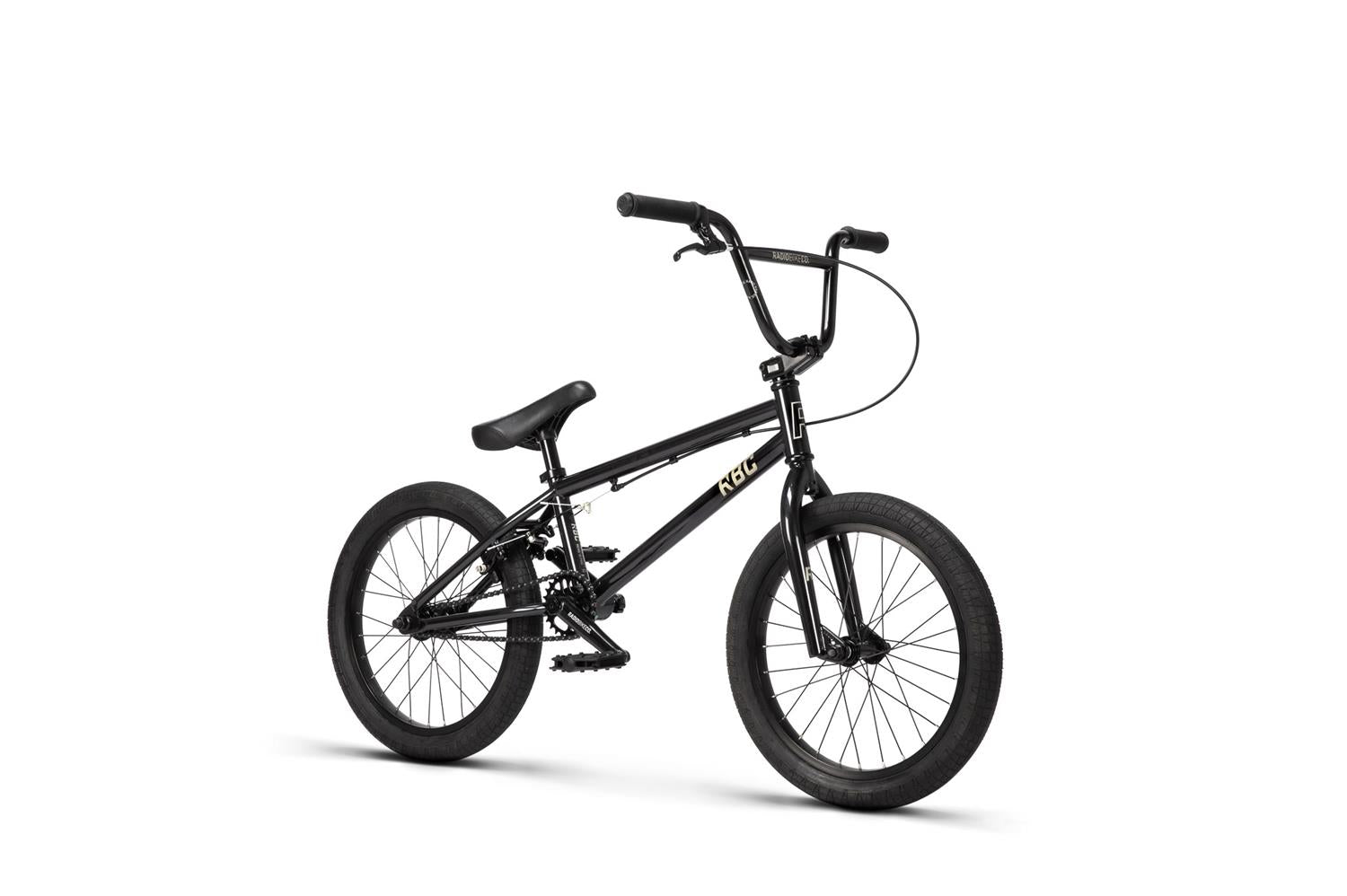

The Revo 18" PRO allows you to get your first taste of the BMX world on a solid and well-designed bike. Building on the Revo 18", the Revo PRO adds a 3pc crank upgrade making this machine even more dialled than ever before.
Full Spec:

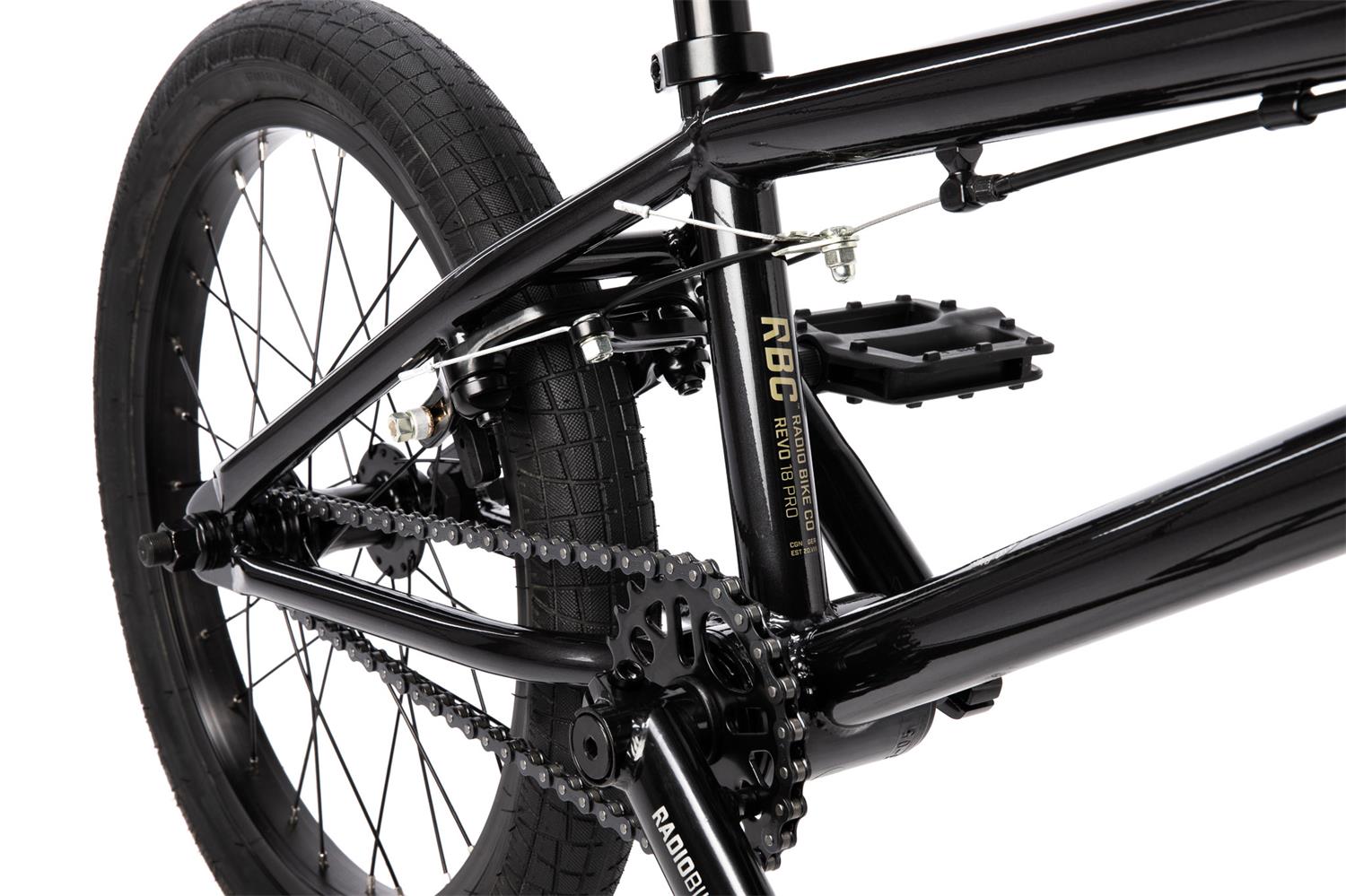

- FRAME: RADIO “REVO 18” frame, full 1020 hi-ten

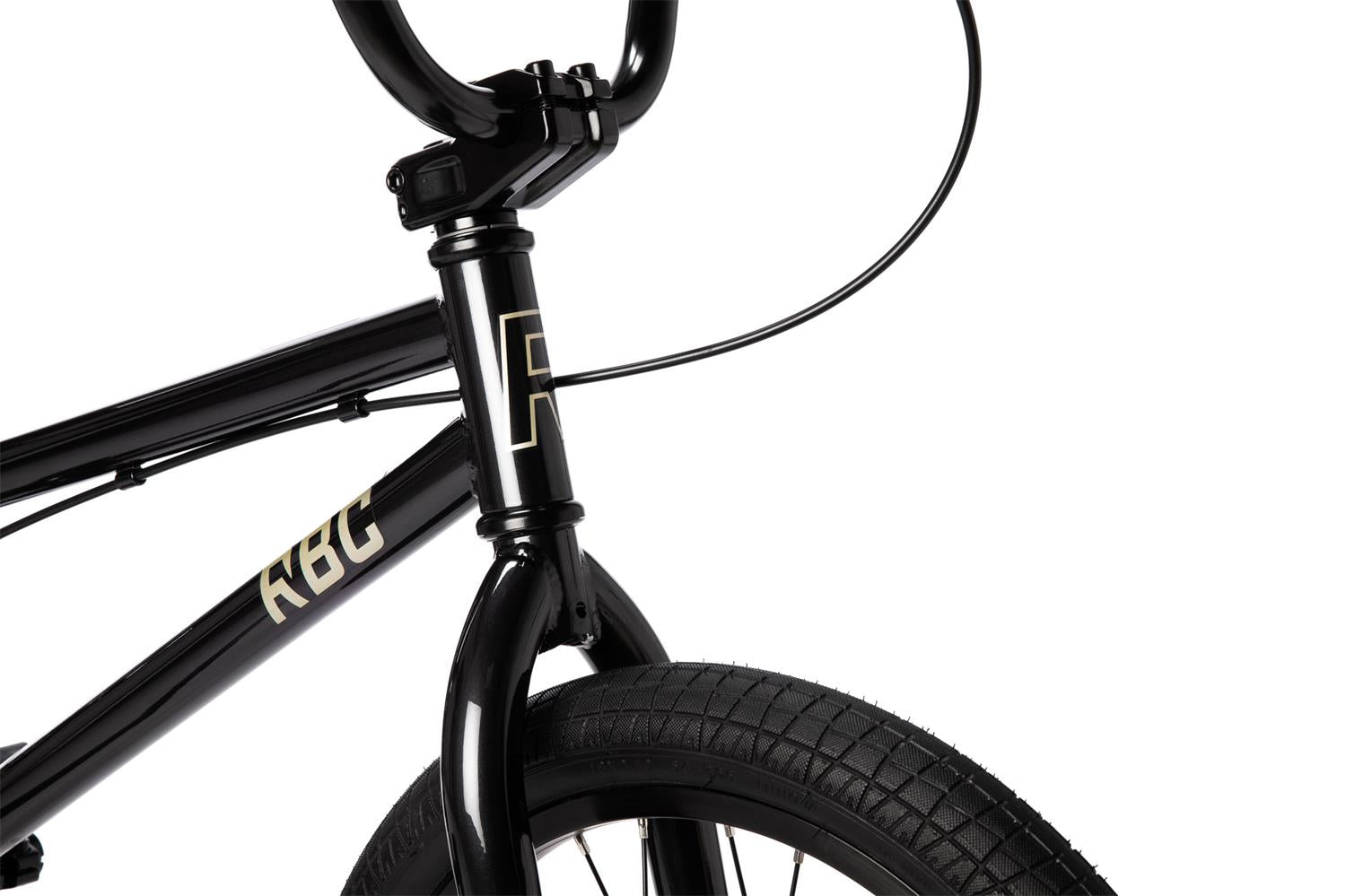

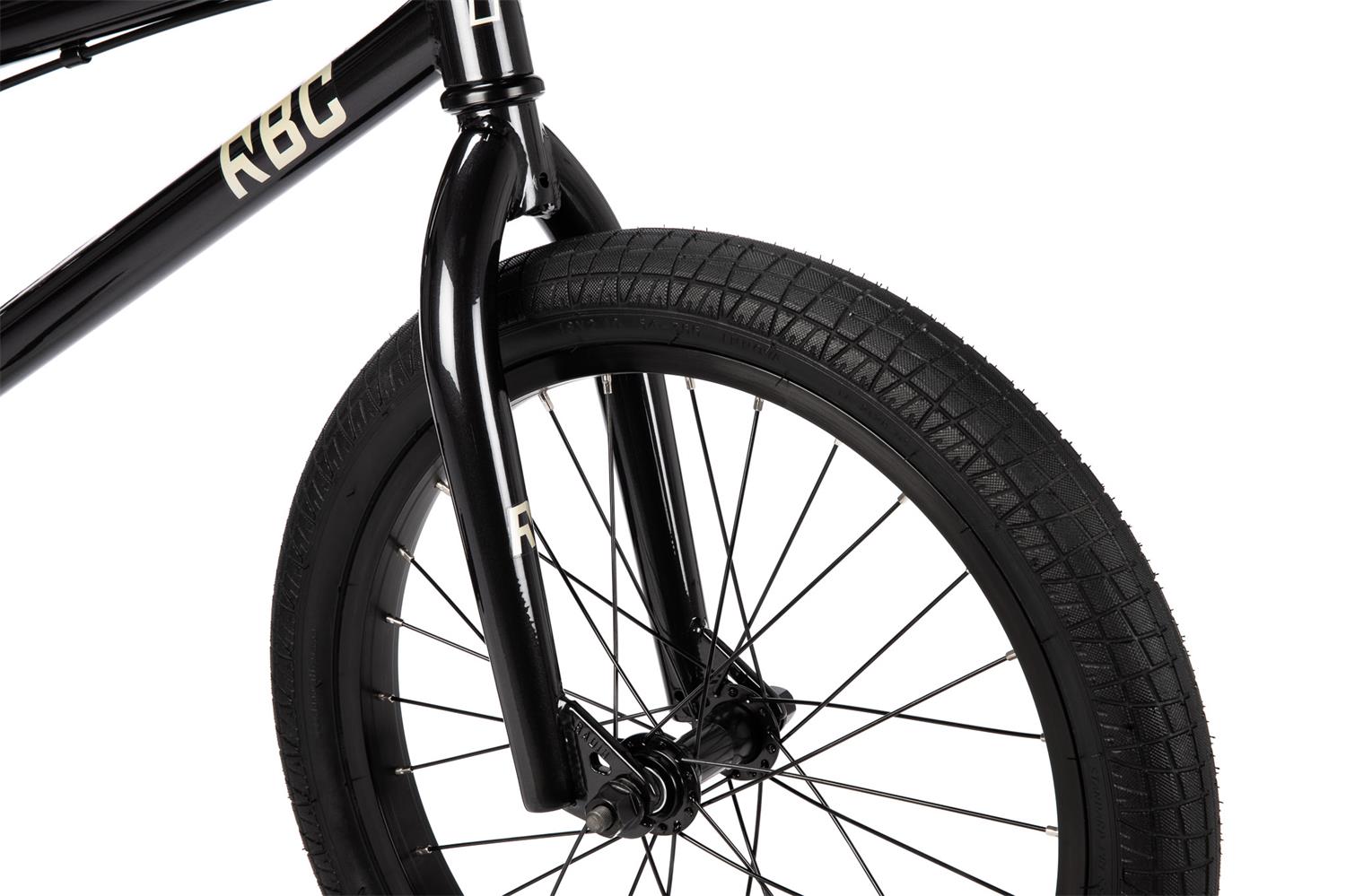

- FORK: RADIO “ROOKIE 18” fork, hi-ten

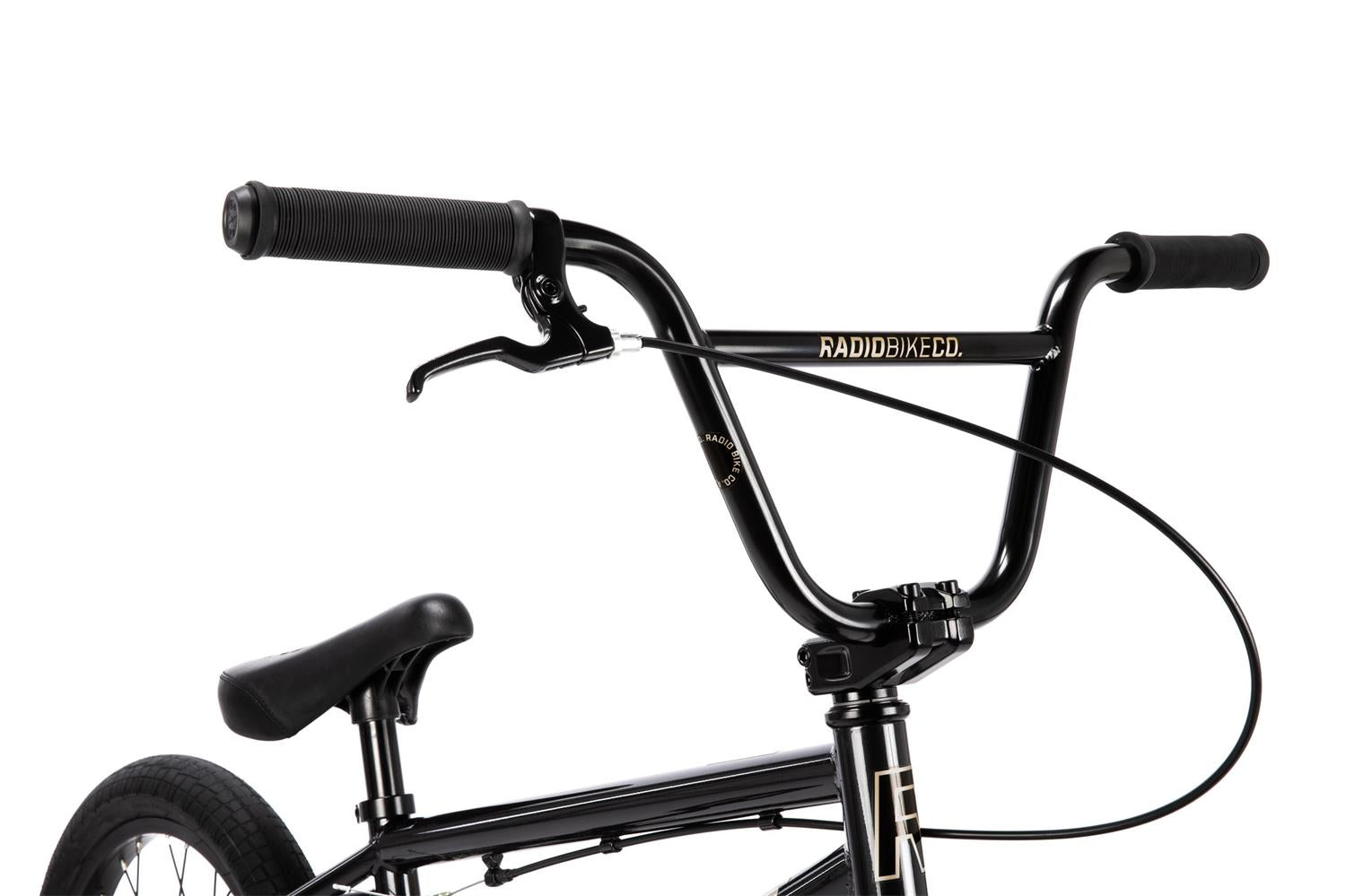

- HANDLEBAR: RADIO “REVO 18” bar, hi-ten
- GRIPS: RADIO “JUNIOR” grips, flangeless, 130mm

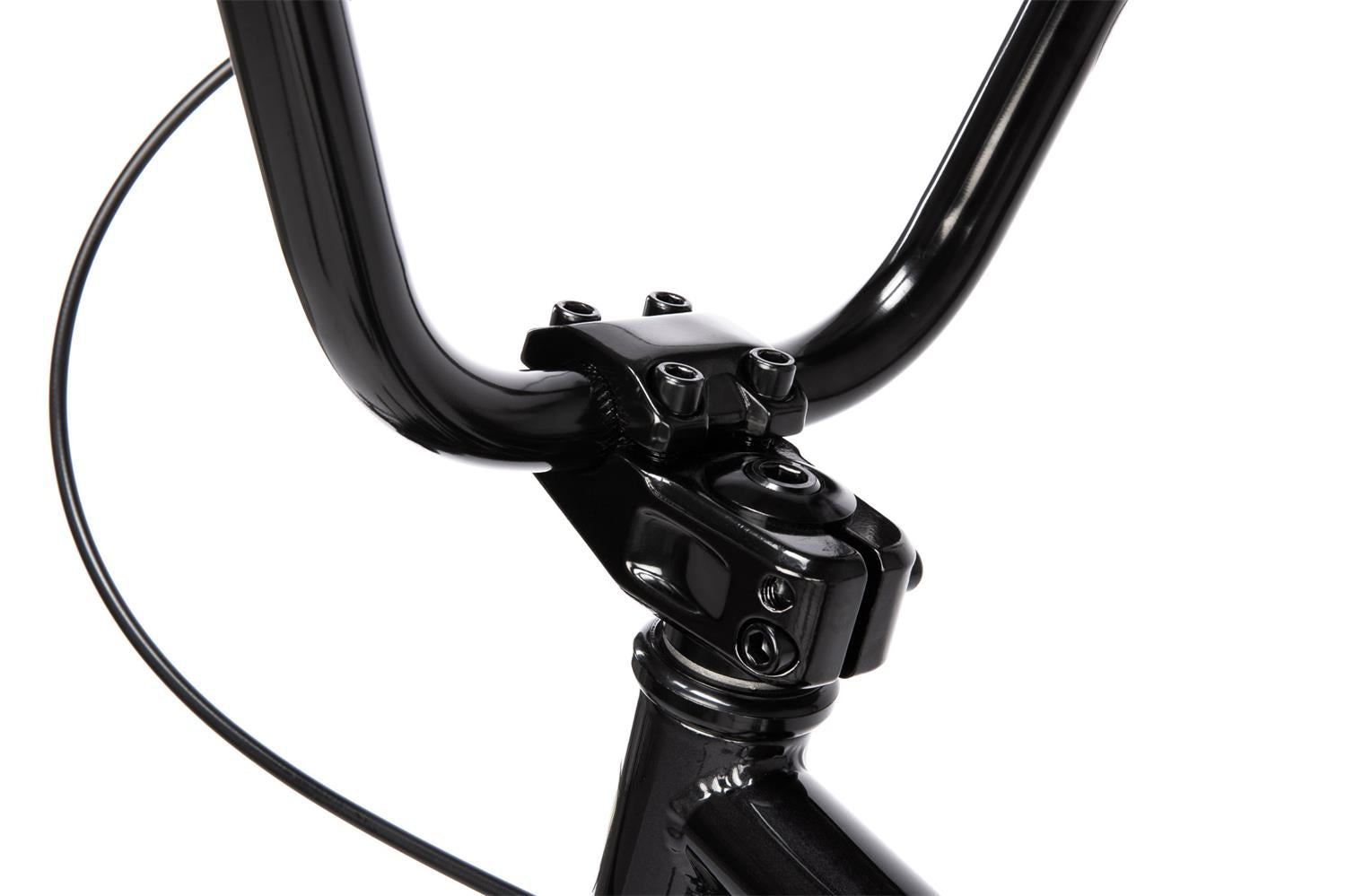

- STEM: SALT “JUNIOR” topload stem, 40mm reach
- HEADSET: FSA A-headset, loose ball

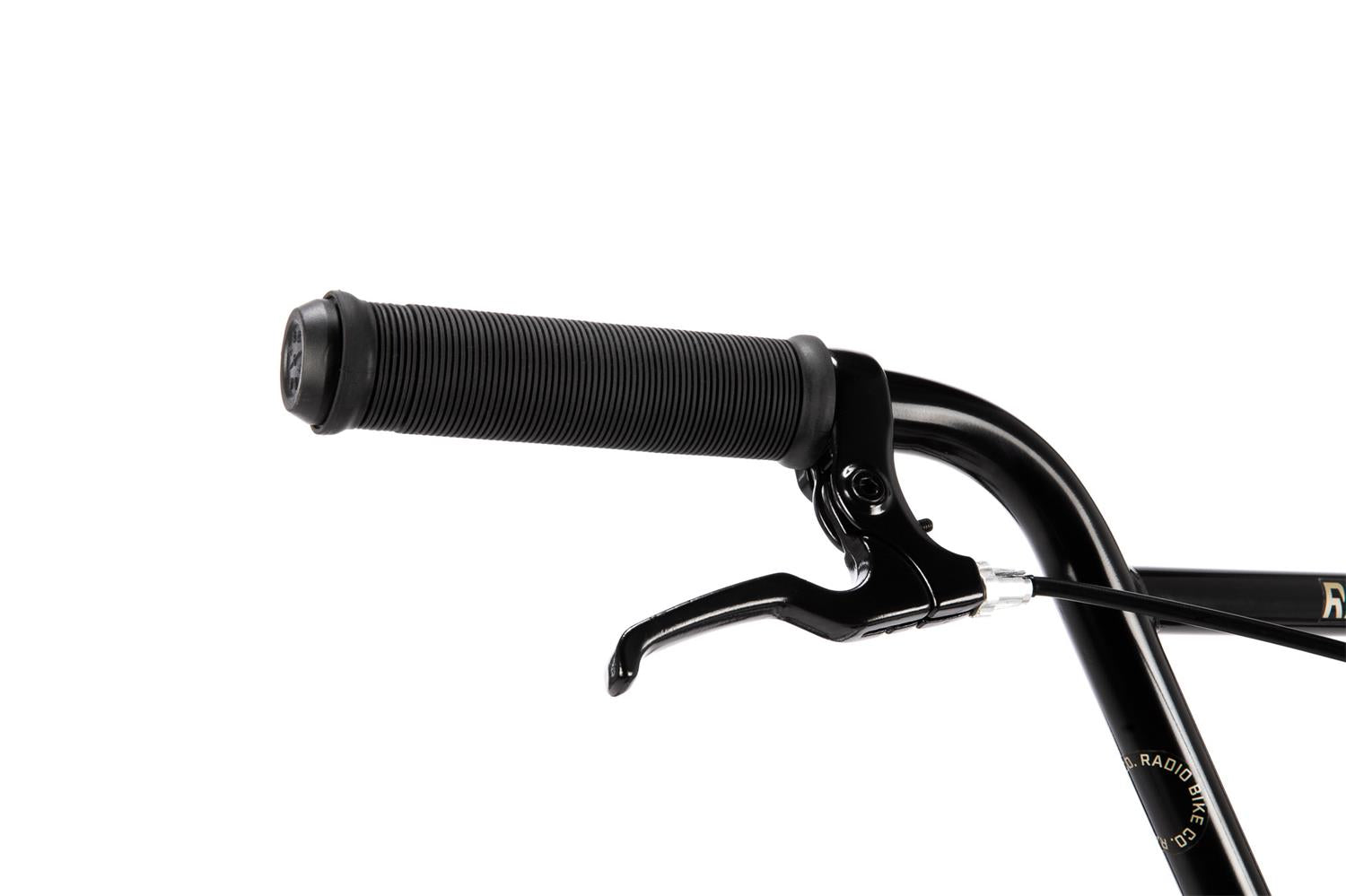

- BRAKE LEVER: RADIO “AM” brake lever, alloy
- BRAKE: RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear

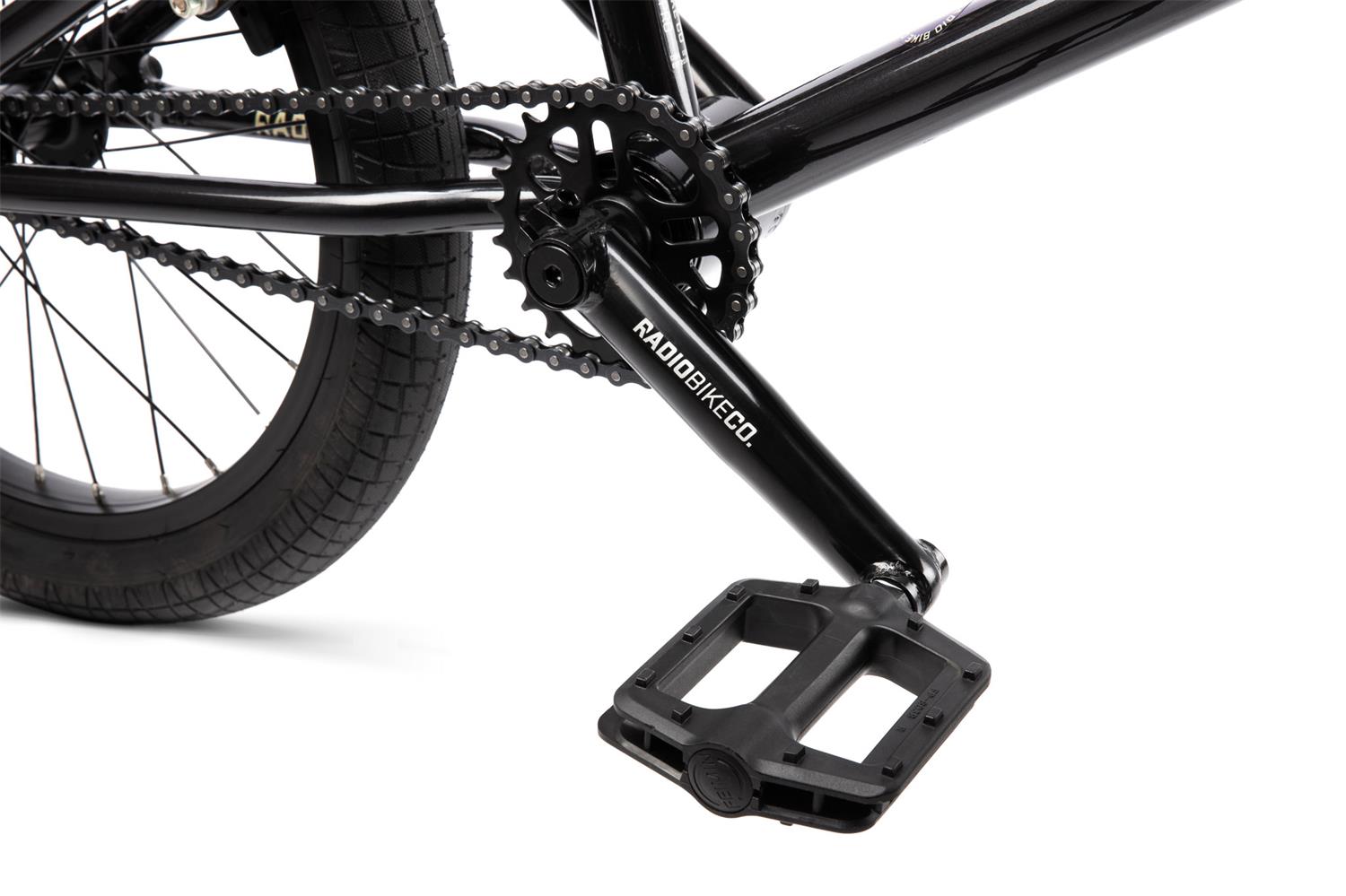

- CRANK: RADIO "ROOKIE" 1pc crank, forged, crmo, 152mm
- BB: RADIO "US" bb set, loose ball
- PEDALS: RADIO “ROOKIE” pedals, nylon
- CHAIN: KMC “S1” chain

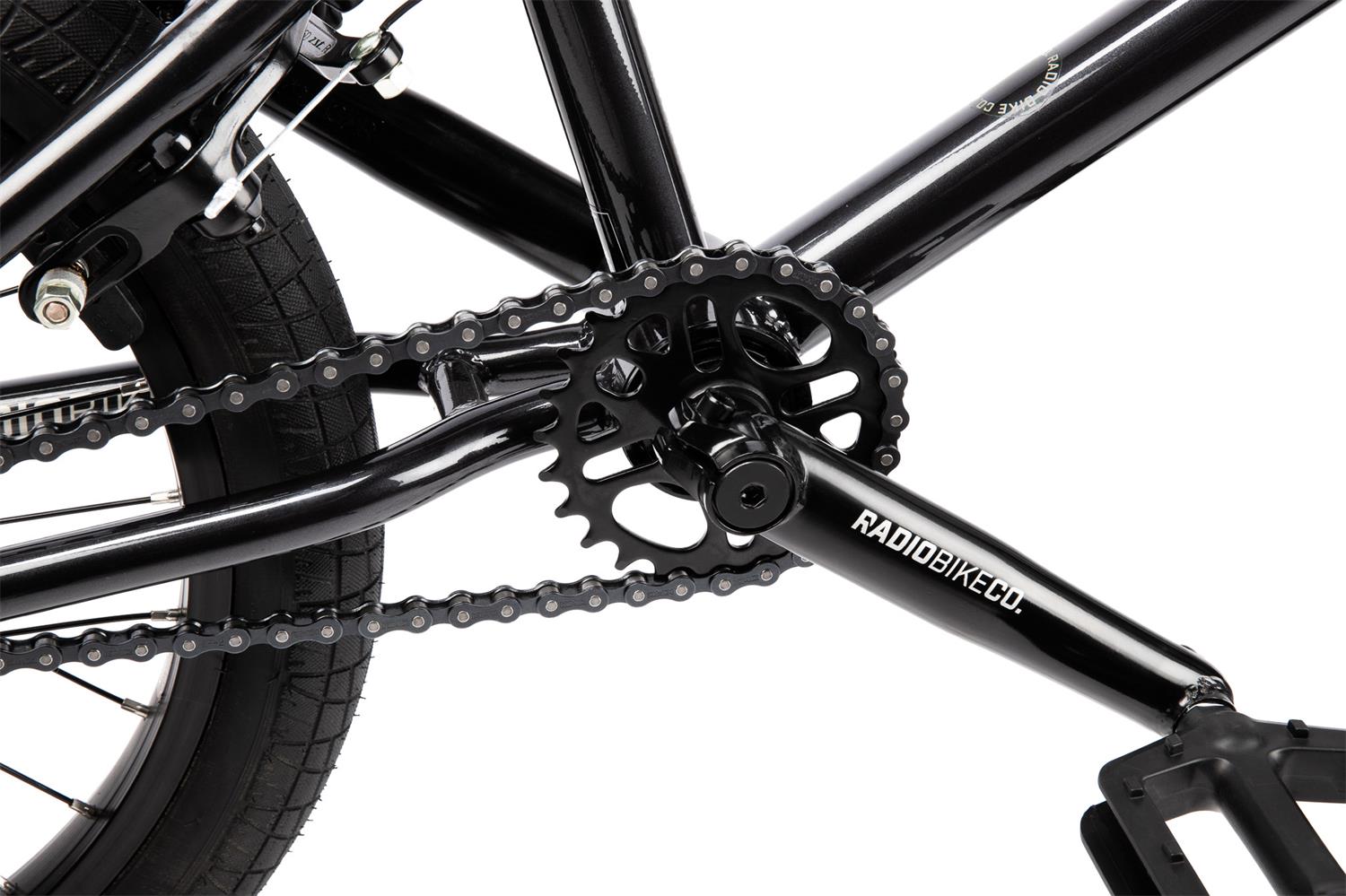

- SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
- DRIVER: cassette driver, 9t

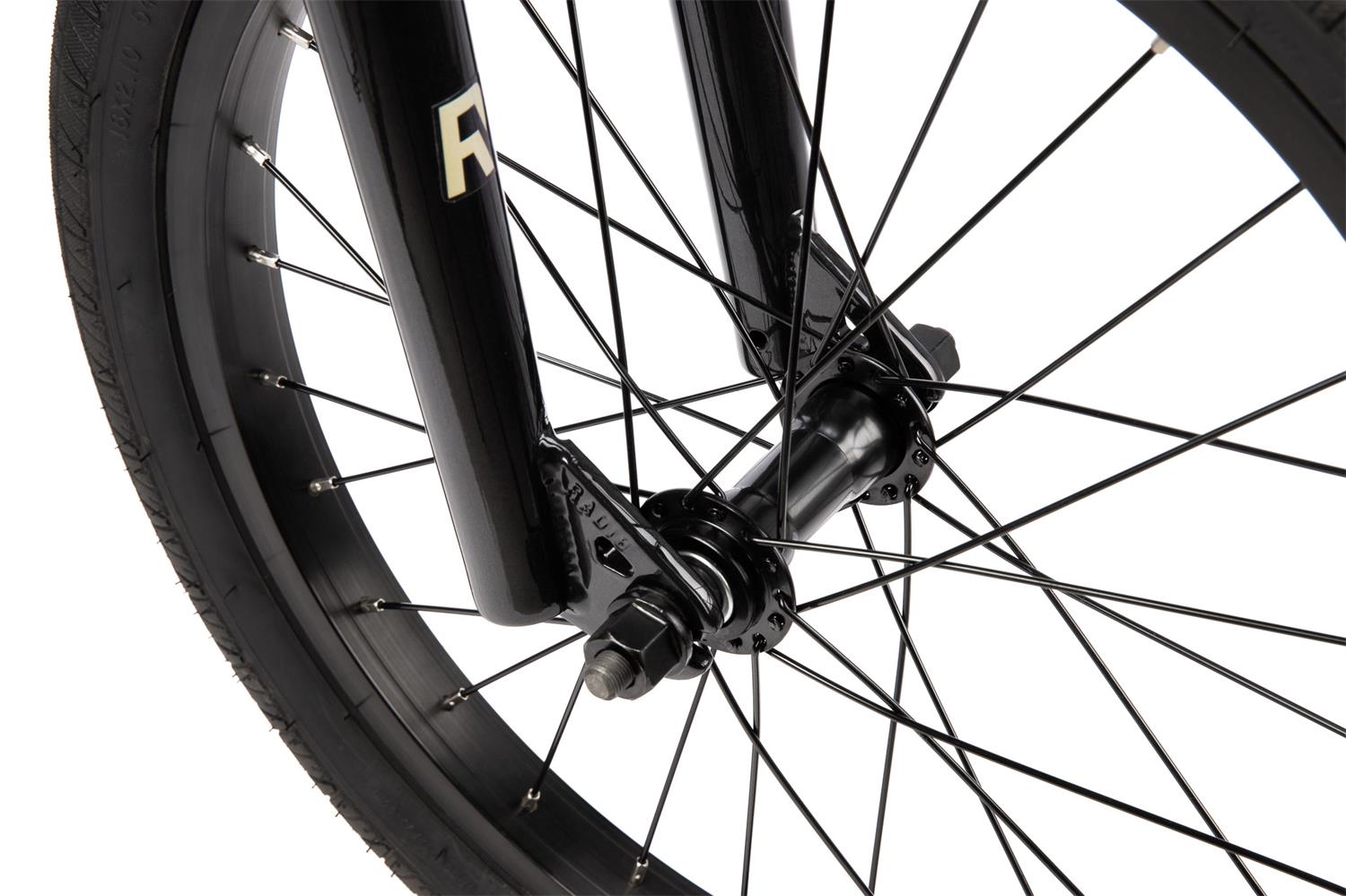

- FRONT HUB: RADIO "ROOKIE" hub, steel, lb, 3/8"s, 28h

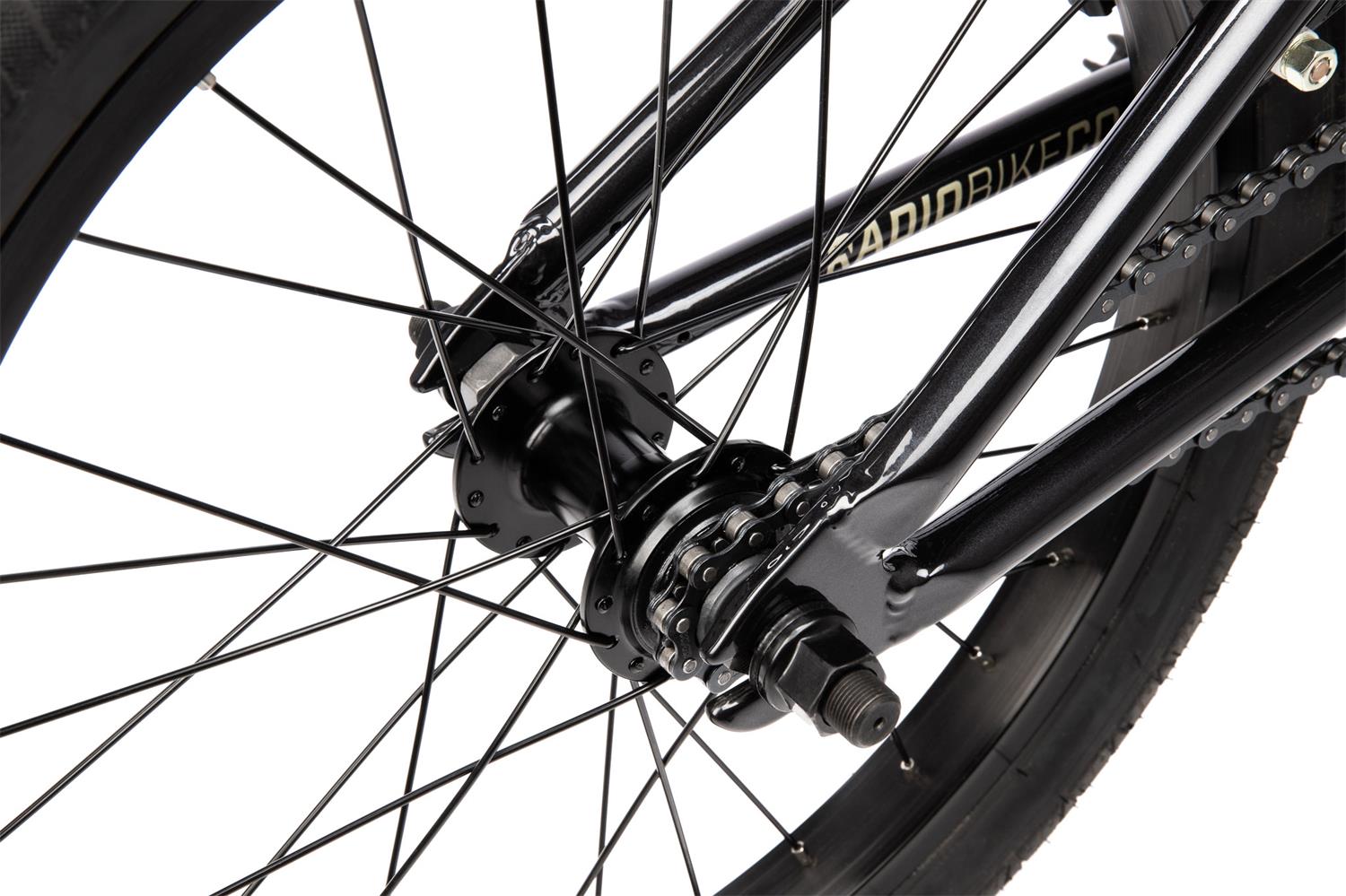

- REAR HUB: RADIO "ROOKIE" cassette hub, steel, lb, 9t, 14mm axle, 28h
- FRONT RIM: SALT “AM” rim, straight single wall, 28h
- REAR RIM: SALT “AM” rim, straight single wall, 28h

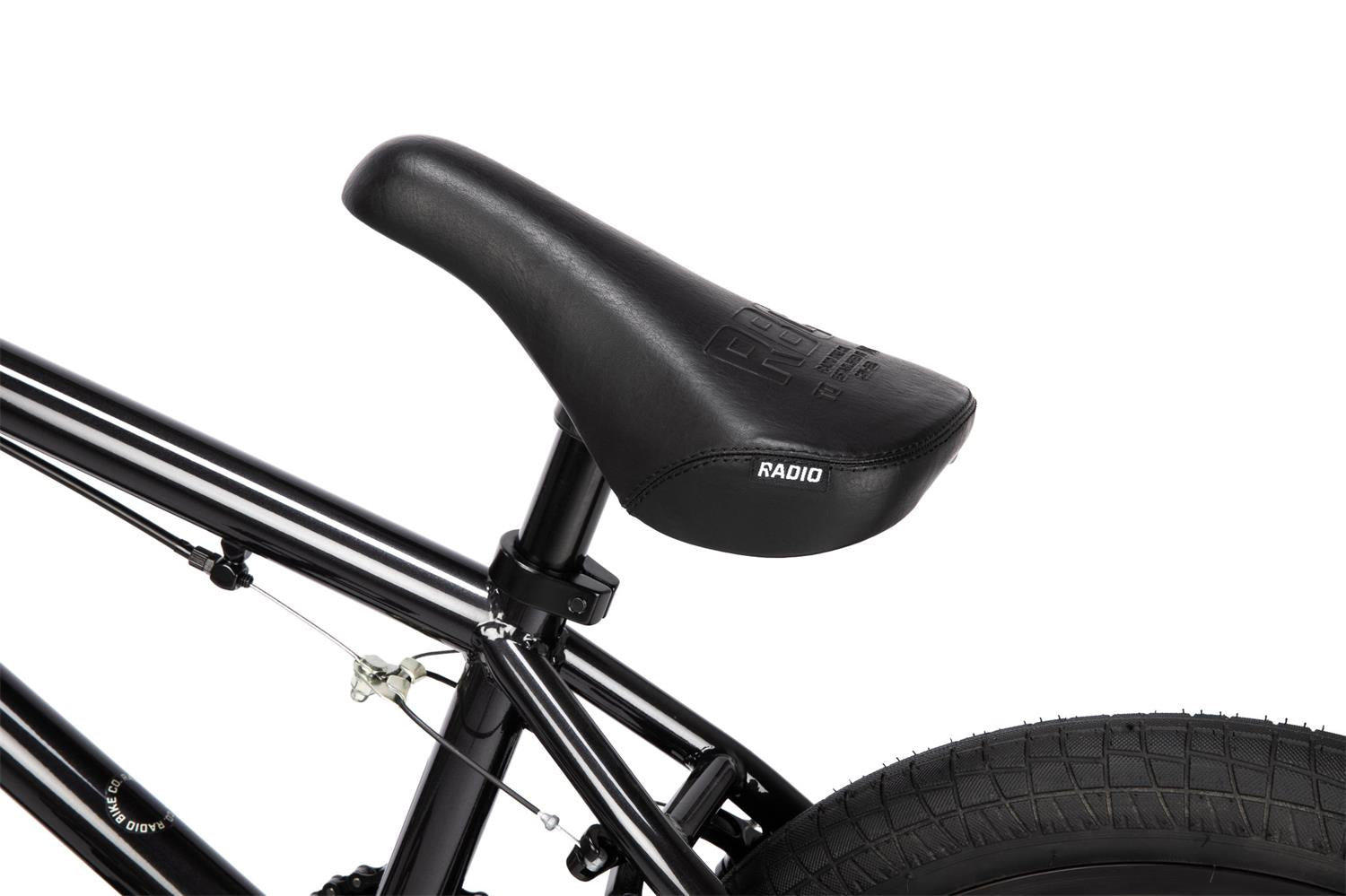

- SEAT: RADIO "CENTURY" combo seat, slim padded
- SEAT CLAMP: RADIO seat clamp, slim, alloy
- TIRES: RADIO “ROOKIE” tires, 18″x2.1″, front & rear
Weight: 11.03kg / 24.32lbs
Frame Geometry:
| Top Tube Length |
18" |
| Chain Stay Length |
12.7" |
| Head Tube Angle |
75° |
| Seat Tube Angle |
71.5° |
| Bottom Bracket Height |
10.75" |
| Standover Height |
7.3" |
Handlebar Geometry:
| Rise |
7.9" |
| Width |
26.5" |
| Backsweep |
10° |
| Upsweep |
3° |
