ROCKSHOX VIVID COIL ULTIMATE DH
There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2 damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s downhill bikes, Vivid Coil Ultimate DH carries the unmistakable heritage of coil into a new era of performance.
SPECIFICATIONS
| Eye to eye / Stroke |
225x70(TR), 225x72.5(TR), 225x75(TR), 250x70, 250x72.5, 250x75 |
| Damper Type |
RC2 Adj. Hydraulic Bottom Out |
| Rebound tune |
R55 |
| Compression tune |
C34, C37 |
| Lockout force |
N/A-V5 |
| Shaft Eyelet |
No Bushing, Standard |
| Body Eyelet |
Standard, Trunnion |
| E-Bike Approved |
E-bike Approved |
| Bottom Out |
Externally Adjustable Bottom Out |
| High Speed Tune |
n/a |
Note: Spring not included
|
|
FEATURES
- NEW RCT2 damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
- NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
- NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
- NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

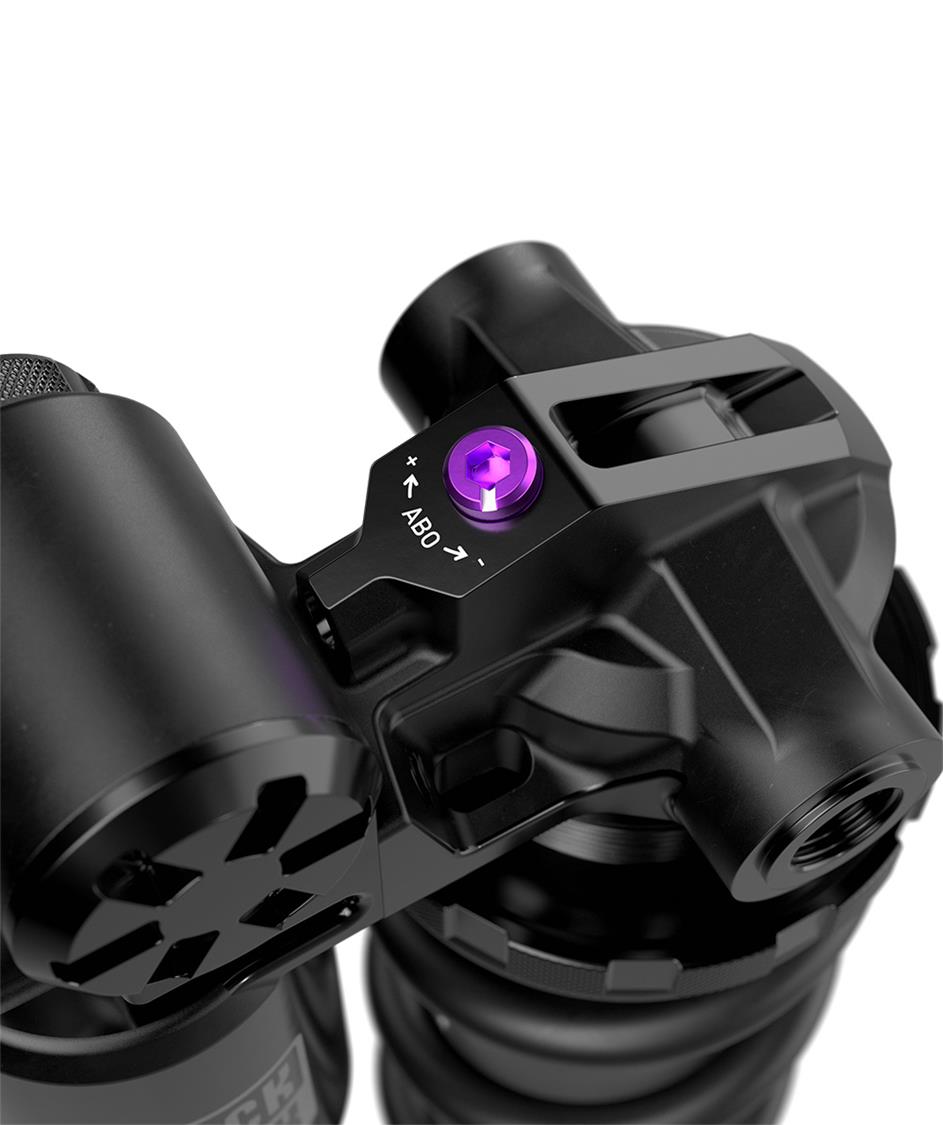

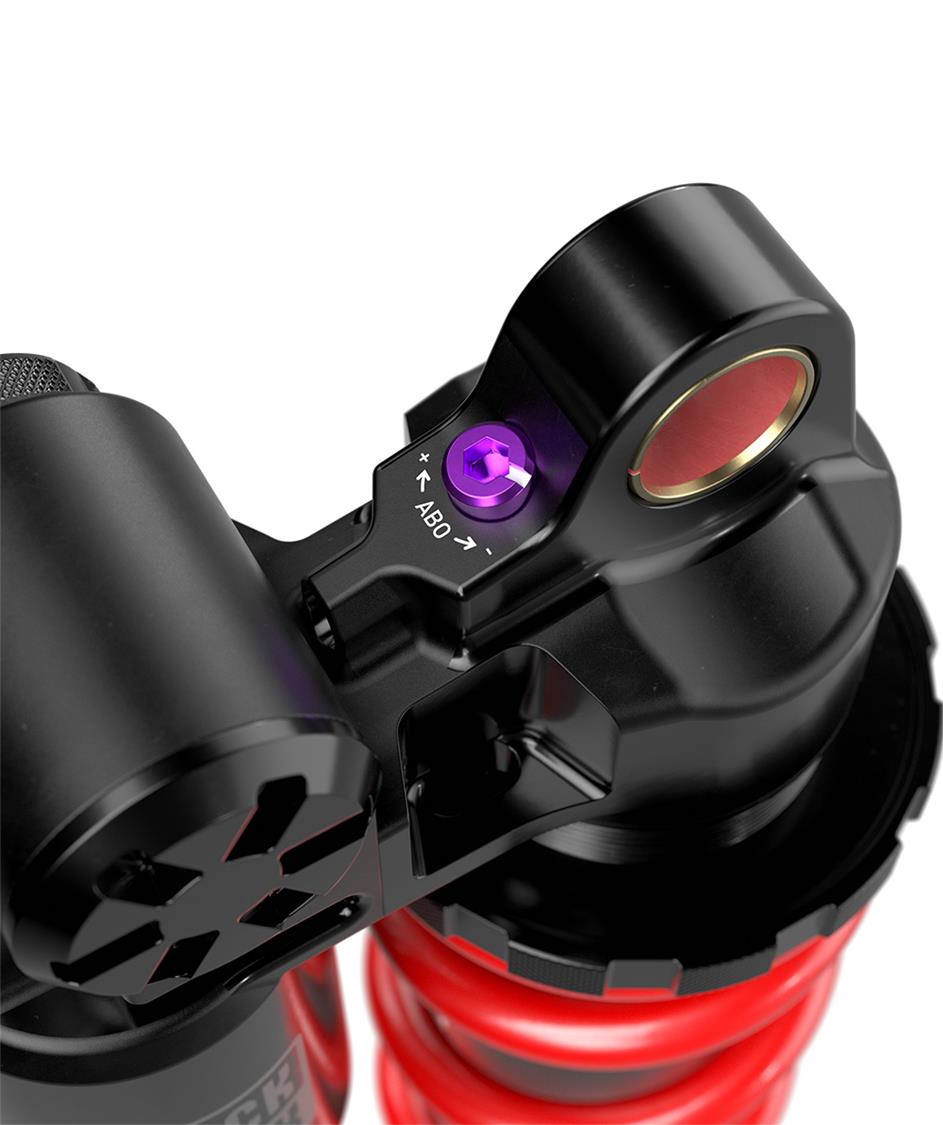

- Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
- Removable Rebound knob doubles as HSC and ABO adjuster
- 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
- 8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
|
