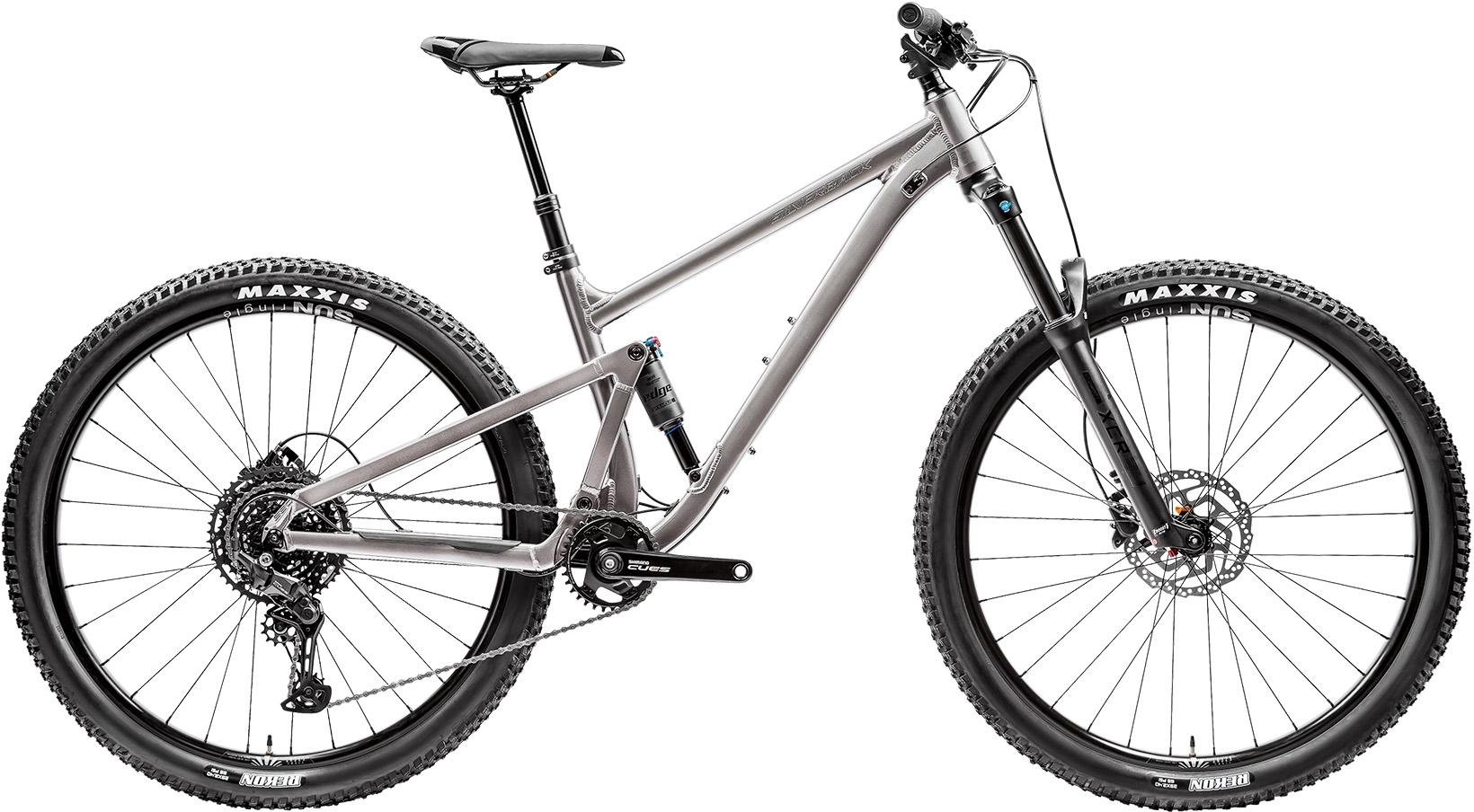

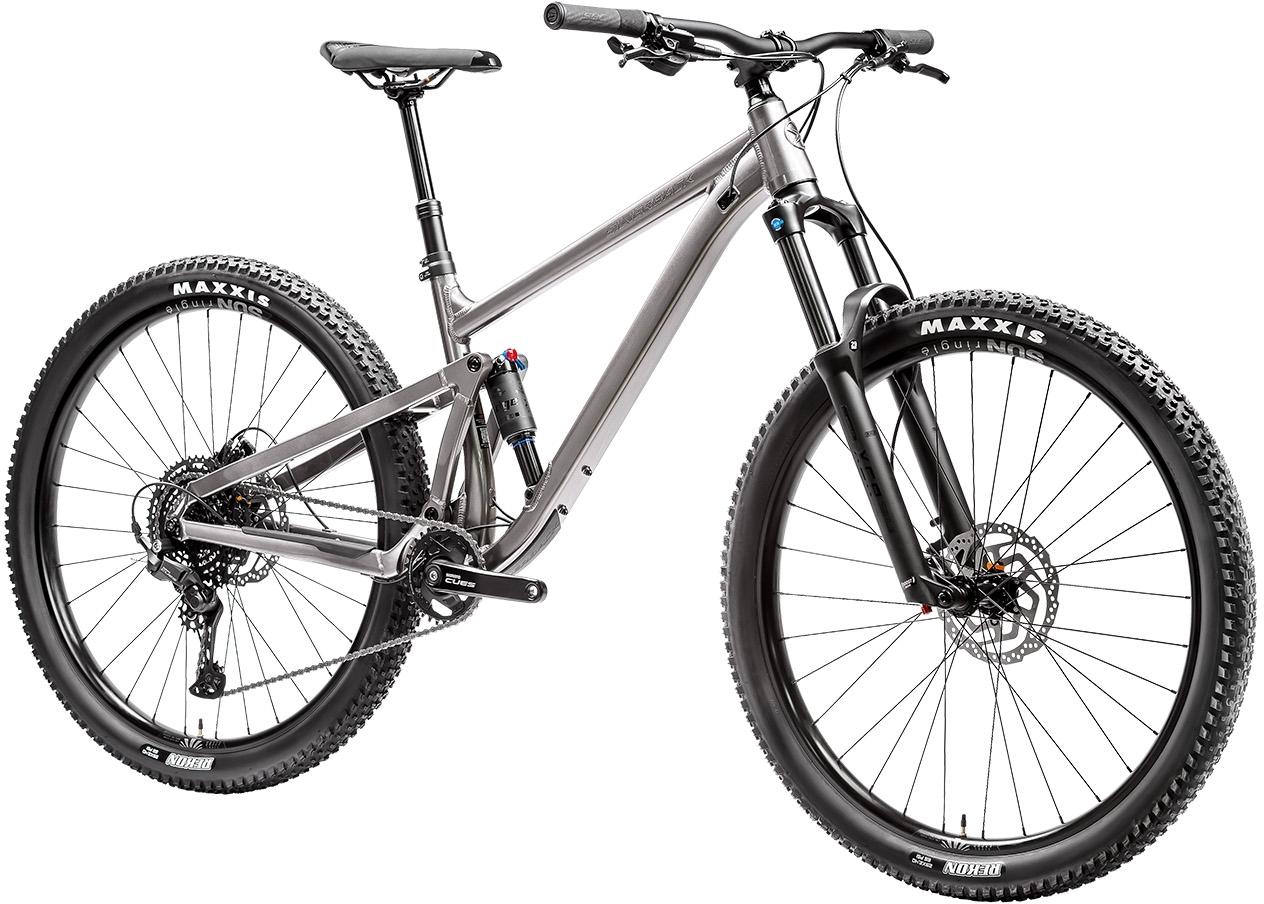

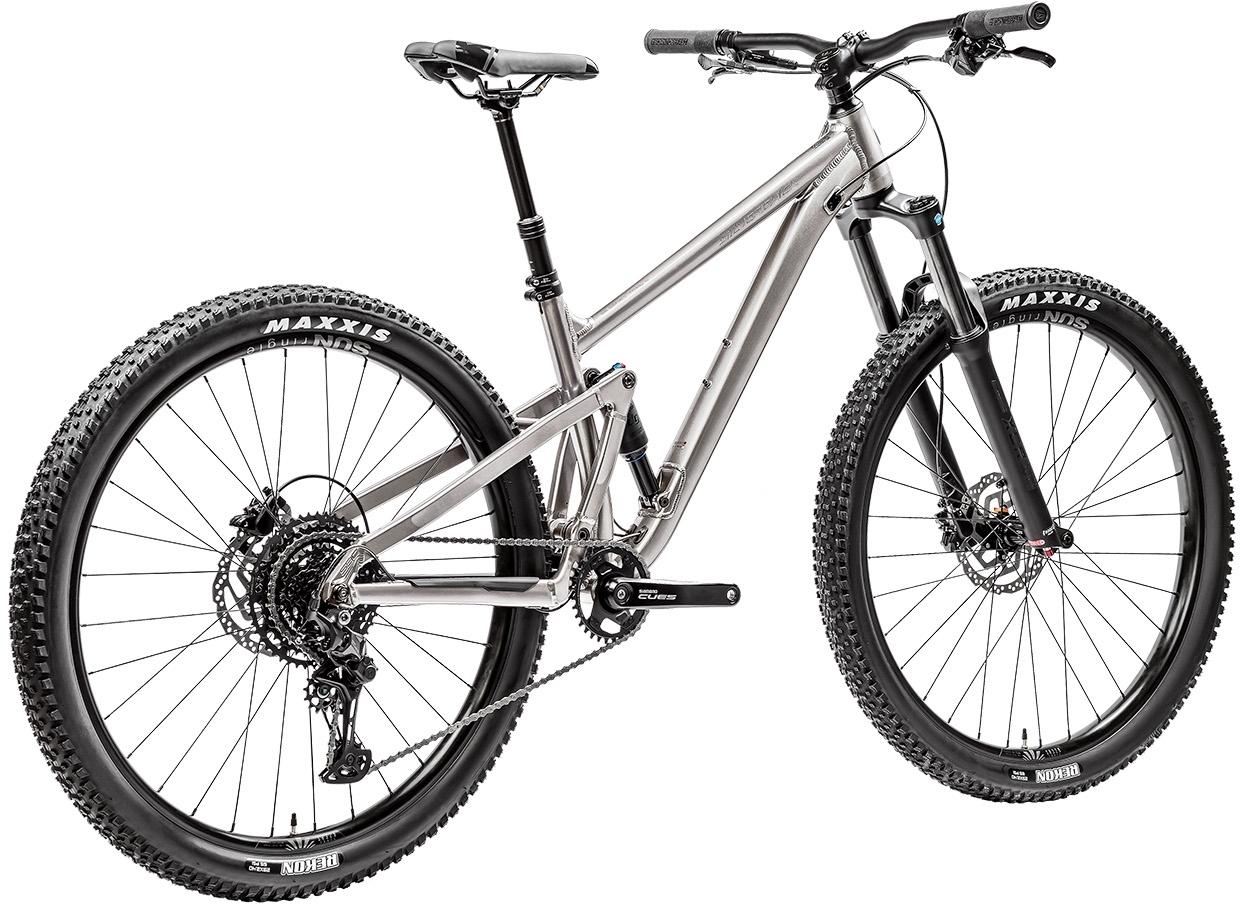

Frame: Alloy Trail Dual suspension Frame. True single pivot design, 140mm Rear Travel with 185x52.5mm Trunnion Shock. 30x8mm hardware. BSA Bottom Bracket. Boost 148
Fork: SR Suntour XCR34 AIR 140mm
Shifters: R: Shimano SL-U6000-10R CUES 10-Speed Right Shift Lever, Rapidfire Plus w/o Optical Gear
Derailleur Rear: Shimano RD-U6000 CUES, 10/11 Speed
Crankset: Shimano FC-U4000-1 CUES, 32T, 170mm, Max Chainring Size 32T
Bottom Bracket: BSA73
Cassette: SHIMANO CS-LG300-10 CUES 10-SPEED, 11-48T
Chain: Shimano CN-LG500 LG, 9/10/11 Speed
Brakes: Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Brake Rotor Front: Shimano SM-RT10 Rotor, 180mm, Centre Lock
Brake Rotor Rear: Shimano SM-RT10 Rotor, 180mm, Centre Lock
Hubs: F: F: Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm | R: R: Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm
Rims: SUNringlé 329, Sleeved, STR Tubeless
Tyres: Maxxis Rekon 29x2.4", Max Tyre Size 2.5”
Headset: Semi-Integrated Threadless Headset, ZS44/28.6 | ZS56/39.8
Stem: SURFACE Alloy, 31.8mm, Extension: 45mm, Rise: 3°
Handlebar: SURFACE Alloy Handlebar, Dia: Ř31.8mm, 9° Back sweep, 20mm Rise
Grips: SURFACE Double Density Lock-On
Seat Post: SURFACE Dropper Post, Remote Lever, Ř30.9mm, S:100/M:125/L:150/XL:170mm Travel, SURFACE Alloy w/Steel Bolt
Saddle: SURFACE Ergo
Weight: 14.8kg
Weight Limit: 120kg - combined weight of bike and rider (including all kit).
