STILL SMALL. EVEN MORE USEFUL.
STILL SMALL. EVEN MORE USEFUL
- 200 kg Maximum Gross Vehicle Weight
- Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
- Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (extra battery sold separately by Bosch NZ)
- Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
- Adjustable cockpit comfortably fits riders 150 – 195 cm
- Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
- Heavy-duty frame-integrated rear rack and integrated lower decks
- Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
- Always-on RearStop™ Brake Light helps you safely signal stops
- Integrated Abus® Wheel Lock, keyed-alike with the battery
- Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
- Wide range of cargo- and passenger-carrying accessories
- Fits two Thule® Yepp Maxi seats, no adapters needed
GENERAL INFO
SPEEDS |
1 x 10 |
WEIGHT |
33.58 kg |
GEAR INCHES |
2.08 - 7.91 m |

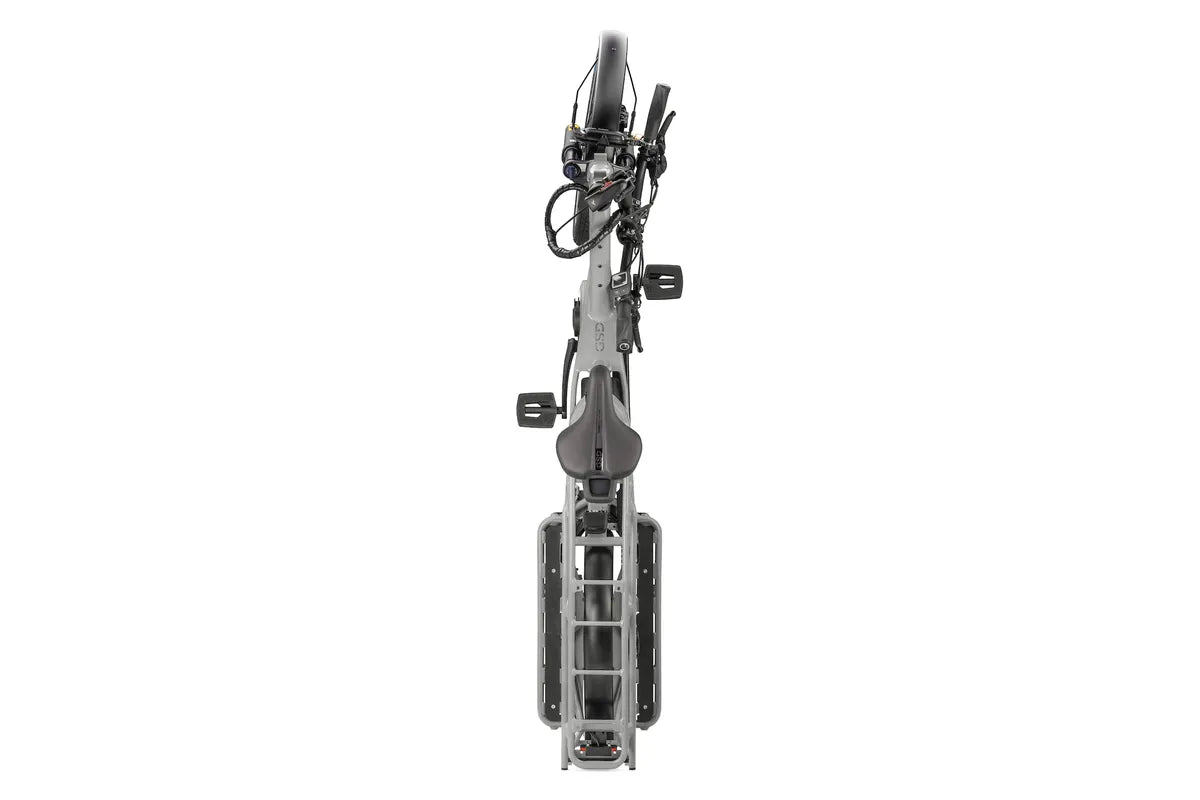

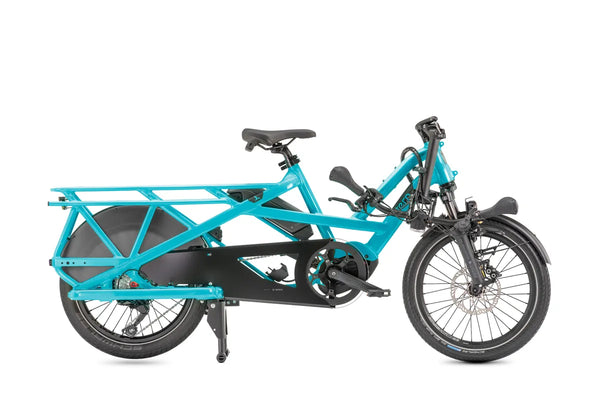

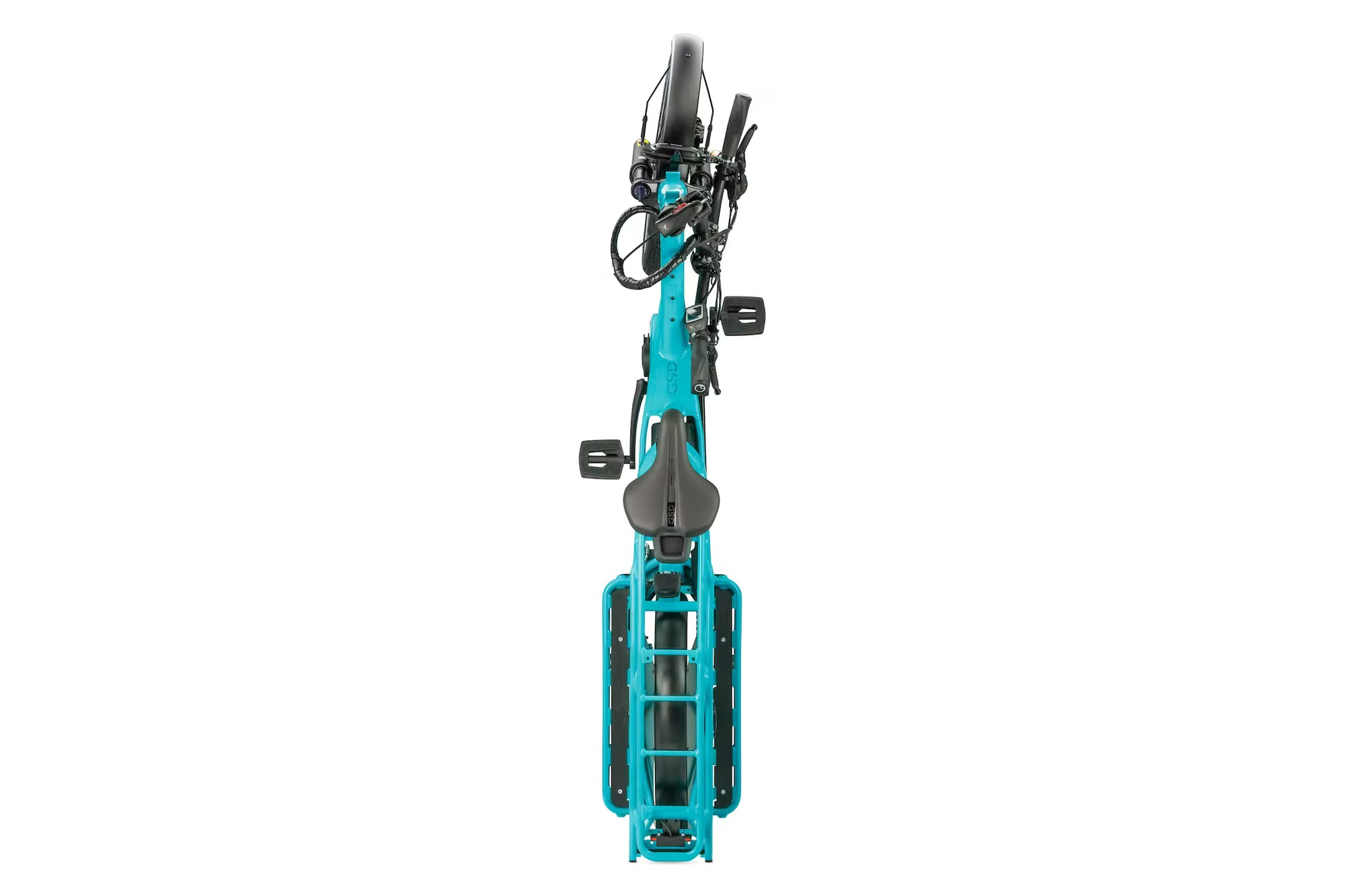

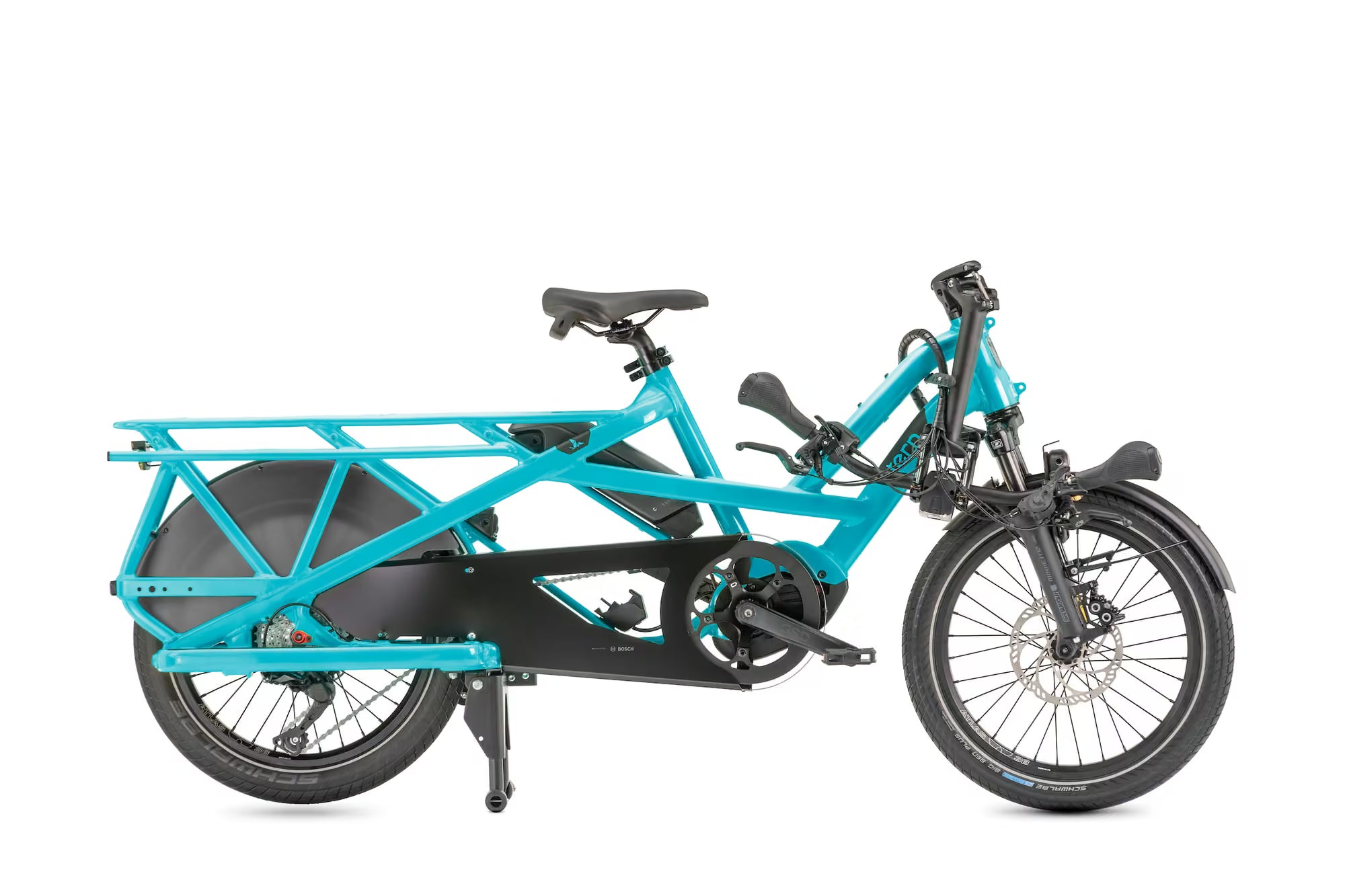

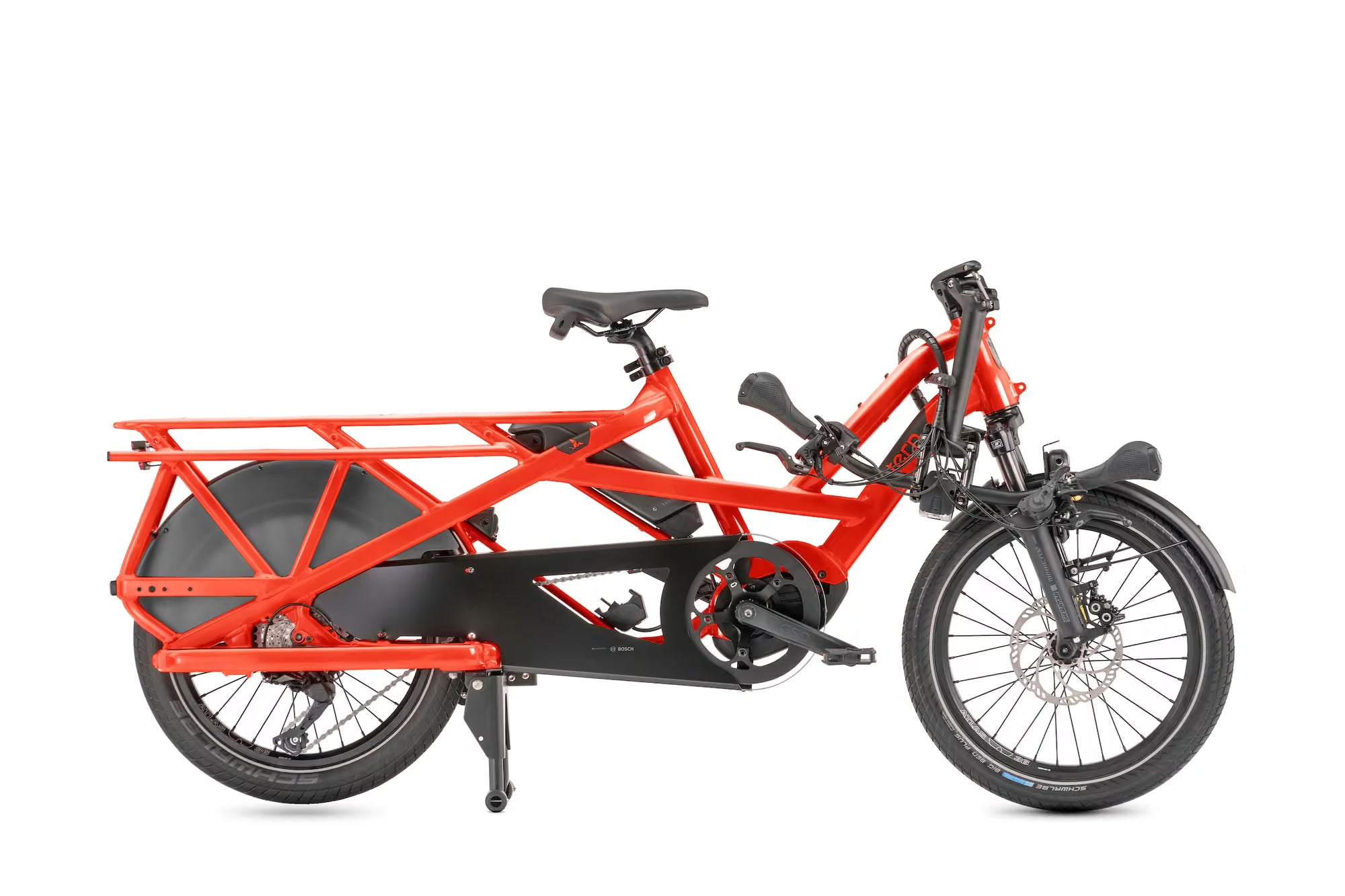

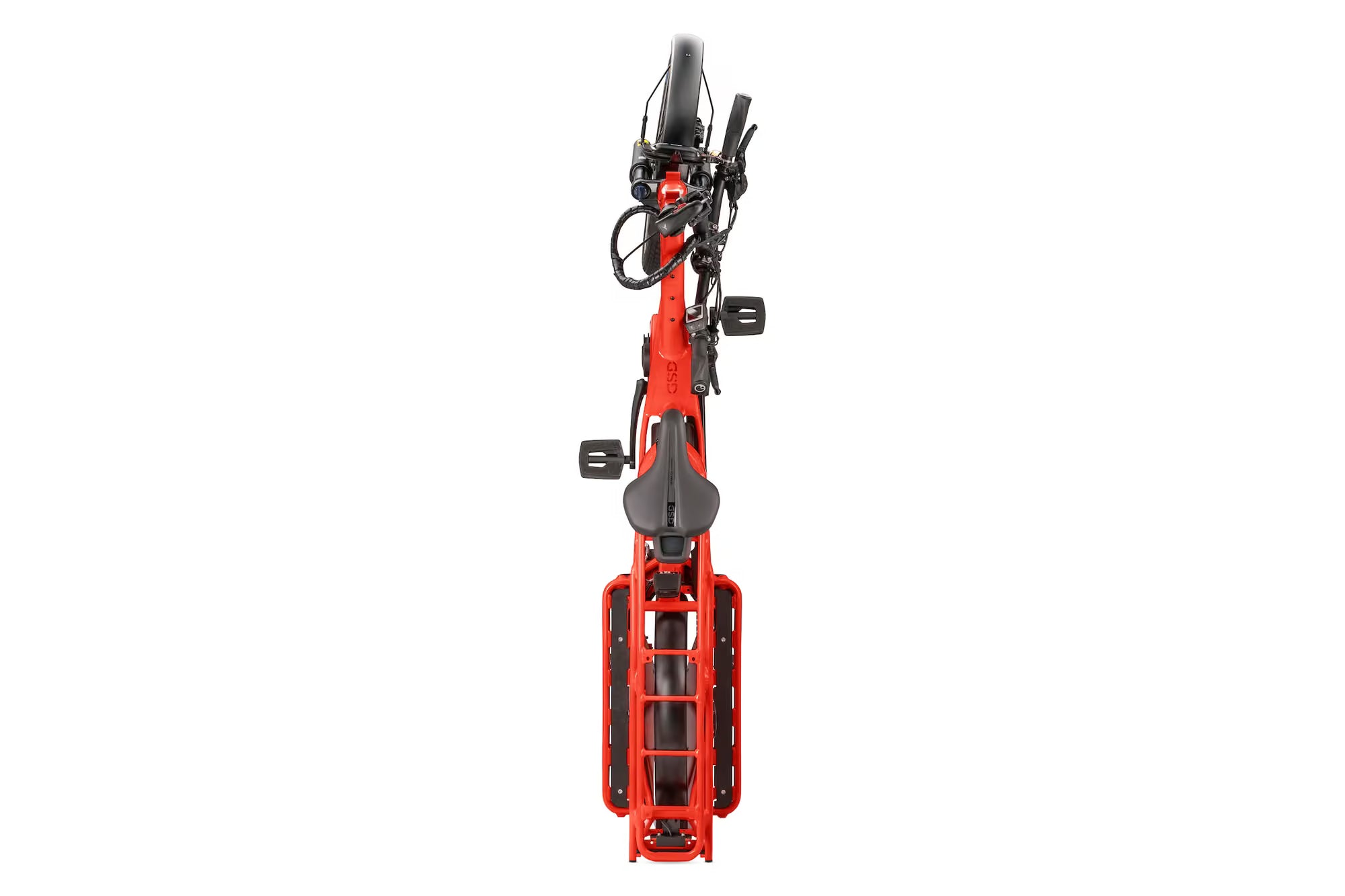

FOLDING SIZE |
176 × 40.5 × 83 cm |
FOLDING TIME |
5 sec |
FRAME SIZES |
One size |
DISTANCE (SEATPOST TO HANDLEBAR) |
49 - 59 cm |
DISTANCE: SADDLE TO PEDAL |
69 - 105 cm |
SUGGESTED RIDER HEIGHT |
150 - 195 cm |
MAX GROSS VEHICLE WEIGHT |
200 kg |
MAX RIDER WEIGHT |
120 kg |
FRAME
FRAME |
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
FORK |
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
HANDLEPOST |
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
STEM |
Tern Andros, adjustable, forged construction, patented technology |
HEADSET |
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
HANDLEBAR |
Tern Sweep, 6061-AL, Tern Andros adapted |
GRIPS/BAR TAPE |
Ergon |

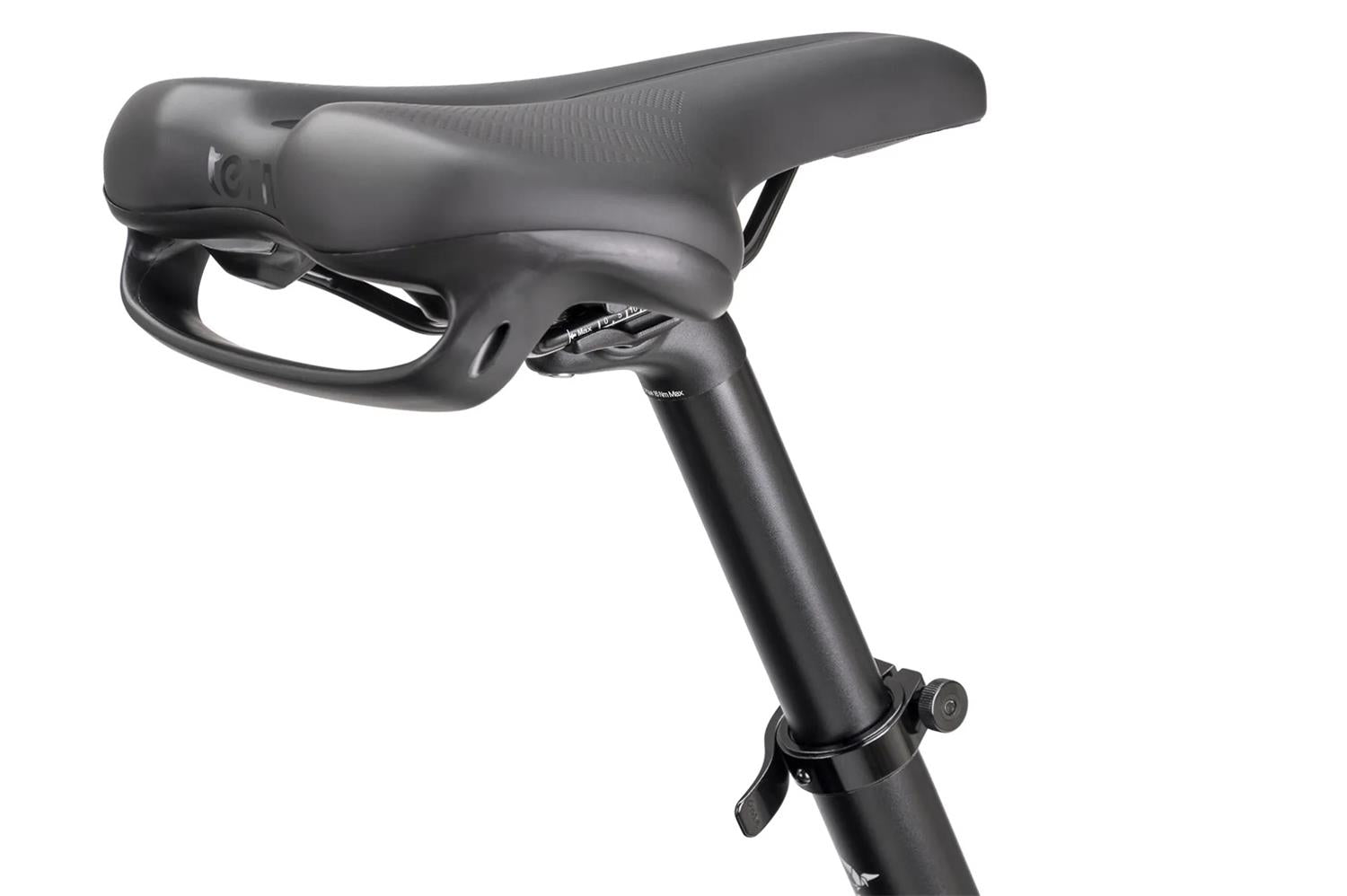

SADDLE |
Tern GSD by Velo, with rear handle |
SEATPOST |
Tern Telescope, 34.9/30.9 mm, 2014-AL |
SEATPOST CLAMP |
Tern Collar, 6061-AL, 2pc |
FRONT BRAKE |

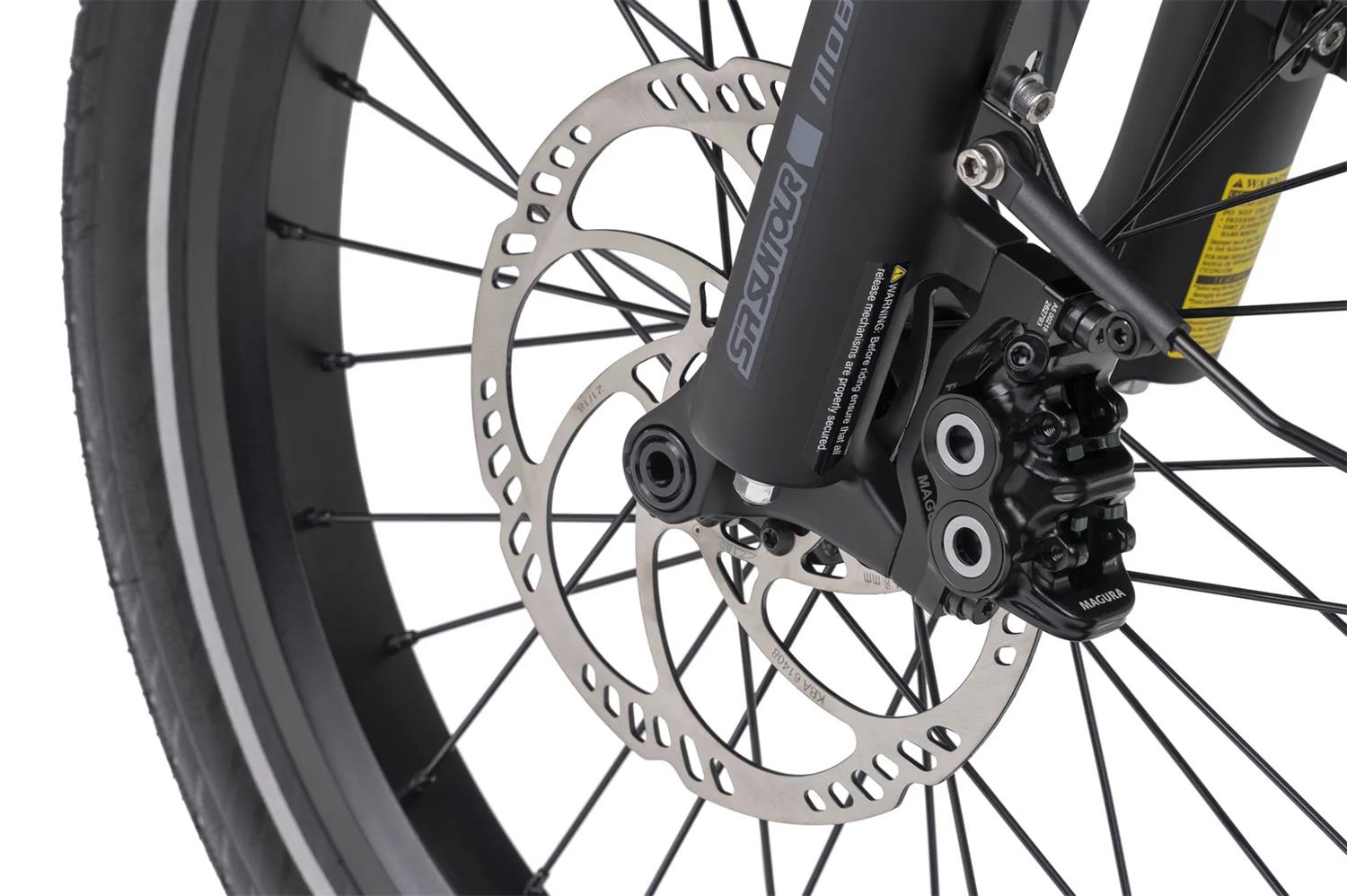

Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
REAR BRAKE |
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
BRAKE LEVERS |
Magura MT5 e-stop, hydraulic, with brake sensor |
FRONT HUB |
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |
REAR HUB |
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design |
SPOKES AND NIPPLES |
Stainless steel, 13G |
RIMS |
Tern Atlas, ultra wide 36 mm, dual reinforced joint |
TIRES |

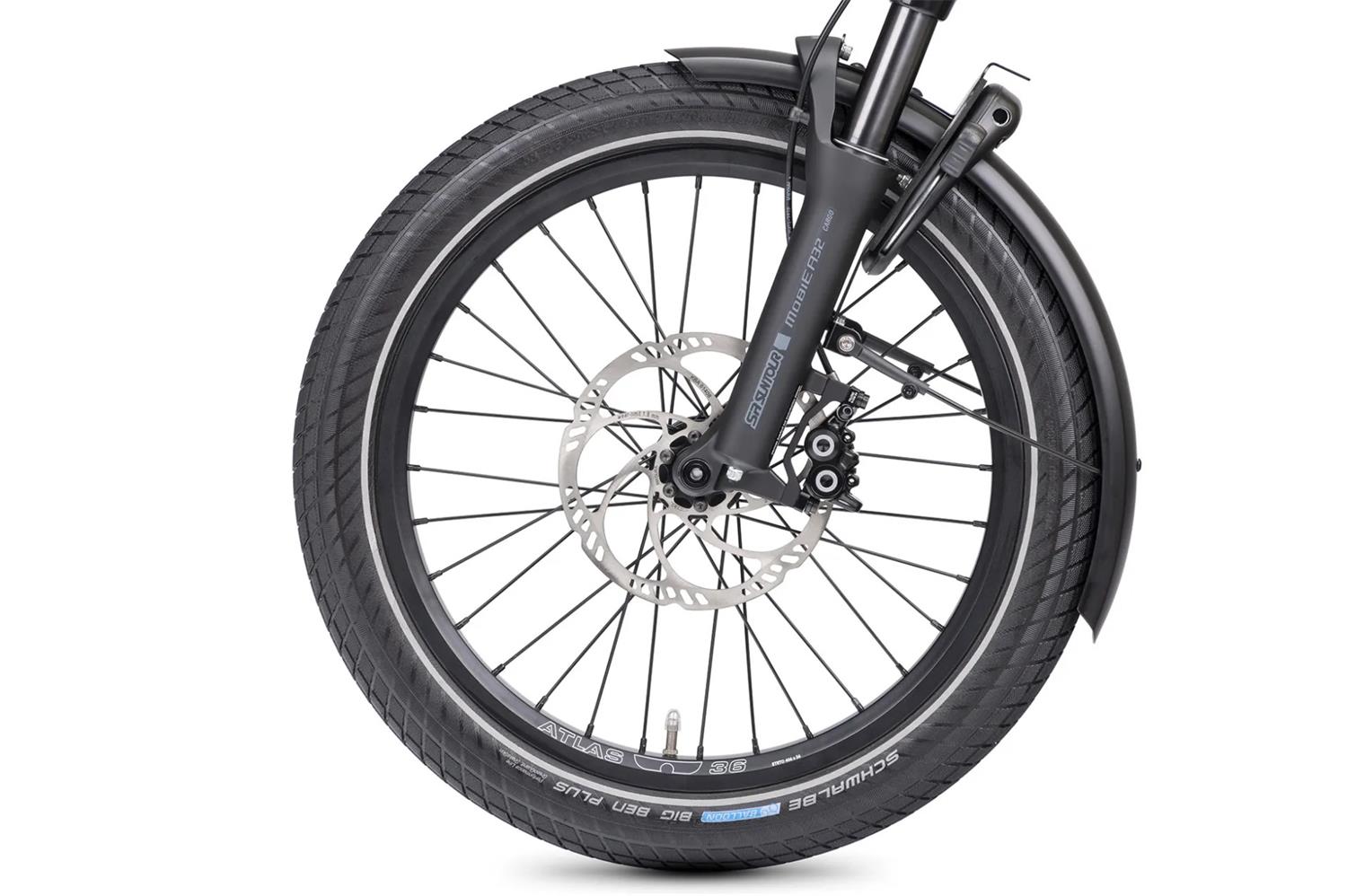

F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
SHIFTER(S) |
Shimano Deore, 1 x 10 spd |
REAR DERAILLEUR |
Shimano Deore Shadow+ |
CRANKSET |
Tern GSD custom, forged 6061-AL DH crankarm |
CASSETTE/FREEWHEEL |
Shimano 11-36T, 10 spd |
BOTTOM BRACKET |
Motor integrated |
CHAIN |
10 spd, DHT for eBike, GST corrosion resistant coating |
PEDALS |
Urban with non-slip surface, sealed bearings |
SHIFTER CABLE & HOUSING |
Jagwire LEX-SL, slick treatment, alloy ferrules |
MOTOR |
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32km/h |
BATTERY |
Bosch Dual Battery system, 400 Wh/900 Wh (extra 500Wh battery not included)
|
DISPLAY |
Bosch Purion, 4 mode selectable, walk assist |
RANGE |
400 Wh: 42-85 km; 900 Wh: 97-195 km |
CHARGER |
240V, 4A (AU/NZ) |
BELL |
Pitch Plus, brass |
CHAINGUARD |
Tern Custom, full chain cover |
KICKSTAND |
Atlas Lockstand, w/ remote unlock, patented technology |
LUGGAGE SOCKET |
Combo Mount |
FRONT LIGHT |

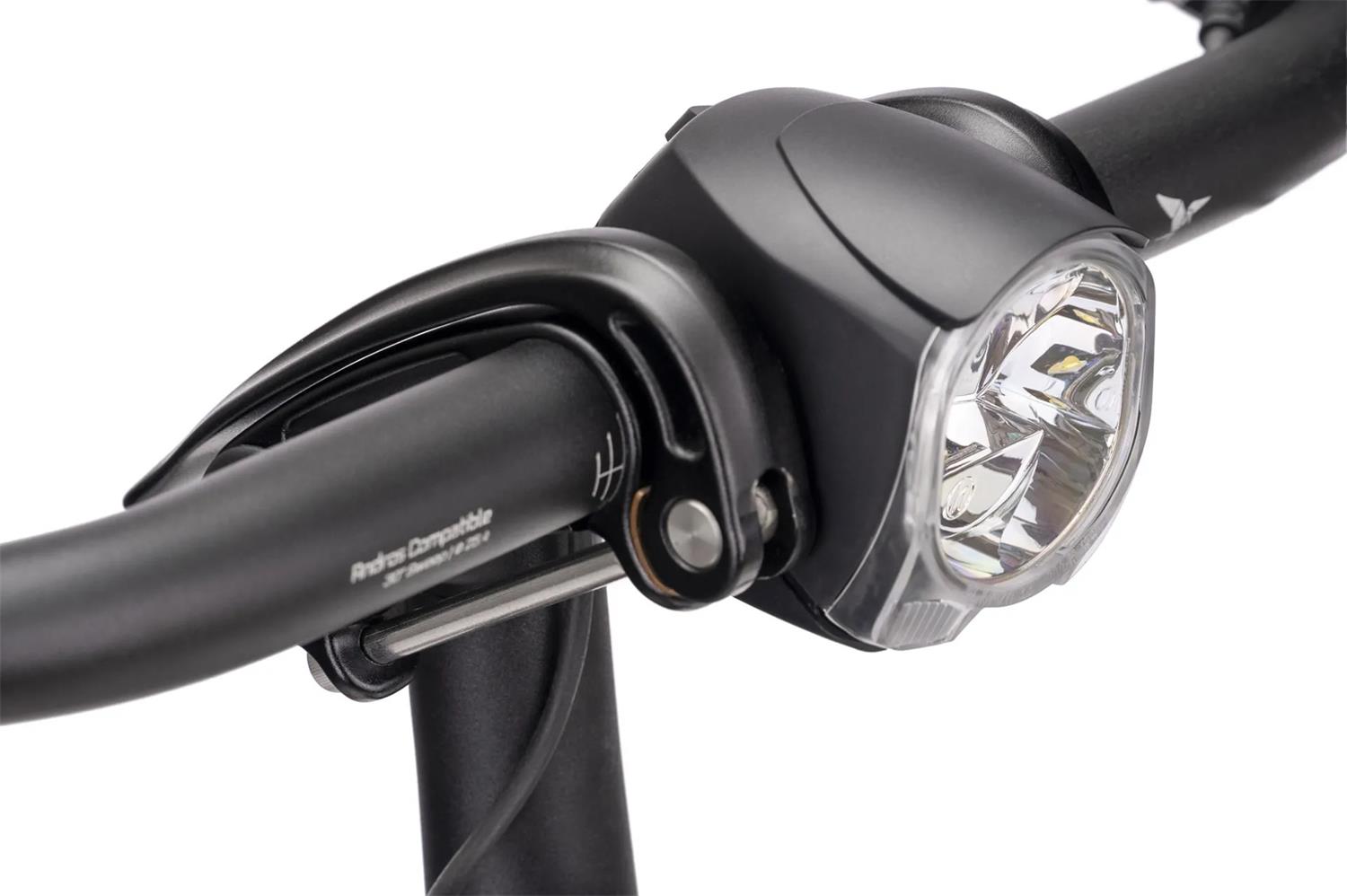

Tern Valo Direct, 190 lumens |
REAR LIGHT |
RearStop Brake Light, Always on brake light |
FENDERS |
Integrated Wheel Guard, AL6061, w/ Side Skirt |
RACK(S) |
Frame integrated, heavy duty design; Max load weight: 100 kg |
ACCESSORY |
ABUS, keyed-alike with Bosch battery |
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
