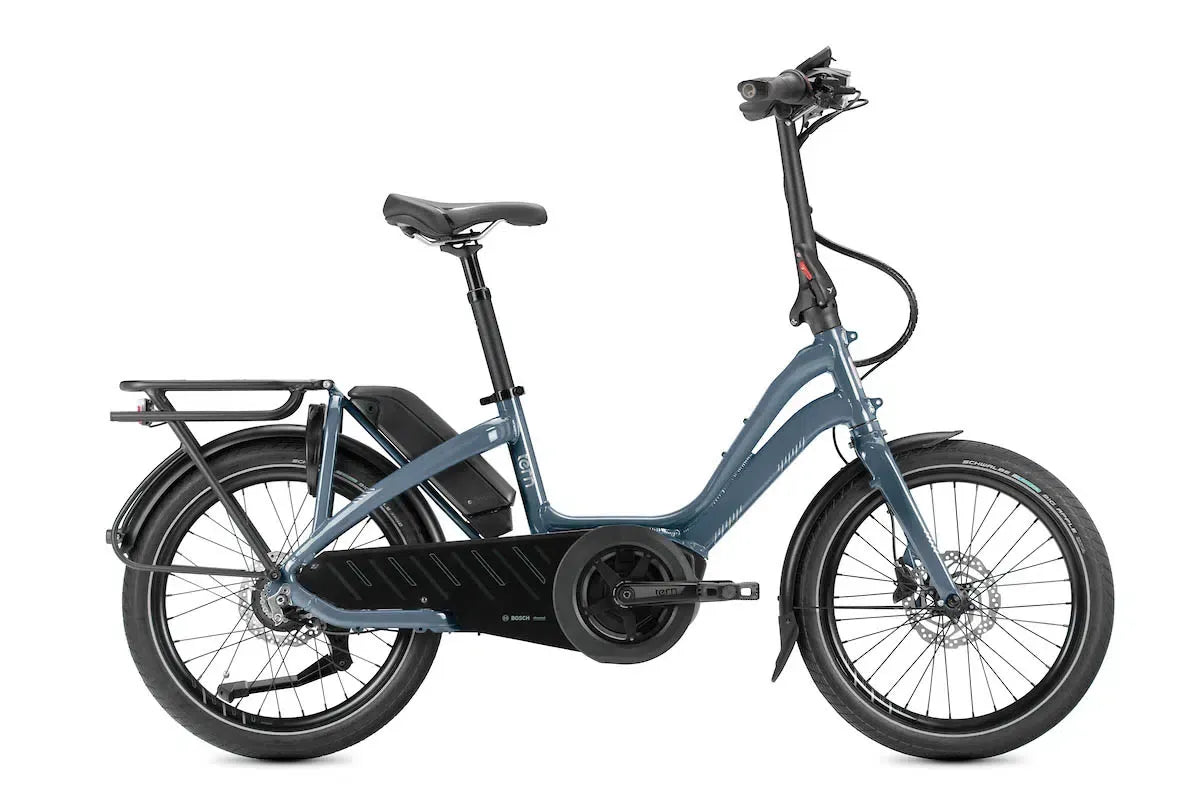

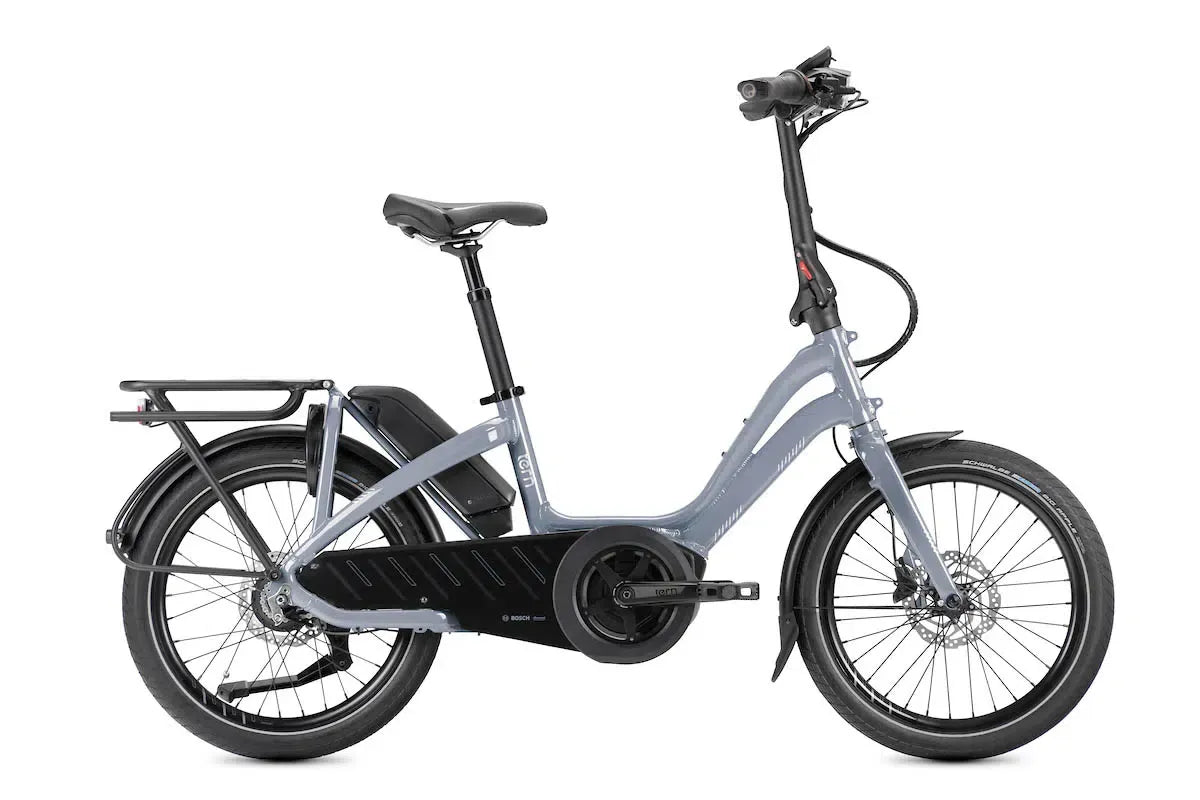

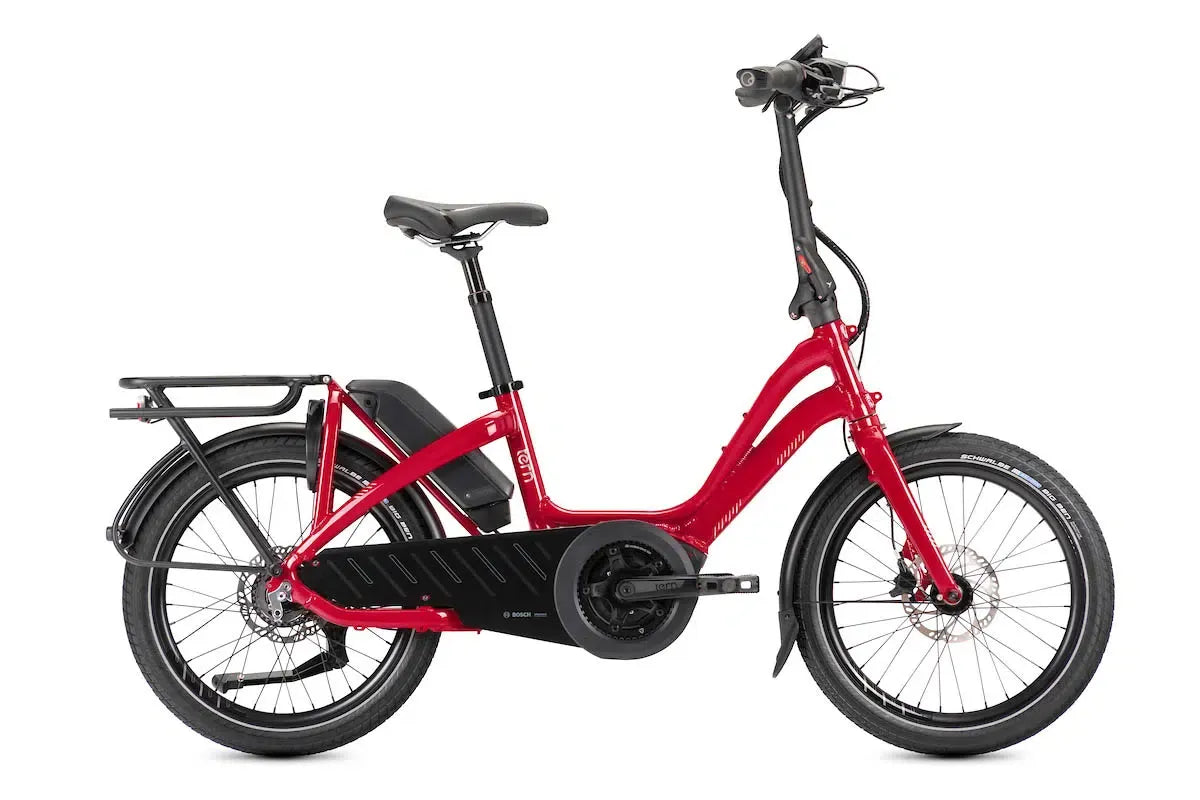

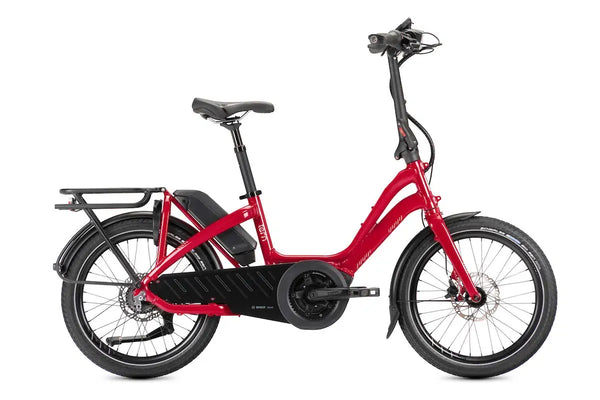

Tern NBD P8i Bosch Active Plus 32kph

Sale price
$4,989.99
List price
$6,289.99
You save
$1,300 (21%)
Variant:Gloss Blue/Grey
This item is temporary out of stock

SMILES FOR MILES

What Makes it a P8i?

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • Bosch PowerPack 400 powers long trips, commutes, and journeys
  • Shimano® Nexus  8-speed internal hub
  • Shimano hydraulic disc brakes for reliable stopping power—even when carrying cargo and riding fast

NBD Highlights

  • Ultra-low 39 cm standover height means gentle, low steps are all that’s required to get on and go
  • Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
  • Fits riders 147 - 190 cm
  • Gaia Rack is certified to carry up to 27 kg and works with many child seats
  • Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg Maximum Gross Vehicle Weight

GENERAL INFO

SPEEDS 1 x 8
WEIGHT 23.7 kg
GEAR INCHES 2.78 - 6.81 m
FOLDING SIZE 38 Ă— 156 Ă— 79 cm
FOLDING TIME 5 sec
FRAME SIZES One size
DISTANCE (SEATPOST TO HANDLEBAR) 45 - 52 cm
DISTANCE (SADDLE TO PEDAL) 70 - 100 cm
SUGGESTED RIDER HEIGHT 147 - 190 cm
MAX GROSS VEHICLE WEIGHT 140 kg
MAX RIDER WEIGHT 120 kg

FRAME

FRAME Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
FORK Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg

COCKPIT

HANDLEPOST Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
STEM Tern Andros, adjustable, forged construction, patented technology
HEADSET Tern Flux by FSA, cartridge bearings, Physis integrated
HANDLEBAR Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE Ergon
SADDLE Tern Upright by Velo
SEATPOST Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
SEATPOST CLAMP Tern Collar

BRAKES

FRONT BRAKE Shimano, hydraulic disc
REAR BRAKE Shimano, hydraulic disc
BRAKE LEVERS Shimano, hydraulic disc
BRAKE CABLE & HOUSING Shimano, hydraulic disc

WHEELS

FRONT HUB Shimano disc
REAR HUB Shimano Nexus 8
SPOKES AND NIPPLES Stainless steel
RIMS Kinetix Comp, for disc
TIRES Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S) Shimano 8 spd.
CRANKSET Tern NBD custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL 16T
CHAIN KMC for eBike, EPT corrosion resistant coating
PEDALS MKS Platform, Tern custom design
SHIFTER CABLE & HOUSING Shimano

E-SYSTEM

MOTOR Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 km/h
BATTERY Bosch PowerPack 400
DISPLAY Bosch Intuvia, 4 mode selectable, walk assist
RANGE 54 -108 km
CHARGER Bosch Standard Charger

BELLS & WHISTLES

BELL Aluminum
CHAINGUARD Tern Custom, full chain cover
KICKSTAND Ursus, rear mount
LUGGAGE SOCKET Combo Mount
FRONT LIGHT Tern Valo Direct, 190 lumens
REAR LIGHT Herrmans
FENDERS SplashGuard, stainless hardware
RACK(S) Gaia Rack, 27 kg capacity, Vertical Parking
FRAME LOCK ABUS, keyed-alike with Bosch battery



*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
