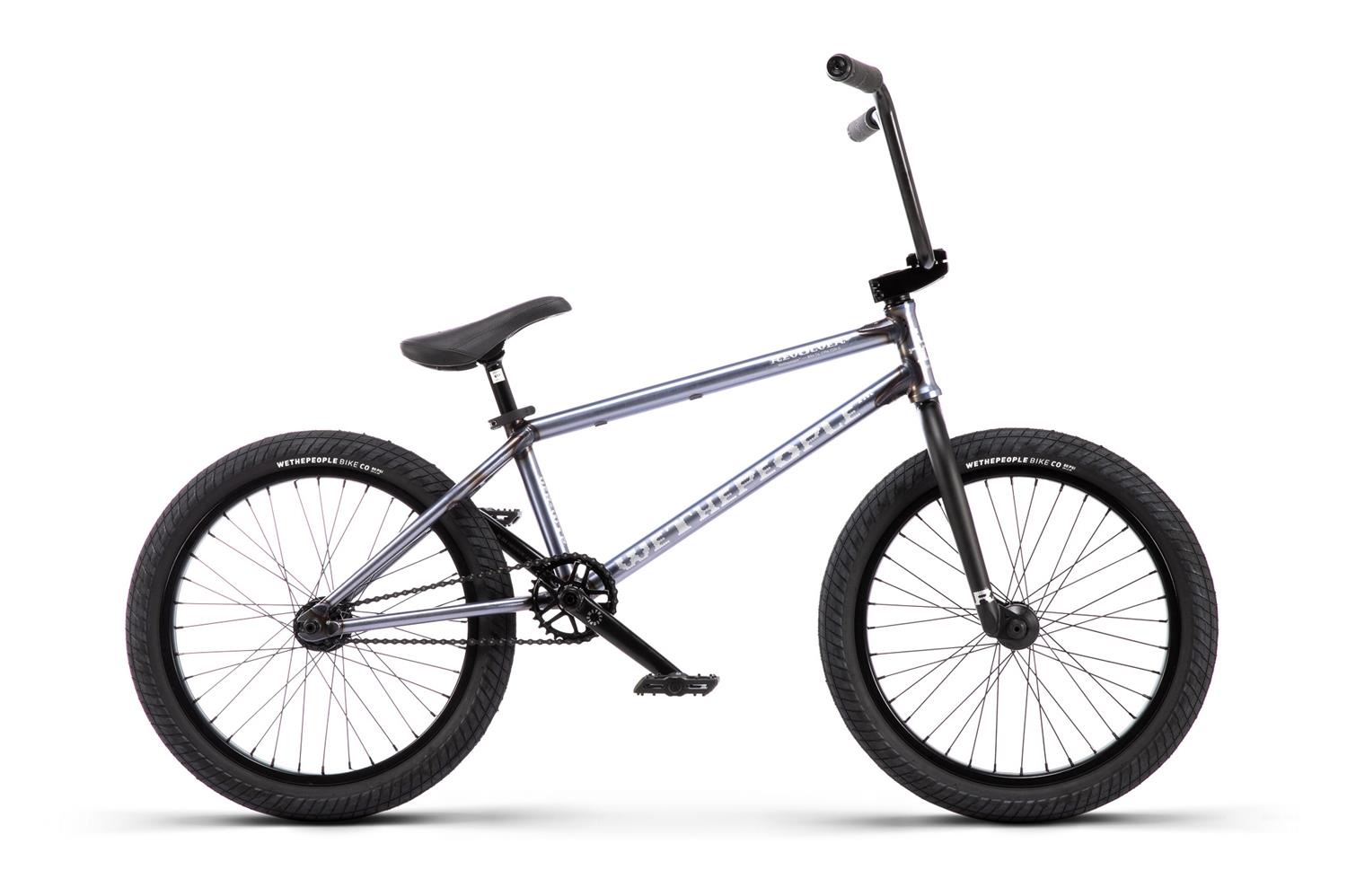

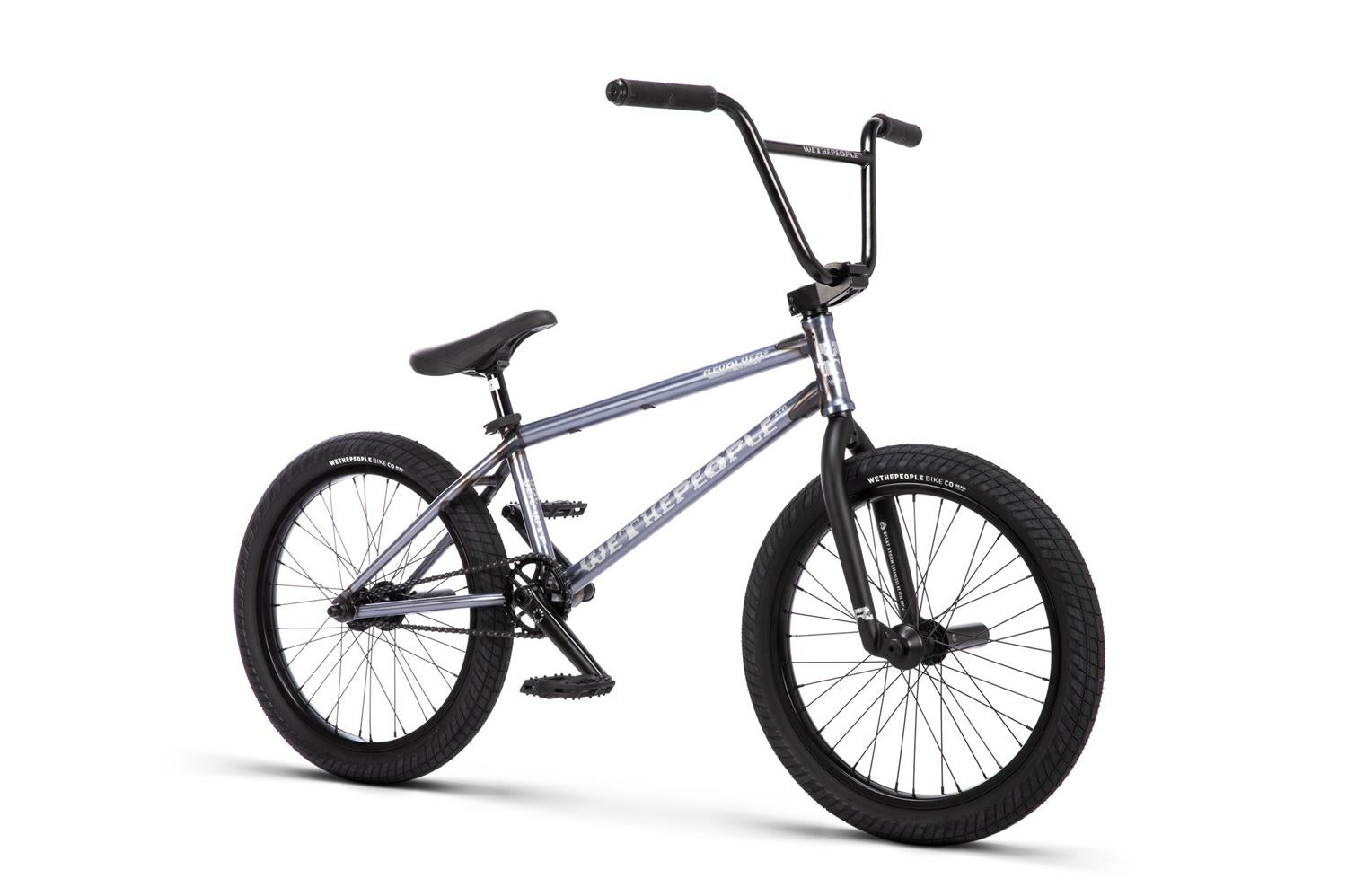

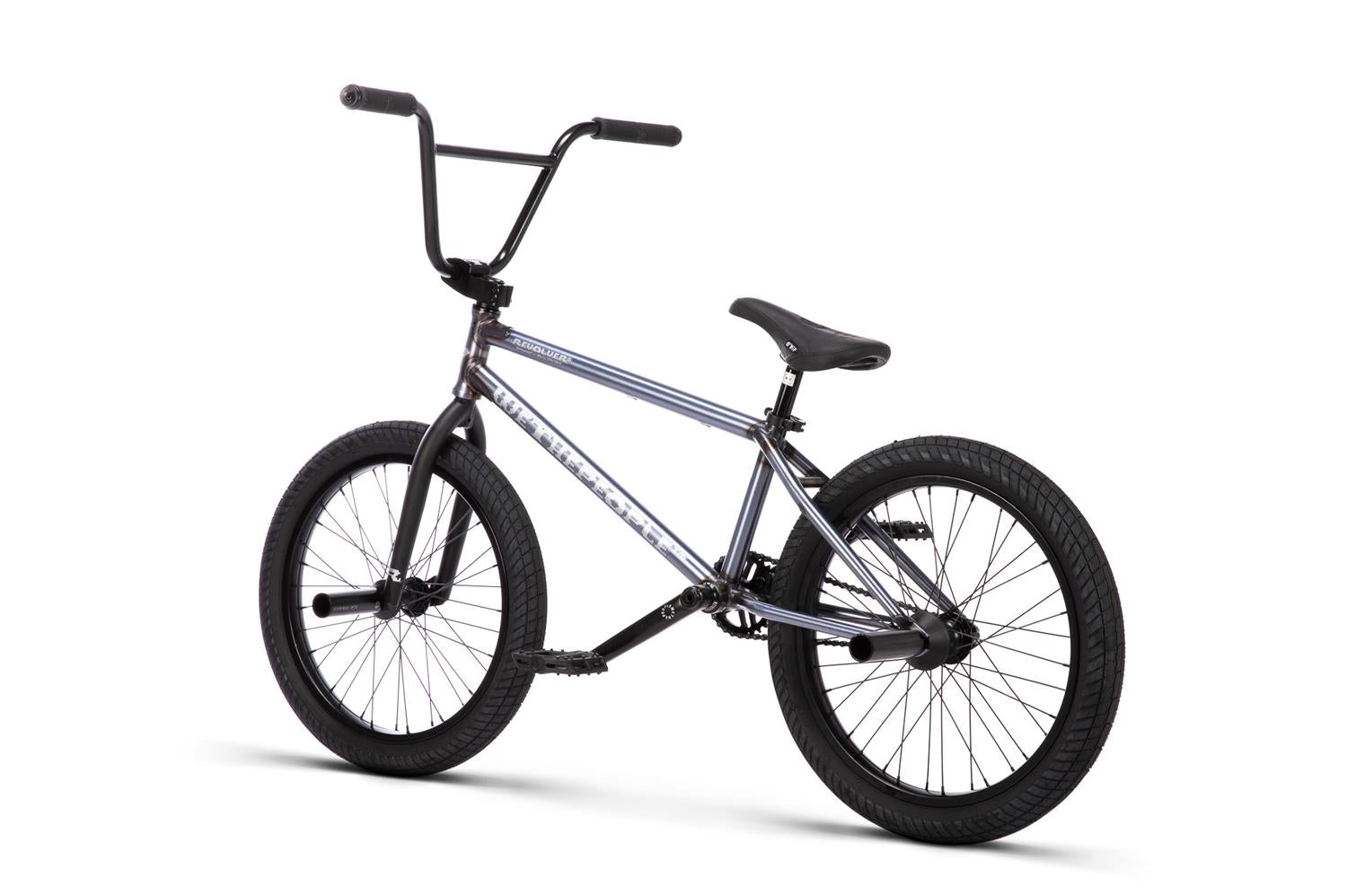

Built from our “do-it-all” Revolver frame and premium aftermarket parts, this is a balanced, high-end bike for riders who want everything in one setup.
With a 21” top tube, all-round geometry, 28–9 gearing, and full Éclat peg and guard setup, it’s ready for any terrain. Finished with a lifetime-guaranteed Éclat Storm fork, the Revolver delivers a complete no-compromise build straight out of the box.
The harder 28-9 gearing gives this rig plenty of juice when the time for pedalling fast comes into play, and the and full assortment of ECLAT Dura chromoly pegs and hub guards allow you to gun it down any rail in sight.
Wrap it up with a lifetime guaranteed ECLAT Storm fork and a mesmerising Skipper Green paint finish, the need to build a custom bike really doesn't exist any more when you could be riding on a bike like this fresh out of the box.
INCLUDES LIFETIME GUARANTEE ON THE FRAME & FORK

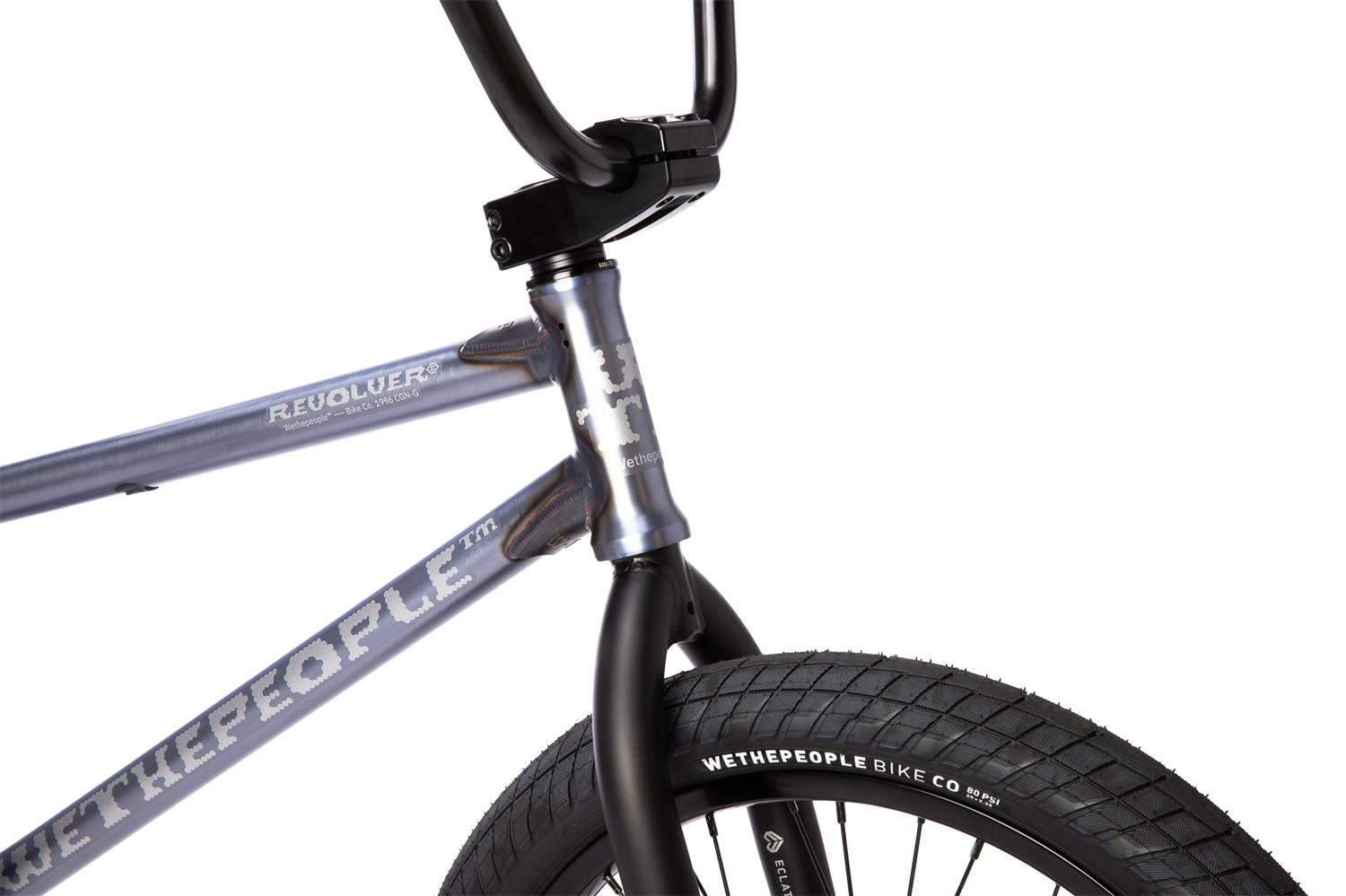

- FRAME: WETHEPEOPLE "REVOLVER" frame, 4130 full sanko, invest cast wishbone & 7.5mm dropouts

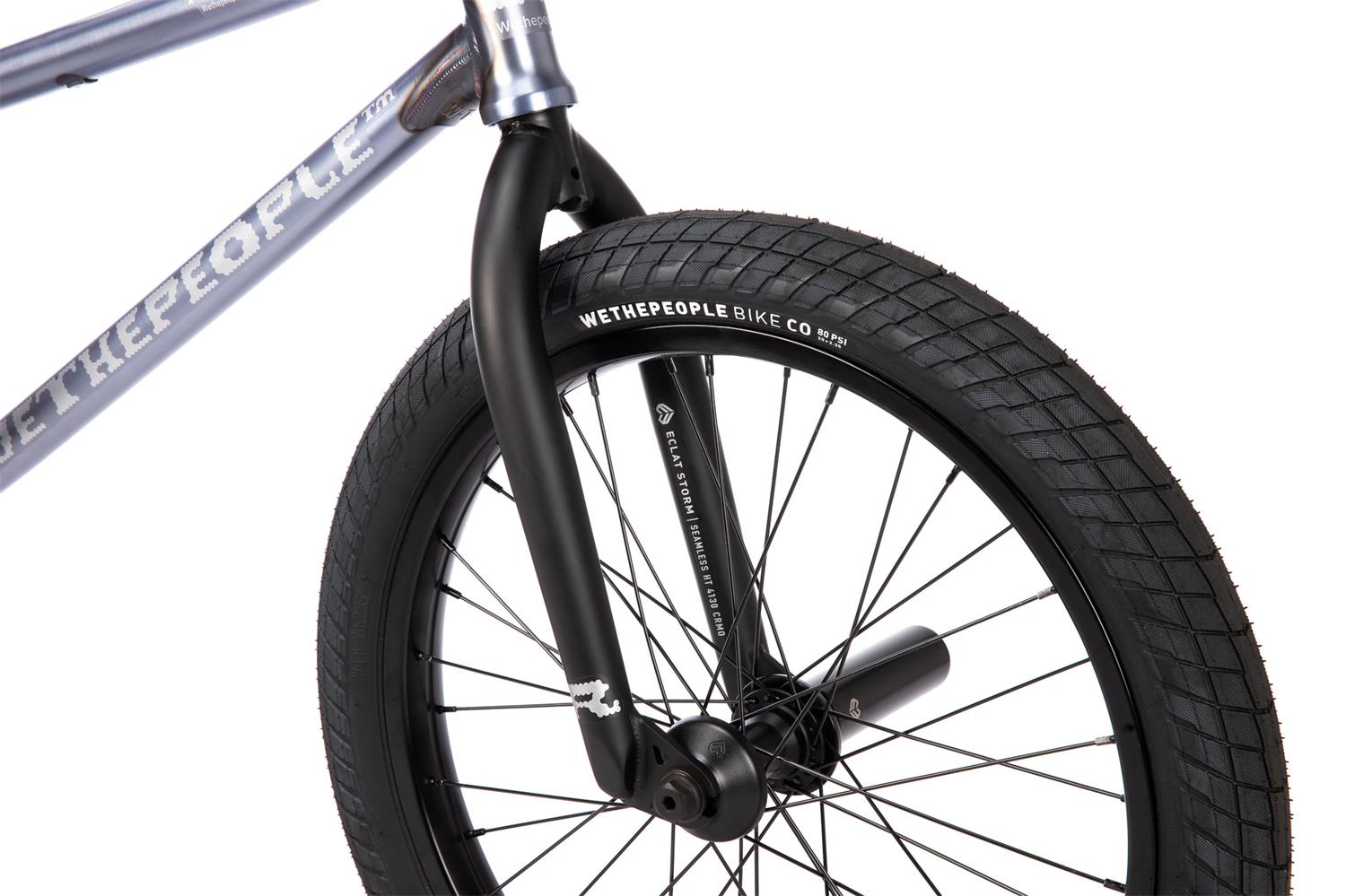

- FORK: ÉCLAT "STORM" fork, post liquid heat-treated & butted sanko tubing, 30mm offset

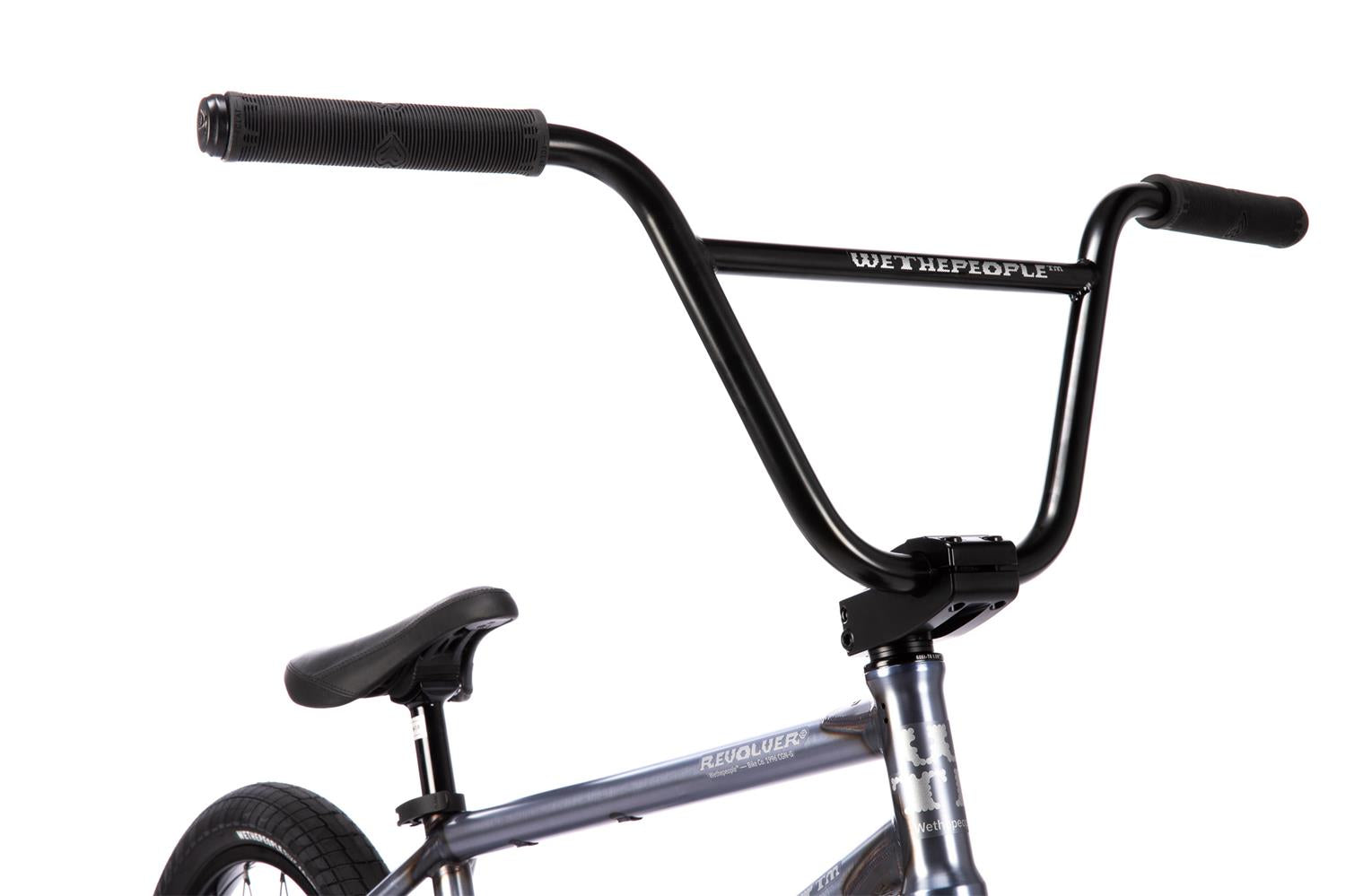

- BARS: WETHEPEOPLE "REVOLVER" bar, post liquid heat-treated 4130 crmo
- Grips: ÉCLAT "FILTER" grips, flangeless, with ÉCLAT "TECH-BOLT" barends

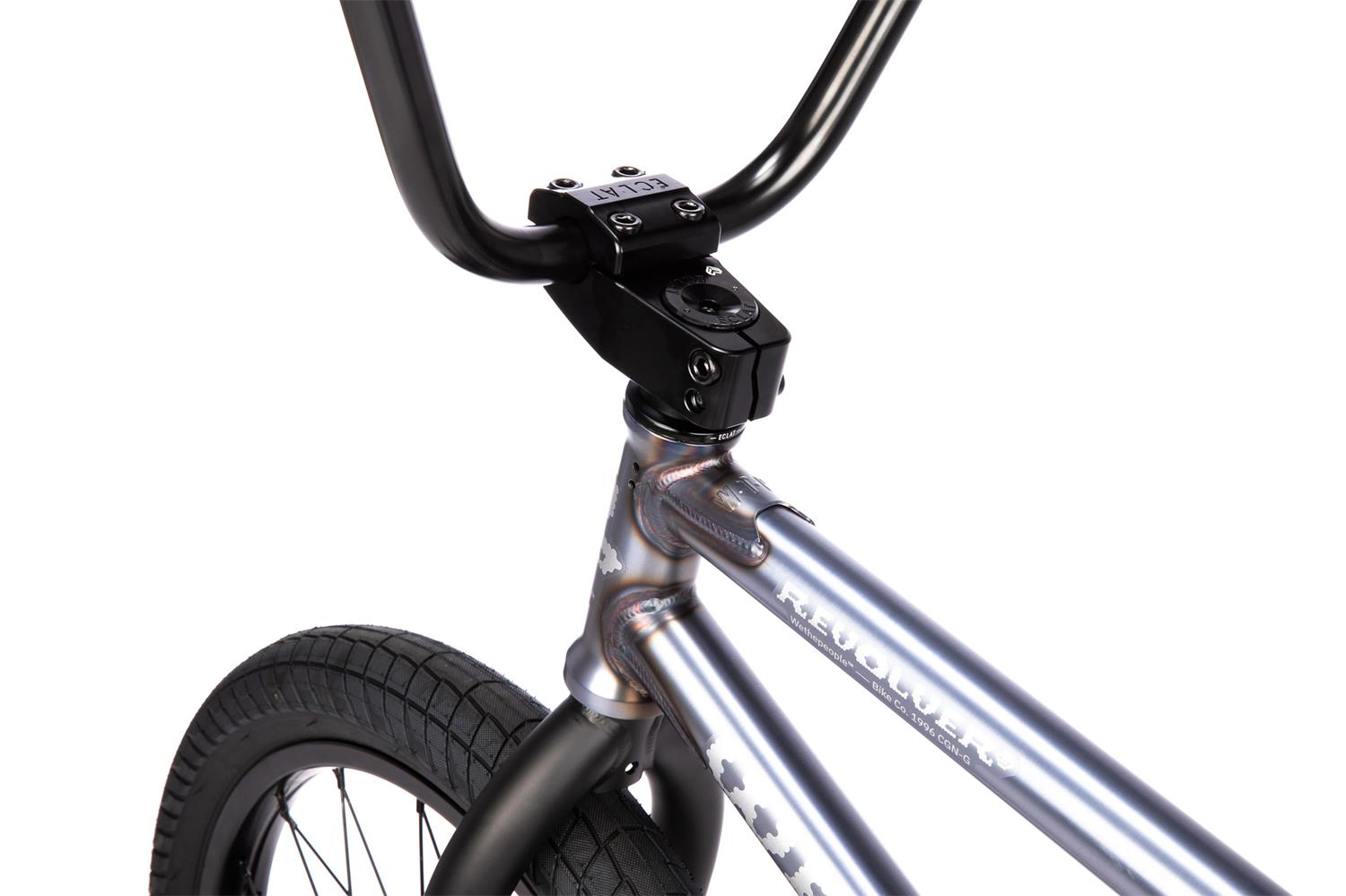

- STEM: ÉCLAT "METRA" topload stem, cnc alloy, 51mm reach, 30mm rise
- HEADSET: ÉCLAT "WAVE 6" int. headset, sealed bearing
- GYRO: holes for removable gyro tabs
- LEVER: SALT "MOTO" brake lever, alloy
- BRAKES: ÉCLAT "TALON" u-brake rear, alloy

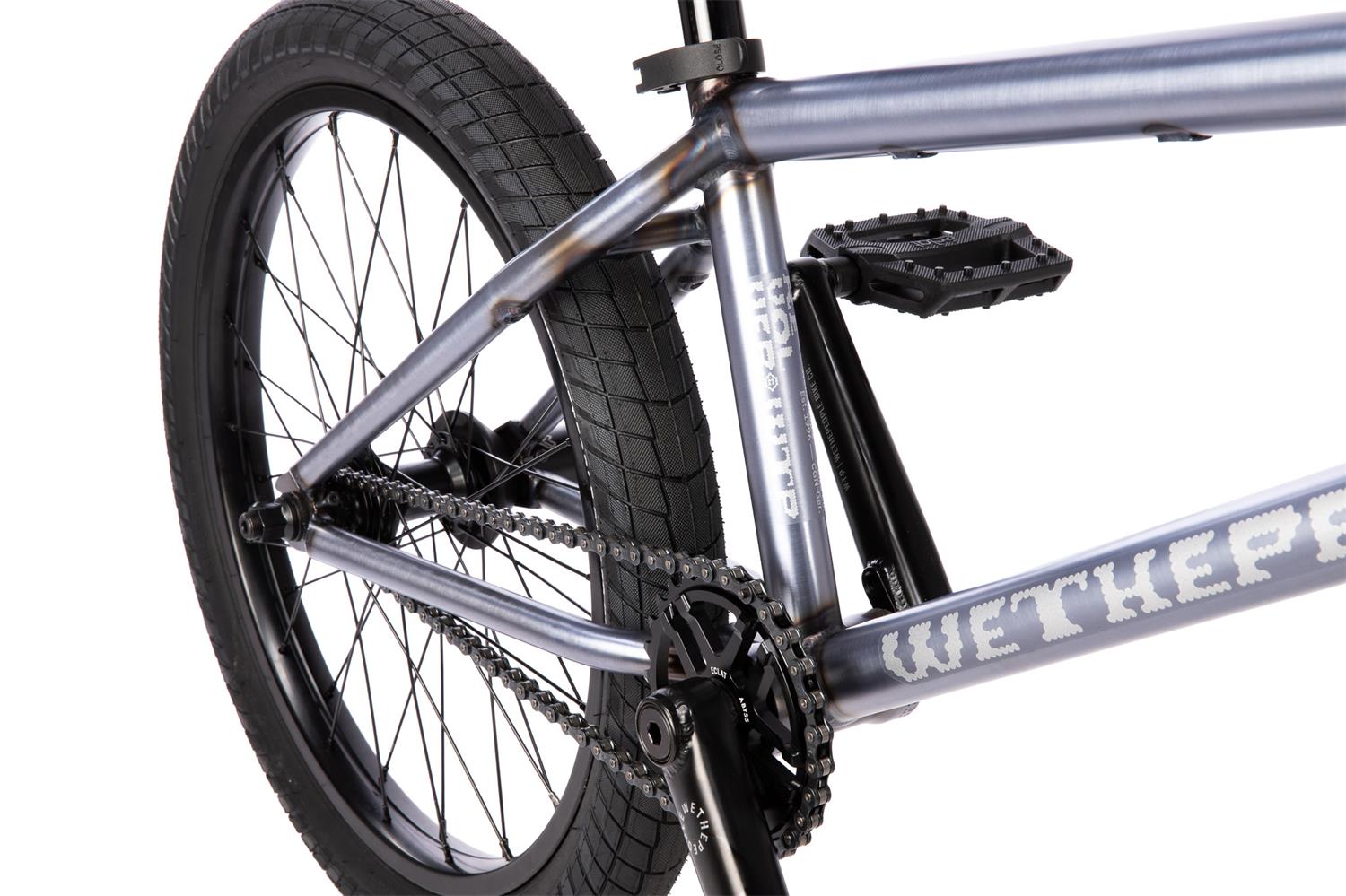

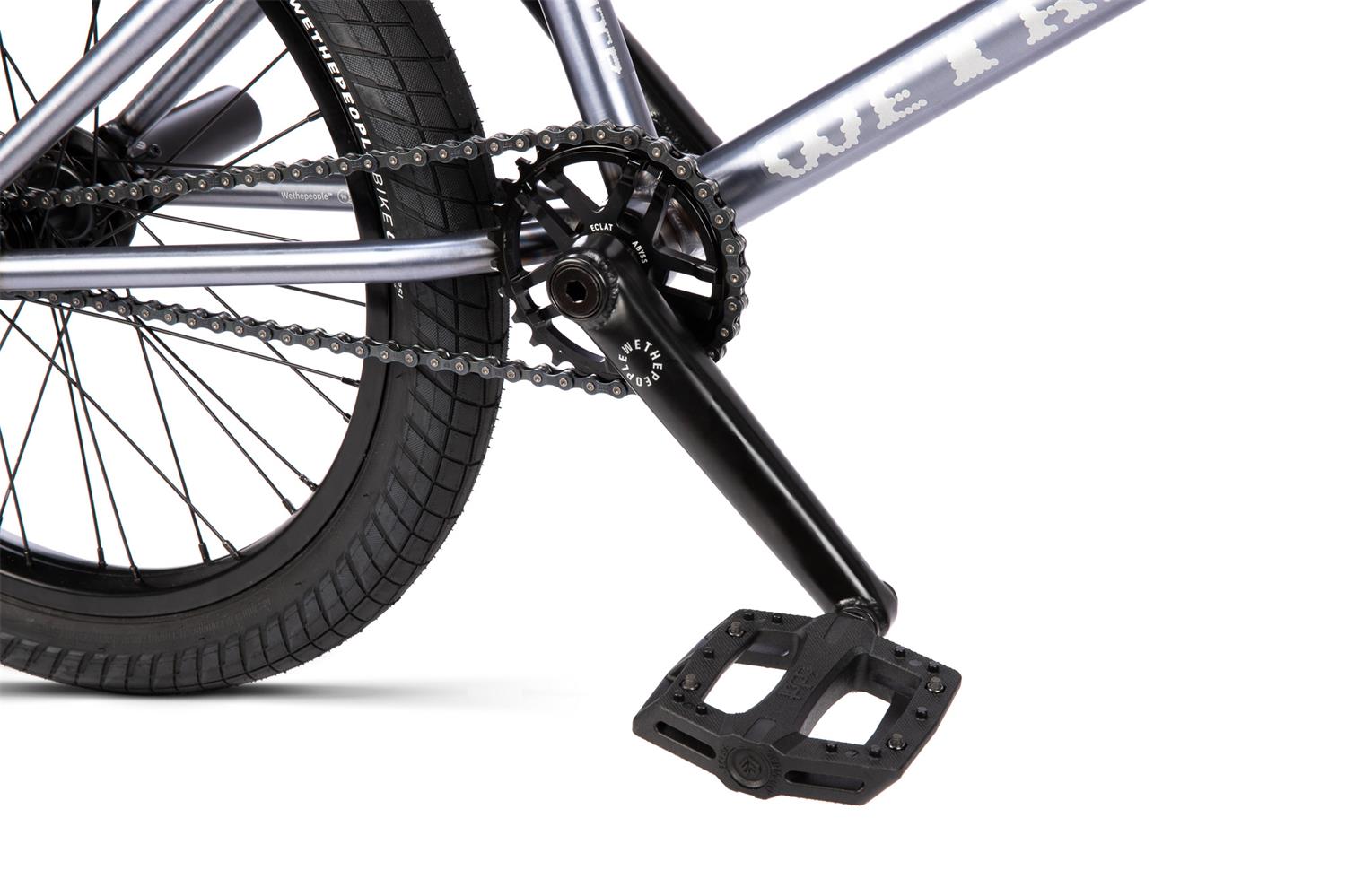

- CRANKS WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
- BB: WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
- PEDALS: ÉCLAT "CONTRA" pedals, nylon/fiberglass
- CHAIN: ÉCLAT "DIESEL" chain
- SPROCKET: ÉCLAT "ABYSS" sprocket, cnc, 6061-T6 alloy, 28t
- DRIVER: 1pc cassette driver, 9t, full bushing, SDS (RSD/LSD switchable)

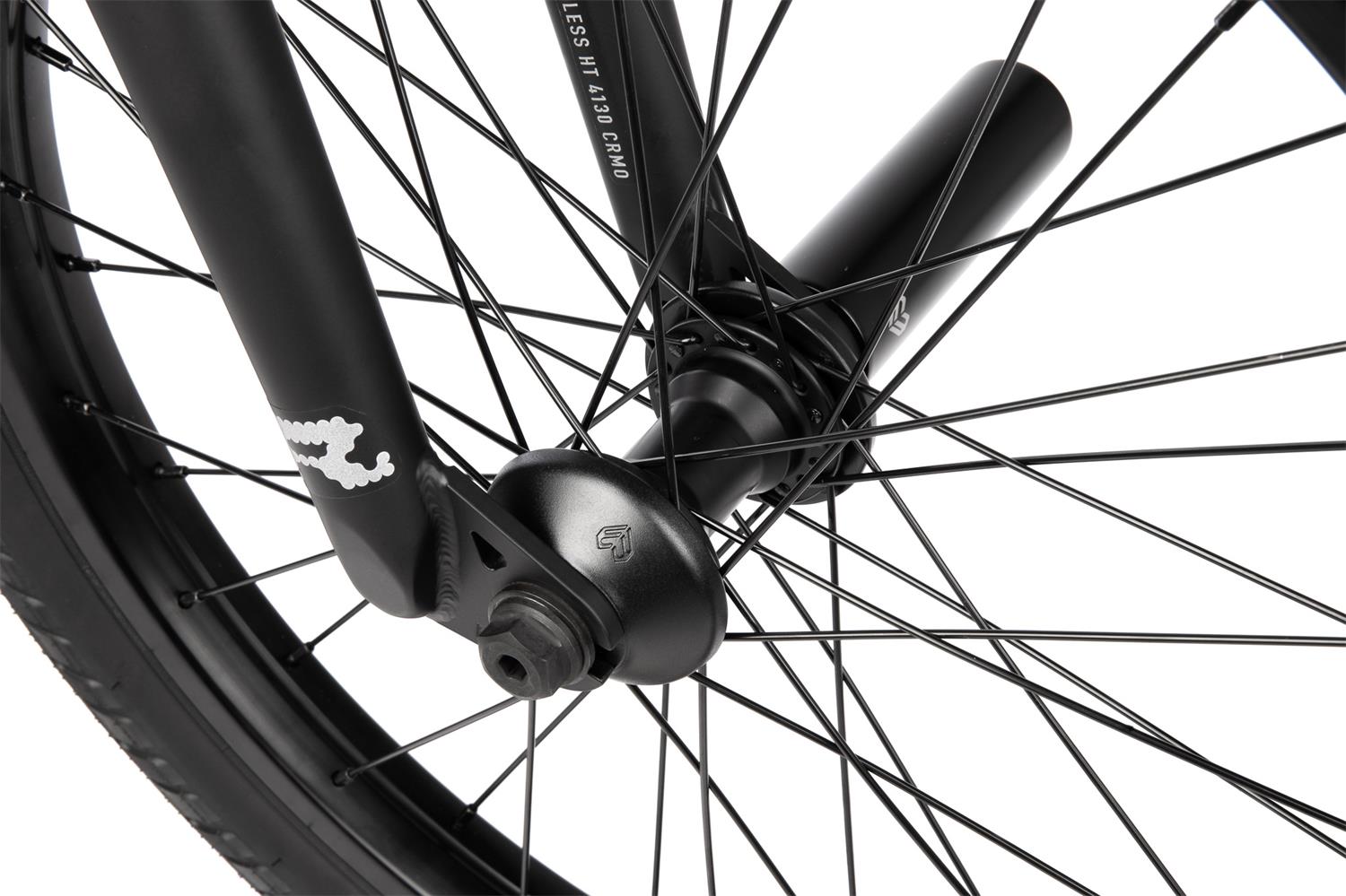

- FRONT HUB: ÉCLAT "PULSE" hub, fully sealed, 3/8"s axle, 36h

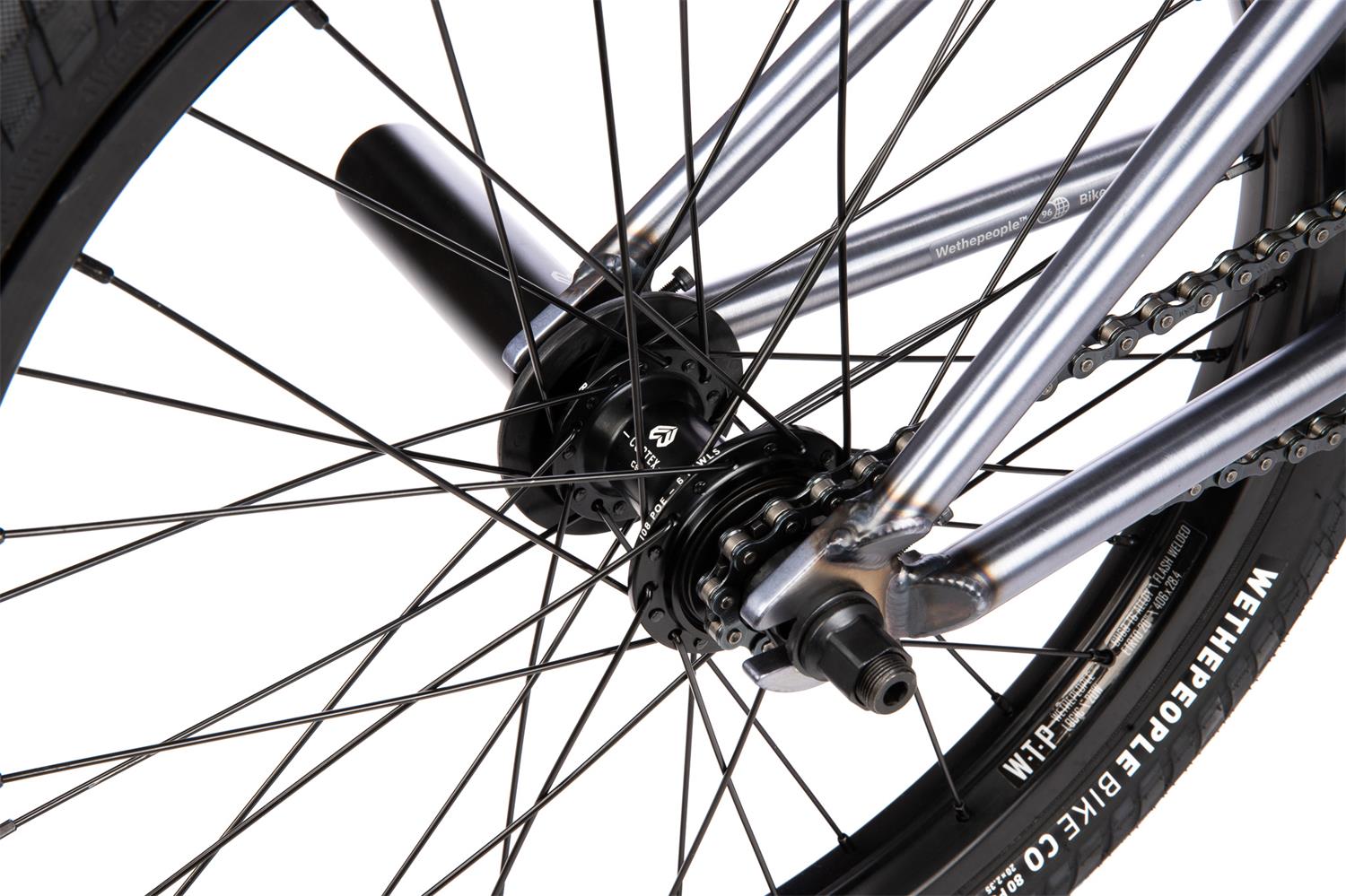

- REAR HUB: ÉCLAT "PULSE" cassette hub, fully sealed, 9t, 14mm axle, 36h, SDS driver
- HUBGUARDS: ÉCLAT "PULSE" hub guards - 4140 crmo front (1x), 4140 crmo rear (1x)
- FRONT RIM: WETHEPEOPLE "LOGIC" rim, double wall, welded, 36h
- REAR RIM: WETHEPEOPLE "LOGIC" rim, double wall, welded, 36h

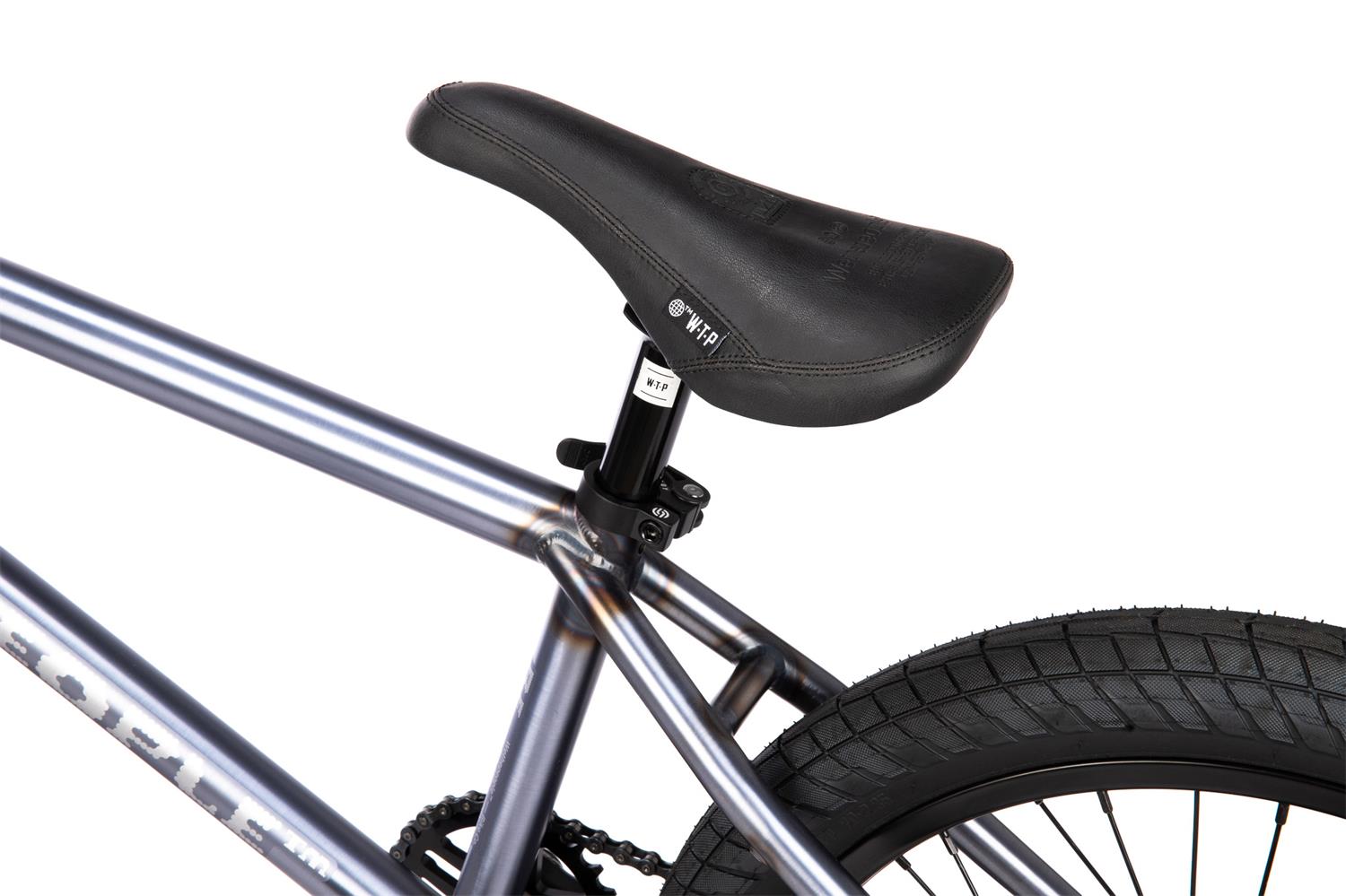

- SEAT: Wethepeople Team pivotal seat, slim padded
- SEAT POST: WETHEPEOPLE "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy
- SEAT CLAMP: WETHEPEOPLE "SUPREME" seat clamp, cnc alloy
- TIRES: WETHEPEOPLE "OVERBITE" tires, 2.35" front & rear
- PEGS: ÉCLAT "DURA" pegs, 4140 heat-treated crmo pegs, 4.6" long, x2
- WEIGHT: 11.72kg / 25.85lbs
Geometry
FRAME
A - TOP TUBE LENGTH: 21"
B - CHAIN STAY LENGTH: 13.4" (13.25"-13.75")
C - HEAD TUBE ANGLE: 74.85°
D - SEAT TUBE ANGLE: 71°
E - BB HEIGHT: 11.47"
F - STANDOVER HEIGHT: 9.1"
Handlebar
HANDLE BAR
G - BAR RISE: 9.25"
H - BAR WIDTH: 29.7"
I - BAR BACK SWEEP: 11°
J - BAR UP SWEEP: 2.5°
