The Wheeltop EDS GeX RX7700-GS is a wireless electronic groupset developed for 1x gravel drivetrains. This version features carbon-fibre lever blades, an alloy-cage GeX rear derailleur and BR-RA7800 hydraulic disc brake callipers.

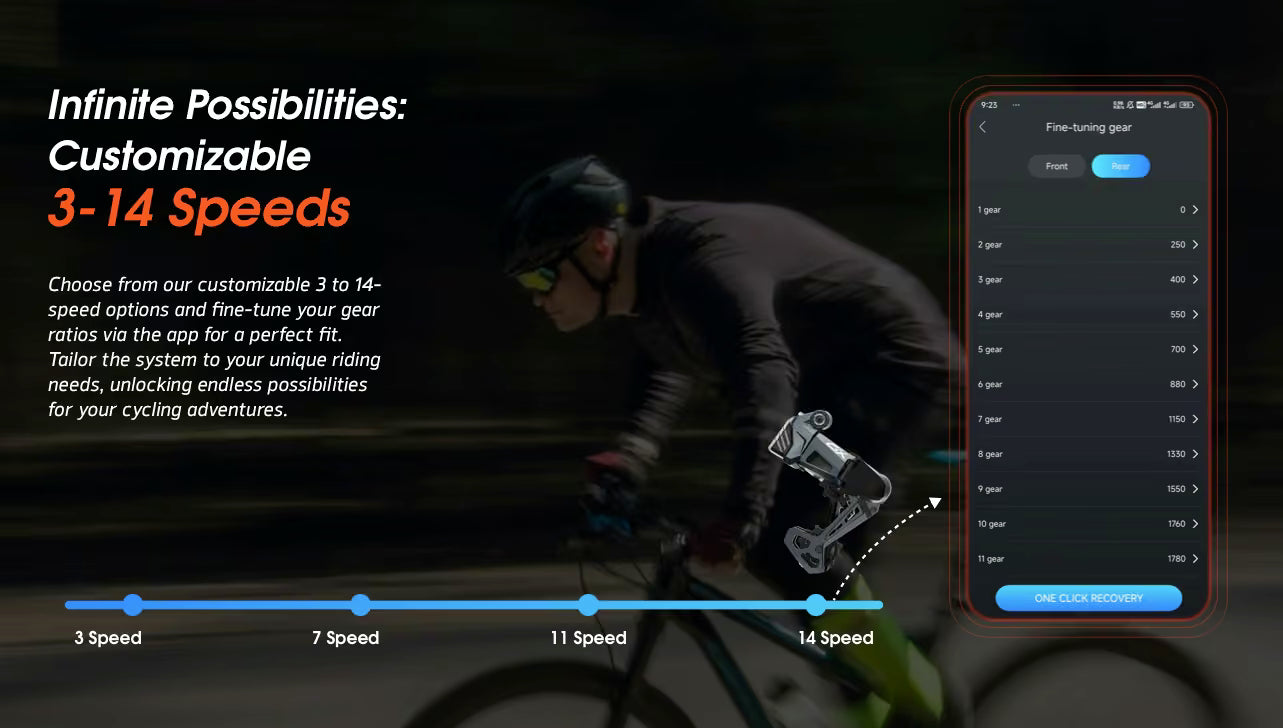

GeX can be configured for 3- to 14-speed cassettes through the Wheeltop app. Individual gear positions can be fine-tuned to suit the spacing of the selected cassette, providing flexibility when building a new bike or upgrading an existing drivetrain.
Wireless electronic shifting

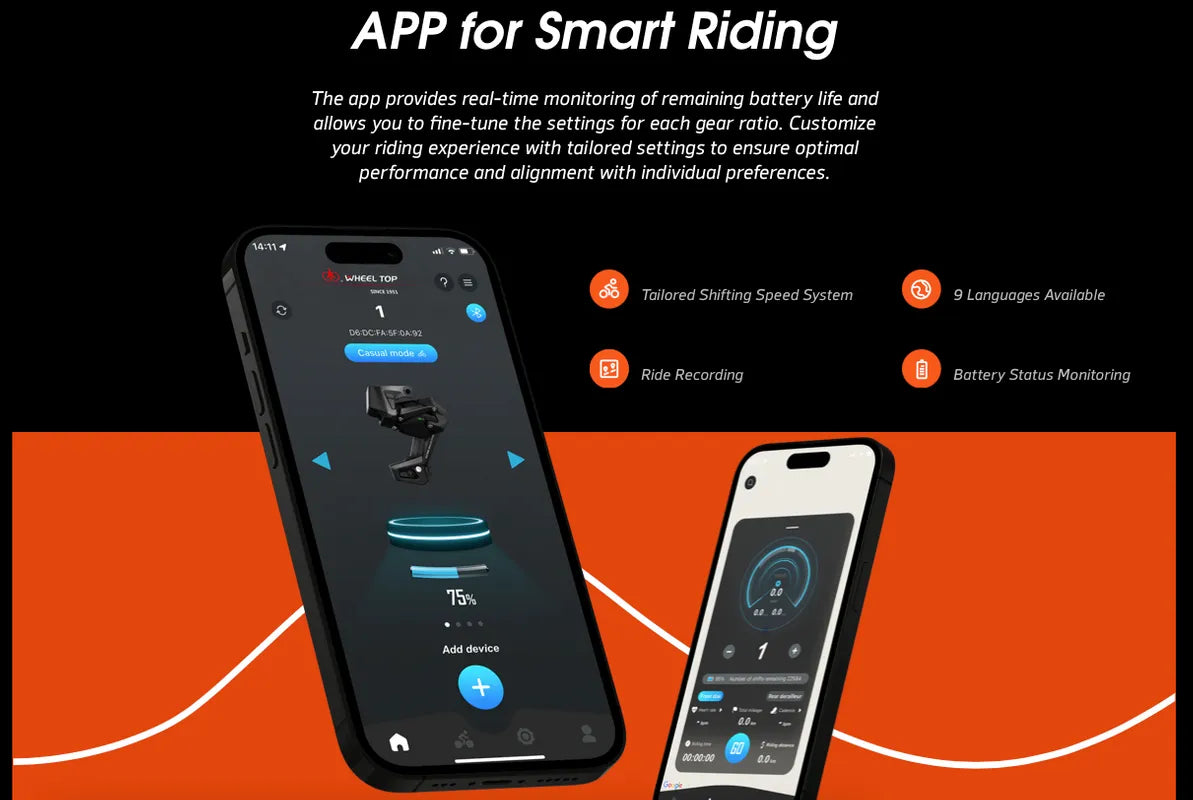

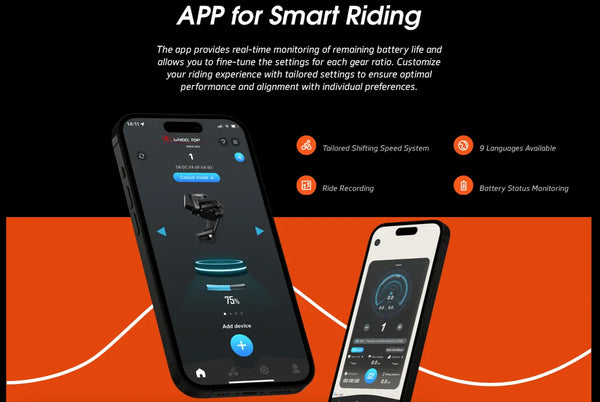

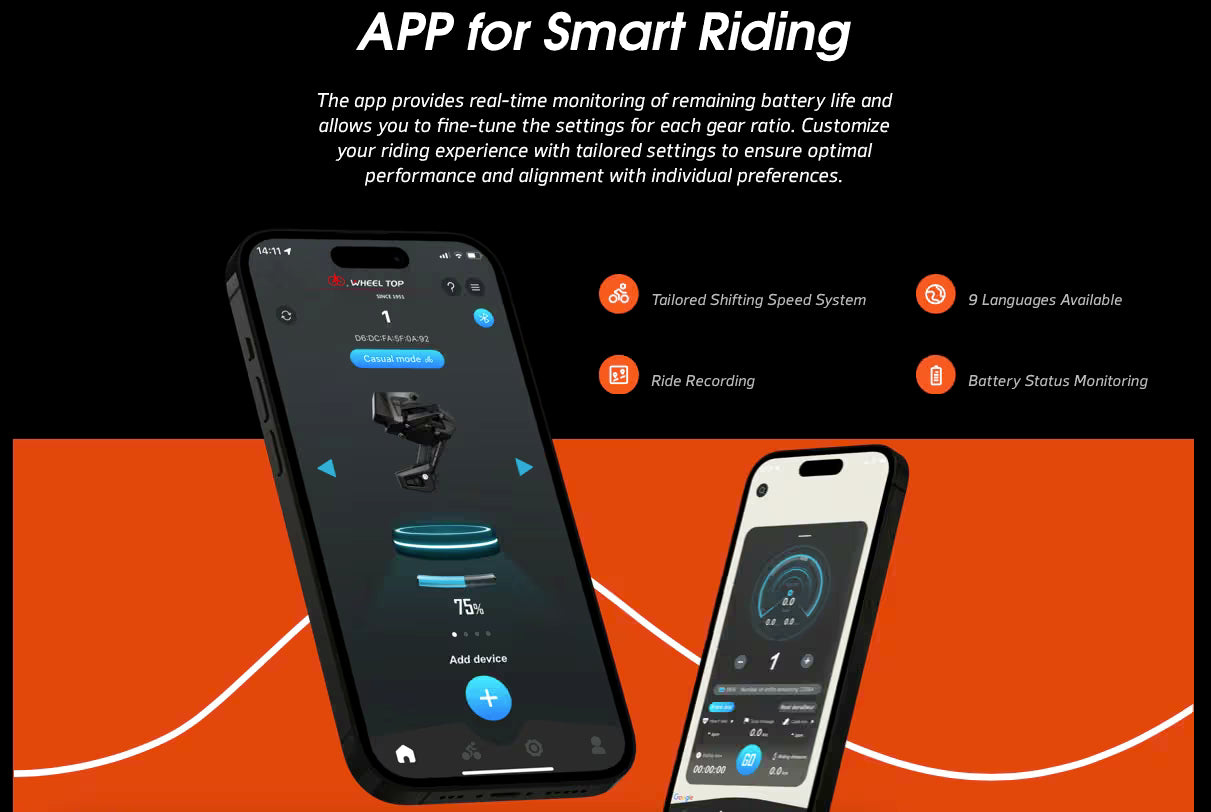

The wireless shifters communicate with the rear derailleur without gear cables. Shift settings, cassette configuration, derailleur adjustment and firmware updates are managed through the Wheeltop app. ANT+ connectivity also allows the system to communicate with compatible cycling computers.

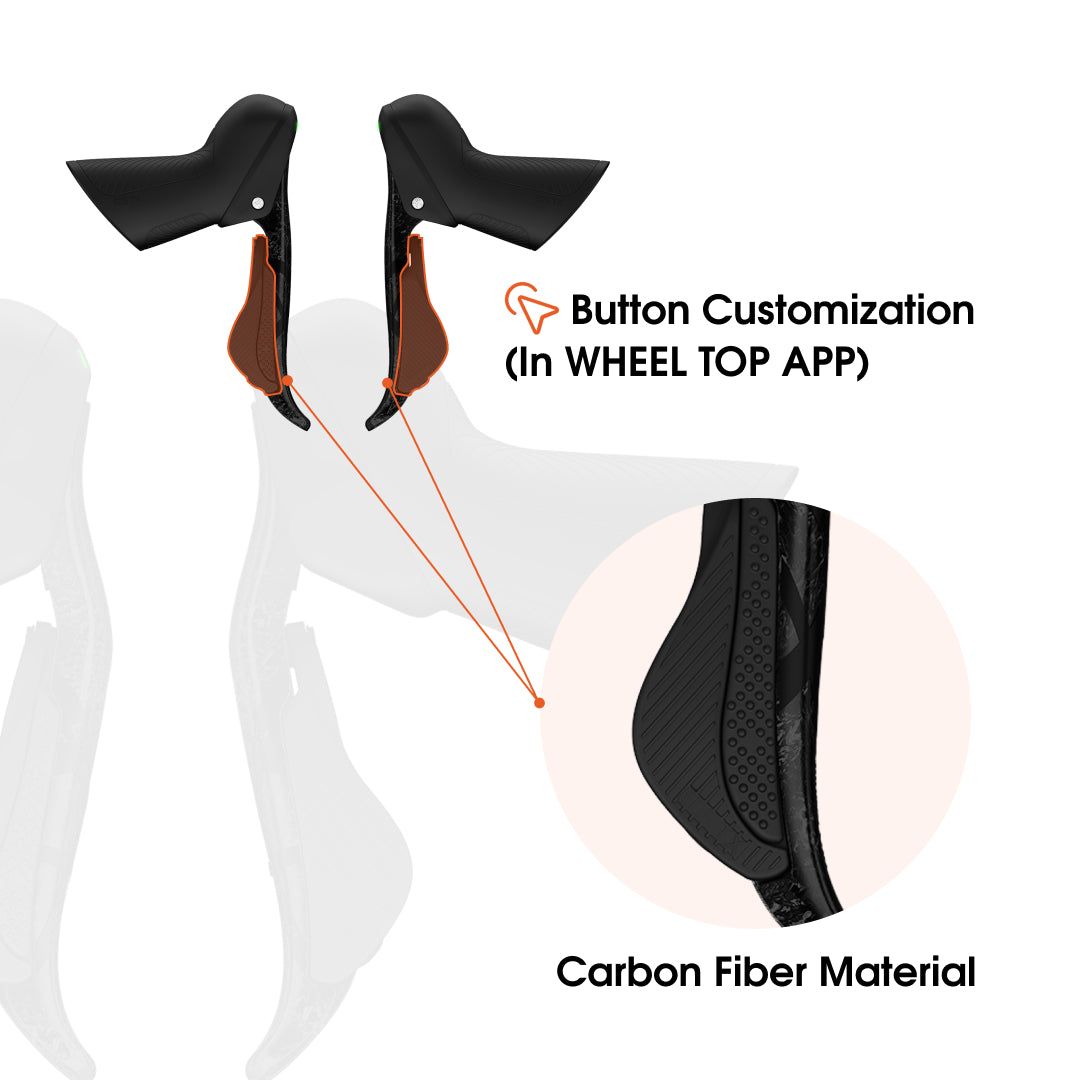

Carbon-fibre lever blades
The RX7700-GS version uses carbon-fibre lever blades for a lower-weight finish at the controls. The hydraulic shifters offer 8 mm of reach adjustment and use replaceable CR2032 batteries.

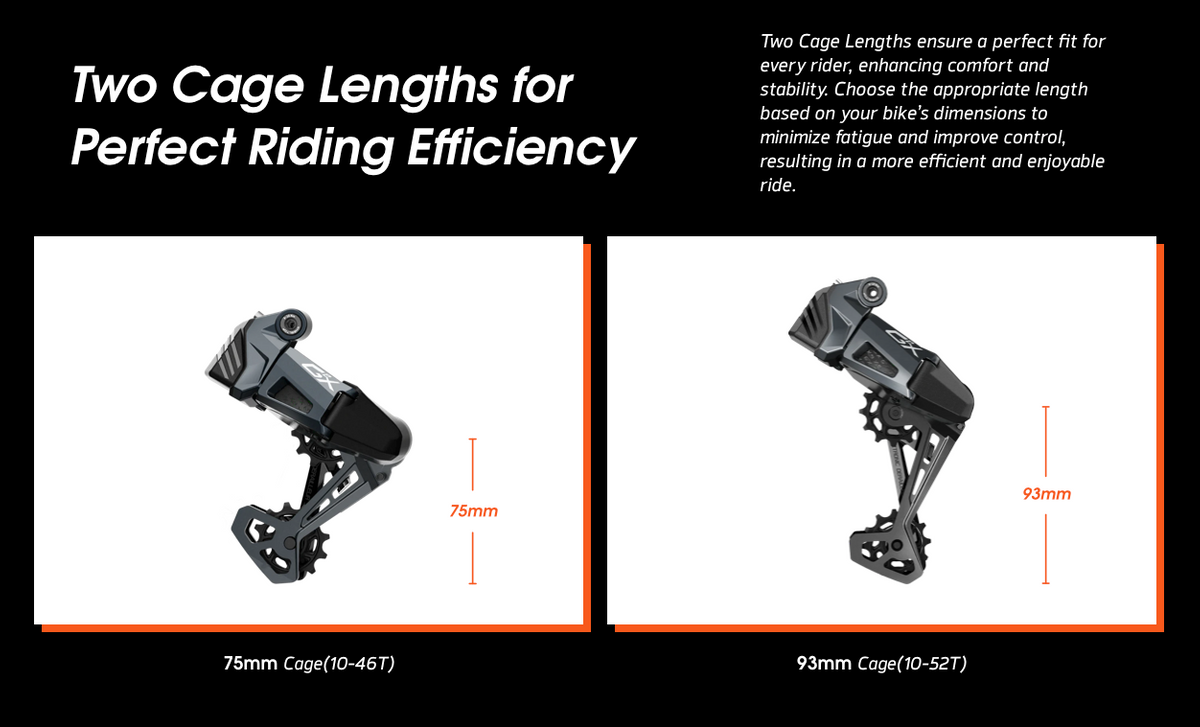

Two derailleur cage options

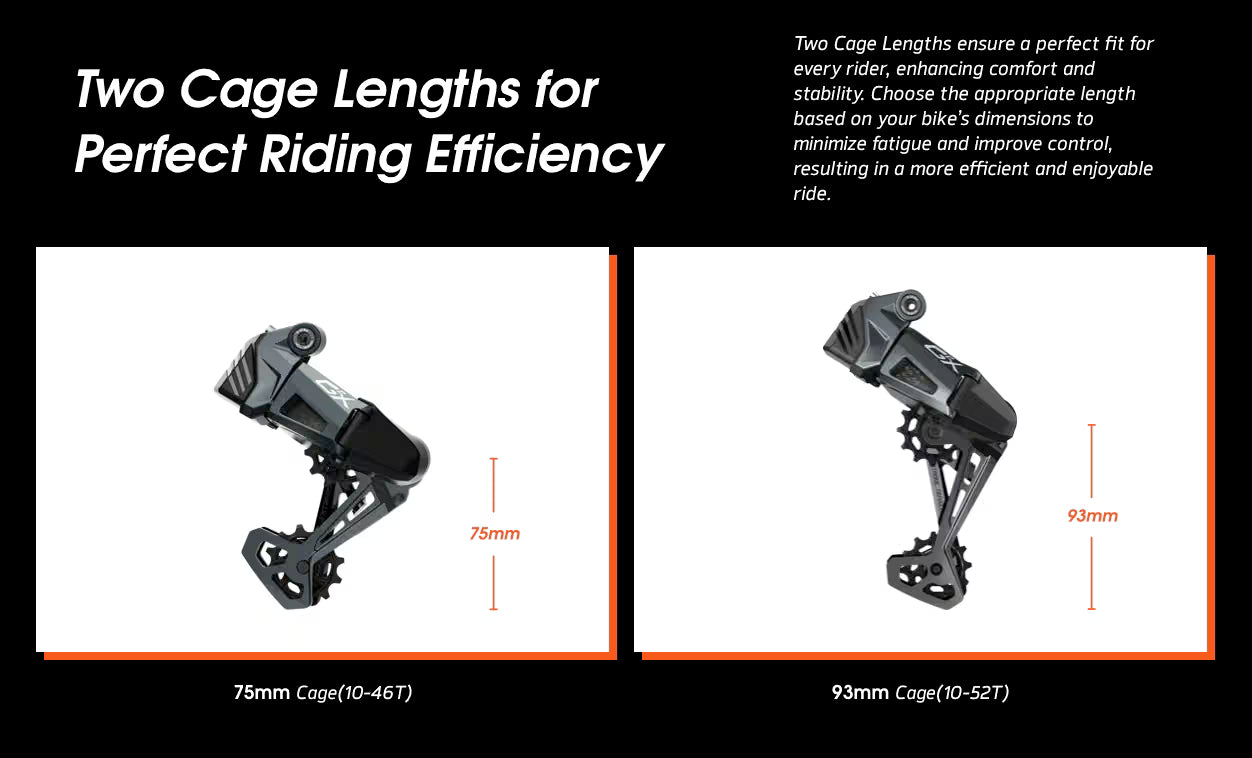

Short-cage and long-cage rear derailleur options are available as variants. The 75 mm short-cage derailleur supports cassettes up to 46T, while the 93 mm long-cage derailleur supports cassettes up to 52T.

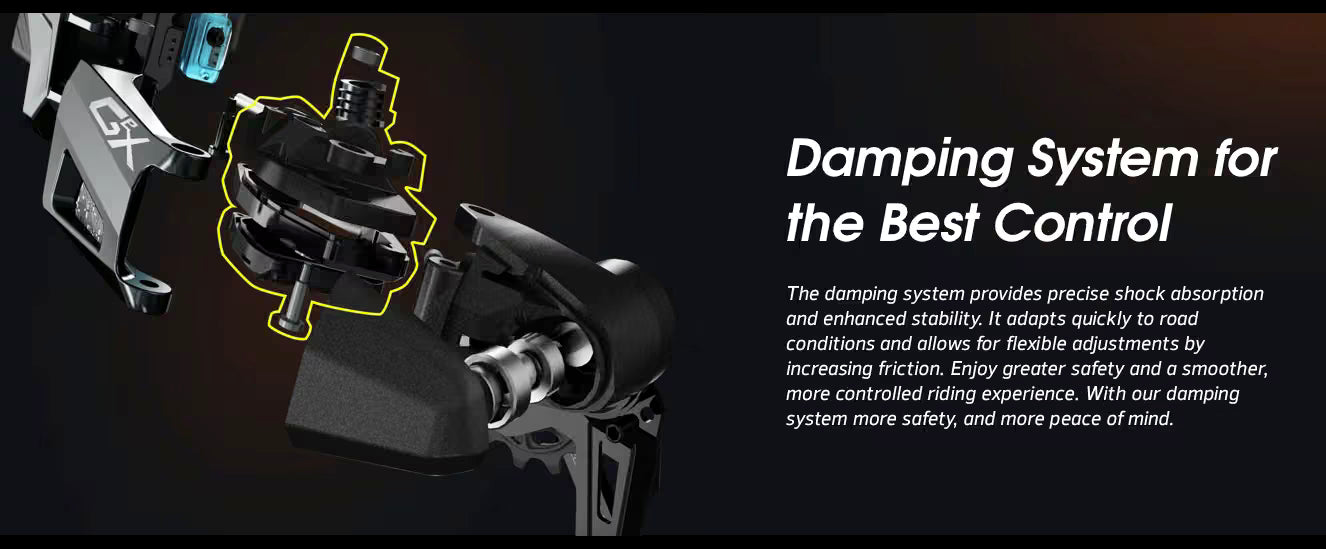

Both versions use an adjustable clutch damper to help control chain movement over rough surfaces. The derailleur has an 800 mAh rechargeable battery, an IP67 water and dust resistance rating and a stated battery capacity of approximately 20,000 shifts per charge.
BR-RA7800 hydraulic brakes

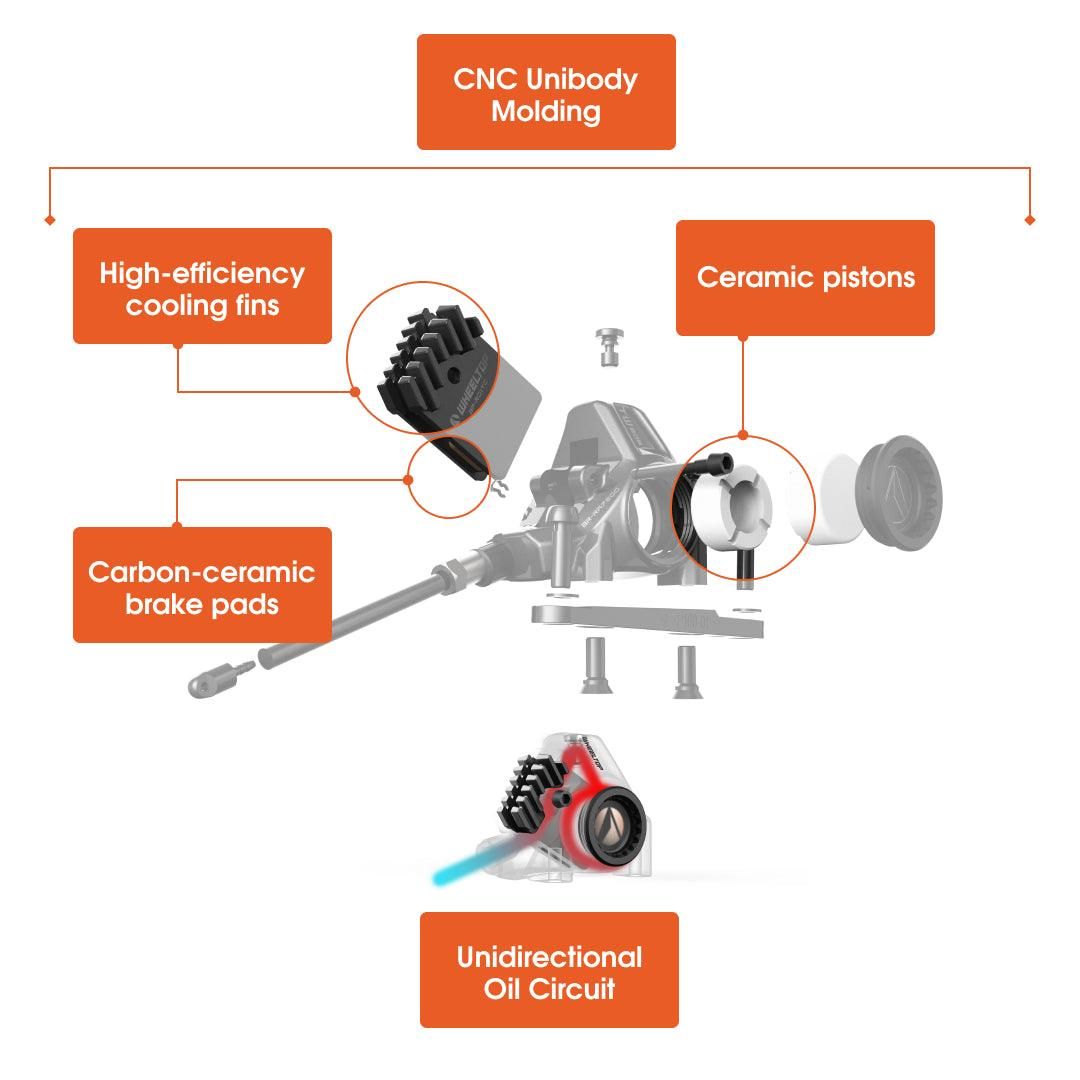

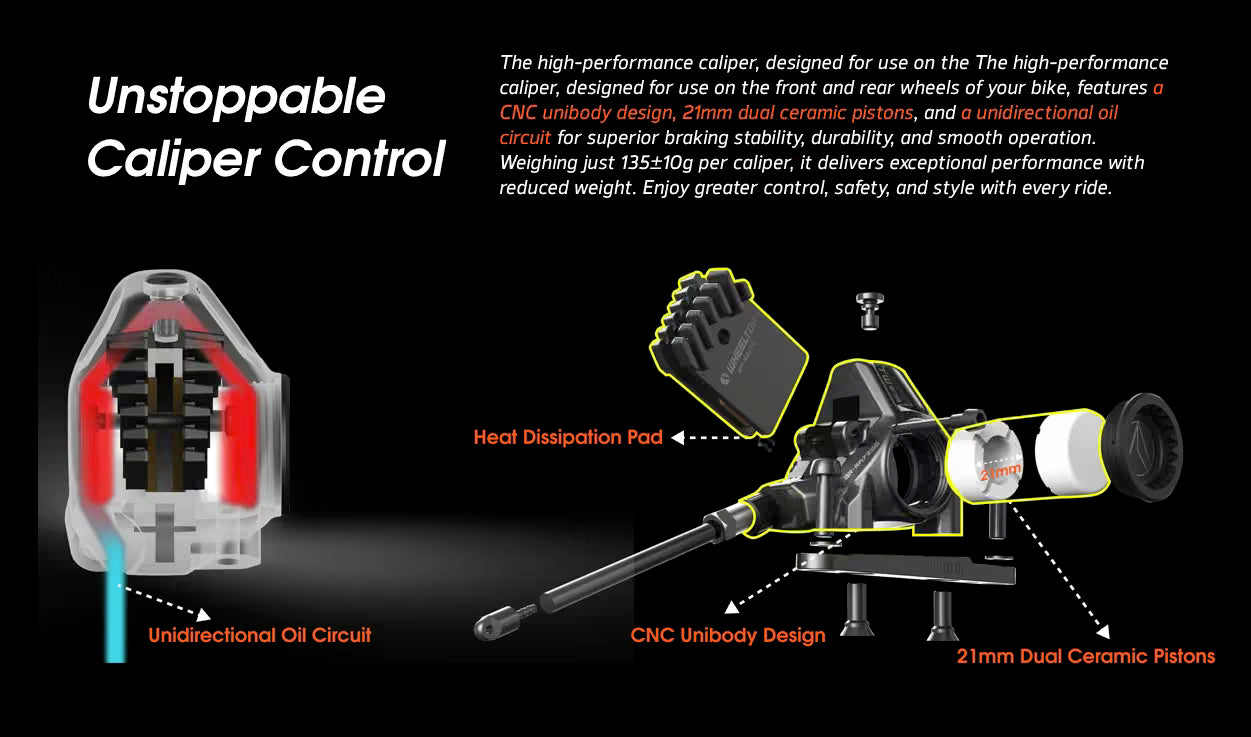

The included BR-RA7800 flat-mount callipers use a CNC-machined unibody construction, twin 21 mm ceramic pistons and mineral-oil hydraulic lines. They are compatible with 140 mm and 160 mm brake rotors.
Key features
- Wireless electronic shifting for 1x gravel drivetrains
- Configurable for 3- to 14-speed cassettes
- Carbon-fibre shifter lever blades
- Alloy rear derailleur cage
- 75 mm short-cage and 93 mm long-cage variants
- Compatible with cassettes up to 46T or 52T, depending on cage length
- App-based cassette setup and individual gear-position adjustment
- Adjustable rear derailleur clutch damper
- Bluetooth app connection and ANT+ connectivity
- BR-RA7800 flat-mount hydraulic brake callipers
- Mineral-oil braking system
Rear derailleur specifications
| Drivetrain configuration |
1x |
| Speed compatibility |
3 to 14-speed |
| Smallest cassette sprocket |
10T to 11T |
| 75 mm cage maximum sprocket |
46T |
| 93 mm cage maximum sprocket |
52T |
| 75 mm cage capacity |
36T |
| 93 mm cage capacity |
42T |
| 75 mm derailleur weight |
368 ± 2 g |
| 93 mm derailleur weight |
400 ± 5 g |
| Battery capacity |
800 mAh |
| Mounting |
Standard derailleur hanger; UDH option available |
| Water and dust resistance |
IP67 |
Shifter specifications
| Lever-blade material |
Carbon fibre |
| Reach adjustment |
8 mm |
| Battery type |
CR2032 |
| Water and dust resistance |
IP65 |
Brake specifications
| Calliper model |
BR-RA7800 |
| Brake fluid |
Mineral oil |
| Calliper mounting |
Flat mount |
| Rotor compatibility |
140 mm and 160 mm |
| Front calliper and hose weight |
135 ± 10 g |
| Rear calliper and hose weight |
170 ± 10 g |
| Front hose length |
900 mm |
| Rear hose length |
1550 mm |
| Brake pad compatibility |
Shimano L04C, L05A and L04A types, plus compatible equivalents |

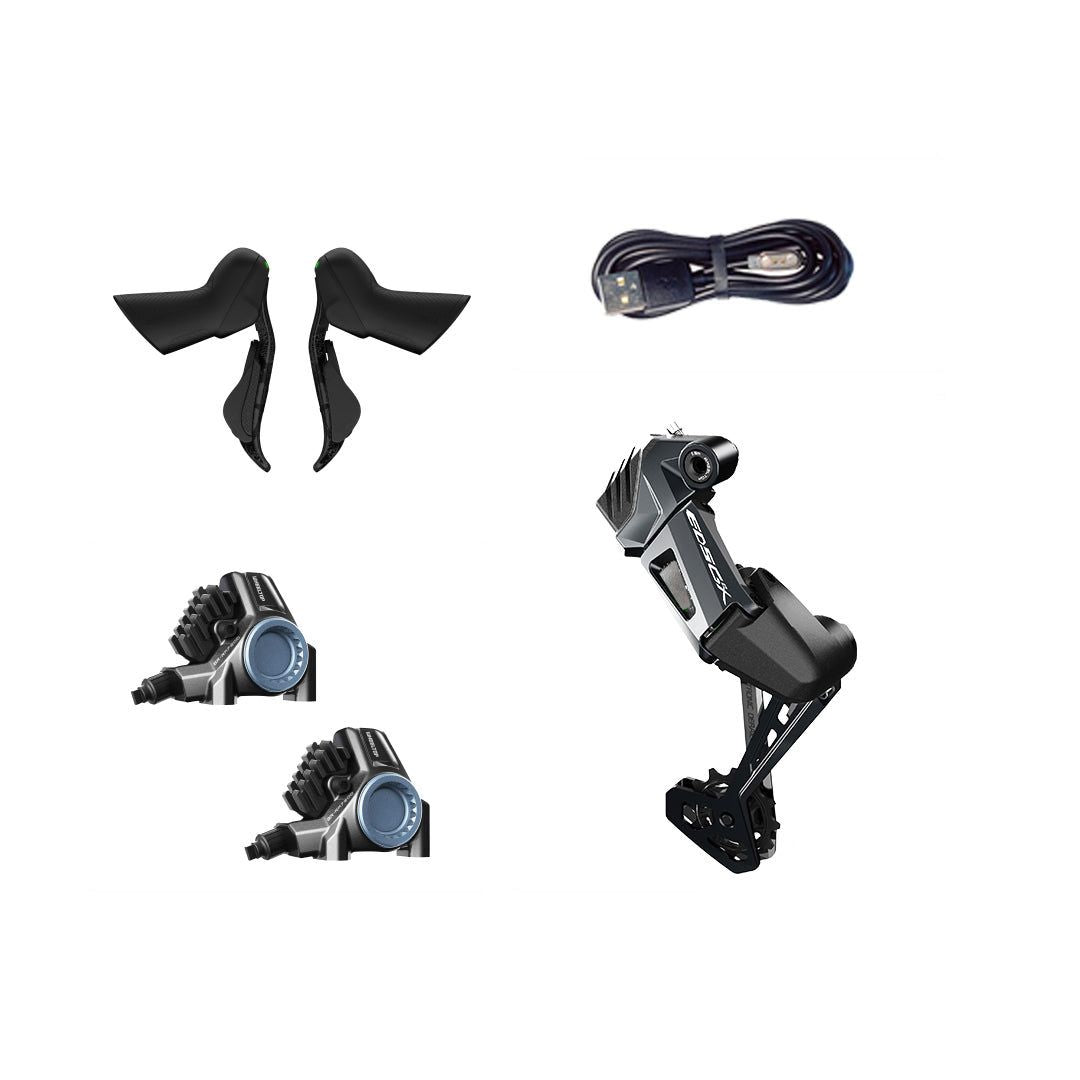

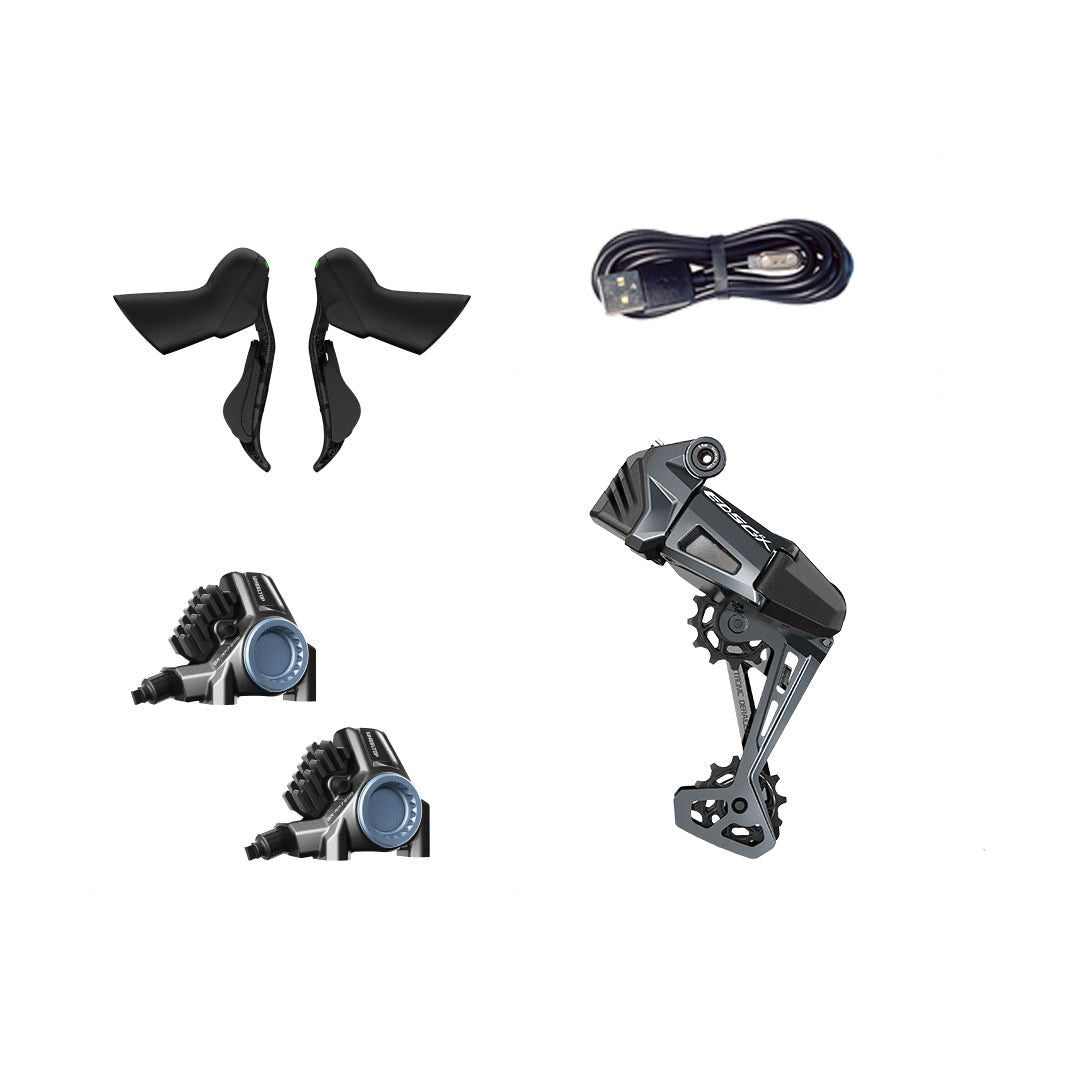

What’s in the box
- GeX alloy-cage rear derailleur in the selected cage length
- Two hydraulic shifters with carbon-fibre lever blades
- Two BR-RA7800 hydraulic disc brake callipers
- Front and rear hydraulic hoses
- USB-C charging cable
- Small-parts kit
- Instructions
