Wheeltop EDS Road TX Aluminium
- Price
- $1,239.90
The Wheeltop EDS TX RA7100-GS is a wireless electronic groupset for 2x road drivetrains. This version combines aluminium shifter lever blades and an aluminium rear derailleur with a dedicated electronic front derailleur and BR-RA7800 hydraulic disc brake callipers.
The rear derailleur can be configured for 3- to 14-speed cassettes through the Wheeltop app. Individual gear positions can be fine-tuned to match the spacing of the selected cassette, allowing the system to work with a range of 2x road drivetrain configurations.
Wireless electronic shifting
The shifters communicate wirelessly with the front and rear derailleurs, removing the need for mechanical gear cables. Bluetooth is used for setup and adjustment through the Wheeltop app, while ANT+ connectivity allows integration with compatible cycling computers.
Aluminium construction
The RA7100-GS version uses aluminium shifter lever blades and an aluminium rear derailleur. The hydraulic brake levers have an 8 mm reach-adjustment range and use replaceable CR2032 batteries.
Configurable cassette compatibility
Cassette speed, initial calibration and individual gear positions are configured through the Wheeltop app. The rear derailleur supports cassettes with a 10T or 11T smallest sprocket and a maximum sprocket between 30T and 36T.
The included braze-on front derailleur is designed for 2x chainring combinations. It supports an outer chainring up to 53T and a maximum 16T difference between the inner and outer chainrings.
Integrated rechargeable batteries
The rear derailleur contains an 800 mAh rechargeable battery, while the front derailleur uses a 500 mAh battery. The system provides approximately 20,000 shifts per charge and is rated for up to 800 charging cycles.

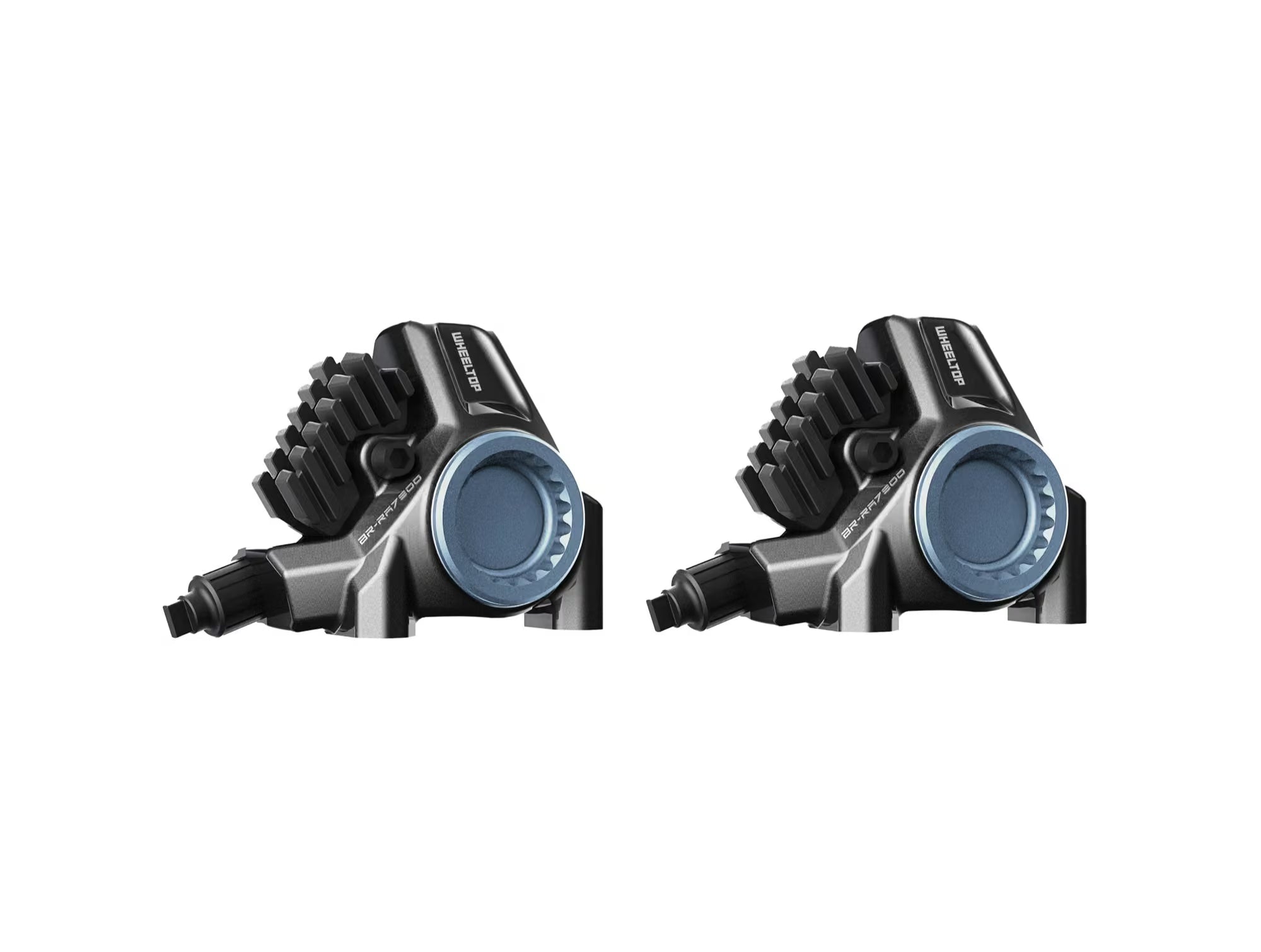

BR-RA7800 hydraulic brakes

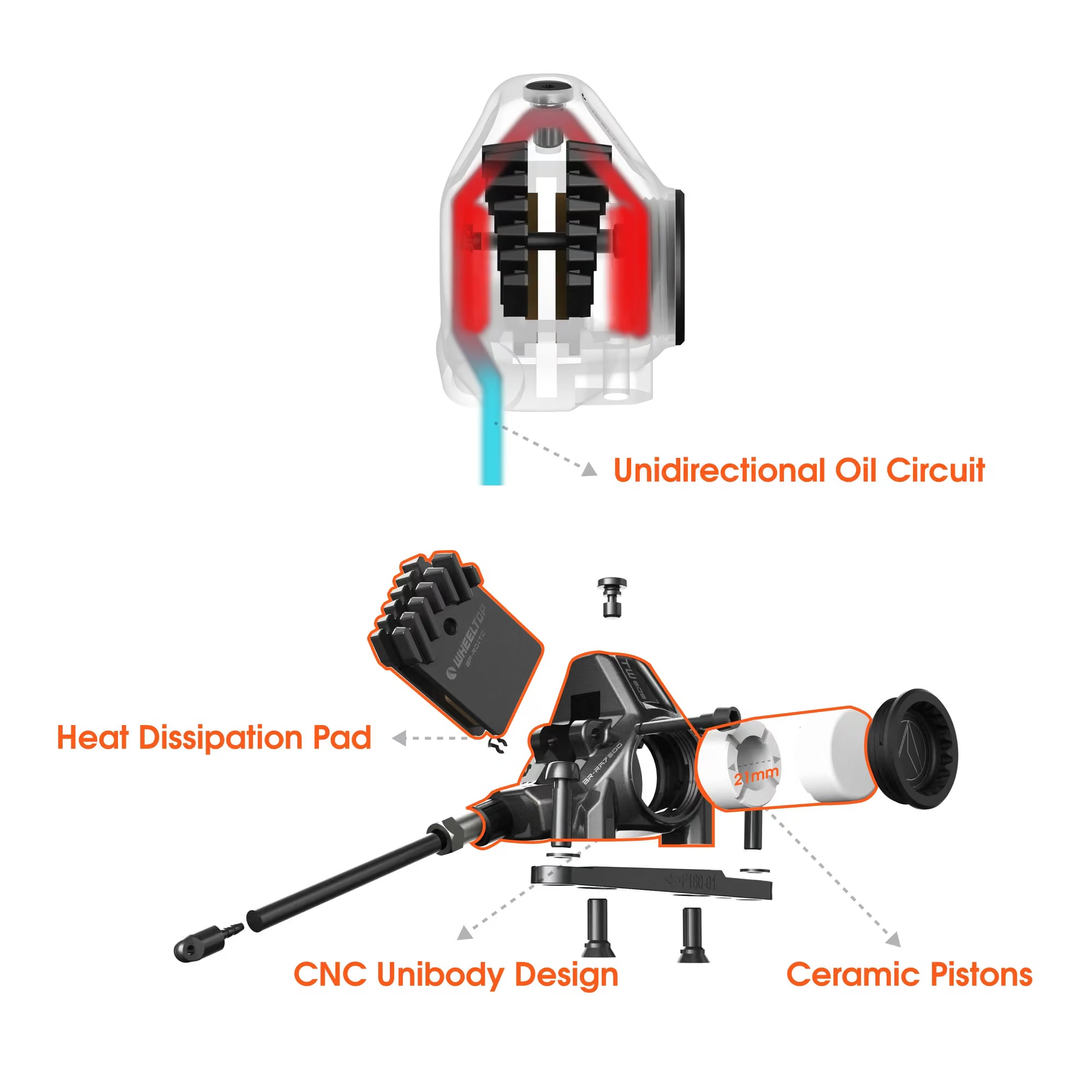

The included BR-RA7800 flat-mount callipers use a CNC-machined unibody construction, twin 21 mm ceramic pistons and mineral-oil hydraulic lines. They are compatible with 140 mm and 160 mm brake rotors.
Key features
- Wireless electronic shifting for 2x road drivetrains
- Configurable for 3- to 14-speed cassettes
- Aluminium shifter lever blades
- Aluminium rear derailleur construction
- Dedicated electronic front derailleur included
- App-based cassette setup and individual gear-position adjustment
- Bluetooth and ANT+ connectivity
- Maximum rear sprocket size of 36T
- Compatible with outer chainrings up to 53T
- Maximum 16T difference between front chainrings
- BR-RA7800 flat-mount hydraulic brake callipers
- Mineral-oil braking system
- IP67-rated front and rear derailleurs
- IP65-rated hydraulic shifters
Rear derailleur specifications
| Model | TX-RA7100-GS |
|---|---|
| Material | Aluminium |
| Drivetrain configuration | 2x |
| Speed compatibility | 3 to 14-speed cassettes |
| Smallest cassette sprocket | 10T to 11T |
| Maximum cassette sprocket | 30T to 36T |
| Total capacity | 36T |
| Battery capacity | 800 mAh |
| Water and dust resistance | IP67 |
Front derailleur specifications
| Drivetrain configuration | 2x |
|---|---|
| Maximum outer chainring | 53T |
| Maximum chainring difference | 16T |
| Chainstay angle | 61° to 66° |
| Mounting | Braze-on |
| Weight | 191 ± 5 g |
| Battery capacity | 500 mAh |
| Water and dust resistance | IP67 |
Shifter specifications
| Lever-blade material | Aluminium |
|---|---|
| Brake lever length | 140 mm |
| Reach adjustment | Up to 8 mm |
| Battery type | CR2032 |
| Shift functions | Left shifter controls the 2x front derailleur; right shifter controls the 3- to 14-speed rear derailleur |
| Water and dust resistance | IP65 |
Brake specifications
| Calliper model | BR-RA7800 |
|---|---|
| Brake fluid | Mineral oil |
| Calliper mounting | Flat mount |
| Rotor compatibility | 140 mm and 160 mm |
| Front calliper and hose weight | 135 ± 10 g |
| Rear calliper and hose weight | 170 ± 10 g |
| Front hose length | 900 mm |
| Rear hose length | 1550 mm |
| Brake pad compatibility | Shimano L04C, L05A and L04A types, plus compatible equivalents |

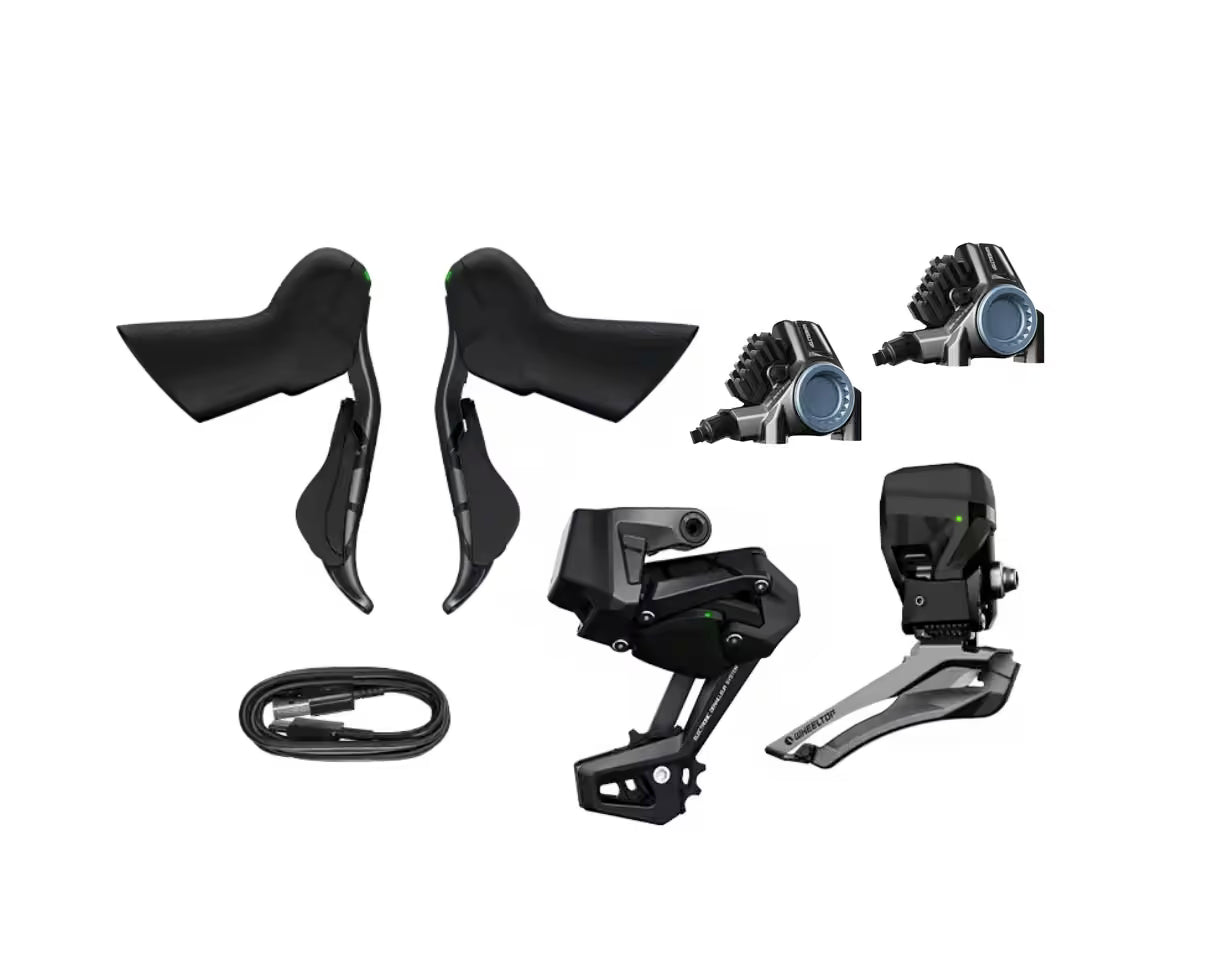

What’s in the box
- TX aluminium rear derailleur
- TX electronic front derailleur
- Two hydraulic shifters with aluminium lever blades
- Two BR-RA7800 hydraulic disc brake callipers
- Front and rear hydraulic hoses
- USB-C charging cable
- USB-C to USB-A adapter
- Small-parts kit
- Instructions
