The Wheeltop EDS TX RA7000-GS is a wireless electronic groupset for 2x road drivetrains. It combines carbon-fibre shifter lever blades and carbon-fibre rear derailleur components with a dedicated electronic front derailleur and BR-RA7800 hydraulic disc brake callipers.
The rear derailleur can be configured for 3- to 14-speed cassettes through the Wheeltop app. Individual gear positions can be fine-tuned to match the spacing of the selected cassette, allowing the system to work with a range of 2x road drivetrain configurations.
Wireless electronic shifting
The shifters communicate wirelessly with the front and rear derailleurs, removing the need for mechanical gear cables. Bluetooth is used for setup and adjustment through the Wheeltop app, while ANT+ connectivity allows integration with compatible cycling computers.
Carbon-fibre components

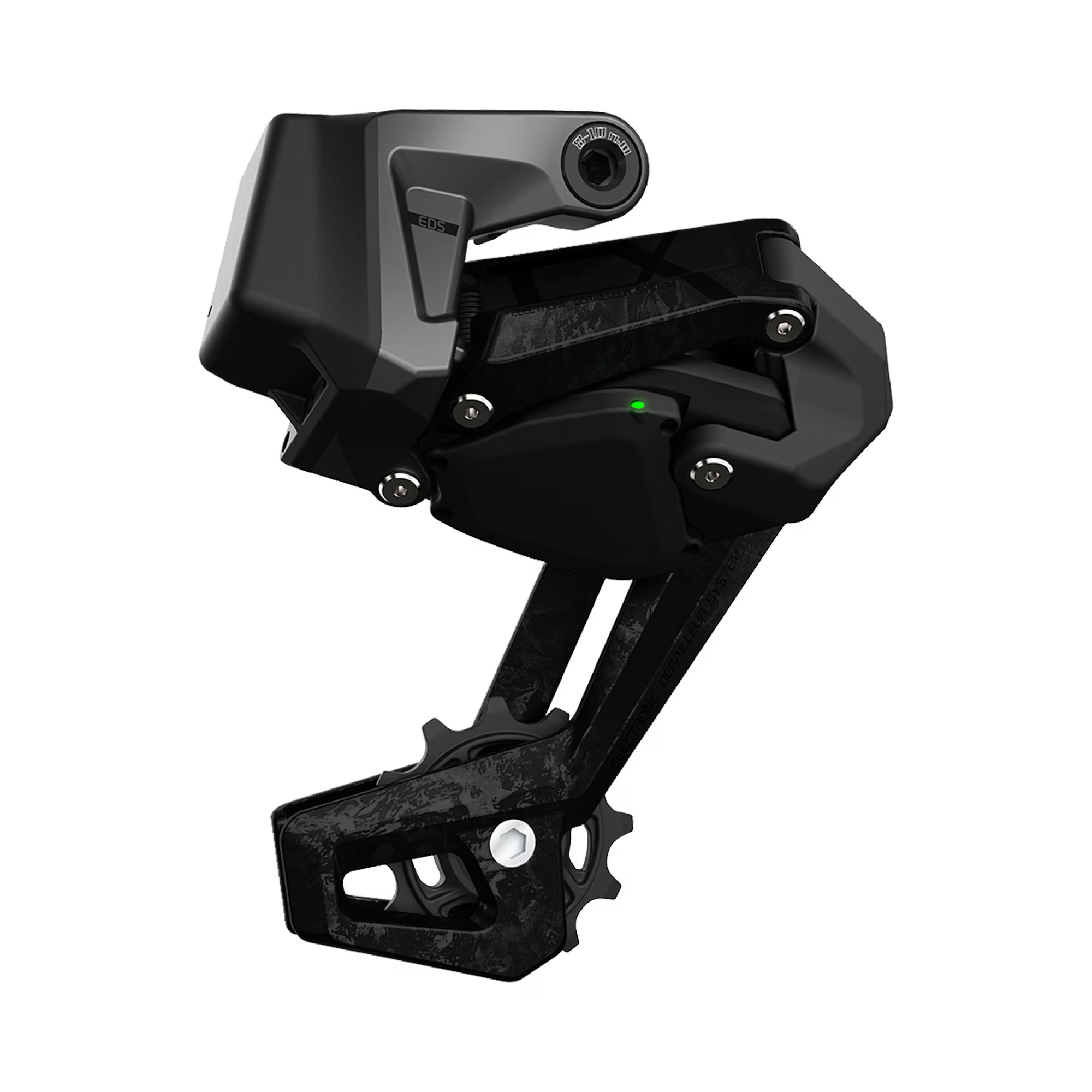

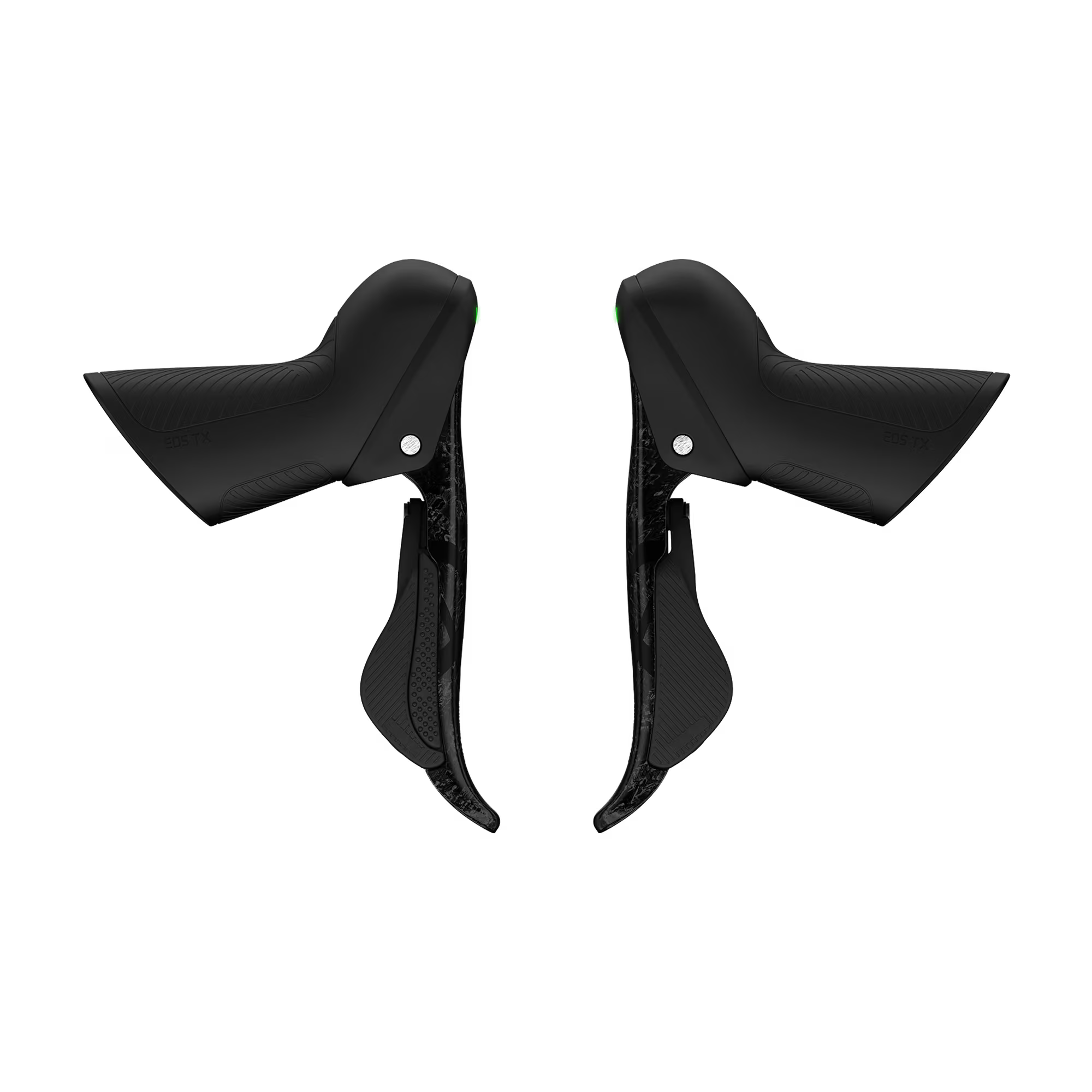

The RA7000-GS version uses carbon-fibre shifter lever blades and carbon-fibre components in the rear derailleur to reduce weight. The hydraulic brake levers have an 8 mm reach-adjustment range and use replaceable CR2032 batteries.
Configurable cassette compatibility
Cassette speed, initial calibration and individual gear positions are configured through the Wheeltop app. The rear derailleur supports cassettes with a 10T or 11T smallest sprocket and a maximum sprocket between 30T and 36T.

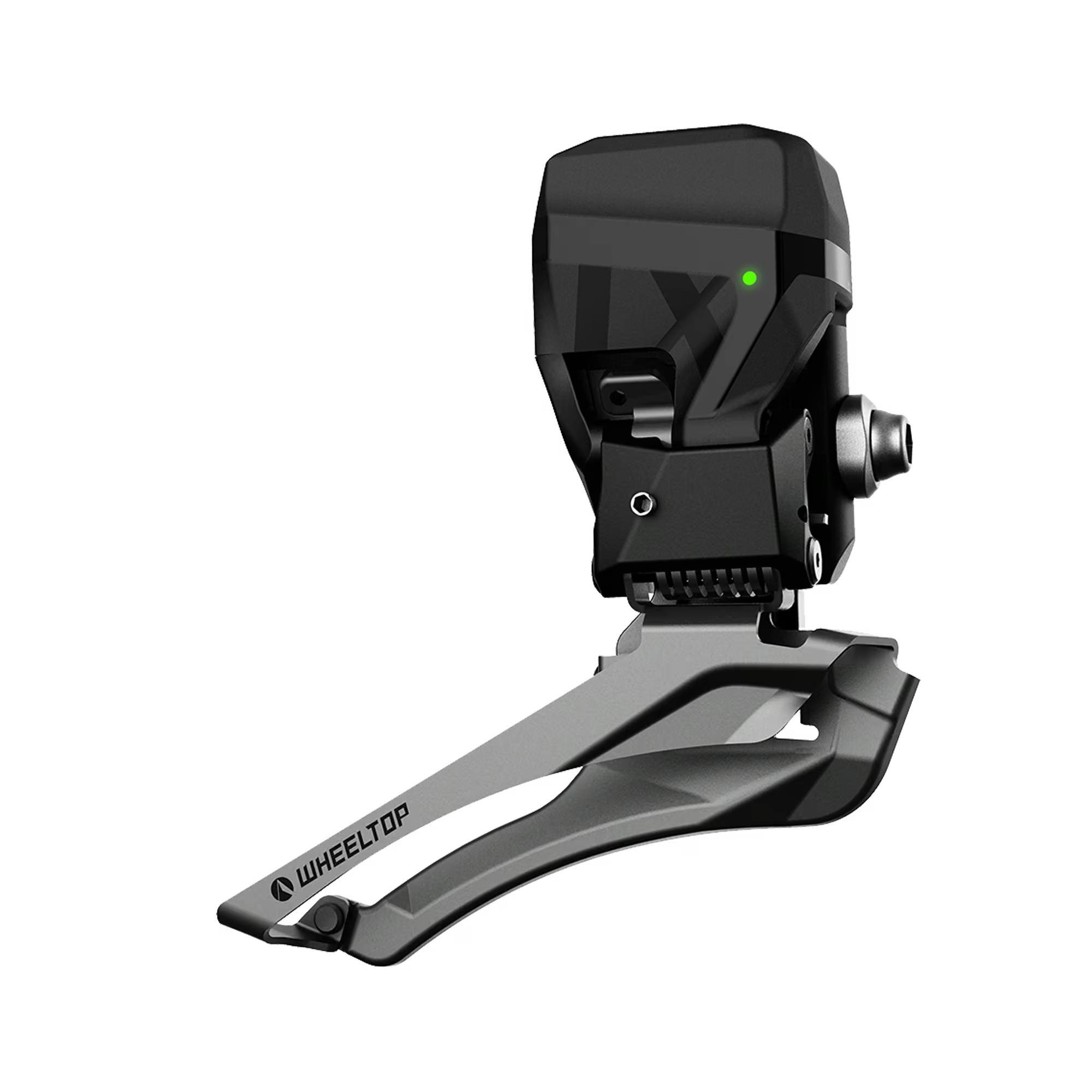

The included braze-on front derailleur is designed for 2x chainring combinations. It supports an outer chainring up to 53T and a maximum 16T difference between the inner and outer chainrings.
Integrated rechargeable batteries
The rear derailleur contains an 800 mAh rechargeable battery, while the front derailleur uses a 500 mAh battery. The system provides approximately 20,000 shifts per charge and is rated for up to 800 charging cycles.
BR-RA7800 hydraulic brakes

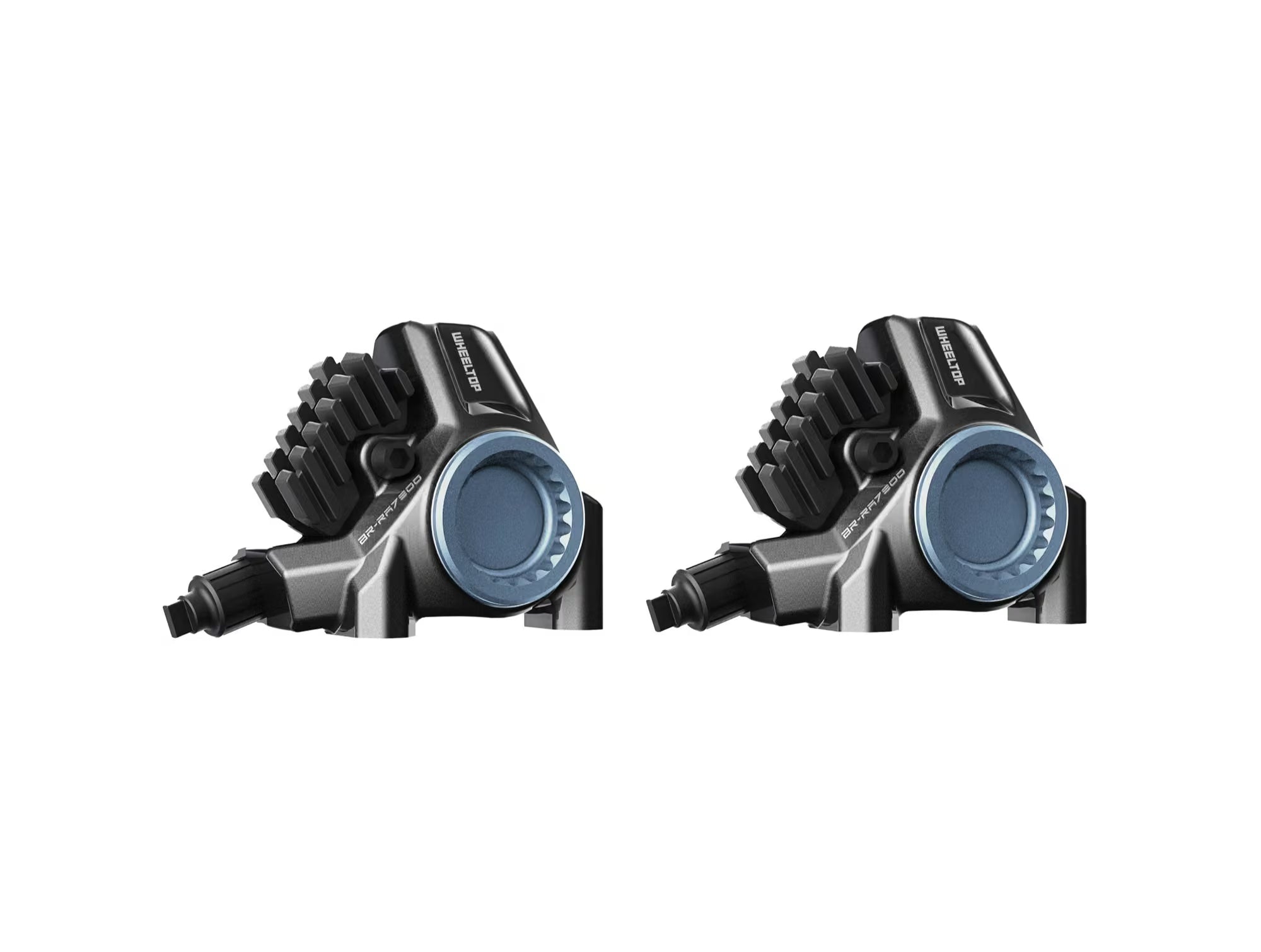

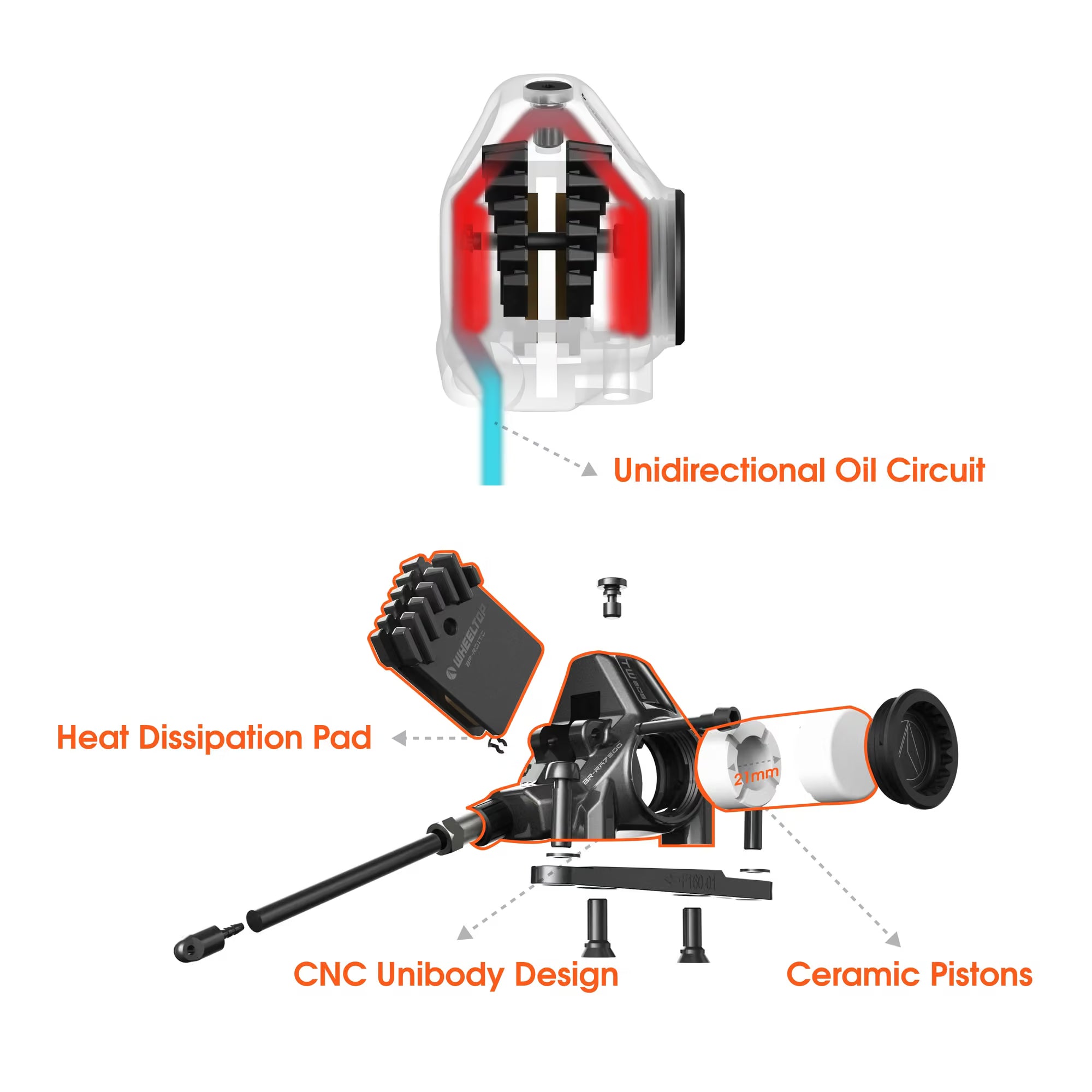

The included BR-RA7800 flat-mount callipers use a CNC-machined unibody construction, twin 21 mm ceramic pistons and mineral-oil hydraulic lines. They are compatible with 140 mm and 160 mm brake rotors.
Key features
Wireless electronic shifting for 2x road drivetrains
Configurable for 3- to 14-speed cassettes
Carbon-fibre shifter lever blades
Carbon-fibre rear derailleur components
Dedicated electronic front derailleur included
App-based cassette setup and individual gear-position adjustment
Bluetooth and ANT+ connectivity
Maximum rear sprocket size of 36T
Compatible with outer chainrings up to 53T
Maximum 16T difference between front chainrings
BR-RA7800 flat-mount hydraulic brake callipers
Mineral-oil braking system
IP67-rated front and rear derailleurs
IP65-rated hydraulic shifters

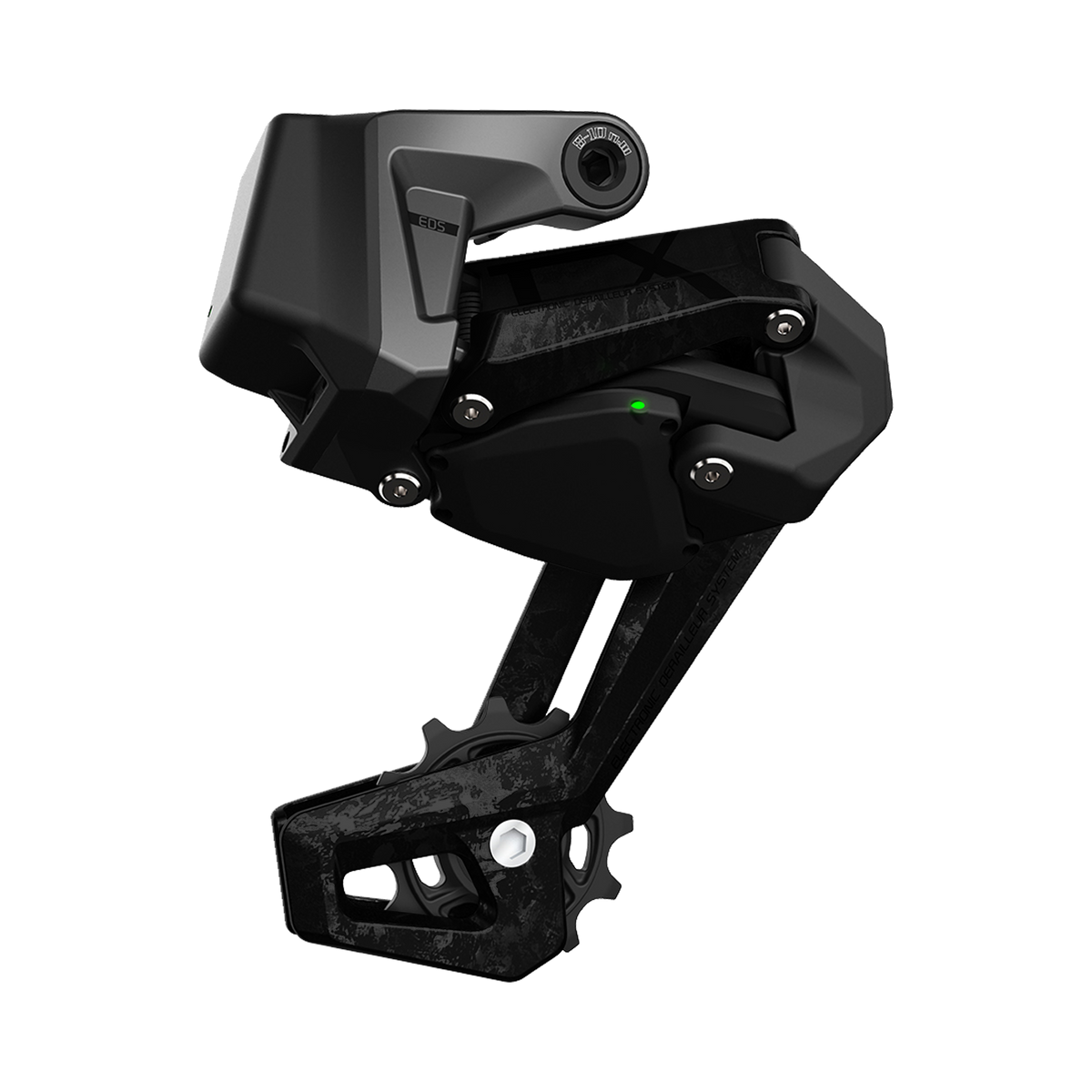

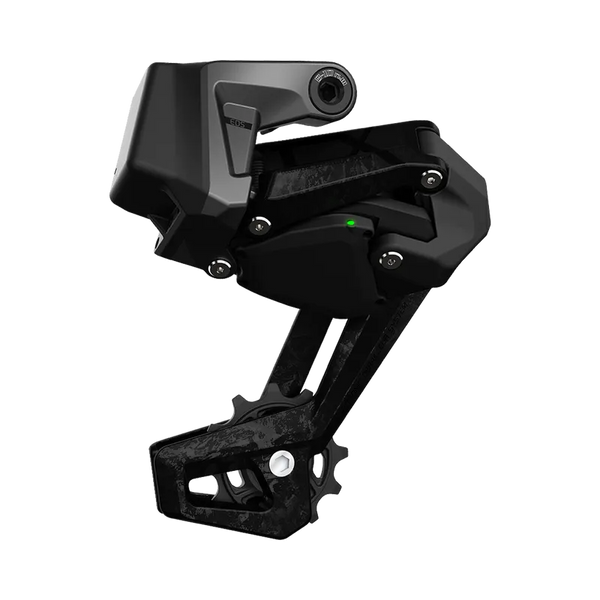

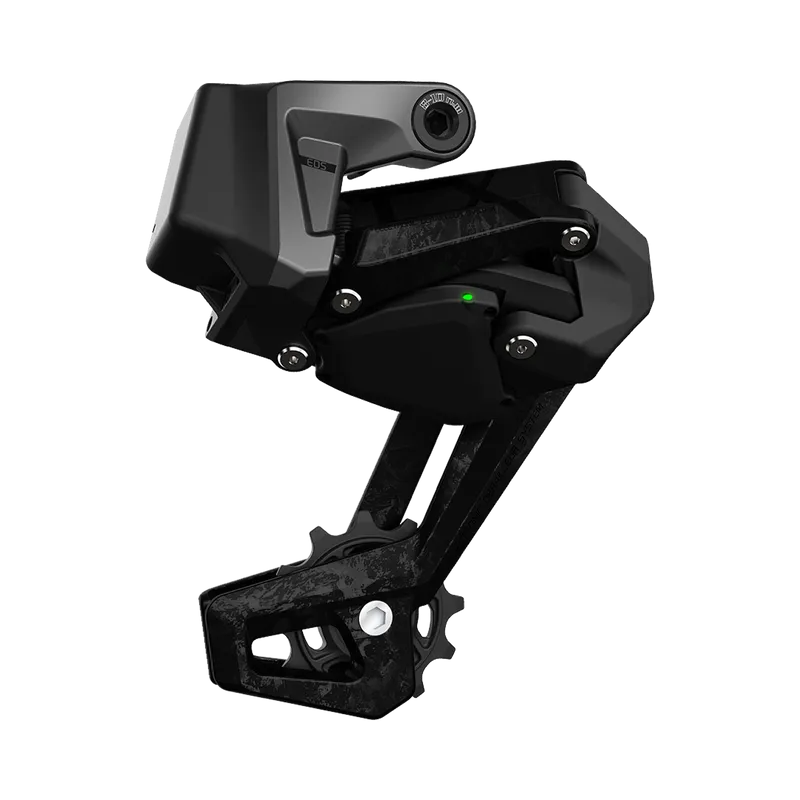

Rear derailleur specifications
Model
TX-RA7000-GS
Drivetrain configuration
2x
Cassette compatibility
3 to 14-speed
Smallest cassette sprocket
10T to 11T
Maximum cassette sprocket
30T to 36T
Total capacity
36T
Weight
336 ± 5 g
Battery capacity
800 mAh
Water and dust resistance
IP67

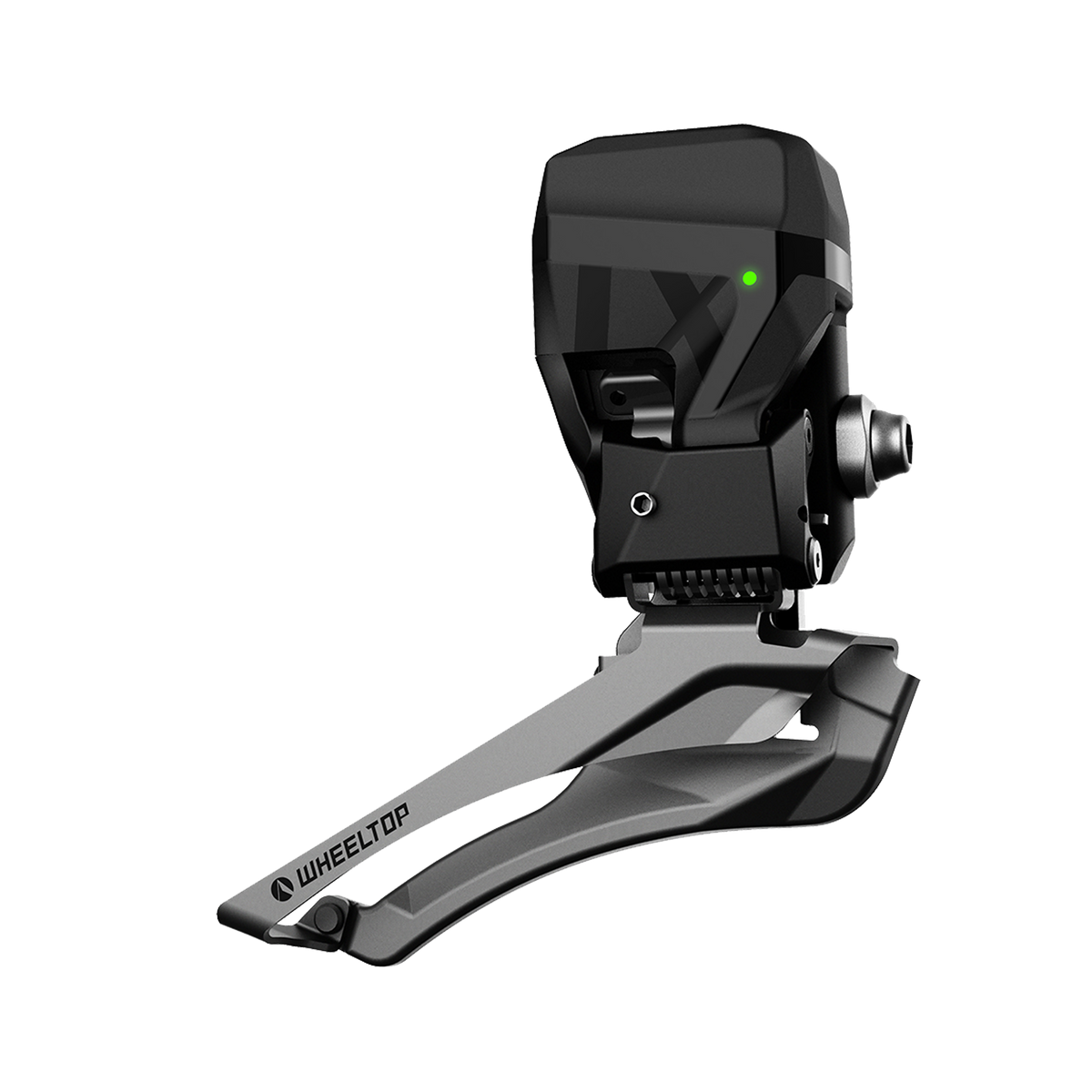

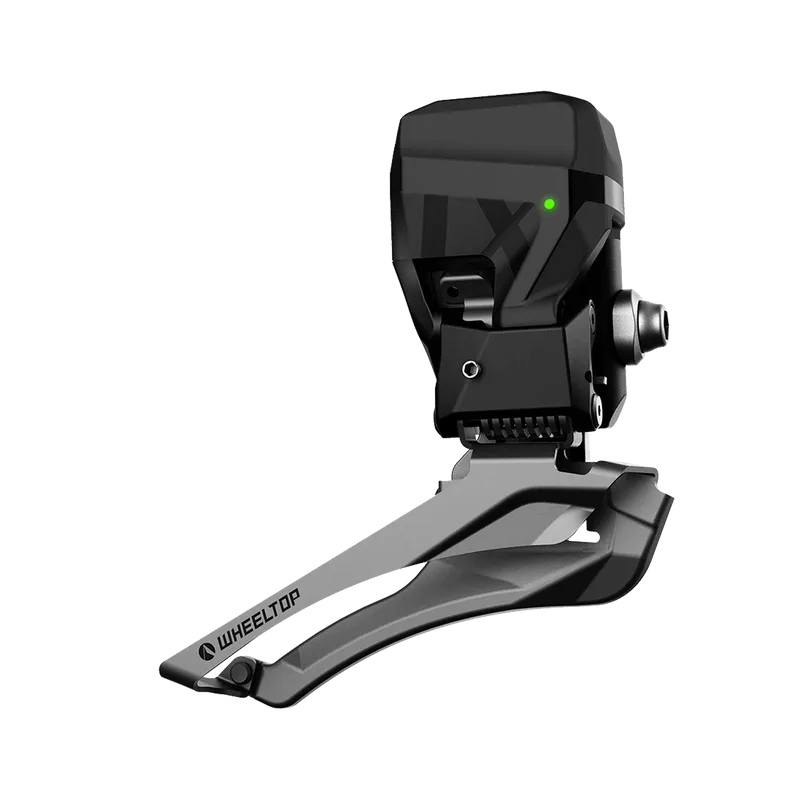

Front derailleur specifications
Drivetrain configuration
2x
Maximum outer chainring
53T
Maximum chainring difference
16T
Chainstay angle
61° to 66°
Mounting
Braze-on
Weight
191 ± 5 g
Battery capacity
500 mAh
Water and dust resistance
IP67

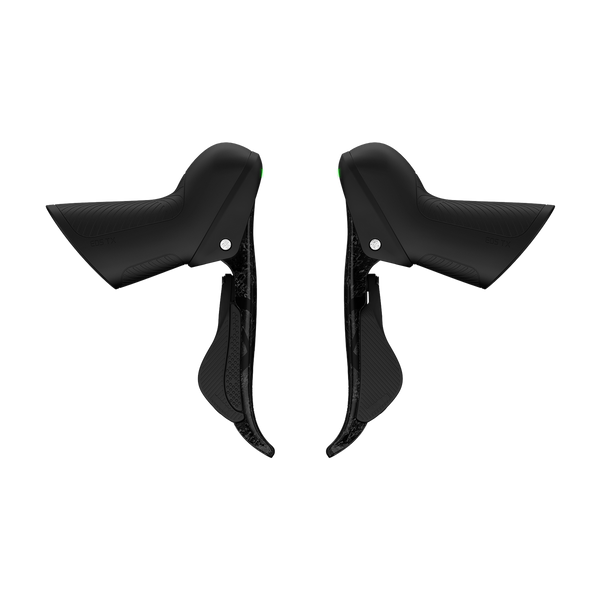

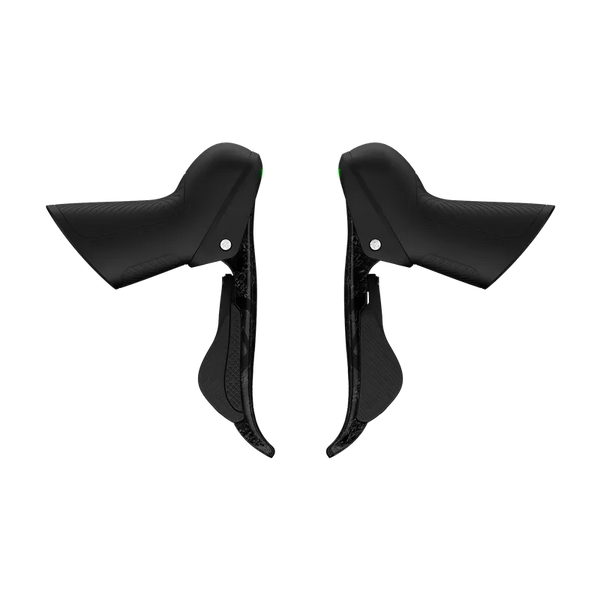

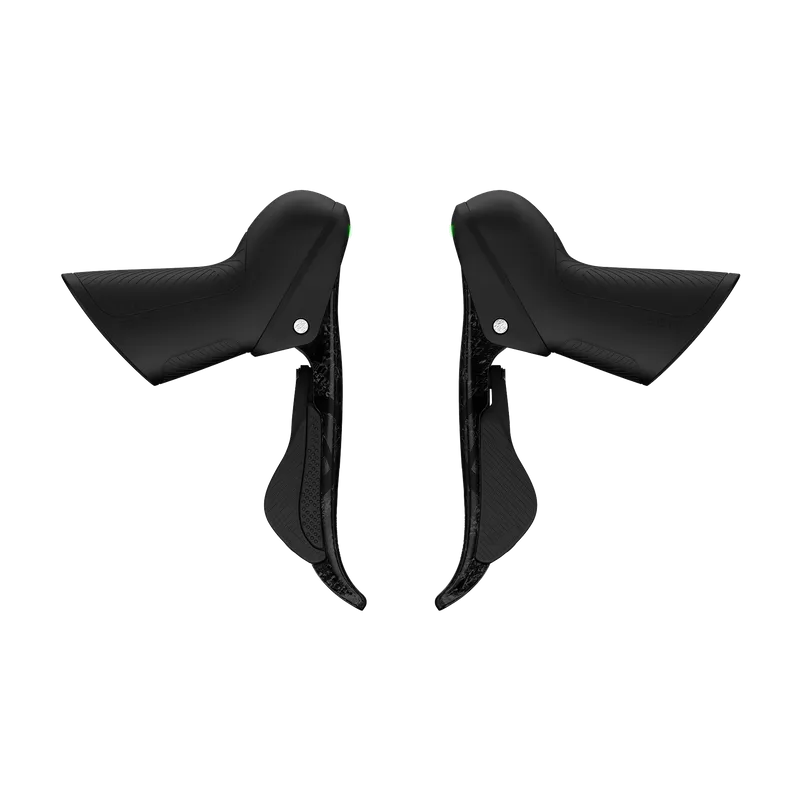

Shifter specifications
Lever-blade material
Carbon fibre
Brake lever length
140 mm
Reach adjustment
Up to 8 mm
Battery type
CR2032
Left shifter weight
223 ± 5 g
Right shifter weight
223 ± 5 g
Shift functions
Left shifter controls the 2x front derailleur; right shifter controls the rear derailleur
Water and dust resistance
IP65
Brake specifications
Calliper model
BR-RA7800
Brake fluid
Mineral oil
Calliper mounting
Flat mount
Rotor compatibility
140 mm and 160 mm
Front calliper and hose weight
135 ± 10 g
Rear calliper and hose weight
170 ± 10 g
Front hose length
900 mm
Rear hose length
1550 mm
Brake pad compatibility
Shimano L04C, L05A and L04A types, plus compatible equivalents

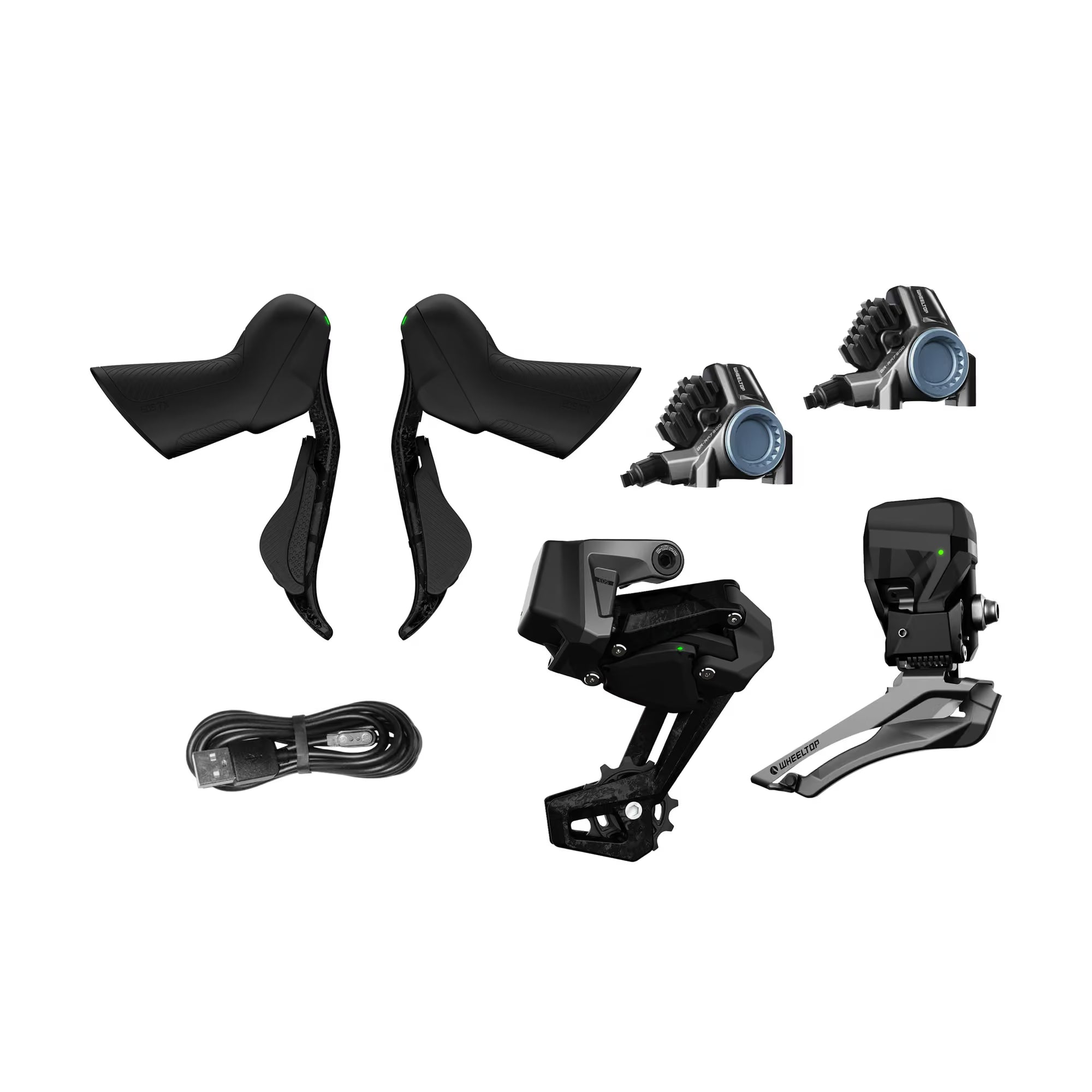

What’s in the box
TX carbon rear derailleur
TX electronic front derailleur
Two hydraulic shifters with carbon-fibre lever blades
