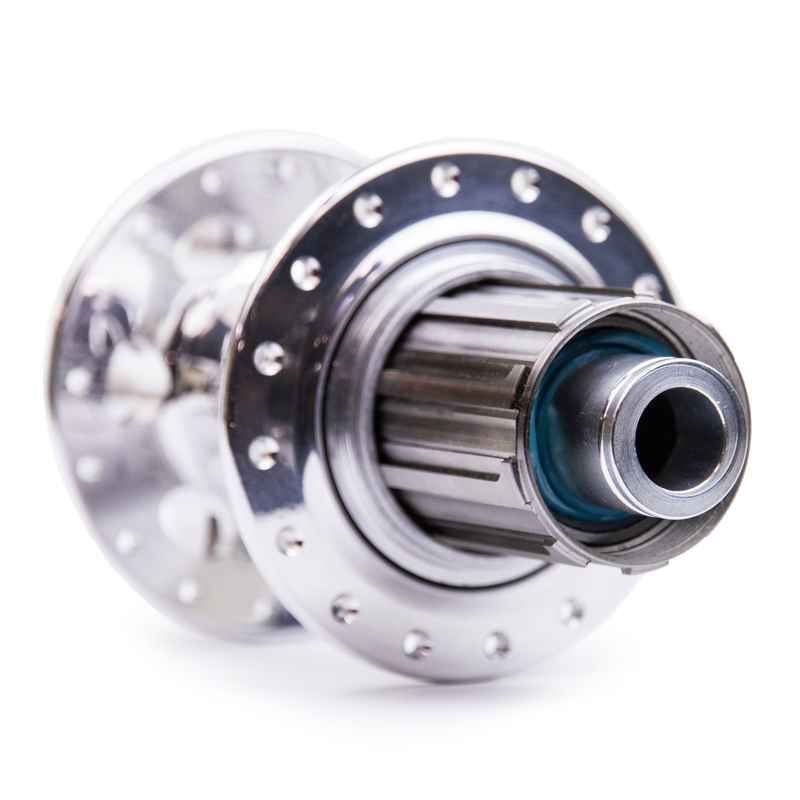

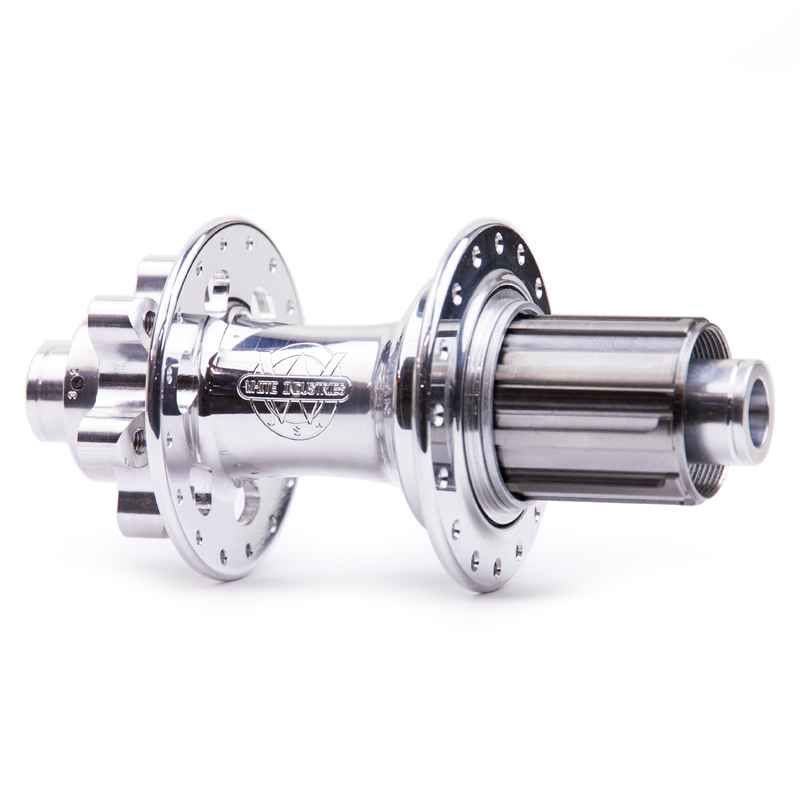

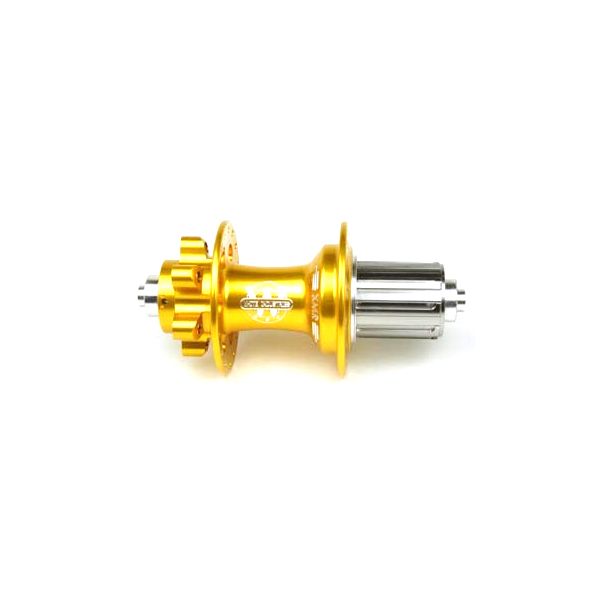

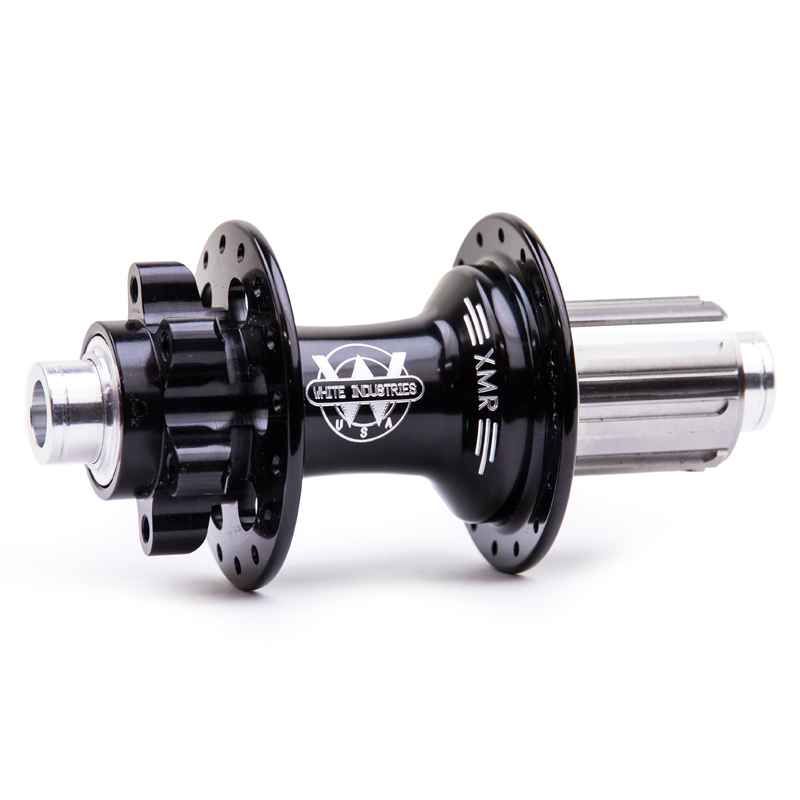

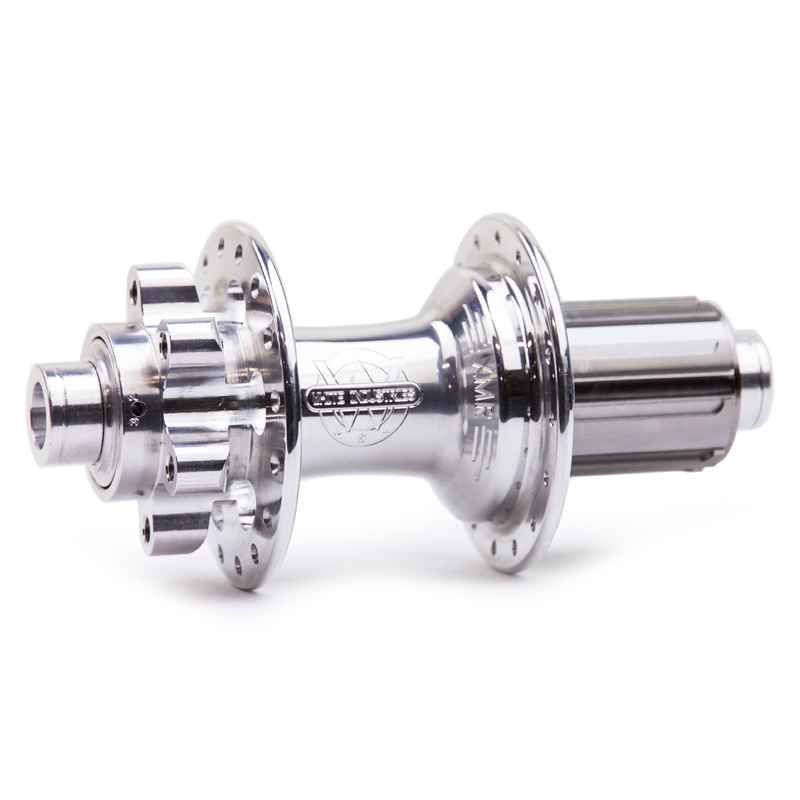

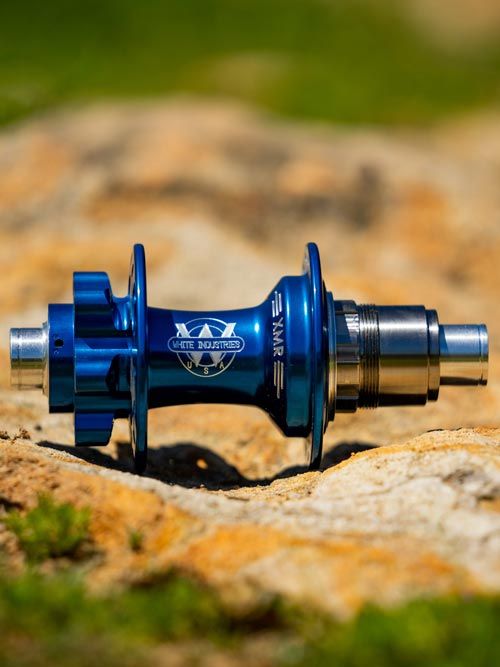

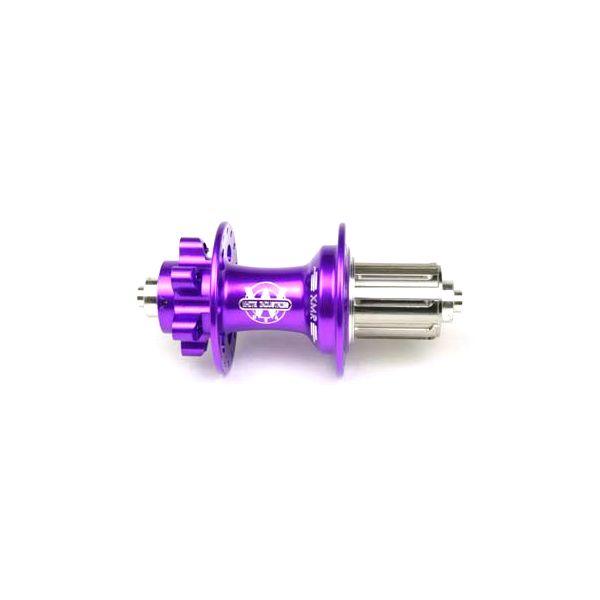

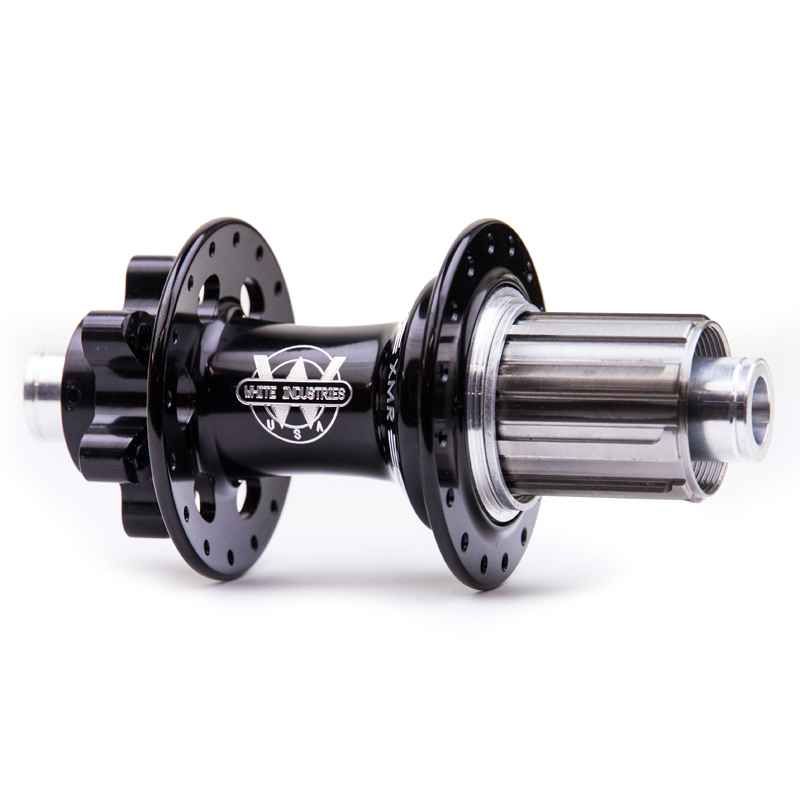

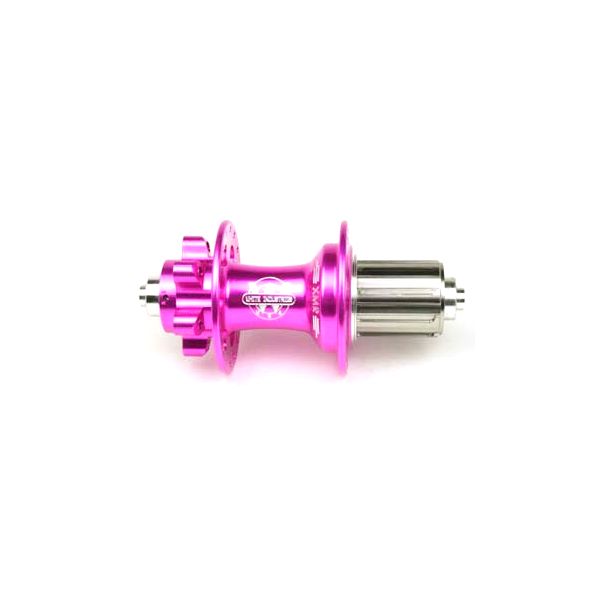

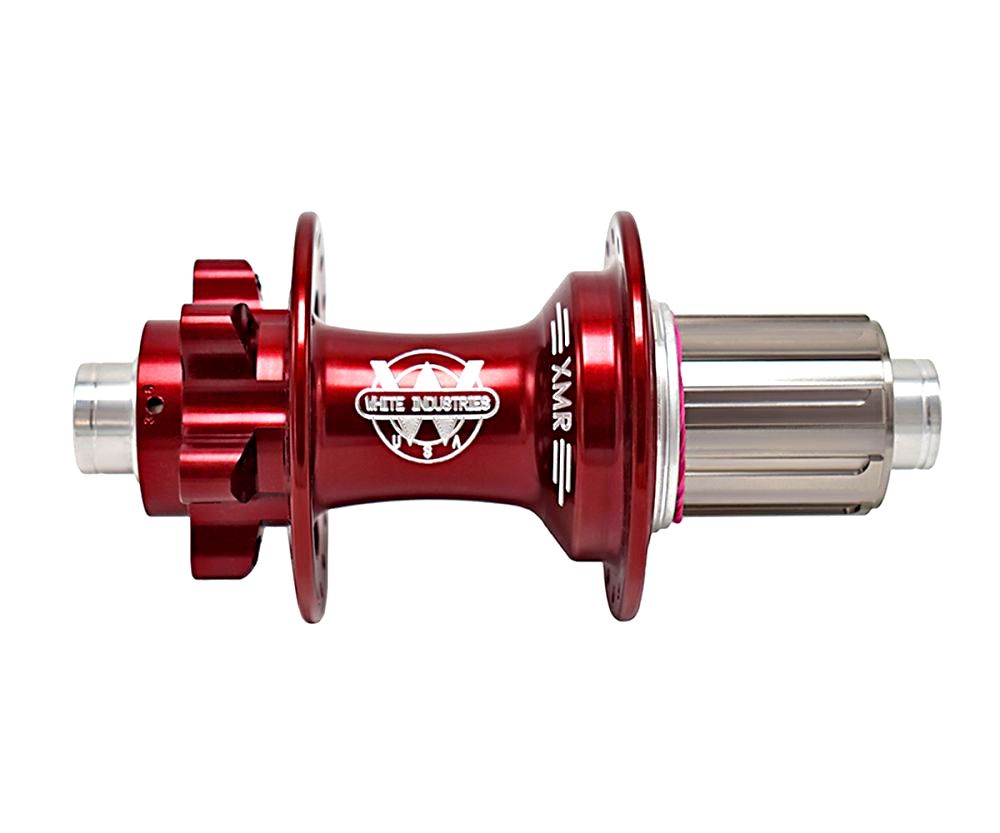

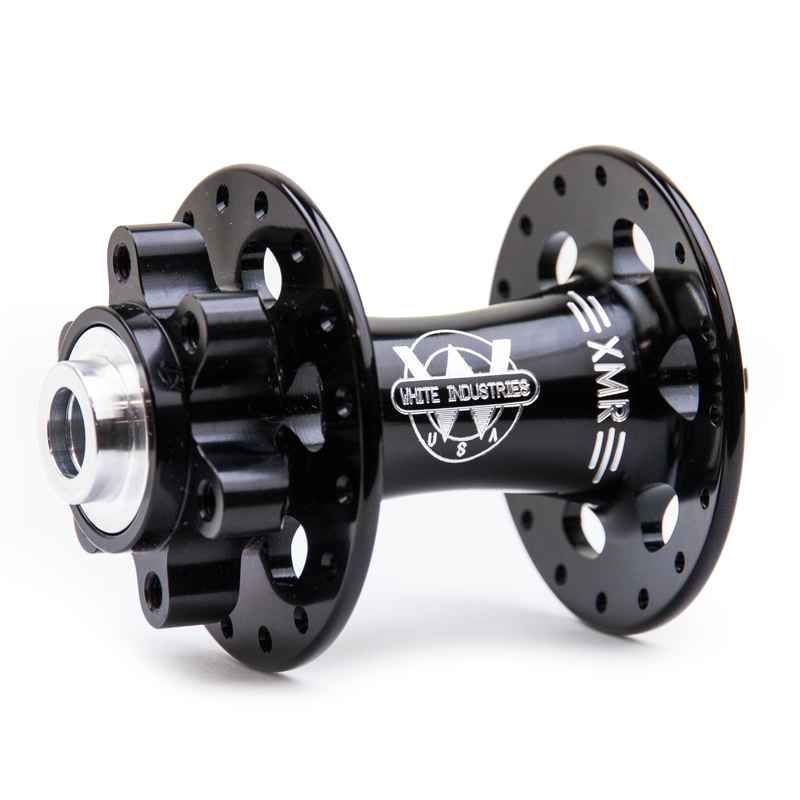

Our XMR+ (Cross/Mountain/Road) Boost hubs are designed around the ISO 6-bolt rotor mounting interface as opposed to the Center Lock mounting standard used on our CLD hub. The Boost spacing allows for wider hub flange spacing which results in better spoke bracing angles. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings, colors, and axle configurations.
A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!
Features
- U.S. made 6061-T6 aluminum
- Enduro bearings
- 6/4 titanium driver
- 3-pawl, 48 point (7.5 degree) engagement
- Easily serviceable/rebuildable

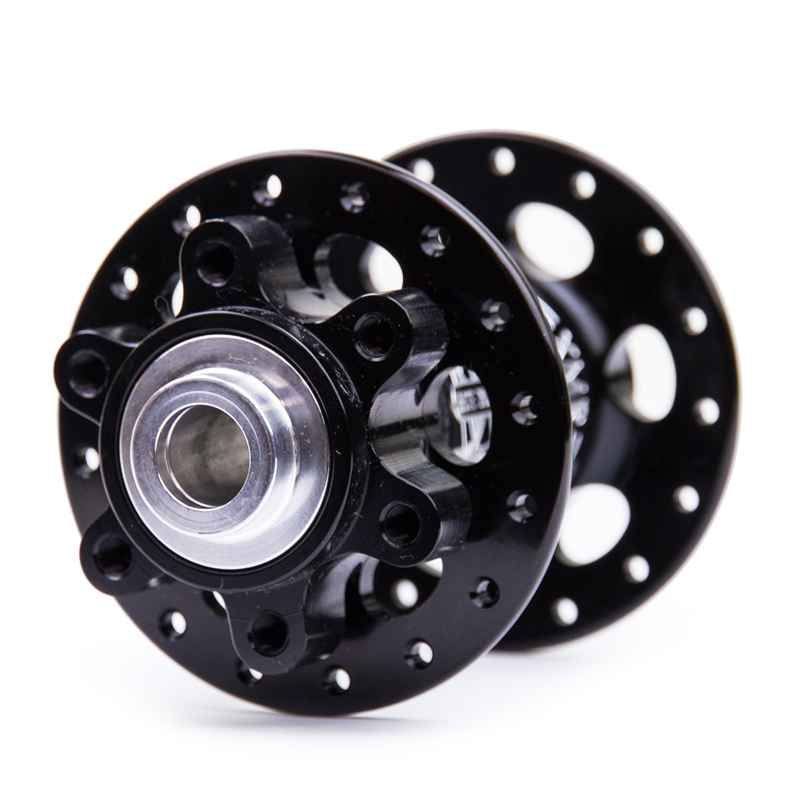

- Compatible with 6-bolt rotors
- Cassette spacer included only on XDR freehub bodies
- Available separately for Shimano HG11 (part# SPACER11)
- Radial spoke lacing not recommended
Specs
- 306g
- 28H, 32H, 36H, and 40H drillings
- Axles:
Bearings
- All Enduro ABEC 5 except 3802W (ABEC 3)
|
Driver Style
|
Left hub shell bearing |
Right hub shell bearing |
Inner driver bearing |
Outer driver bearing
|
|
Shimano Hyperglide 11 speed
|
61902-LLU/LLB |
61902-LLU/LLB |
3802W LLB |
61902-LLU/LLB
|
|
Shimano Micro Spline
|
61902-LLU/LLB |
61902-LLU/LLB |
3802W LLB |
3802W LLB
|
|
SRAM XD/XDR
|
61902-LLU/LLB |
61902-LLU/LLB |
3802W LLB |
3802W LLB
|
|
Campy 11 speed
|
61902-LLU/LLB |
61902-LLU/LLB |
3802W LLB |
3802W LLB
|
Wheelbuilding specs
|
Left flange diameter
|
Right flange diameter |
Center to left flange |
Center to right flange
|
|
60mm
|
60mm |
36.5mm |
22.5mm
|
