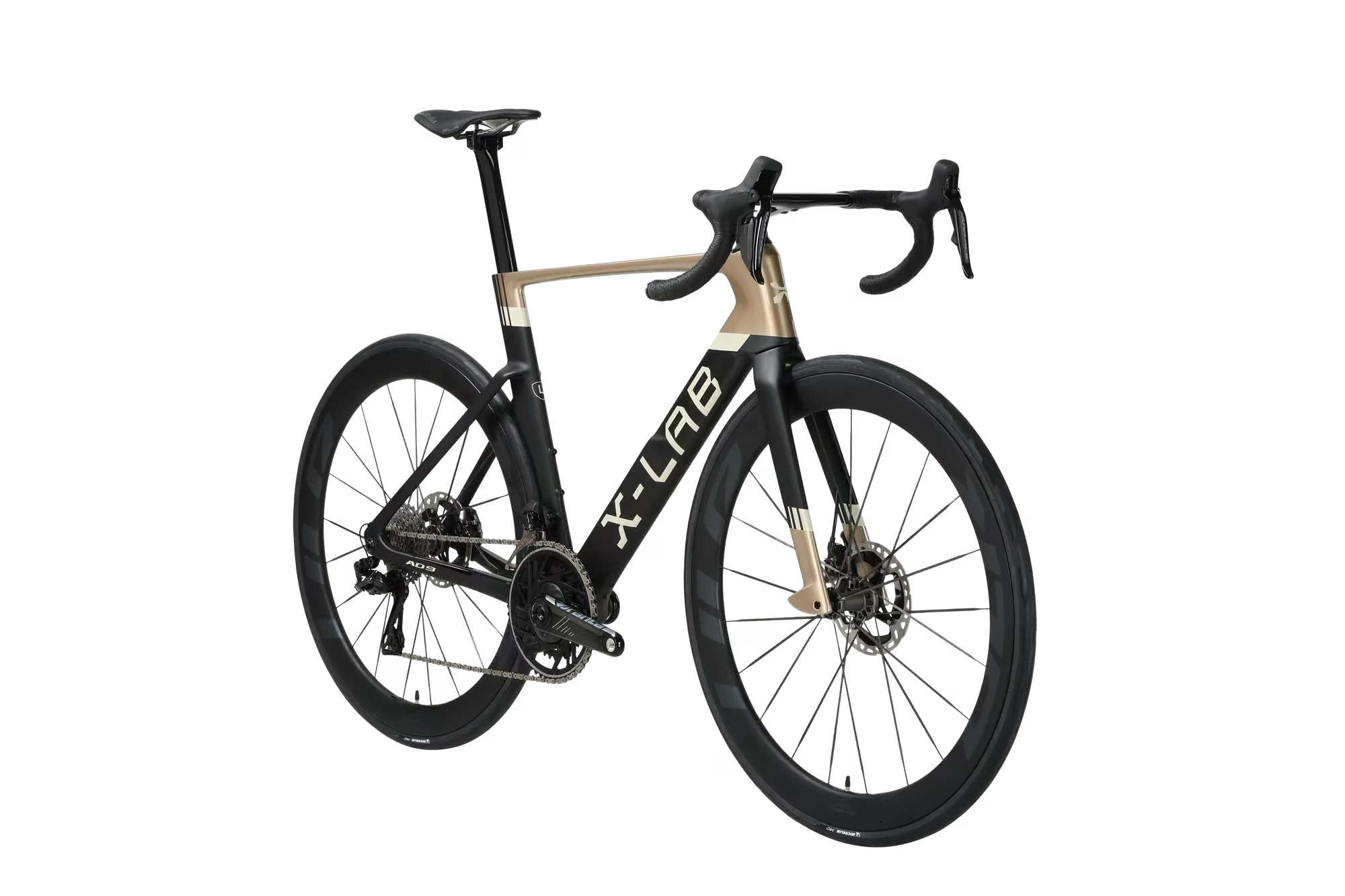

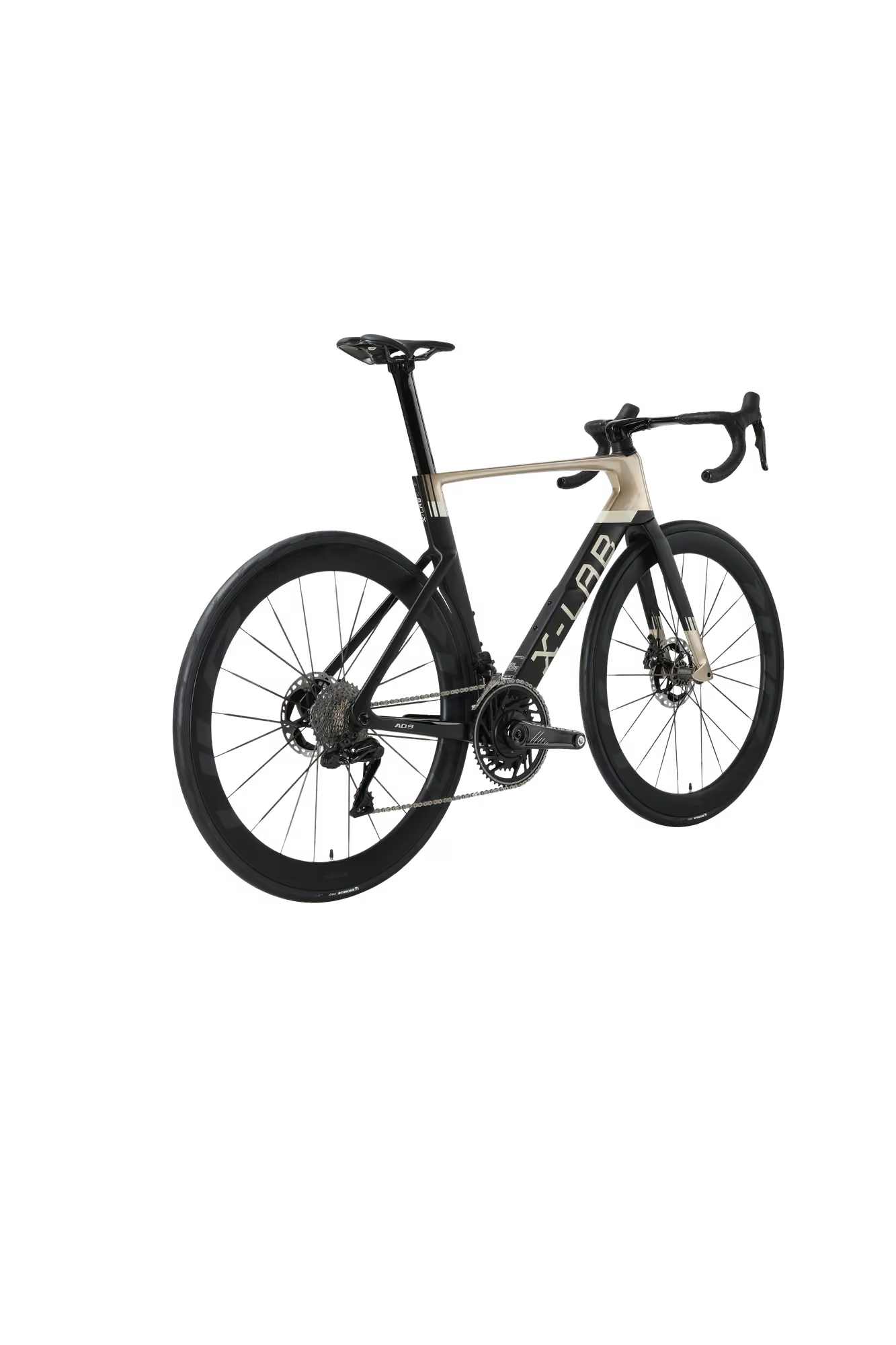

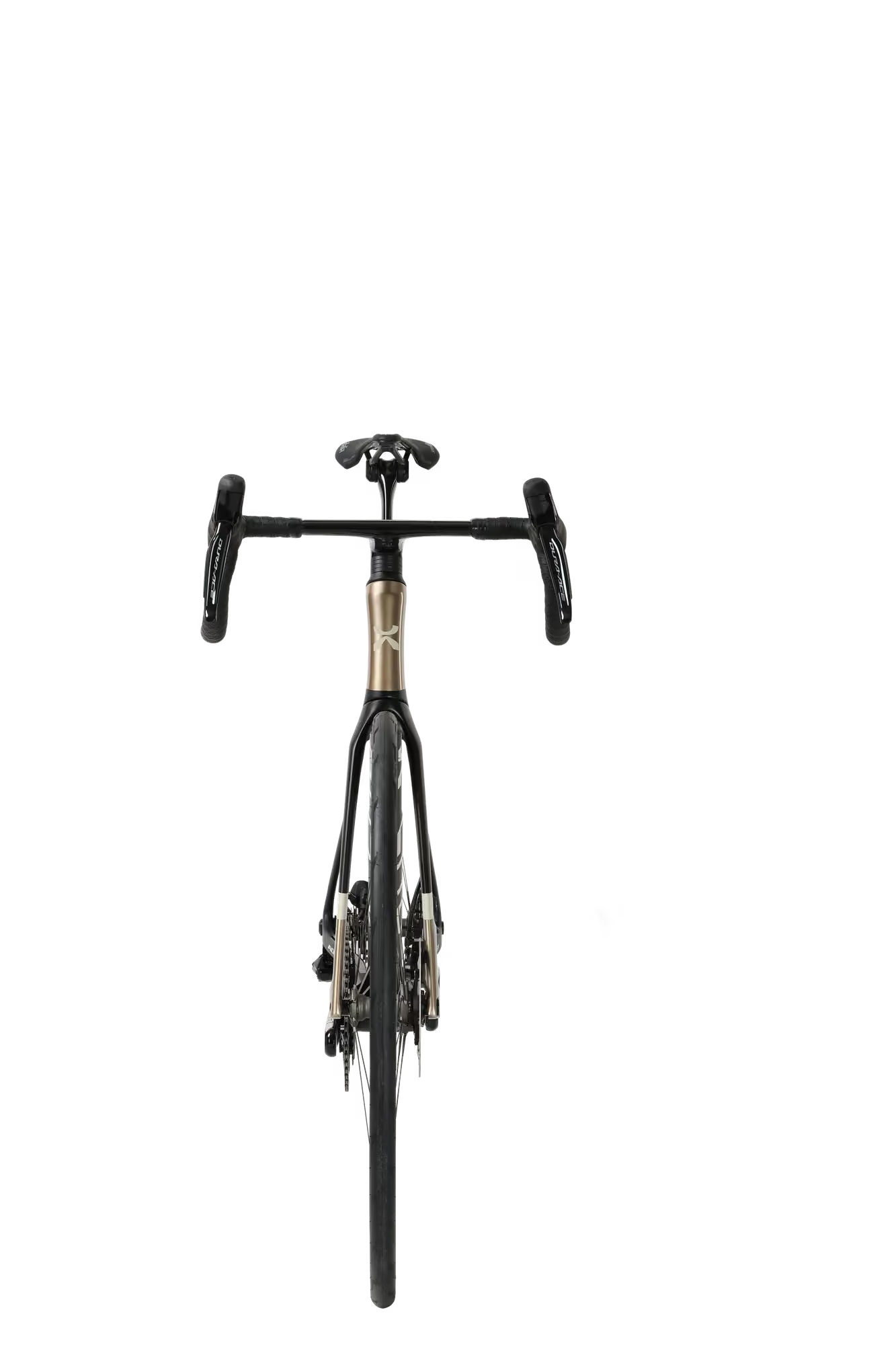

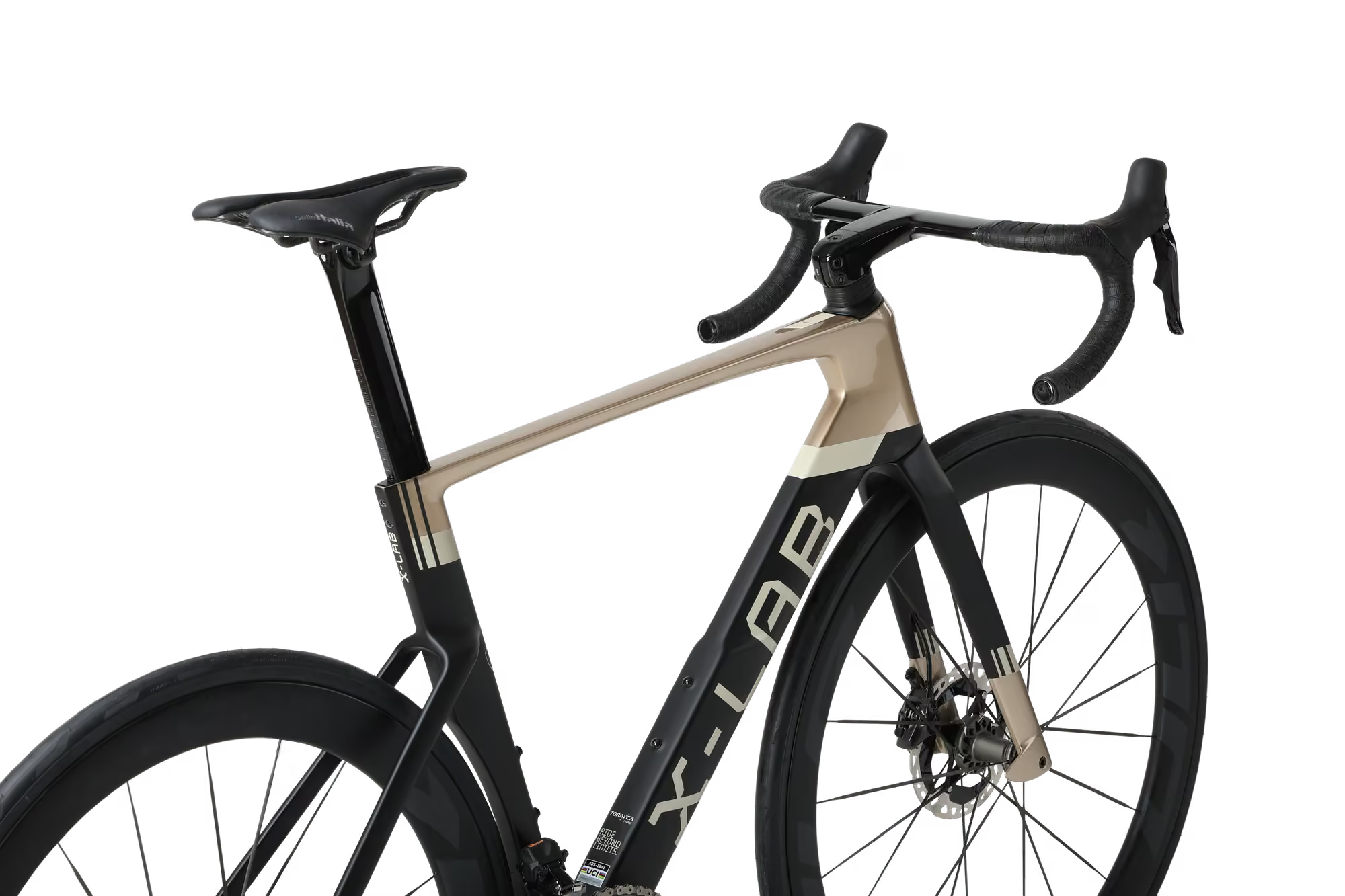

The AD9 is X-LAB's most aerodynamic bike, sharing the same frame as the Astana Pro Team. Wind tunnel tested, it rivals top aero bikes on the market. Perfect for flat sprints and racing.
|
Model
|
AD9
|
|
| Frame |
X-LAB Carbon Frame |
|
| Fork |
X-LAB Carbon Fork, 100x12mm Thru-axle |
|
| Stem |
Branta Carbon Integrated |
|
| Handlebar |
|
|
| Seatpost |
XDS Carbon Seatpost, Aero Shape |
|
| Rear Derailleur |
Shimano Dura-Ace RD-R9250 |
|
| Front Derailleur |
Shimano Dura-Ace FD-R9250 |
|
| Shifter |
Shimano Dura-Ace ST-R9270 |
|
| Brakes |
Shimano Dura-Ace BR-R9270 |
|
| Cassette |
Shimano Dura-Ace CS-R9200, 11-34T |
|
| Crankset |
Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle |
|
| BB |
T47 29mm |
|
| Rotors |
Shimano SM-MT900, F:160mm R:160mm |
|
| Chain |
Shimano CN-M9100 |
|
| Wheelset |
Branta C50 ULR, Carbon Spokes |
|
| Tires |
Michelin Pro 5 700x28C |
|
| Saddle |
Selle Italia SLR Boost, Carbon Rails(Regular) |
|
| Weight |
6.82KG (Size L) |
|

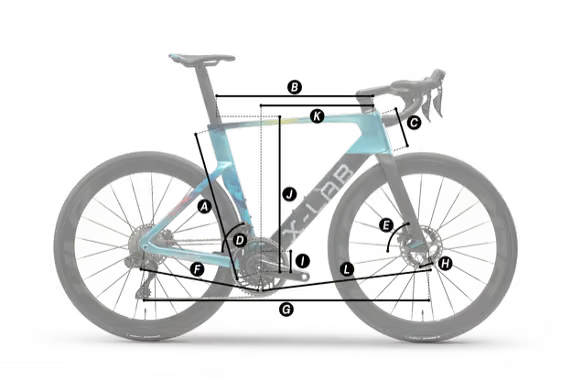

Frame
|
Size |
XS |
S |
M |
L |
XL |
| A |
Seat Tube Length (mm) |
470 |
495 |
515 |
540 |
565 |
| B |
Top Tube Length (mm) |
504 |
523 |
540 |
559 |
579 |
| C |
Head Tube Length (mm) |
105 |
118 |
130 |
148 |
171 |
| D |
Seat Tube Angle (deg) |
75 |
75 |
74 |
74 |
73 |
| E |
Head Tube Angle (deg) |
71 |
72 |
73 |
73 |
73 |
| F |
Chainstay Length (mm) |
410 |
410 |
410 |
410 |
410 |
| G |
Wheelbase (mm) |
970 |
978 |
982 |
992 |
1007 |
| H |
Fork Rake/Offset (mm) |
48 |
48 |
43 |
43 |
43 |
| I |
BB Drop (mm) |
72 |
72 |
70 |
70 |
70 |
| J |
Stack (mm) |
505 |
520 |
534 |
553 |
575 |
| K |
Reach (mm) |
371 |
379 |
387 |
395 |
405 |
| L |
Front Center (mm) |
575 |
582 |
583 |
592 |
607 |
|
Trail (mm) |
67 |
63 |
64 |
61 |
59 |
|
|
|
|
|
|
|
| Components |
Size |
XS |
S |
M |
L |
XL |
|
Stem |
90 |
90 |
100 |
100 |
120 |
|
Handlebar |
360 |
360 |
380 |
380 |
400 |
|
Crankset |
160 |
160 |
165 |
165 |
170 |
|
Seat Post |
300 |
300 |
300 |
300 |
300 |
