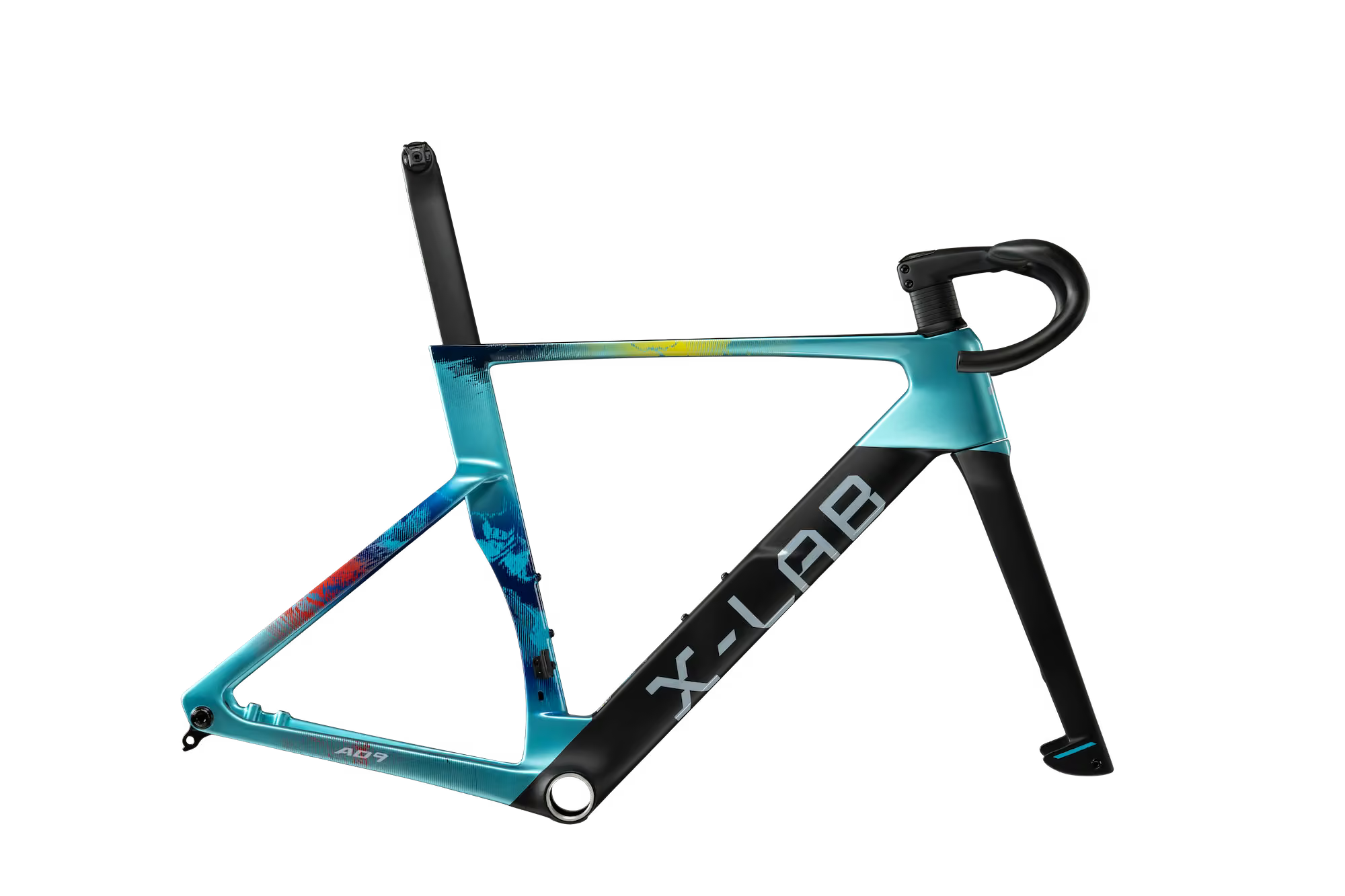

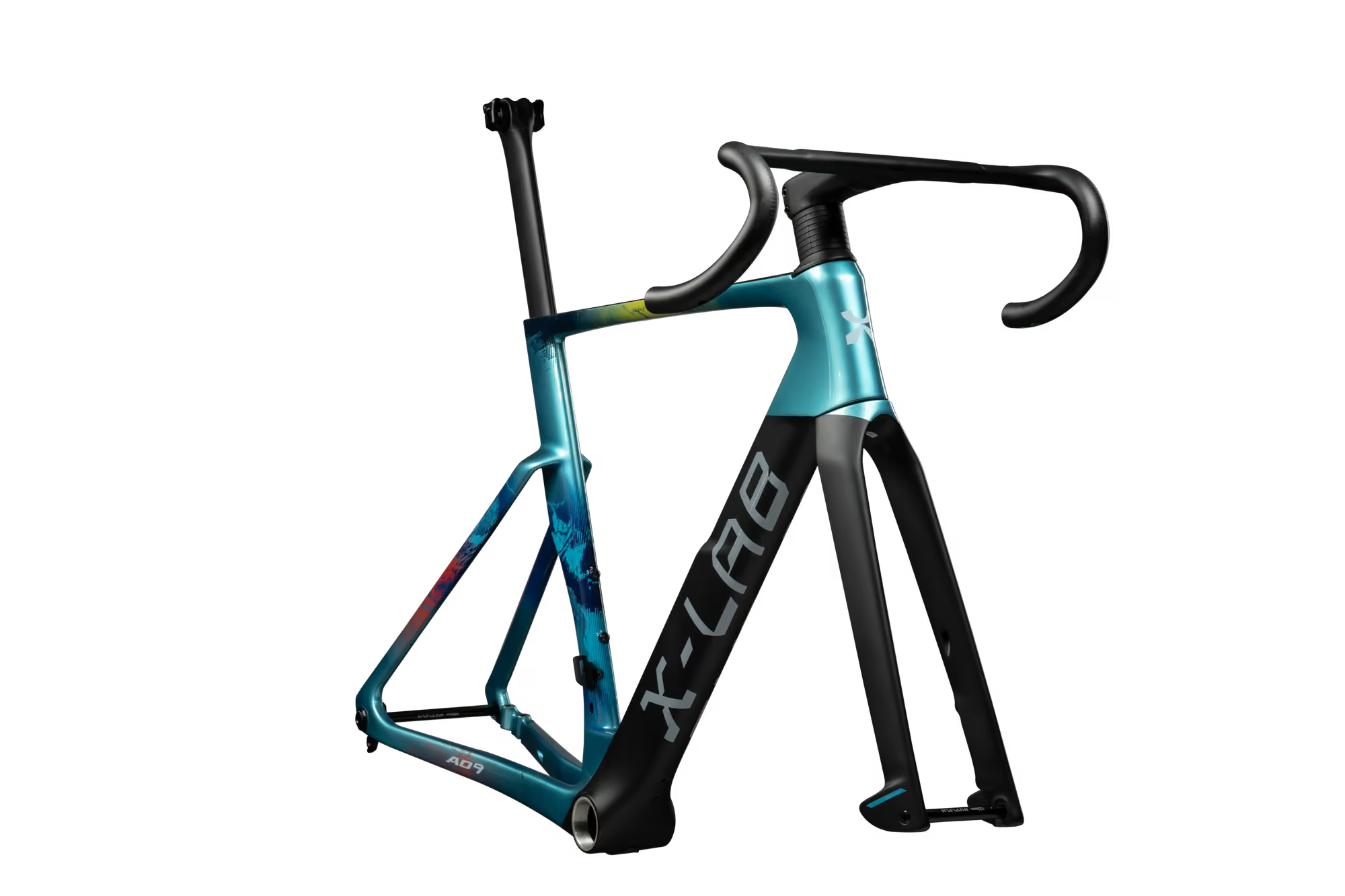

X-LAB AD9 Frameset Team Replica
X-LAB AD9 Frameset Team Replica
Click image to open expanded view
X-LAB AD9 Frameset Team Replica
X-LAB AD9 Frameset Team Replica

X-LAB AD9 Frameset Team Replica

Price
$4,290.99
Size:XS
Only 3 left in stock!

The AD9 is X-LAB's most aerodynamic bike, sharing the same frame as the Astana Pro Team. Wind tunnel tested, it rivals top aero bikes on the market. Perfect for flat sprints and racing with striking Astana team paintwork.




Frame Size XS S M L XL
A Seat Tube Length (mm) 470 495 515 540 565
B Top Tube Length (mm) 504 523 540 559 579
C Head Tube Length (mm) 105 118 130 148 171
D Seat Tube Angle (deg) 75 75 74 74 73
E Head Tube Angle (deg) 71 72 73 73 73
F Chainstay Length (mm) 410 410 410 410 410
G Wheelbase (mm) 970 978 982 992 1007
H Fork Rake/Offset (mm) 48 48 43 43 43
I BB Drop (mm) 72 72 70 70 70
J Stack (mm) 505 520 534 553 575
K Reach (mm) 371 379 387 395 405
L Front Center (mm) 575 582 583 592 607
Trail (mm) 67 63 64 61 59
Components Size XS S M L XL
Stem 90 90 100 100 120
Handlebar 360 360 380 380 400
Seat Post 300 300 300 300 300
