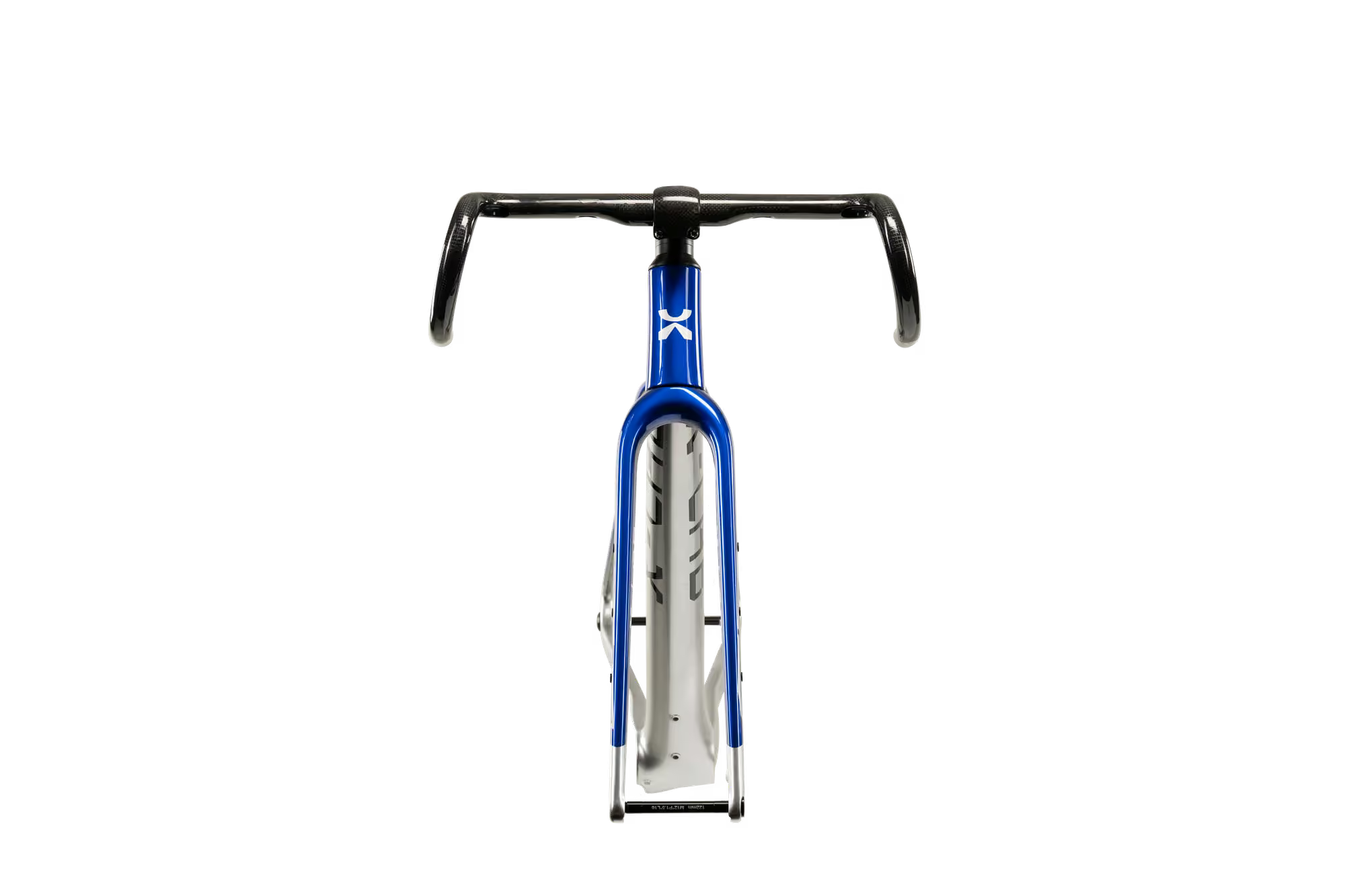

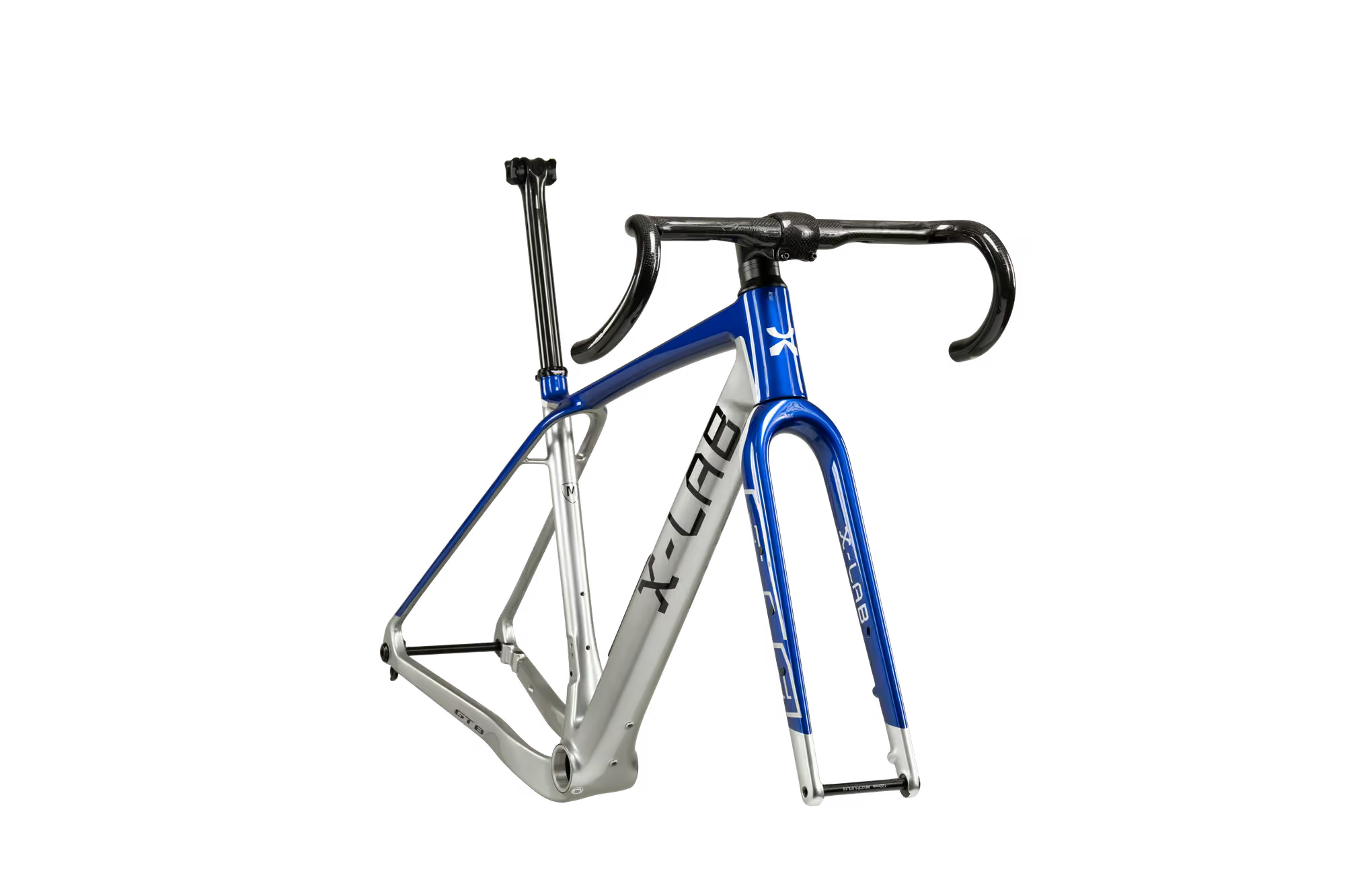

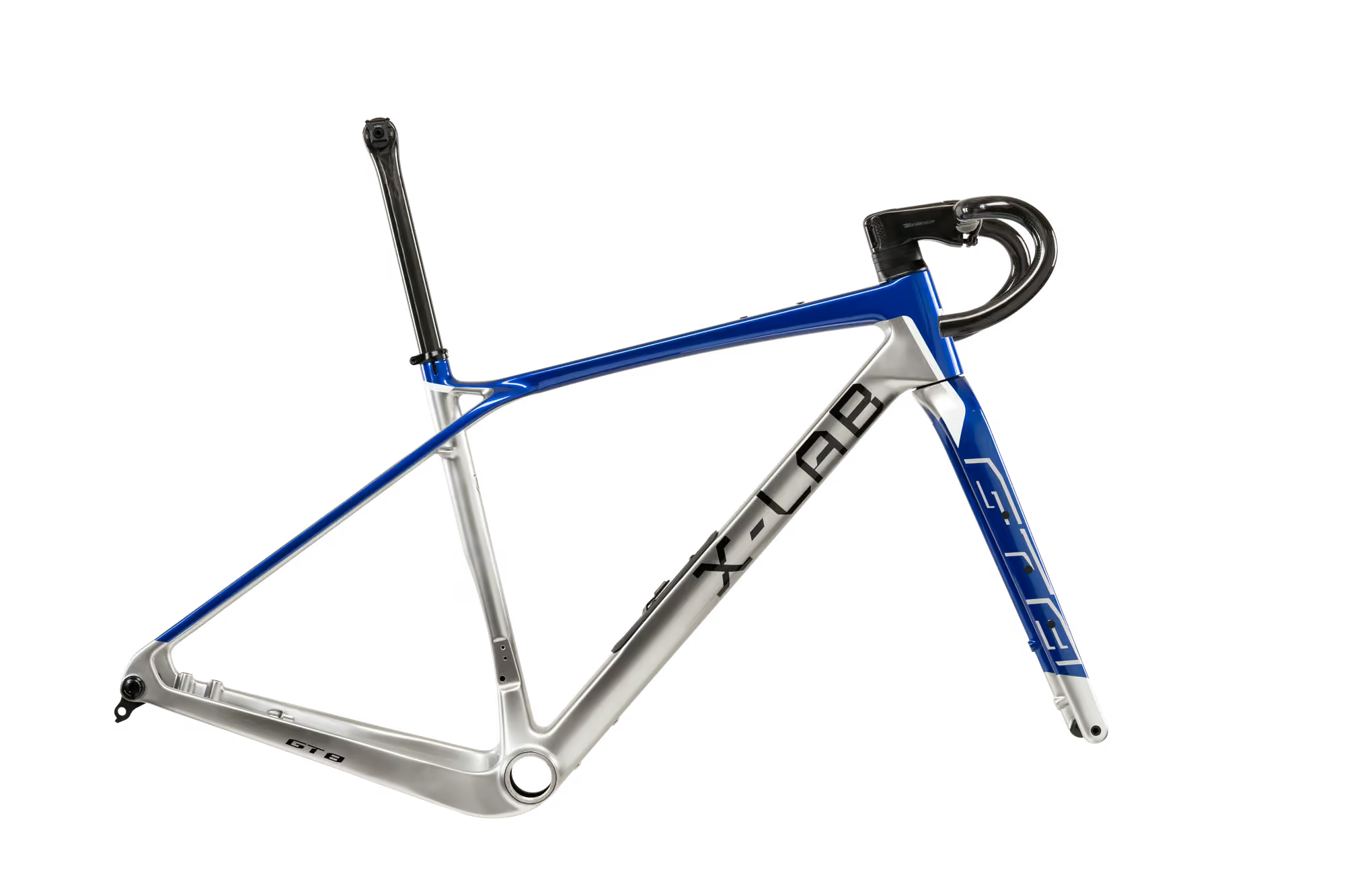

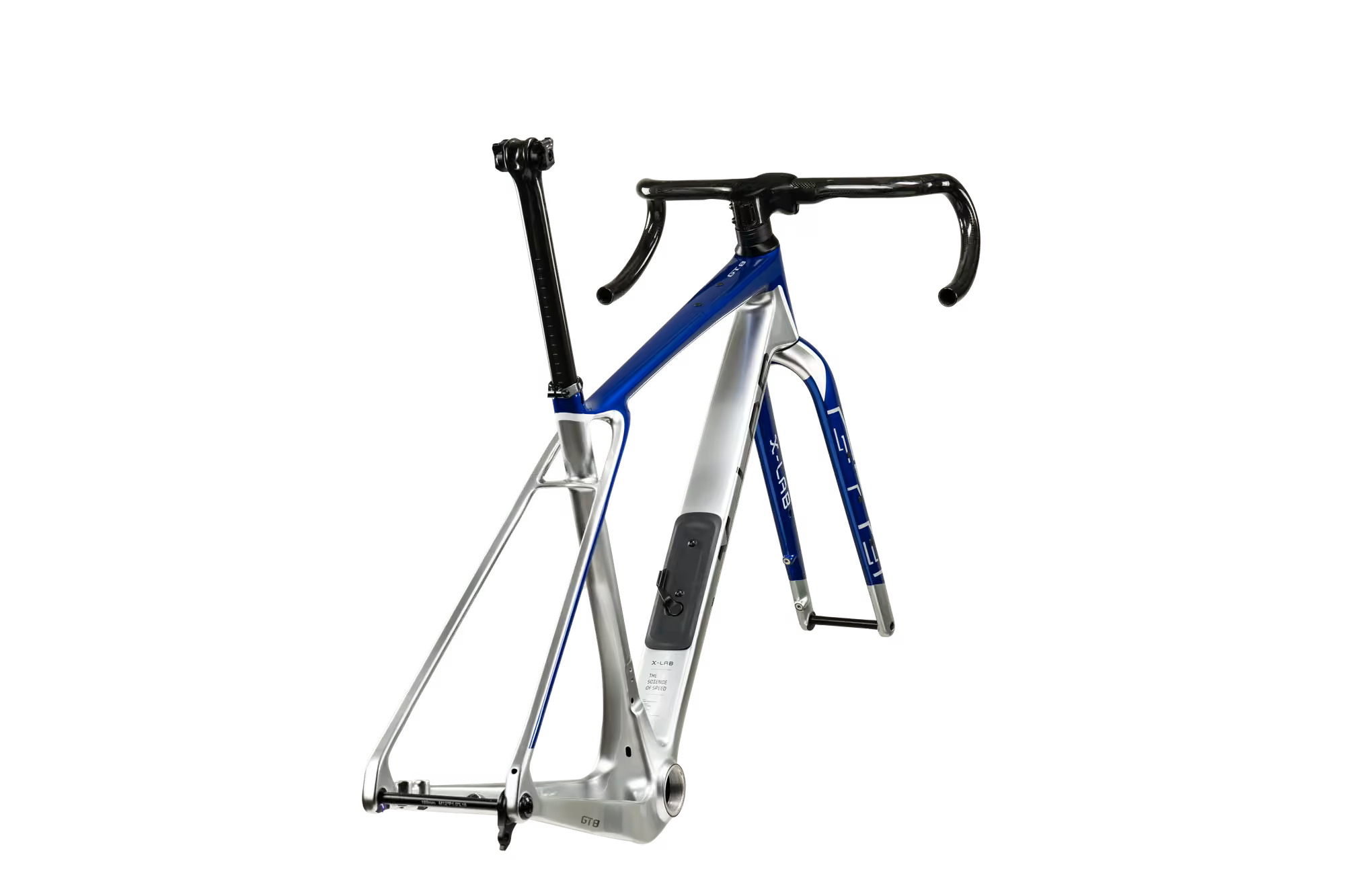

X-LAB GT8 Frameset Slipstream
X-LAB GT8 Frameset Slipstream
X-LAB GT8 Frameset Slipstream
X-LAB GT8 Frameset Slipstream
Click image to open expanded view
X-LAB GT8 Frameset Slipstream
X-LAB GT8 Frameset Slipstream
X-LAB GT8 Frameset Slipstream
X-LAB GT8 Frameset Slipstream

X-LAB GT8 Frameset Slipstream

Price
$3,299.99
Size:M
Only 2 left in stock!

Frame Size XS S M L XL XXL
A Seat Tube Length (mm) 435 447 471 491 532 577
B Top Tube Length (mm) 506 525 547 566 585 605
C Head Tube Length (mm) 80 100 120 140 165 190
D Seat Tube Angle (deg) 76 75 74 74 73 73
E Head Tube Angle (deg) 70 70 71 71 71 71
F Chainstay Length (mm) 435 435 435 435 435 435
G Wheelbase (mm) 1020 1032 1031 1046 1061 1078
H Fork Rake/Offset (mm) 55 55 50 50 50 50
I BB Drop (mm) 80 80 80 80 80 80
J Stack (mm) 519 540 565 584 607 631
K Reach (mm) 370 379 384 392 399 408
L Front Center (mm) 598 610 609 624 638 655
Trail (mm) 75 72 70 70 70 70
Stand-over Height (mm) 715 730 755 773 807 838
Components XS S M L XL XXL
Stem 70 70 80 90 100 100
Handlebar 370/430 370/430 390/450 390/450 410/470 410/470
Seat Post 300 300 350 350 350 350
