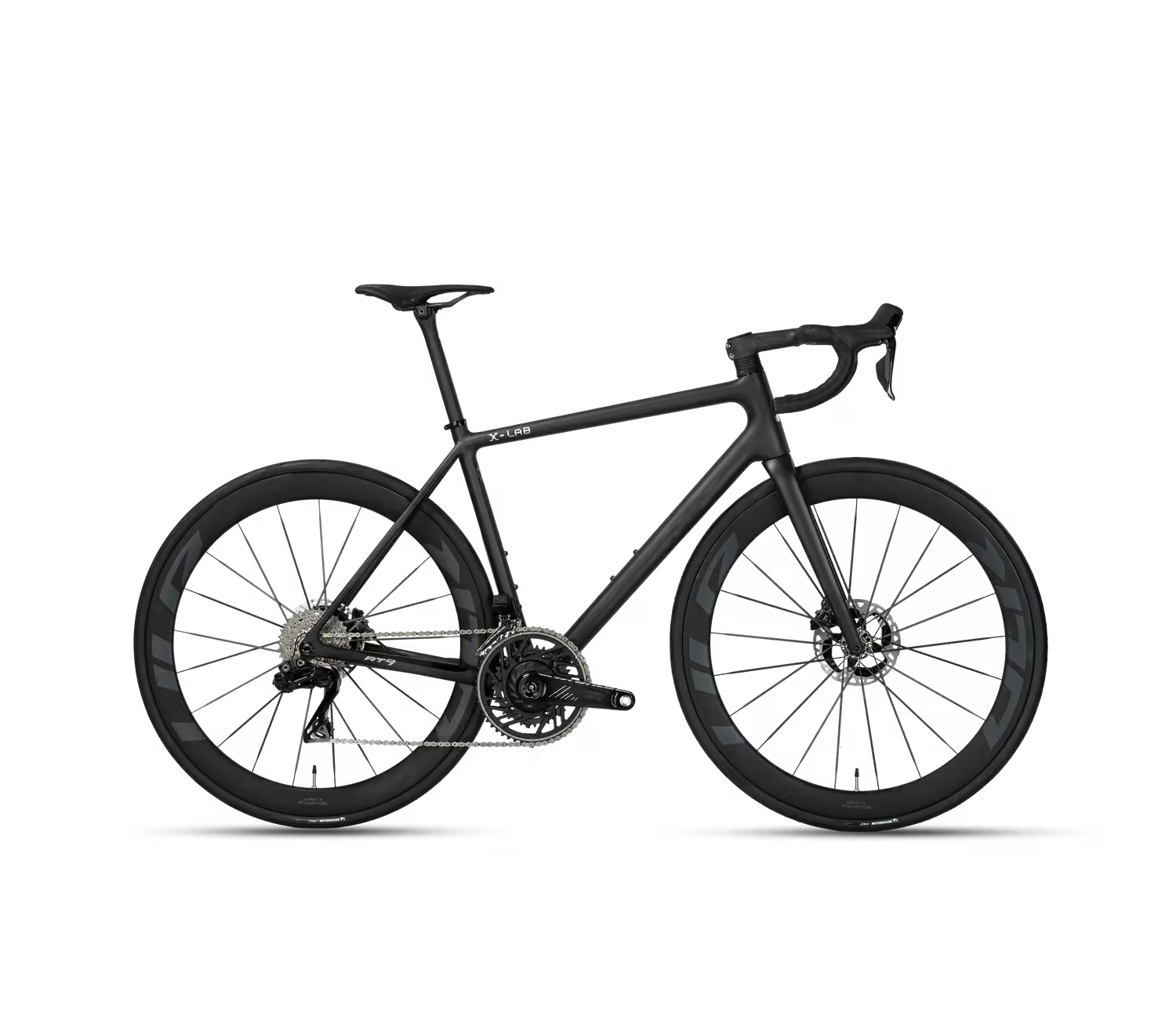

X-LAB RT9 Dura Ace Di2 Shadowbox Black
- Price
- $12,399.99
Size:XS
This item is temporary out of stock
| Model | RT9 |
| Frame | XDS Carbon Frame, Toray T1100, UDH Compatible |
| Fork | XDS Carbon Fork, 100x12mm Thru-axle |
| Stem | Branta Carbon Integrated |
| Handlebar | |
| Seatpost | XDS Carbon Seatpost, 27.2mm |
| Rear Derailleur | Shimano Dura-Ace RD-R9250 |
| Front Derailleur | Shimano Dura-Ace FD-R9250 |
| Shifters | Shimano Dura-Ace ST-R9270 |
| Brakes | Shimano Dura-Ace BR-R9270 |
| Cassette | Shimano Dura-Ace CS-R9200, 11-34T |
| Crankset | Branta Carbon Power Meter Crankset, 52-36T, 29mm Aluminum Spindle, Apple Find My Anti-Theft Technology |
| Bottom Bracket | BSA 29mm |
| Rotors | Shimano RT-MT900, Front: 160mm / Rear: 140mm |
| Chain | Shimano CN-M9100 |
| Wheelset | Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings |
| Tires | Michelin Pro 5 700x28C |
| Saddle | Selle Italia SLR Boost, Carbon Rails |
| Weight | 6.15KG (Size L) |
| Size | XS | S | M | L | |
| A | Seat Tube Length (mm) | 430 | 460 | 480 | 500 |
| B | Top Tube Length (mm) | 498 | 520 | 540 | 563 |
| C | Head Tube Length (mm) | 110 | 120 | 137 | 157 |
| D | Seat Tube Angle (deg) | 75 | 74 | 74 | 74 |
| E | Head Tube Angle (deg) | 71 | 72 | 73 | 74 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 973 | 977 | 978 | 992 |
| H | Fork Rake/Offset (mm) | 50 | 50 | 44 | 44 |
| I | BB Drop (mm) | 74 | 74 | 72 | 72 |
| J | Stack (mm) | 510 | 525 | 543 | 567 |
| K | Reach (mm) | 362 | 372 | 384 | 396 |
| L | Front Center (mm) | 574 | 578 | 578 | 592 |
| Trail (mm) | 68 | 61 | 59 | 56 |
| Components | XS | S | M | L | |
| Stem | 80 | 100 | 100 | 120 | |
| Handlebar | 360 | 380 | 380 | 400 | |
| Crankset | 160 | 160 | 165 | 165 | |
| Seat Post | 300 | 300 | 350 | 350 |
| Size | XS | S | M | L | |
| Recommended Rider Height | 148 cm – 158 cm 4'10" - 5'2" |
158 cm – 168 cm 5'2" - 5'6" |
168 cm – 176 cm 5'6" - 5'9" |
176 cm – 183 cm 5'9" - 6'0" |
