X-LAB SP3 Morning Moss
X-LAB SP3 Morning Moss
Click image to open expanded view
X-LAB SP3 Morning Moss
X-LAB SP3 Morning Moss

X-LAB SP3 Morning Moss

Price
$1,399.99
Size:S
This item is temporary out of stock

Model SP3
Frame XDS Aluminum Frame
Fork XDS Carbon Fork, 100x12mm Thru-axle
Stem Branta Aluminum Stem, 90mm, 0 Degree Rise
Handlebar Branta X6 Aluminum Handlebar, 25mm Rise, 9 Degree Back Sweep
Seatpost XDS Aluminum 31.6mm Seatpost, 400mm Length, 12mm Setback
Rear Derailleur Shimano Cues RD-U6020, 10-Speed
Front Derailleur /
Shifter Shimano Cues SL-U6000-10R
Brakes Branta C515, 3 Finger Lever, 2 Pistons Caliper
Cassette CS-M6010C 10-speed, 11-40T
Crankset Branta Alloy Square Taper Crankset, 170mm, 40T, Narrow-wide Teeth
Bottom Bracket Square Taper
Rotors Branta AR14, F:160mm R:160mm
Chain TEC GT-Glide
Wheelset Branta A27 Regular, Aluminum Rim
Tires Branta R240, 700x40C, 30TPI
Saddle Branta SRX+
Phone holder Quadlock Adaptor
Weight 10.71KG (Size L)
Max. Tire Clearance 700x45mm, w/full-wrapped fender

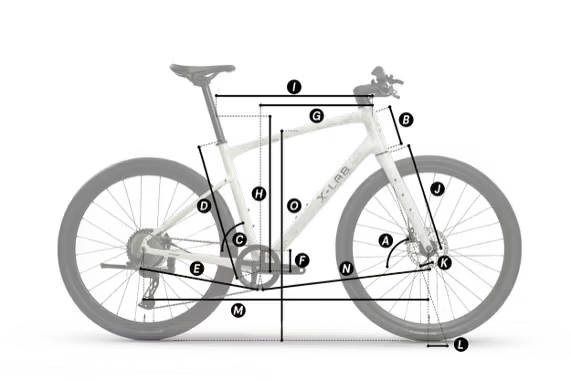

Frame Size S M L XL
A Head Tube Angle (deg) 70 71 72 73
B Head Tube Length (mm) 140 165 190 215
C Seat Tube Angle (deg) 75 74 74 73
D Seat Tube Length (mm) 405 457 508 559
E Chainstay Length (mm) 445 445 445 445
F BB Drop (mm) 72 72 72 72
G Reach (mm) 390 405 420 425
H Stack (mm) 563 589 615 643
I Top Tube Length (mm) 546 574 602 622
J Fork Length(mm) 398 398 398 398
K Fork Rake/Offset (mm) 46 46 46 46
L Trail (mm) 79 75 71 64
M Wheelbase (mm) 1054 1072 1089 1092
N Front Center (mm) 619 637 654 657
O Stand-over Height (mm) 727 768 809 850
Components Size S M L XL
Handlebar 640 640 660 660
